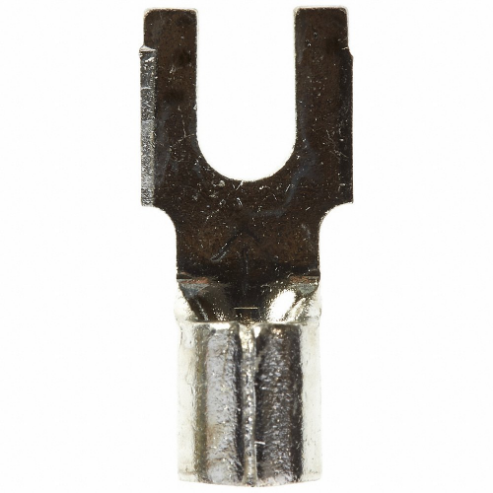

3M 7100164110 80610049977 / 02008 / M10-6FBK Fork Terminal, Yellow, #6 Stud Size
Item: AB9KVCModel: 7100164110Cross Ref: 2DRF3 / 80610049977 / 02008 / M10-6FBK
7 In Stock
Ships within 2 days via
10.00% off
€319.99 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fork Terminal |
| Barrel Inside Diameter | 0.135" |
| Barrel Length | 1/4" |
| Clearance | 0.29" |
| Color Code | Bare |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Dimension E | 0.54" |
| Insulation Color | Yellow |
| Insulation Color | Bare |
| Insulation Type | Non Insulated |
| Max. Temp. | 347°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 0.73" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Beveled Mouth Offers Easy Insertion Of Wires |
| Stud Diameter | 0.138" |
| Stud Size | #6 |
| Terminal Connection | Crimp |
| Terminal Shape | Block Fork |
| Terminal Type | Block |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.32" |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.85 |
| Ship width (cm) | 2.54 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Variants
| Product | Model | Insulation Color | Stud Size | Wire Size | Tongue Width | Min. Wire Size | Terminal Type | Max. Voltage | Insulation Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010399914 | Red | #8 | 22 AWG to 18 AWG | 0.3" | 22 AWG | Block | 600V | Non Insulated | 100 | €108.99 | |
 |
7100044405 | Blue | #8 | 16 AWG to 14 AWG | 0.3" | 16 AWG | Block | 600V | Non Insulated | 100 | €128.87 | |
 |
7010399923 | Blue | #10 | 16 AWG to 14 AWG | 0.3" | 16 AWG | Block | 600V | Non Insulated | 100 | €110.57 | |
 |
7010351132 | Yellow | #8 | 12 AWG to 10 AWG | 0.32" | 12 AWG | Block | 600V | Non Insulated | 50 | €73.79 | |
 |
7010399939 | Yellow | #10 | 12 AWG to 10 AWG | 0.32" | 12 AWG | Block | 600V | Non Insulated | 50 | €72.93 | |
 |
7100163948 | Red | #8 | 22 AWG to 18 AWG | 0.3" | 22 AWG | Block | 600V | Non Insulated | 1000 | €569.46 | |
 |
7100164112 | Yellow | #10 | 12 AWG to 10 AWG | 0.32" | 12 AWG | Block | 600V | Non Insulated | 500 | €345.24 |
