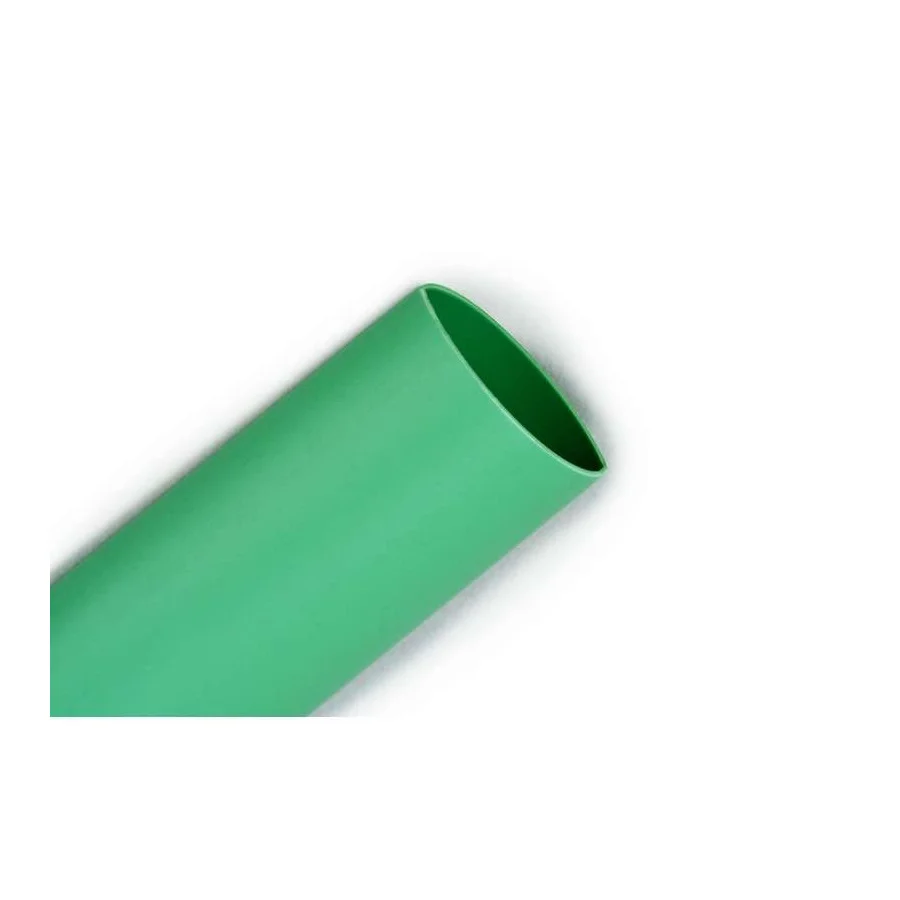

3M 7010297617 80610646020 / 56642 / FP0.750GN200'L Heat Shrink Tubing, Thin Wall, Flexible, 200 Ft. Length, Polyolefin
Item: CH6PHEModel: 7010297617Cross Ref: 2JMW3 / 80610646020 / 56642 / FP0.750GN200'L
In Stock
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,035.16 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Green |
| Dielectric Strength | 600V |
| Features | Balances Electrical, Physical And Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals And Connections |
| Flame Retardant | Yes |
| Inside Dia. After Shrinking | 0.38" |
| Inside Dia. Before Shrinking | 3/4" |
| Length | 200 ft. |
| Length (straight Wireway) | 200 ft. |
| Material | Polyolefin |
| Max. Temp. | 275°F |
| Min. Shrink Temp. | 212°F |
| Min. Temp. | -67°F |
| Package Style | Cut To Length |
| Shrink Ratio | 2:1 |
| Shrink Temp. | 212" |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing I.d. Before Shrinking | 3/4" |
| Shrink Tubing Length | 200 ft. |
| Shrink Tubing Properties | Acid And Alkali Resistant, Solvent Resistant |
| Shrink Tubing Wall Type | Thin Wall |
| Temp. | -67°F to +275°F |
| Tubing Wall Type | Thin Wall |
| Use With Wire Size | 4 AWG to 3/0 AWG |
| Wall Thickness After Shrinking | 0.03" |
| Wall Type | Thin |
Shipping Info:
| Ship weight (kg) | 7.47 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Material | Inside Dia. Before Shrinking | Inside Dia. After Shrinking | Wall Thickness After Shrinking | Use With Wire Size | Shrink Tubing Length | Length (straight Wireway) | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80610752141 | Black | Polyolefin | 0.09" | 0.05" | 0.02" | 28 AWG to 26 AWG | - | - | 1 | €126.81 | |
|
80610752323 | Black | Polyolefin | 1/4" | 0.13" | 0.03" | 16 AWG to 12 AWG | - | - | 1 | €119.24 | |
|
80610752448 | Black | Polyolefin | 1/2" | 1/4" | 0.03" | 6 AWG to 1 AWG | - | - | 1 | €167.89 | |
 |
7100029960 | Black | Polyolefin | 0.06" | 0.03" | 0.02" | 28 AWG to 26 AWG | 1000 ft. | 1000 ft. | 3 | €2,400.00 | |
|
7010350157 | Green | Flexible Polyolefin | 0.093" | 0.046" | 0.02" | - | 500 ft. | 500 ft. | 1 | €709.20 | |
 |
7010396212 | White | Polyolefin | 0.13" | 0.06" | 0.02" | - | 500 ft. | 500 ft. | 3 | €1,383.30 | |
 |
7100083087 | Black | Polyolefin | 2" | 1" | 0.05" | 500 mcm to 1000 mcm | 4 ft. | 4 ft. | 24 | €605.63 |
