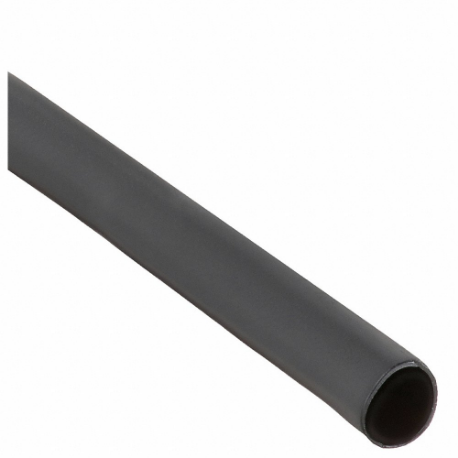

3M 80610752448 Heat Shrink Tube 100Ft 6-1 AWG BK
Item: AD8YKDModel: 80610752448Cross Ref: 4NKR2
7 In Stock
Ships within 2 days via
5.00% off
€159.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Black |
| Dielectric Strength | 600V |
| Features | Balances Electrical, Physical And Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals And Connections |
| Flame Retardant | Yes |
| I.d. After Shrinking | 1/4" |
| I.d. Before Shrinking | 1/2" |
| Length | 100 ft. |
| Material | Polyolefin |
| Max. Temp. Rating | 275°F |
| Max. Voltage | 600V |
| Min. Shrink Temp. | 212°F |
| Min. Temp. Rating | -67°F |
| Package Style | Cut To Length |
| Shrink Ratio | 2:1 |
| Shrink Temp. | 212 Degrees F |
| Shrink Temp. | 212°F |
| Shrink Tubing Properties | Acid And Alkali Resistant, Solvent Resistant |
| Temp. Range | -67°F to +275°F |
| Tubing Wall Type | Thin Wall |
| Use With Wire Size | 6 AWG to 1 AWG |
| Wall Thickness After Shrinking | 0.03" |
| Wall Type | Thin Wall |
| Wire Range | 6 AWG to 1 AWG |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 21.34 |
| HS code | 3926909980 |
| Country of Origin | US |
Product Variants
| Product | Model | I.d. After Shrinking | Color | I.d. Before Shrinking | Wall Thickness After Shrinking | Shrink Ratio | Min. Shrink Temp. | Dielectric Strength | Package Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
80610752141 | 0.05" | Black | 0.09" | 0.02" | 2:1 | 212°F | 600V | Cut To Length | 1 | €126.81 | |
|
80610752323 | 0.13" | Black | 1/4" | 0.03" | 2:1 | 212°F | 900V | Cut To Length | 1 | €119.24 | |
 |
7100029960 | 0.03" | Black | 0.06" | 0.02" | 2:1 | 212°F | 900V | Cut To Length | 3 | €2,400.00 | |
|
7010350157 | 0.046" | Green | 0.093" | 0.02" | - | - | - | - | 1 | €709.20 | |
 |
7010396212 | 0.06" | White | 0.13" | 0.02" | - | - | 600V | Cut To Length | 3 | €1,383.30 | |
 |
7100083087 | 1" | Black | 2" | 0.05" | 2:1 | 212°F | 600V | Individual Pieces | 24 | €605.63 | |
 |
7010305757 | 1/2" | Red | 1" | 1/25" | 2:1 | 212°F | 600V | Individual Pieces | 24 | €268.33 |
