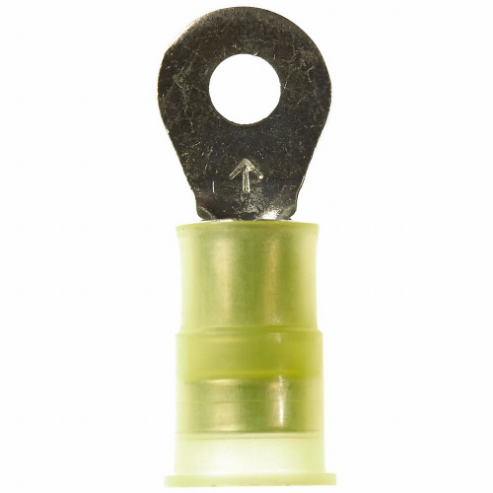

3M 7000133296 80611458300 / 58685 / MNG10-8RX Ring Terminal, Nylon, Yellow, #8 Stud Size, 12 AWG to 10 AWG Wire Size Range
Item: AD2NCZModel: 7000133296Cross Ref: 3RWL5 / 80611458300 / 58685 / MNG10-8RX
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Barrel Length | 1/4" |
| Barrel Style | Butted |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Hole Spacing | 0.29" |
| Insulation | Nylon |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 1000V , 600V |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1.03" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Butted |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination | Crimp Termination Only |
| Tongue Length | 0.78" |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.38" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 2.62 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Insulation Color | Max. Voltage | Stud Size | Color | Color Code | Seam | Max. Wire Size | Tongue Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7000133295 | Yellow | 1000V | #6 | - | Yellow | Brazed | 10 AWG | 0.38" | 50 | €141.41 | |
 |
7100164002 | Blue | 1000V | #8 | - | Blue | Brazed | 14 AWG | 0.33" | 1000 | €894.30 | |
 |
7100164003 | Blue | 1000V | #8 | - | Blue | Brazed | 14 AWG | 0.31" | 1000 | €1,101.36 | |
 |
7100164004 | Blue | 1000V | #10 | - | Blue | Brazed | 14 AWG | 0.31" | 1000 | €979.83 | |
 |
7000132247 | Blue | 1000V | #10 | Blue | Blue | Brazed | 14 AWG | 0.33" | 1000 | €1,144.79 | |
 |
7100163930 | Red | 1000V | 1/4" | - | Red | Brazed | 18 AWG | 0.47" | 1000 | €1,309.58 | |
 |
7100163931 | Red | 1000V | 3/8" | - | Red | - | 18 AWG | 0.56" | 1000 | €1,342.44 |
