3M Scotchlok Nylon Insulated with Insulation Grip Ring Tongues
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1| Style | Model | Insulation Color | Max. Voltage | Stud Size | Overall Length | Seam | Color Code | Tongue Width | Max. Wire Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

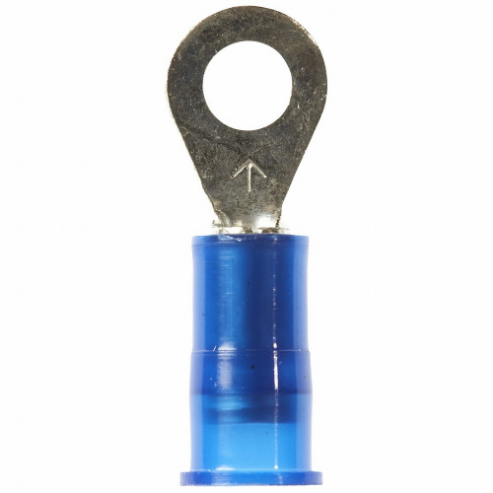

| A | 7100164002 | Blue | 600V | #8 | 0.91" | Brazed | Blue | 0.33" | 14 AWG | 1000 | €894.30 | |

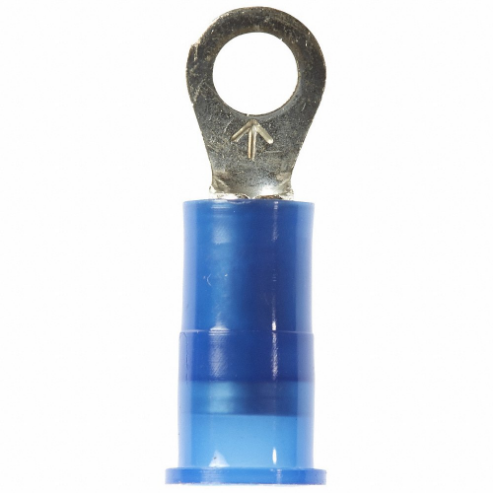

| B | 7100164000 | Blue | 600V | #6 | 0.81" | Brazed | Blue | - | - | 1000 | €921.06 | |

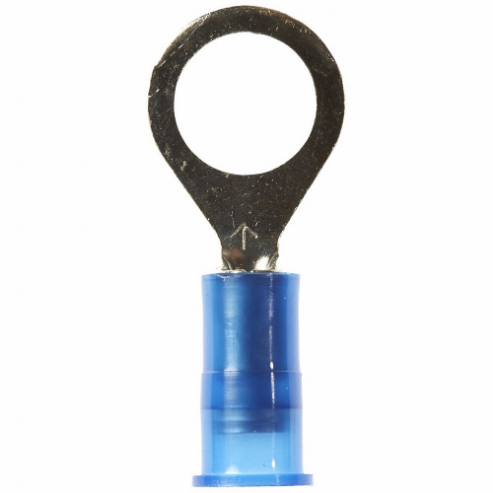

| C | 7100164005 | Blue | 600V | 5/16" | 1.09" | Brazed | Blue | 0.47" | 14 AWG | 1000 | €1,385.88 | |

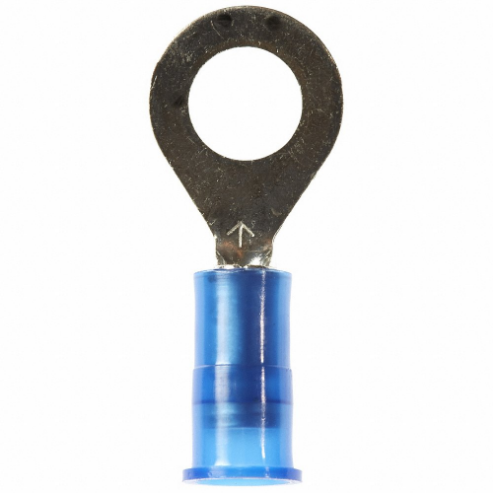

| D | 7000132248 | Blue | 600V | 1/4" | 1.09" | Brazed | Blue | 0.47" | 14 AWG | 1000 | €1,326.60 | |

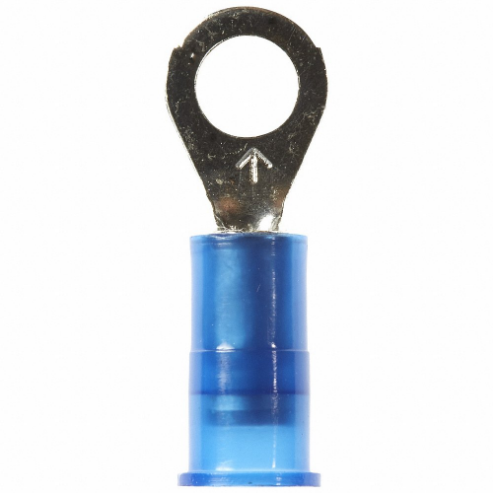

| E | 7000132247 | Blue | 600V | #10 | 0.91" | Brazed | Blue | 0.33" | 14 AWG | 1000 | €1,144.79 | |
| F | 7000133281 | Blue | 600V | #6 | 0.81" | Brazed | Blue | 1/4" | 14 AWG | 100 | €258.78 | |

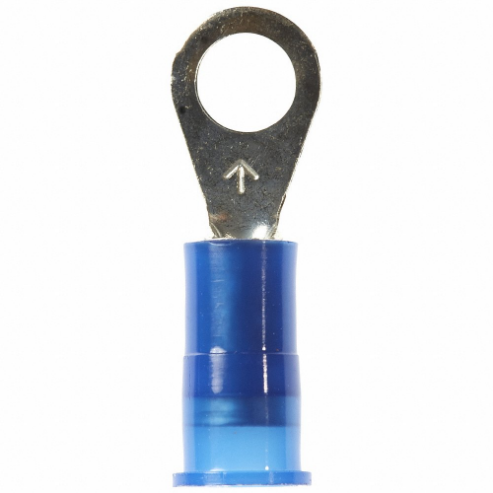

| G | 7100164004 | Blue | 600V | #10 | 0.94" | Brazed | Blue | 0.31" | 14 AWG | 1000 | €979.83 | |
| H | 7000133415 | Blue | 600V | #8 | 0.91" | Brazed | Blue | 0.33" | 14 AWG | 100 | €259.12 | |

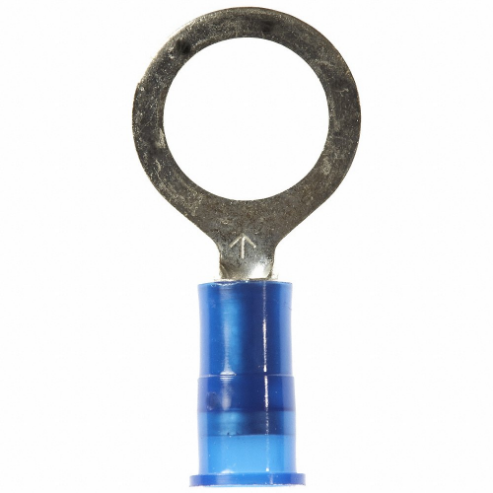

| I | 7100164006 | Blue | 600V | - | 1.14" | Brazed | Blue | 0.56" | 14 AWG | 1000 | €1,309.58 | |
| F | 7000133283 | Blue | 600V | 1/4" | 1.09" | Brazed | Blue | 0.47" | 14 AWG | 100 | €243.93 | |
| J | 7000133416 | Blue | 600V | #10 | 1.03" | Brazed | Blue | 0.33" | 14 AWG | 100 | €236.20 | |

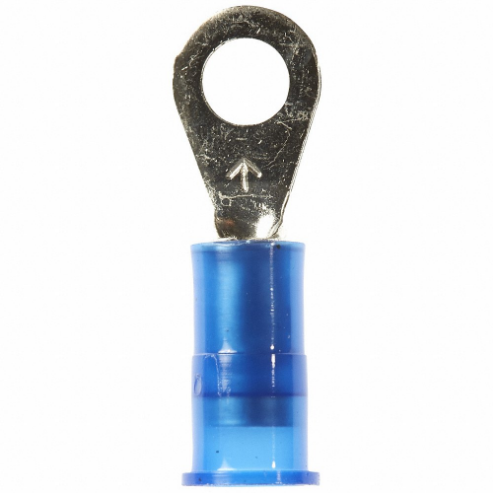

| K | 7100164003 | Blue | 600V | #8 | 0.94" | Brazed | Blue | 0.31" | 14 AWG | 1000 | €1,101.36 | |
| L | 7100163927 | Red | 600V | #6 | 0.79" | Brazed | Red | 1/4" | 18 AWG | 1000 | €894.30 | |

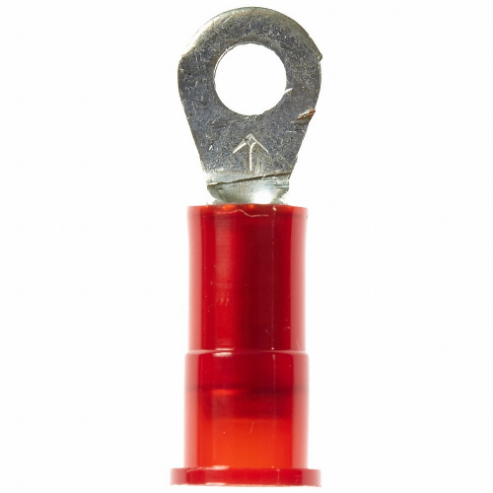

| M | 7100163926 | Red | 600V | #4 | 0.79" | Brazed | Red | 1/4" | 18 AWG | 1000 | €1,144.79 | |
| N | 7100163929 | Red | 600V | #10 | 23/25" | Brazed | Red | 0.31" | 18 AWG | 1000 | €921.06 | |
| O | 7000133271 | Red | 600V | #6 | 0.79" | Brazed | Red | 1/4" | 18 AWG | 100 | €257.74 | |
| P | 7000133272 | Red | 600V | #10 | 23/25" | Brazed | Red | 0.31" | 18 AWG | 100 | €267.93 | |

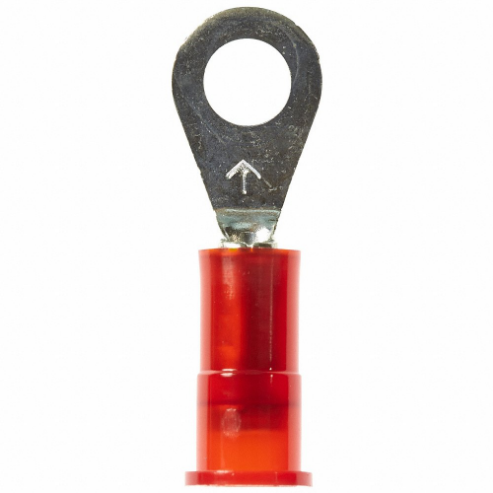

| Q | 7100163928 | Red | 600V | #8 | 23/25" | Brazed | Red | - | - | 1000 | €894.30 | |

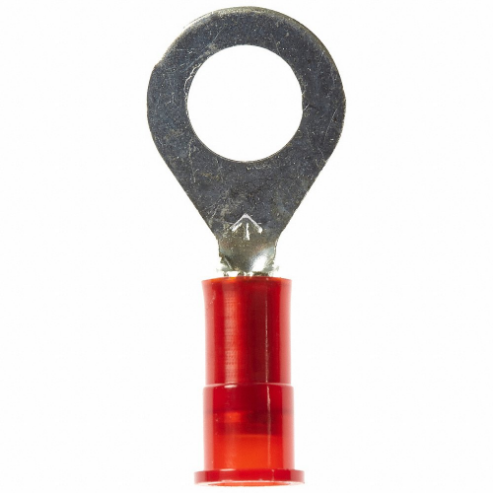

| R | 7100163930 | Red | 600V | 1/4" | 1.07" | Brazed | Red | 0.47" | 18 AWG | 1000 | €1,309.58 | |
| S | 7000133407 | Red | 600V | 1/4" | 1.07" | Brazed | Red | 0.47" | 18 AWG | 100 | €290.16 | |

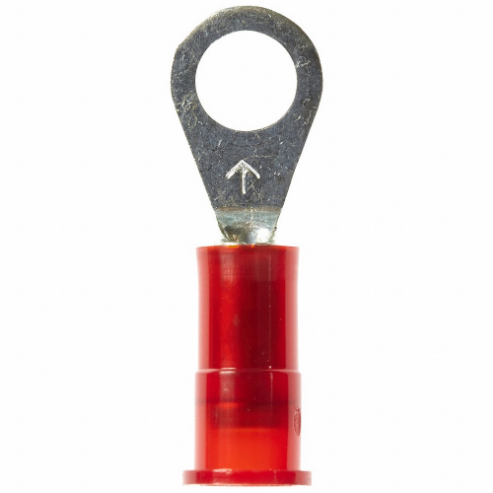

| T | 7000133273 | Red | 600V | #8 | 23/25" | Brazed | Red | 0.31" | 18 AWG | 100 | €270.26 | |

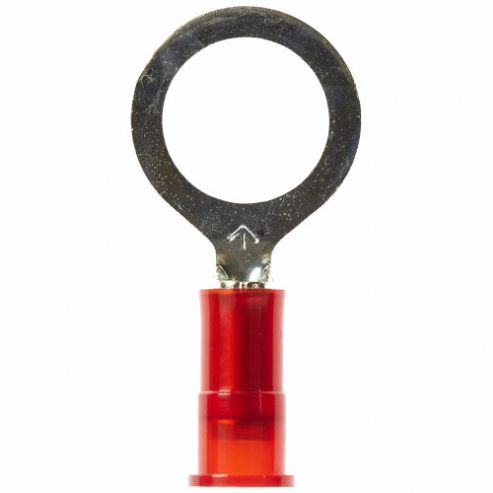

| U | 7100163931 | Red | 600V | 3/8" | 1 3/25" | - | Red | 0.56" | 18 AWG | 1000 | €1,342.44 | |

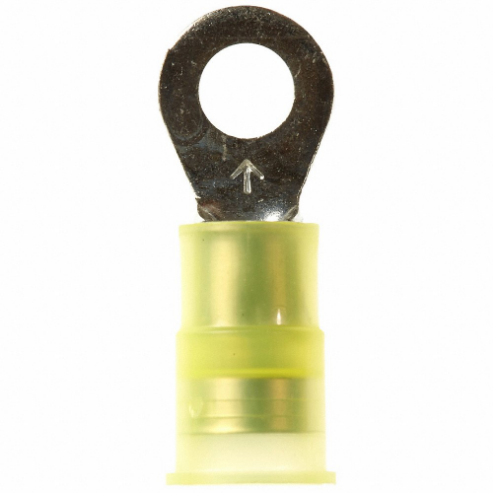

| V | 7000133297 | Yellow | 600V | #10 | 1.03" | Butted | - | 0.38" | 10 AWG | 50 | €141.41 | |

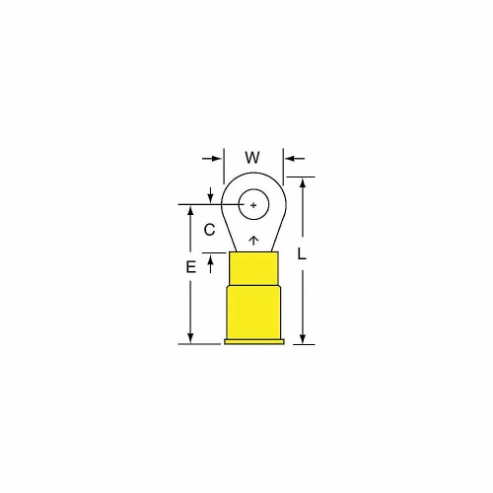

| W | 7100164090 | Yellow | 600V | #8 | 1.03" | Brazed | Yellow | 0.38" | 10 AWG | 500 | €812.59 | |

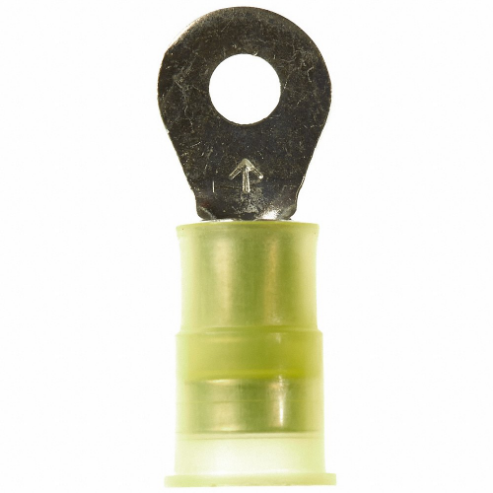

| X | 7000133296 | Yellow | 600V | #8 | 1.03" | Brazed | Yellow | 0.38" | 10 AWG | 50 | €141.41 | |

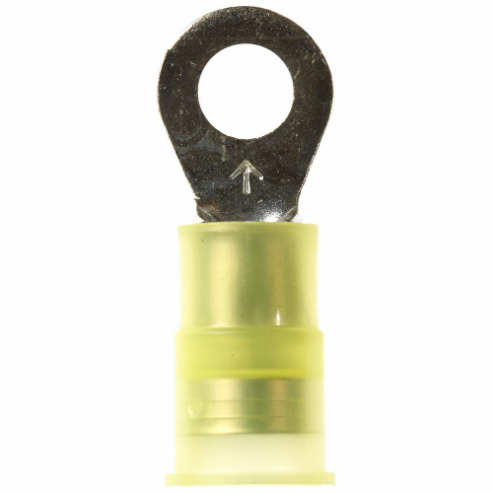

| Y | 7000132262 | Yellow | 600V | #10 | 1.03" | Brazed | Yellow | 0.38" | 10 AWG | 500 | €692.67 | |

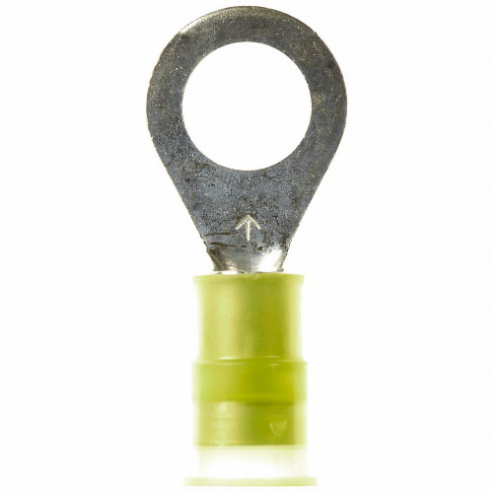

| Z | 7000057717 | Yellow | 600V | 5/16" | 1.26" | Brazed | Yellow | 0.53" | 10 AWG | 500 | €878.81 | |
| A1 | 7000132263 | Yellow | 600V | 1/4" | 1.26" | Brazed | Yellow | 0.53" | 10 AWG | 500 | €733.31 | |
| B1 | 7000132264 | Yellow | 600V | 3/8" | 1.26" | Brazed | Yellow | 0.54" | 10 AWG | 500 | €764.77 | |
| C1 | 7100164089 | Yellow | 600V | #6 | 1.03" | Brazed | Yellow | 0.38" | 10 AWG | 500 | €743.42 | |

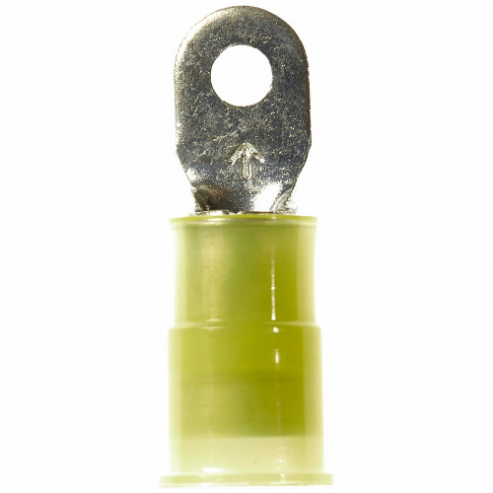

| D1 | 7100164088 | Yellow | 600V | #4 | 0.98" | Brazed | Yellow | 0.28" | 10 AWG | 500 | €782.45 | |

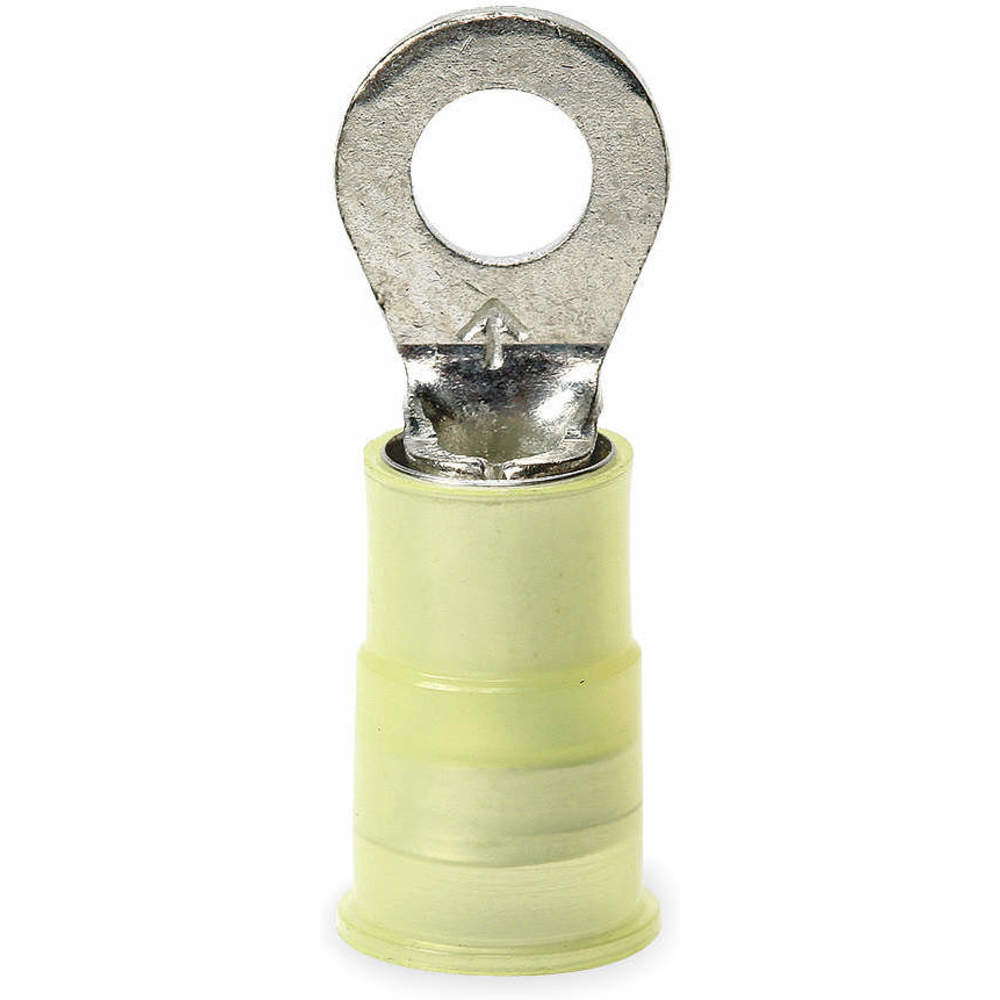

| E1 | 7000133308 | Yellow | 600V | 1/4" | 1.26" | Brazed | Yellow | 0.53" | 10 AWG | 50 | €148.80 | |
| F1 | 7000133295 | Yellow | 600V | #6 | 1.03" | Brazed | Yellow | 0.38" | 10 AWG | 50 | €141.41 |
