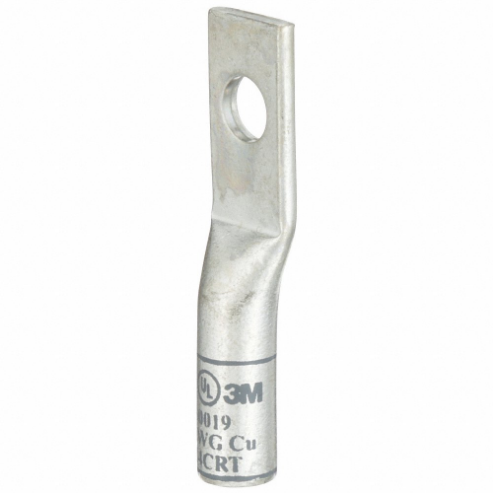

3M 7000031389 30019 One-Hole Lug Compression Connector, 4 AWG Max Wire Size, 1/4 Inch Stud Size
Item: AB9XBDModel: 7000031389Cross Ref: 2FYN1 / 30019
7 In Stock
Ships within 2 days via
10.00% off
€460.56 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Copper 1-Hole Lug |
| Barrel Id | 0.24" |
| Barrel Inside Dia. | 6/25" |
| Barrel Length | Short |
| Barrel Outside Diameter | 0.34" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Cable Size | 4 AWG |
| Center Of Hole To Center Of Hole | 3/8" |
| Center Of Hole To End Of Pad | 0.37" |
| Color Code | Gray |
| Connection Orientation | Straight |
| Connector Description | One Hole |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 8, 95 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 4 AWG |
| For Stud Size | 1/4" |
| For Use With | Copper Conductor Only |
| For Wire Type | Stranded |
| Hole Center To End | 0.37" |
| Inspection Hole | No |
| Length | 1.94" |
| Length (straight Wireway) | 1.94" |
| Lug Type | Compression Lugs |
| Material | Copper |
| Max. Operating Voltage | 35 kV |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 4 AWG |
| Number Of Holes | 1 |
| Number Of Stud Holes | 1 |
| Overall Length | 1.94" |
| Overall Width | 0.49" |
| Peep Hole | No |
| Plate Material | Tin |
| Rohs Compliant | Yes |
| Special Features | Corrosion Resistance, Good Conductivity, Reliable Performance, Secure Fit |
| Stud Size | 1/4" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.89" |
| Tongue Style | Standard |
| Tongue Width | 0.48" |
| Type | Standard |
| Width | 0.49" |
| Wire Size Range | 4 AWG |
| Wire Size Ranges | 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 1.24 |
| HS code | 8535908020 |
| Country of Origin | CL |
Product Variants
| Product | Model | Connector Type | Color Code | Stud Size | Cable Size | Overall Length | Material | Peep Hole | Hole Center To End | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7100006701 | Straight Barrel | Blue | #10 | 6 AWG | 1.78" | Copper | No | 0.37" | 50 | €404.19 | |
 |
7000031395 | Straight Barrel | Pink | 3/8" | - | 2.16" | Copper | No | 0.37" | 10 | €182.53 | |
 |
7000031387 | Straight Barrel | Blue | 1/4" | 6 AWG | 1.78" | Copper | No | 0.37" | 50 | €404.19 | |
 |
7100006644 | Straight Barrel | Gray | 3/8" | 4 AWG | 1.94" | Copper | No | 0.37" | 50 | €511.73 | |
 |
7000031388 | Straight Barrel | Gray | - | 4 AWG | 1.94" | Copper | No | 0.37" | 50 | €511.73 | |
 |
7000132232 | Straight Barrel | Blue | 5/16" | - | 1.78" | Copper | No | 0.37" | 50 | €404.19 | |
 |
7000031391 | Straight Barrel | Brown | - | - | 1.97" | Copper | No | 0.37" | 25 | €329.30 |
