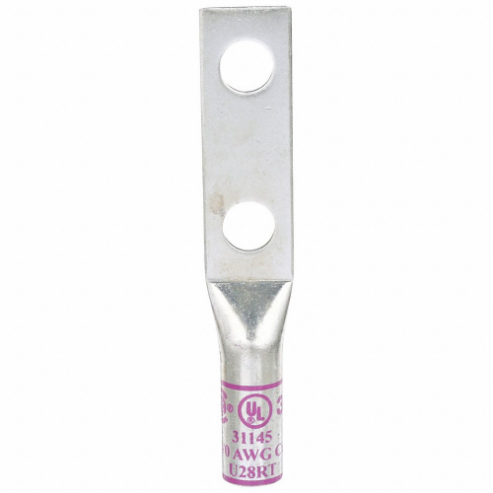

3M 7000031406 31145 Two-Hole Lug Compression Connector, 4/0 AWG Max Wire Size, 1/2 Inch Stud Size
Item: AB9KWGModel: 7000031406Cross Ref: 2DRL2 / 31145
7 In Stock
Ships within 2 days via
10.00% off
€357.69 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Copper 2-Hole L-Barrel Lug |
| Barrel Inside Dia. | 0.54" |
| Barrel Outside Diameter | 17/25" |
| Barrel Size | Long |
| Barrel Style | Seamless |
| Center Of Hole To Center Of Hole | 1 3/4" |
| Center Of Hole To End Of Pad | 0.63" |
| Color Code | Purple |
| Connector Description | Two Hole |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 15 |
| For Conductor Material | Copper |
| For Stud Size | 1/2" |
| For Use With | Copper Conductor Only |
| For Wire Size | 4/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 1 3/4" |
| Hole Center To End | 0.63" |
| Hole To Hole Center | 1.75" |
| Hole To Hole Center (in.) | 1.750 |
| Inspection Hole | No |
| Length | 5 4/25" |
| Length (straight Wireway) | 5 4/25" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Lug Type | Compression Lugs |
| Material | Copper |
| Max. Operating Voltage | 35 kV |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 4/0 AWG |
| Number Of Holes | 2 |
| Number Of Stud Holes | 2 |
| Overall Length | 5.16" |
| Overall Width | 1" |
| Peep Hole | No |
| Plate Material | Tin |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistance, Good Conductivity, Reliable Performance, Secure Fit |
| Stud Size | 1/2" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 3" |
| Tongue Style | Standard |
| Tongue Width | 1" |
| Type | Standard |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.11 |
| Ship width (cm) | 2.54 |
| HS code | 8535908040 |
| Country of Origin | CL |
Product Variants
| Product | Model | Color Code | Cable Size | Overall Length | Cable Size Code | Connector Type | Stud Size | Material | Peep Hole | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7000031407 | Yellow | 250 kcmil | 5.31" | 250 kcmil | Straight Barrel | 1/2" | Copper | No | 10 | €451.24 | |
 |
7000031408 | White | 300 kcmil | 5.75" | 300 kcmil | Straight Barrel | 1/2" | Copper | No | 10 | €449.92 | |
 |

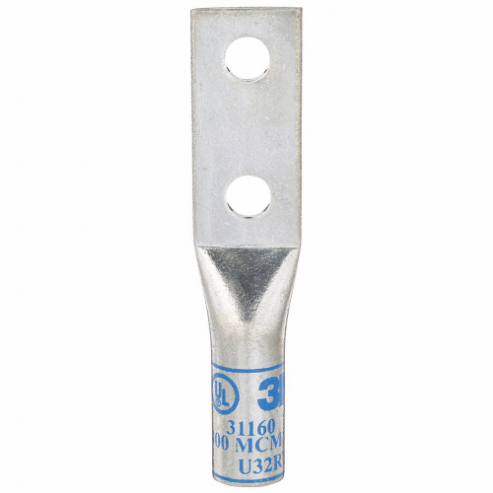

7000031445 | Blue | 400 kcmil | 6" | 400 kcmil | Straight Barrel | 1/2" | Copper | No | 10 | €560.71 | |
 |
7000031409 | Red | 350 kcmil | 5.75" | 350 kcmil | Straight Barrel | 1/2" | Copper | No | 10 | €484.12 | |
 |

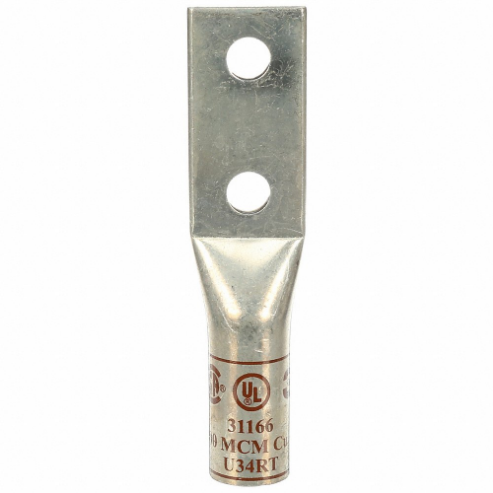

7000005882 | Brown | 500 kcmil | 6.16" | 500 kcmil | Straight Barrel | 1/2" | Copper | No | 10 | €574.06 | |
 |
7000031447 | Green | 600 kcmil | 6.72" | 600 kcmil | Straight Barrel | 1/2" | Copper | No | 6 | €665.47 | |
 |

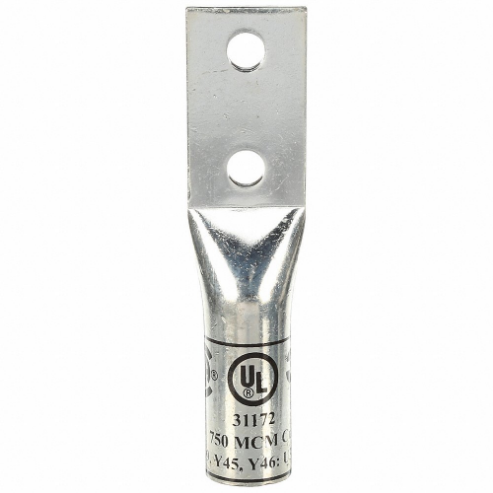

7000031410 | Black | 750 kcmil | 7" | 750 kcmil | Straight Barrel | 1/2" | Copper | No | 6 | €846.68 |
