VIEGA PROPRESS

See our 856 reviews on

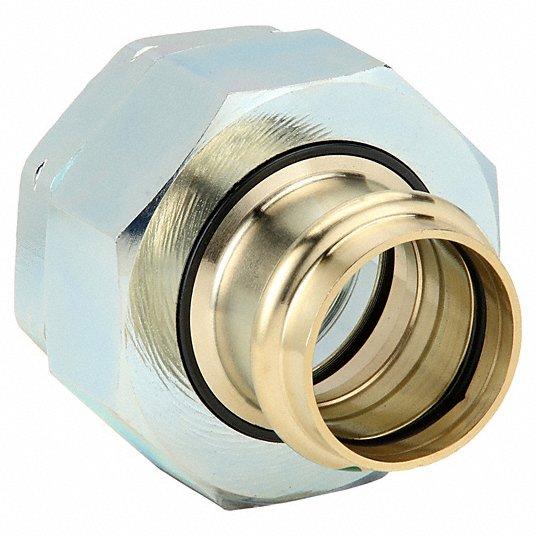

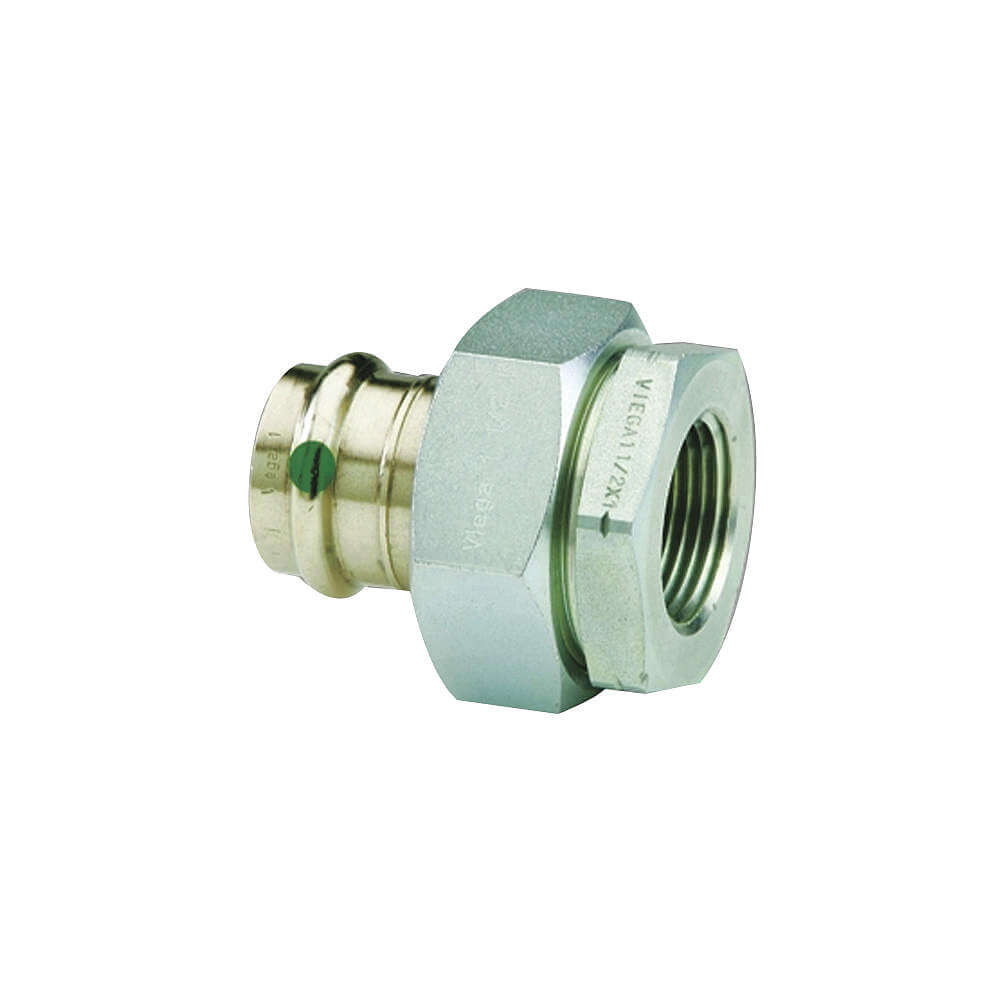

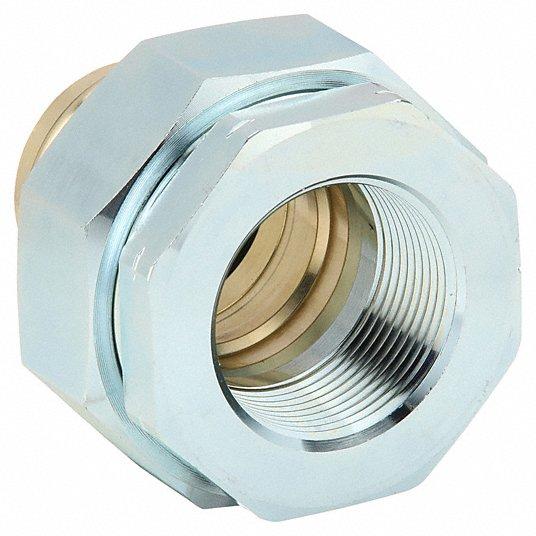

VIEGA PROPRESS Dielectric Union Zero Lead Bronze Press x FNPT

Item: AE6QGQ
Model: 79155
Cross Ref: 5ULZ6
Check Availability
In Stock

Get it by Dec 30, Tuesday

Tube Size
€80.69
10% off
€72.62 /unit (ex. VAT)
Add To Cart
Request Quote

Payment

Delivery

  • Specifications
  • Shipping Information

Specifications

Item Dielectric Union
Application Potable Water
Body Material Low Lead Bronze
Connection Type Press x FNPT
Fitting Material Bronze
Fitting Side A Connection Type Press-Fit
Fitting Side A Copper Tube Size 1/2"
Fitting Side B Connection Type FNPT
Fitting Side B Pipe Size 1/2"
Max. Operating Pressure 200 psi
Maximum Operating Temperature 250°F
Minimum Operating Temperature 0°F
O-ring Material EPDM
Overall Length 2 1/4"
Pipe Size 1/2"
Specific Fitting Shape Di Electric Union
Temp. Range 0°F to +250°F
Tube Size 1/2"
Lead Free Yes
Material Bronze
Product Type Dielectric Union
Size 1/2"
Standards ABS TYPE APPROVAL, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM CLASS 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL LISTED, ULC/ORD 213

Shipping Information

Height (cm) 5.59
Length (cm) 15.24
Width (cm) 5.59
HS Code 7419995010
Country Of Origin DE
Weight (kg) 0.36
