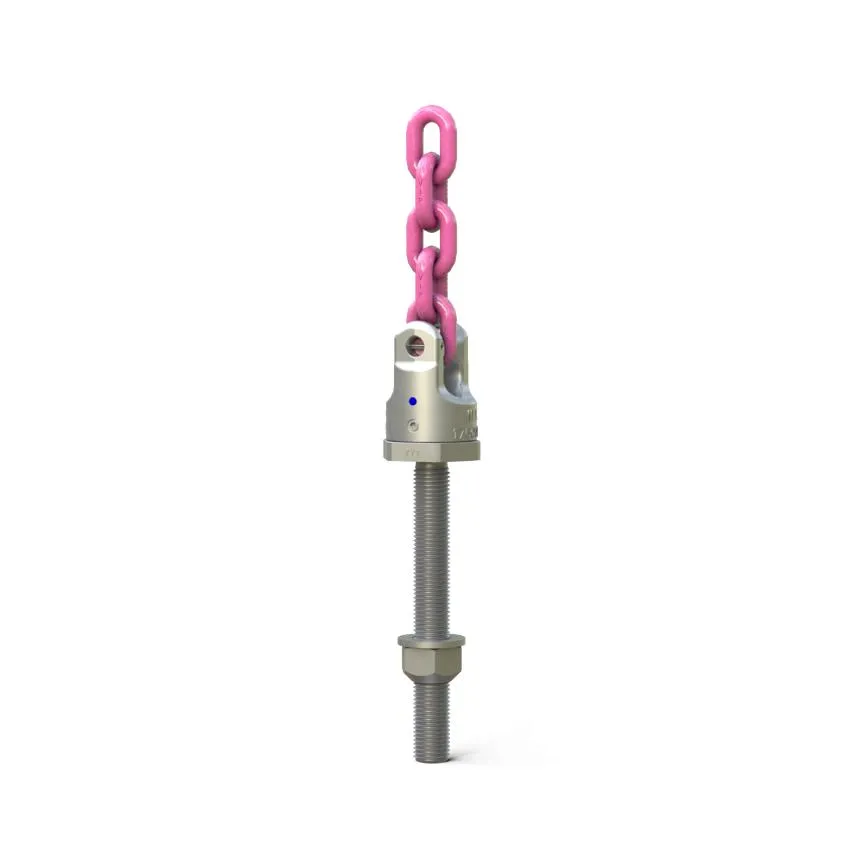

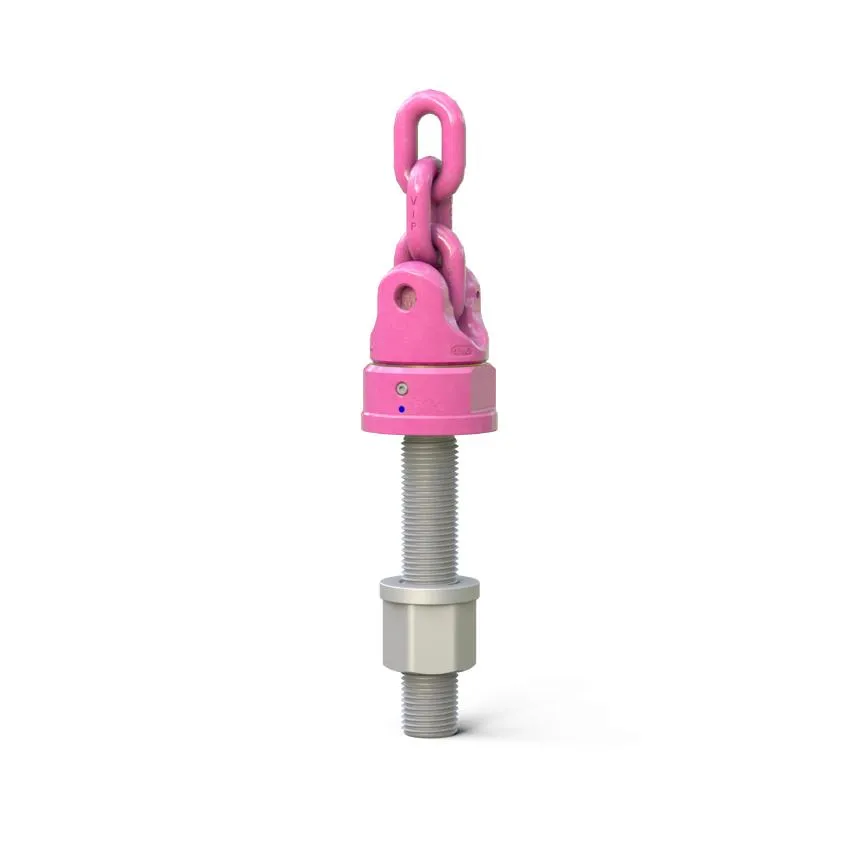

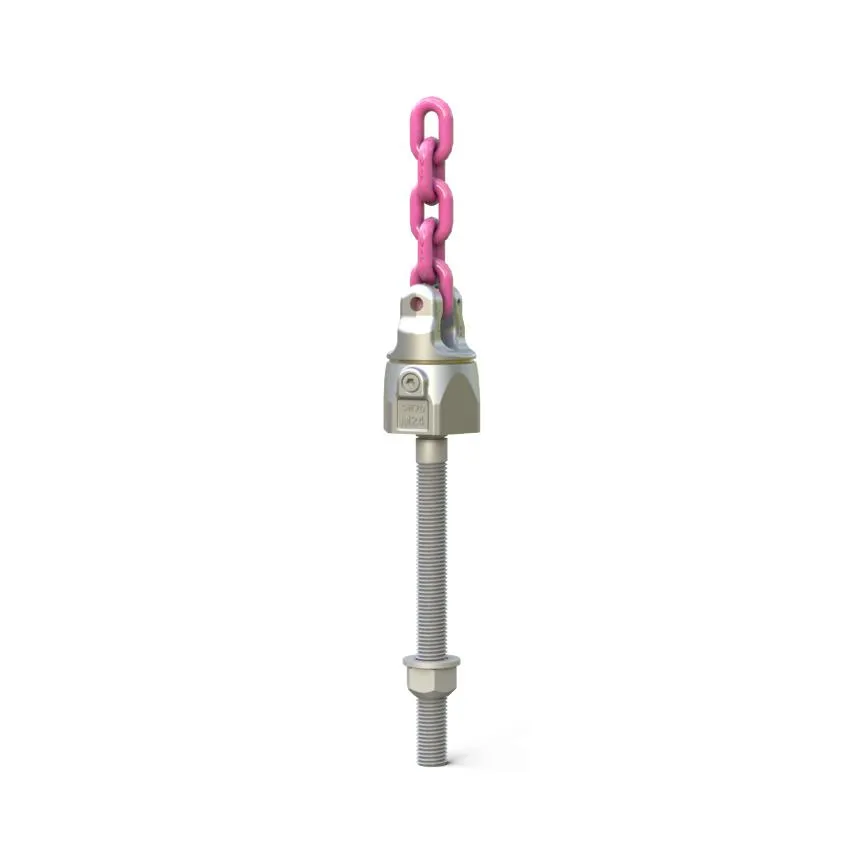

RUD CHAIN PP-VIP Powerpoint Direct Vip Chain Connection Hoist Rings, Metric Thread
Item: AB2KQW
Model: 7989525
Cross Ref: 1MLV8 / PP-VIP4-0,63t-M12
Check Availability
In Stock
Get it by Dec 17, Wednesday
10% off
€260.67 /unit (ex. VAT)
Add To Cart
Request Quote
Payment
Delivery
- Specifications
- Shipping Information
Specifications
| Item | Hoist Ring |
|---|---|
| Bail Dia. | 9.53 mm |
| Bail Thickness | 3/8" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 10.03 N-m |
| Load Capacity | 630.49 Kg |
| Material | Not Available |
| Mfr. Series | PP-VIP Series |
| Minimum Installation Torque | 7.4 lbs.-ft. |
| Mount Type | Screw On |
| Mounting Style | Screw On |
| Nominal Size | M12 |
|---|---|
| Nominal Wll (kg) | 630 Kg |
| Overall Length | 1 3/8" |
| Overall Width | 1 5/8" |
| Pitch | 41 mm |
| Pivot | 0° |
| Pivot Angle | 0° |
| Swivel Angle | 360° |
| System Of Measurement | Metric |
| Thread Size | M12 |
| Working Load Limit | 1390 lbs. |
| Standards | DGUV-R 109-017:2020-12, DIN EN 1677-1:2009-03, DIN EN 1677-4:2009-03, DIN EN ISO 12100:2011-03 |
Shipping Information
| Height (cm) | 16.99 |
|---|---|
| Length (cm) | 27 |
| Width (cm) | 16.99 |
| HS Code | 7326908588 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.25 |
