WIDIA General Purpose Finishing Coated Carbide Square End Mills
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V| Style | Model | Milling Dia. | Shank Dia. | Material | Primary Material Application Iso Code | Cutting Length | Cutting Direction | No. Of Flutes | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5879196 | - | - | - | - | - | - | - | - | €537.95 | |
| B | I3S0188T056R | - | - | - | - | - | - | - | - | €24.24 | |
| C | D0120500T010S | - | - | - | - | - | - | - | - | €44.86 | |
| D | 5826018 | - | - | - | - | - | - | - | - | €23.90 | |
| E | 5879136 | - | - | - | - | - | - | - | - | €22.89 | |
| F | D0120300T007 | - | - | - | - | - | - | - | - | €41.42 | |
| F | D0020350T004 | - | - | - | - | - | - | - | - | €34.37 | |
| G | I2S0016T003R | 0.016" | 1/8" | TiAlN | K, M, P | 0.031" | Right Hand | 2 | 30° | €21.69 | |
| H | 5879053 | 0.016" | 1/8" | TiAlN | K, M, P | 0.031" | Right Hand | 4 | 30° | €20.59 | |
| H | 5879054 | 0.031" | 1/8" | TiAlN | K, M, P | 0.078" | Right Hand | 4 | 30° | €19.70 | |
| H | 5879055 | 0.062" | 1/8" | TiAlN | K, M, P | 0.109" | Right Hand | 4 | 30° | €17.19 | |
| B | I3S0078T011R | 0.078" | 1/8" | TiAlN | K, M, P | 0.109" | Right Hand | 3 | 30° | €20.70 | |
| H | 5879056 | 0.078" | 1/8" | TiAlN | K, M, P | 0.188" | Right Hand | 4 | 30° | €18.30 | |
| H | 5879058 | 0.094" | 1/8" | Carbide | K, M, P | 5/8" | Right Hand | 4 | 30° | €22.22 | |
| H | 5879057 | 0.094" | 1/8" | TiAlN | K, M, P | 3/8" | Right Hand | 4 | 30° | €17.54 | |
| I | 2256390 | 0.3 mm | 6 mm | Carbide | H, K, P | 0.4 mm | Right Hand | 2 | 30° | €80.33 | |
| I | 2256391 | 0.4 mm | 6 mm | Carbide | H, K, P | 0.6 mm | Right Hand | 2 | 30° | €81.61 | |
| I | 2256392 | 0.5 mm | 6 mm | Carbide | H, K, P | 0.7 mm | Right Hand | 2 | 30° | €82.98 | |
| I | 2256393 | 0.6 mm | 6 mm | Carbide | H, K, P | 0.9 mm | Right Hand | 2 | 30° | €80.79 | |
| J | 463300800RT | 0.8 mm | 3 mm | - | K, M, N, P | 1.5 mm | Right Hand | 4 | 30° | €38.67 | |
| I | 2256394 | 0.8 mm | 6 mm | Carbide | H, K, P | - | Right Hand | 2 | 30° | €82.98 | |
| G | I2S0109T037R | 0.109" | 1/8" | TiAlN | K, M, P | 3/8" | Right Hand | 2 | 30° | €18.82 | |
| H | 5879059 | 0.109" | 1/8" | TiAlN | K, M, P | 3/8" | Right Hand | 4 | 30° | €18.75 | |
| B | I3S0109T037R | 0.109" | 1/8" | TiAlN | K, M, P | 3/8" | Right Hand | 3 | 30° | €19.40 | |
| E | 5879134 | 0.141" | 1/8" | TiAlN | K, M, P | 0.562" | Right Hand | 4 | 30° | €24.05 | |

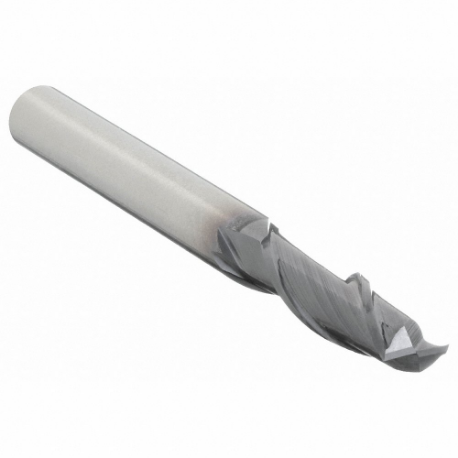

| K | I2S0156T031R | 0.156" | 1/8" | TiAlN | K, M, P | 0.312" | Right Hand | 2 | 30° | €21.23 | |
| E | 5879135 | 0.156" | 1/8" | TiAlN | P | 0.562" | Right Hand | 4 | 30° | €22.09 | |
| K | I2S0172T062R | 0.172" | 1/8" | TiAlN | K, M, P | 5/8" | Right Hand | 2 | 30° | €22.33 | |
| E | 5879138 | 0.188" | 1/8" | TiAlN | K, M, P | 3/4" | Right Hand | 4 | 30° | €35.44 | |
| H | 5879137 | 0.188" | 1/8" | TiAlN | K, M, P | 3/4" | Right Hand | 4 | 30° | €28.67 | |

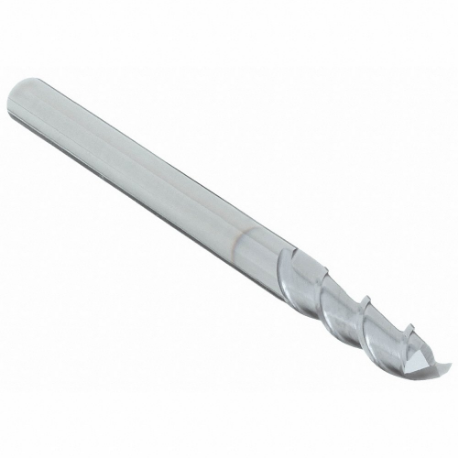

| L | TC4K0205070 | 0.188" | 1/8" | Carbide | N | 5/8" | Right Hand | 2 | 45° | €49.54 | |

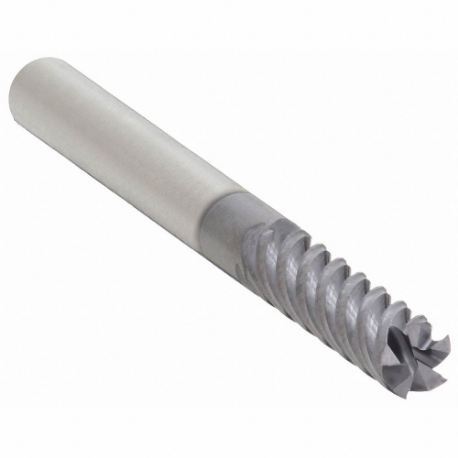

| M | 5577188 | 0.188" | 1/8" | Carbide | H, M, P | 5/8" | Right Hand | 5 | 45° | €60.27 | |
| N | I3S0188T100X | 0.188" | 1/8" | TiAlN | K, M, P | 1" | Right Hand | 3 | 30° | €36.85 | |
| K | I2S0188T031S | 0.188" | 1/8" | TiAlN | K, M, P | 0.312" | Right Hand | 2 | 30° | €20.38 | |
| E | 5879140 | 0.188" | 1/8" | TiAlN | K, M, P | 1 1/8" | Right Hand | 4 | 30° | €38.19 | |
| O | 5879141 | 0.203" | 1/4" | TiAlN | K, M, P | 5/8" | Right Hand | 4 | 30° | €31.08 | |
| O | 5879143 | 0.219" | 1/4" | TiAlN | K, M, P | 5/8" | Right Hand | - | 30° | €31.96 | |
| O | 5879142 | 0.219" | 1/4" | TiAlN | K, M, P | 0.438" | Right Hand | 4 | 30° | €27.79 | |
| P | I2S0219T062L | 0.219" | 1/4" | TiAlN | K, M, P | 5/8" | Right Hand | 2 | 30° | €33.58 | |
| Q | I3S0219T075L | 0.219" | 1/4" | TiAlN | K, M, P | 3/4" | Right Hand | 3 | 30° | €34.59 | |

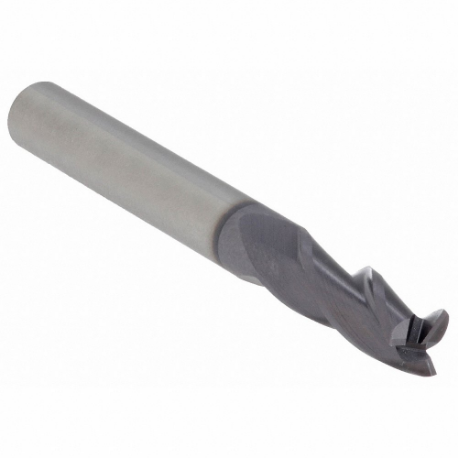

| R | I3S0219T062R | 0.219" | 1/4" | TiAlN | K, M, P | 5/8" | Right Hand | 3 | 30° | €34.59 | |
| O | 5879144 | 0.234" | 1/4" | TiAlN | K, M, P | 3/4" | Right Hand | 4 | 30° | €33.58 | |
| O | 5879149 | 0.266" | 5/16" | TiAlN | K, M, P | 3/4" | Right Hand | 4 | 30° | €50.68 | |
| Q | I3S0281T081L | 0.281" | 5/16" | TiAlN | K, M, P | 0.812" | Right Hand | 3 | 30° | €52.14 | |
| R | I3S0281T075R | 0.281" | 5/16" | TiAlN | K, M, P | 3/4" | Right Hand | 3 | 30° | €52.14 | |
| O | 5879150 | 0.281" | 5/16" | TiAlN | K, M, P | 3/4" | Right Hand | 4 | 30° | €48.41 | |
| O | 5879151 | 0.297" | 5/16" | TiAlN | K, M, P | 0.812" | Right Hand | 4 | 30° | €50.68 | |

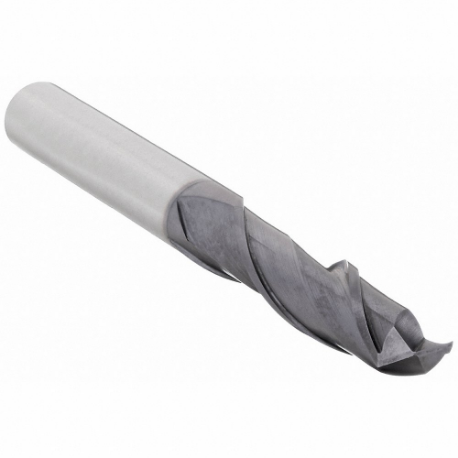

| S | I2S0312T112L | 0.312" | 5/16" | TiAlN | K, M, P | 1 1/8" | Right Hand | 2 | 30° | €47.70 | |
| Q | I3S0312T081L | 0.312" | 0.312" | Carbide | K, M, P | 0.812" | Right Hand | 3 | 30° | €45.93 | |
| P | I2S0312T050S | 0.312" | 5/16" | TiAlN | K, M, P | 1/2" | Right Hand | 2 | 30° | €38.08 | |

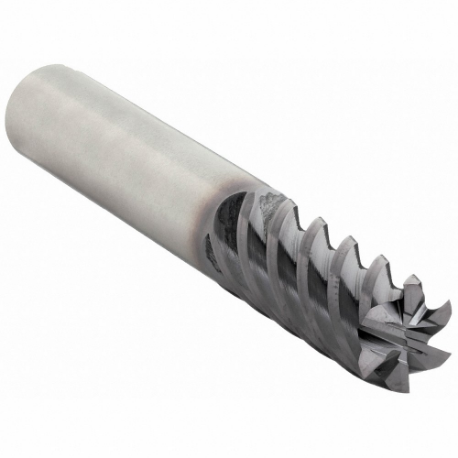

| T | 5577256 | 0.312" | 5/16" | Carbide | H, M, P | 0.812" | Right Hand | 6 | 45° | €82.05 | |
| O | 5879156 | 0.328" | 3/8" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €57.11 | |
| O | 5879157 | 0.344" | 3/8" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €59.82 | |
| O | 5879158 | 0.359" | 3/8" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €55.64 | |
| O | 5879163 | 0.391" | 0.438" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €73.30 | |
| O | 5879164 | 0.406" | 0.438" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €67.56 | |
| P | I2S0406T100R | 0.406" | 0.438" | TiAlN | K, M, P | 1" | Right Hand | 2 | 30° | €77.39 | |
| O | 5879165 | 0.422" | 0.438" | TiAlN | K, M, P | 1" | Right Hand | 4 | 30° | €67.56 | |
| U | I2S0437T300X | 0.438" | 0.438" | TiAlN | K, M, P | 3" | Right Hand | 2 | 30° | €94.24 | |
| S | I2S0437T200L | 0.438" | 0.438" | TiAlN | K, M, P | 2" | Right Hand | 2 | 30° | €90.68 | |

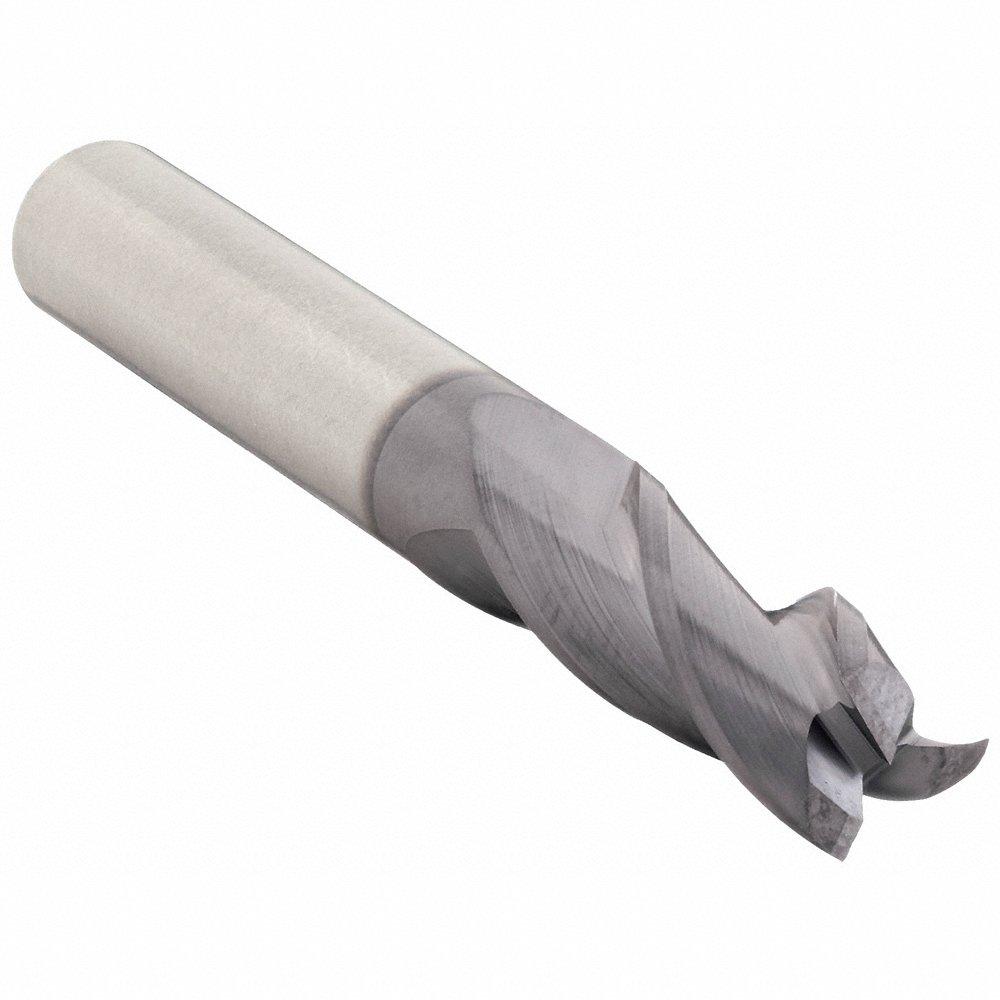

| V | I3S0437T100X | 0.438" | 0.438" | Carbide | K, M, P | 1" | Right Hand | 3 | 30° | €67.03 |
