WESCO Wheels
Wesco wheels provide cushioned, shock-resistant and noiseless rides while slowly moving large loads.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V| Style | Model | Wheel Material | Load Capacity | Wheel Bearing Type | Bore Dia. | Hub Material | Hub Width | Fits Axle | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

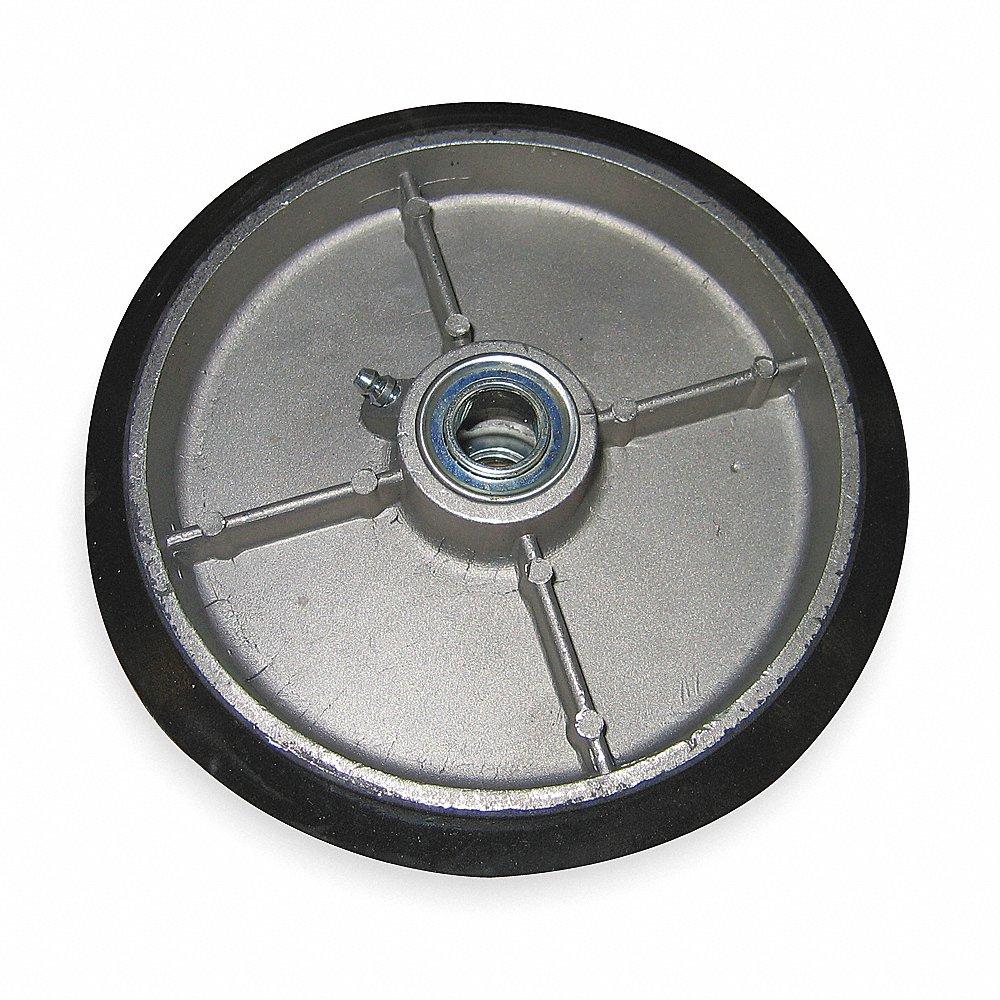

| A | 052868 | - | - | - | - | - | - | - | 550 lbs. | €99.72 | |
| B | 108545 | Aluminum | 500 lbs. | Ball | 5/8" | Aluminum | 2" | 5/8" | 500 lbs. | €63.54 | |

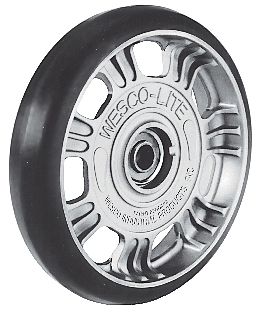

| C | 108561 | Aluminum | 300 lbs. | Ball | 5/8" | Aluminum | 1 5/8" | - | 300 lbs. | €50.63 | |
| B | 150131 | Aluminum | 600 lbs. | Roller | 3/4" | Aluminum | 2.188" | 3/4" | 600 lbs. | €47.01 | |
| B | 053708 | Aluminum | 600 lbs. | Roller | 5/8" | Aluminum | 2.188" | 5/8" | - | €58.97 | |
| D | 050567 | Aluminum | 500 lbs. | Ball | 5/8" | Aluminum | 2 3/8" | 5/8" | - | €53.92 | |
| D | 053706 | Aluminum | 500 lbs. | Roller | 5/8" | Aluminum | 2.188" | 5/8" | - | €51.98 | |
| D | 053707 | Aluminum | 500 lbs. | Roller | 3/4" | Aluminum | 2.188" | 3/4" | - | €49.86 | |
| D | 052870 | Aluminum | 500 lbs. | Ball | - | Aluminum | 2" | 3/4" | - | €61.59 | |

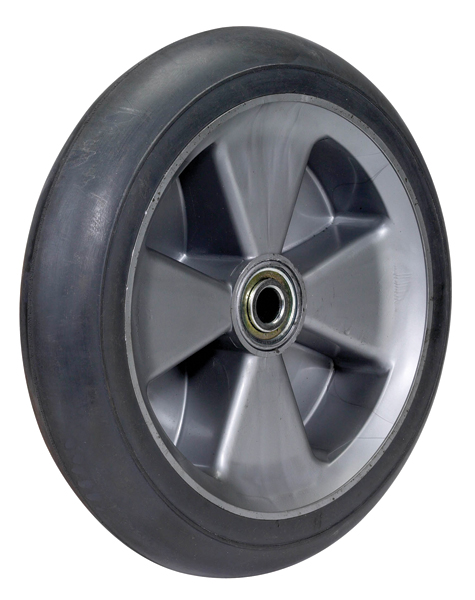

| E | 050566 | Balloon Cushion | 450 lbs. | Ball | 3/4" | - | 2 1/4" | 3/4" | - | - | RFQ
|
| F | 050579 | Cast Iron | 600 lbs. | Roller | 5/8" | Cast Iron | 2.188" | 5/8" | - | €47.81 | |
| F | 053724 | Cast Iron | 500 lbs. | - | 3/4" | Cast Iron | 2.188" | - | - | €30.77 | |
| G | 053723 | Cast Iron | 500 lbs. | Roller | 5/8" | Cast Iron | 2.188" | 5/8" | - | €31.05 | |

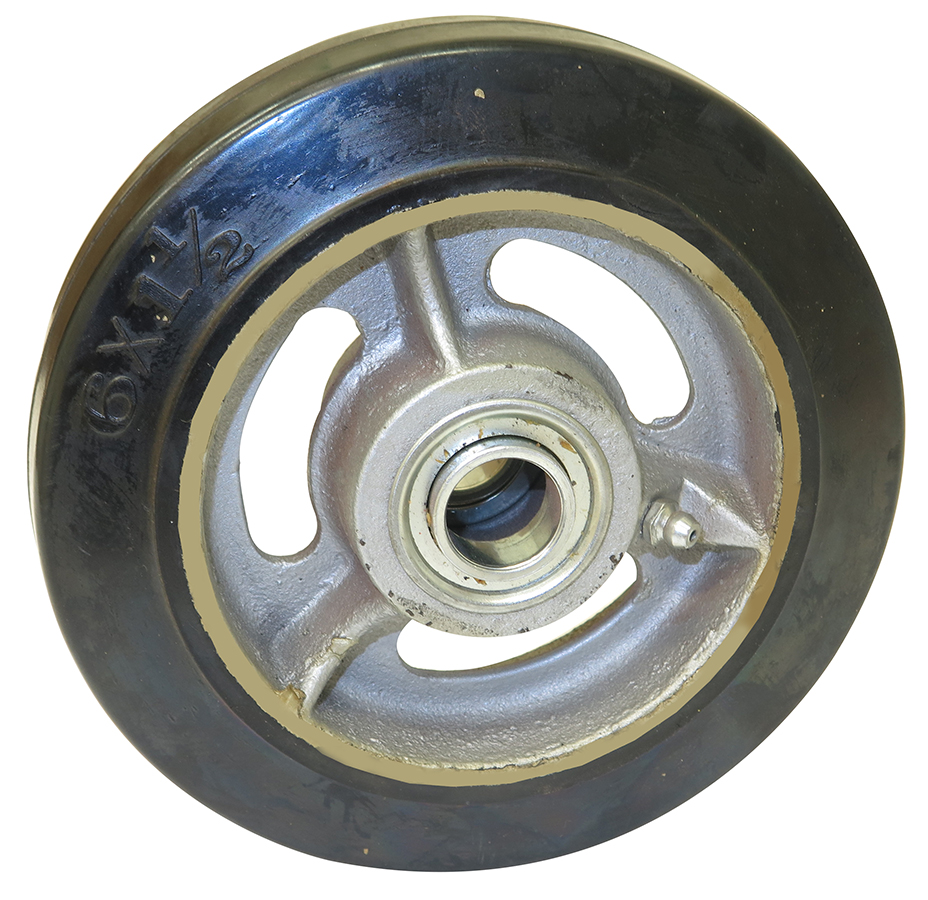

| H | 108838 | Cast Iron | 400 lbs. | Ball | 3/4" | Cast Iron | 2" | - | 400 lbs. | €35.78 | |
| F | 053722 | Cast Iron | 500 lbs. | Roller | 3/4" | Cast Iron | 2.188" | - | - | €54.15 | |
| I | 053490 | Cellular Foam | 280 lbs. | Ball | 3/4" | Steel | 2 1/4" | - | - | €81.96 | |
| I | 053446 | Cellular Foam | 280 lbs. | Ball | 5/8" | Steel | 2 1/4" | 5/8" | - | €67.40 | |

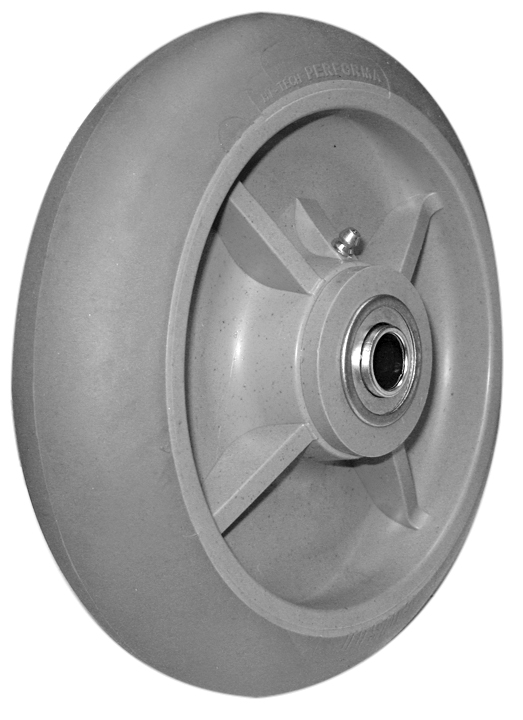

| J | 150229 | Charcoal Tpr Rubber | 300 lbs. | Ball | 5/8" | - | 2 1/4" | 5/8" | 300 lbs. | €54.63 | |
| K | 053730 | Mold On Polyurethane | 1200 lbs. | Roller | - | Polypropylene | 2 3/4" | 1" | - | €100.77 | |
| L | 053770 | Phenolic Resin | 1200 lbs. | Plain | 3/4" | Phenolic Resin | 2.188" | 3/4" | - | €28.74 | |
| L | 053903 | Phenolic Resin | 1200 lbs. | Plain | 5/8" | Phenolic Resin | 2.188" | 5/8" | - | €28.74 | |
| L | 053769 | Phenolic Resin | 1000 lbs. | Plain | 3/4" | Phenolic Resin | 2.188" | 3/4" | - | €50.00 | |
| L | 053902 | Phenolic Resin | 1000 lbs. | Plain | 5/8" | Phenolic Resin | 2.188" | 5/8" | - | €31.54 | |
| M | 151507 | Pneumatic | 350 lbs. | Ball | 5/8" | Zinc, Steel | 2 1/4" | 5/8" | 350 lbs. | €104.27 | |
| N | 151551 | Pneumatic | 350 lbs. | Ball | 5/8" | Zinc, Steel | 2 1/4" | 5/8" | 350 lbs. | €41.42 | |

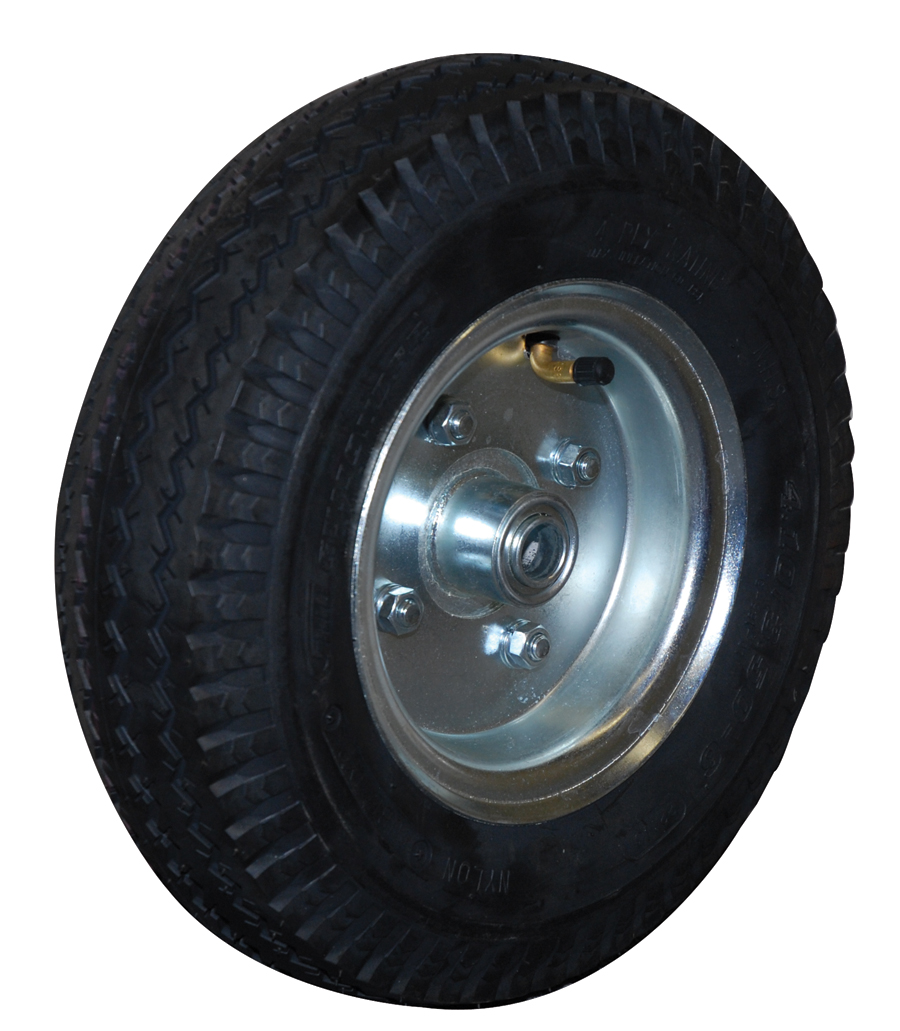

| O | 108484 | Pneumatic | 575 lbs. | Ball | 3/4" | Zinc, Steel | 3 1/4" | - | 460 lbs. | €127.08 | |
| P | 108478 | Pneumatic | 350 lbs. | Ball | 3/4" | Zinc, Steel | 2 1/4" | 3/4" | 350 lbs. | €98.97 | |
| N | 050602 | Pneumatic | 350 lbs. | Ball | 5/8" | Steel, Zinc | 2 1/4" | 5/8" | - | €87.45 | |
| Q | 150692 | Polyolefin | 375 lbs. | Plain | 5/8" | Polyolefin | 2.188" | 5/8" | 375 lbs. | €29.56 | |
| R | 150693 | Polyolefin | 500 lbs. | Plain | 5/8" | Polyolefin | 1 5/8" | 5/8" | 500 lbs. | €9.10 | |
| R | 150691 | Polyolefin | 750 lbs. | Plain | 1" | Polyolefin | 2 3/4" | 1" | 750 lbs. | €37.90 | |
| R | 150204 | Polyolefin | 600 lbs. | Plain | 3/4" | Polyolefin | 2 1/4" | 3/4" | - | - | RFQ
|
| R | 108300 | Polyolefin | 400 lbs. | Plain | 1/2" | Polyolefin | 1.62" | 1/2" | 400 lbs. | €7.81 | |
| R | 101355 | Polyolefin | 350 lbs. | Plain | 1/2" | Polyolefin | 1 14/25" | 1/2" | 350 lbs. | €2.97 | |
| R | 150197 | Polyolefin | 300 lbs. | Plain | 3/8" | Polyolefin | 1 14/25" | 3/8" | 300 lbs. | €2.97 | |
| R | 150103 | Polyolefin | 200 lbs. | Plain | 1/2" | Polyolefin | 1 1/4" | 1/2" | 200 lbs. | €2.43 | |

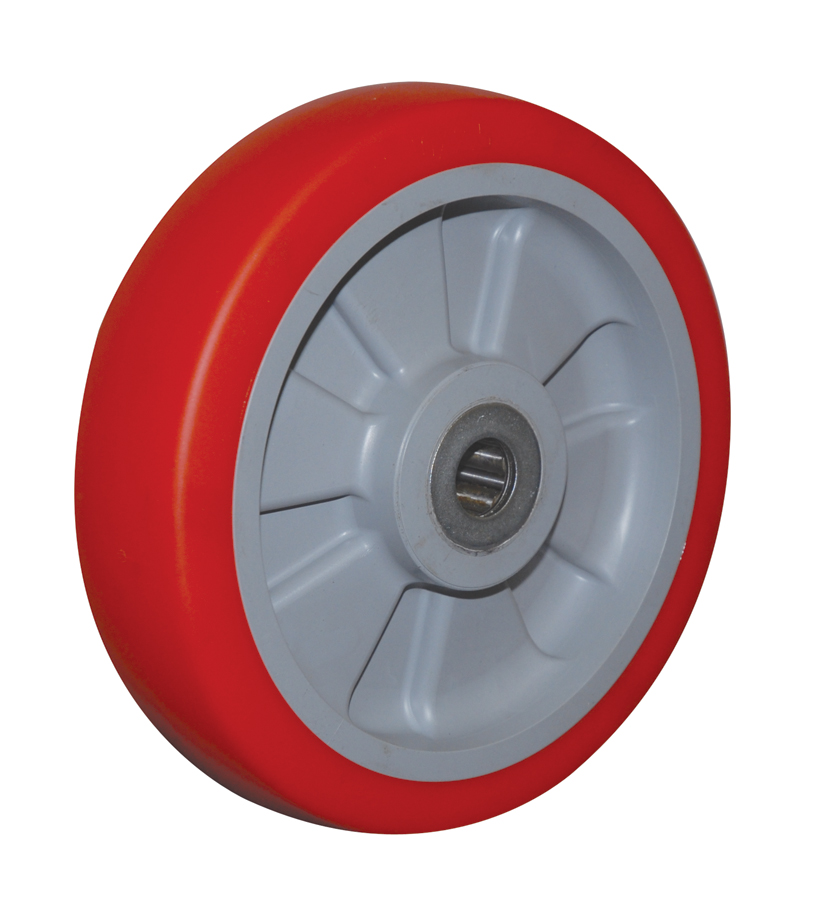

| K | 053733 | Polypropylene | - | Ball | 3/4" | Polypropylene | 2.188" | 3/4" | - | €223.52 | |
| S | 150697 | Rubber | 300 lbs. | Ball | 5/8" | Poly | 2 1/4" | 5/8" | 300 lbs. | €50.96 | |
| T | 150698 | Rubber | 550 lbs. | Ball | 5/8" | Poly | 2 1/4" | 5/8" | 550 lbs. | €47.36 | |
| P | 108479 | Rubber | 250 lbs. | - | 5/8" | Poly | 2 1/4" | 5/8" | 250 lbs. | €35.32 | |
| U | 150589 | Semi-Pneumatic | 350 lbs. | Ball | 5/8" | Zinc, Steel | 2 1/4" | 5/8" | 350 lbs. | €93.58 | |
| U | 052859 | Semi-Pneumatic | 250 lbs. | Ball | 3/4" | Poly | 2" | 3/4" | - | €52.38 | |

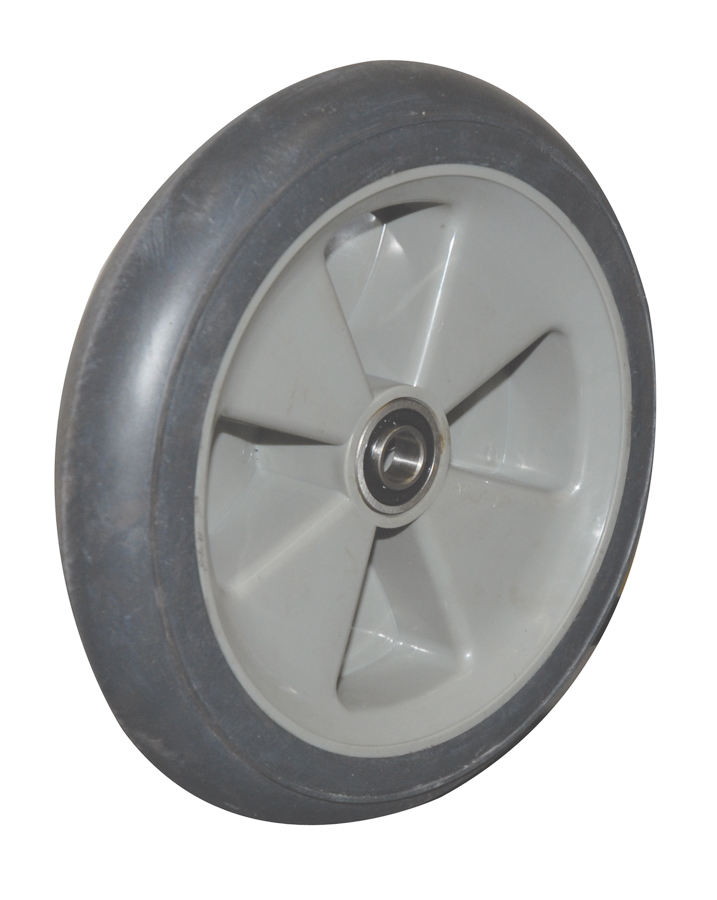

| V | 150228 | Thermoplastic Rubber | 300 lbs. | Ball | 5/8" | - | 2 1/4" | 5/8" | 300 lbs. | €43.60 |
Features
- Wesco wheels are equipped with plain / roller / ball bearings for reduced friction & improved performance.
- They have bore diameters ranging from 0.5 to 1 inch and a maximum load capacity of 1200 lb.
- These Wesco wheels are offered in cast iron centre mould on rubber, solid polyolefin, phenolic resin, solid rubber, cellular foam and more variants for increased strength, durability and resistance to wear & tear.
- They have aluminium / cast iron / phenolic resin / polyolefin/ polypropylene / steel / zinc hubs for enhanced durability, corrosion resistance and improved load capacity.
Frequently Asked Questions
How do I maintain and clean these Wesco wheels?
- Regularly inspect the wheels for wear, damage or debris buildup.
- Clean the wheels using a brush, soap and water.
- Check the bearings regularly for any signs of damage or wear. Replace them if necessary.
- Lubricate the wheels regularly with silicone to reduce friction and prevent rust.
What factors should I consider while choosing the right Wesco wheel for my applications?
Major factors are load capacity, wheel material, wheel size and bearing type.
