WEATHERHEAD Elbows
Filter
A
B
C
D
E
F| Style | Model | Max. Operating Pressure | Hex Size | Thread Size B | Fitting Side A Tube Outer Diameter | Thread Size A | Specific Fitting Shape | Specific Fitting Angle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

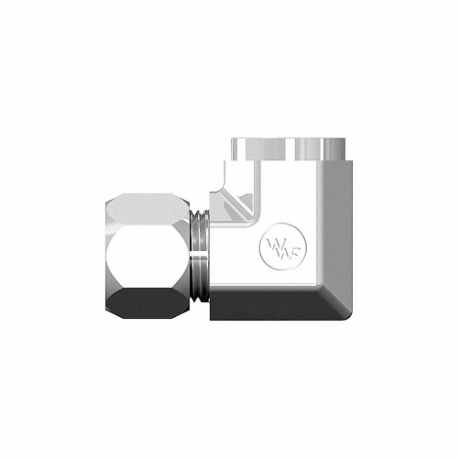

| A | 7455X16X16 | - | 1.62" | 1"-11 1/2 | 1" | 1 5/16"-12 | Elbow Adapter | 90° | 1 23/32" | €84.25 | |

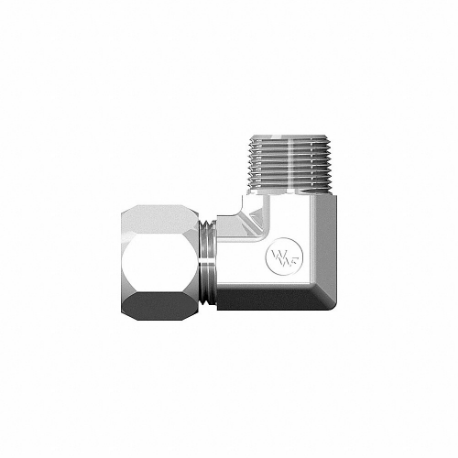

| B | 7405X32X32 | 1800 psi | 2 1/2" | 2"-11 1/2 | 2" | 2 1/2"-12 | - | - | - | €346.17 | |
| B | 7405X24X24 | 2000 psi | 1.87" | 1 1/2"-11 1/2 | 1 1/2" | 1 7/8"-12 | Elbow Adapter | 90° | 2 1/32" | €222.23 | |

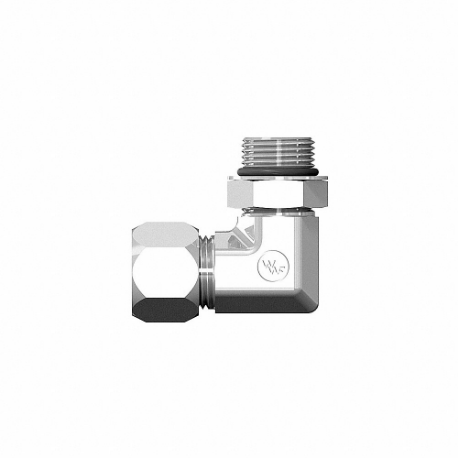

| C | 7515X20X20VB | 2100 psi | - | 1 5/8"-12 | 1 1/4" | - | Elbow Adapter | 90° | 1 7/8" | €179.48 | |
| B | 7405X20X20 | 2100 psi | 1.62" | 1 1/4"-11 1/2 | 1 1/4" | 1 5/8"-12 | Elbow Adapter | 90° | 1 7/8" | €117.91 | |

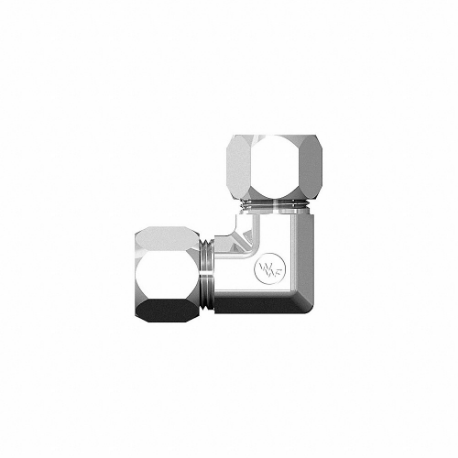

| D | 7505X20X20 | 2100 psi | 1.62" | 1 5/8"-12 | 1 1/4" | 1 5/8"-12 | 90° Elbow | 90° | 2 1/32" | €161.56 | |
| C | 7515X20X20 | 2100 psi | 1.62" | 1 5/8"-12 | 1 1/4" | 1 5/8"-12 | Elbow Adapter | 90° | 1 7/8" | €138.50 | |
| B | 7405X16X16 | 2400 psi | 1.31" | 1"-11 1/2 | 1" | 1 5/16"-12 | Elbow Adapter | 90° | 1 23/32" | €55.44 | |
| B | 7405X16X12 | 2400 psi | 1.31" | 3/4"-14 | 1" | 1 5/16"-12 | Elbow Adapter | 90° | 1 23/32" | €66.33 | |
| D | 7505X16X16 | 2400 psi | 1.31" | 1 5/16"-12 | 1" | 1 5/16"-12 | 90° Elbow | 90° | 1 23/32" | €70.70 | |
| C | 7515X16X16 | 2400 psi | 1.31" | 1 5/16"-12 | 1" | 1 5/16"-12 | Elbow Adapter | 90° | 1 23/32" | €70.70 | |
| D | 7505X14X14 | 2500 psi | 1.31" | 1 3/16"-12 | 7/8" | 1 3/16"-12 | 90° Elbow | 90° | 1 21/32" | €84.58 | |
| B | 7405X14X12 | 2500 psi | 1.31" | 3/4"-14 | 7/8" | 1 3/16"-12 | Elbow Adapter | 90° | 1 21/32" | €76.98 | |
| B | 7405X10X08 | 3250 psi | 0.87" | 1/2"-14 | 5/8" | 7/8"-14 | Elbow Adapter | 90° | 1 13/32" | €28.67 | |
| B | 7405X10X06 | 3250 psi | 0.87" | 3/8"-18 | 5/8" | 7/8"-14 | Elbow Adapter | 90° | 1 13/32" | €30.79 | |
| B | 7405X12X08 | 3250 psi | 1.06" | 1/2"-14 | 3/4" | 1 1/16"-12 | Elbow Adapter | 90° | 1 19/32" | €41.44 | |
| B | 7405X12X12 | 3250 psi | 1.06" | 3/4"-14 | 3/4" | 1 1/16"-12 | Elbow Adapter | 90° | 1 19/32" | €33.62 | |
| D | 7505X10X10 | 3250 psi | 0.87" | 7/8"-14 | 5/8" | 7/8"-14 | 90° Elbow | 90° | 1 13/32" | €35.93 | |
| E | 7355X12X12 | 3250 psi | 1.06" | 3/4"-14 | 3/4" | 1 1/16"-12 | Elbow Adapter | 45° | 1 29/32" | €37.33 | |
| A | 7455X10X08 | 3250 psi | 1.06" | 1/2"-14 | 5/8" | 7/8"-14 | Elbow Adapter | 90° | 1 13/32" | €34.55 | |
| A | 7455X12X12 | 3250 psi | 1.31" | 3/4"-14 | 3/4" | 1 1/16"-12 | Elbow Adapter | 90° | 1 19/32" | €53.07 | |
| D | 7505X12X12 | 3250 psi | 1.06" | 1 1/16"-12 | 3/4" | 1 1/16"-12 | 90° Elbow | 90° | 1 19/32" | €50.06 | |
| C | 7515X12X12 | 3250 psi | 1.06" | 1 1/16"-12 | 3/4" | 1 1/16"-12 | Elbow Adapter | 90° | 1 19/32" | €52.57 | |

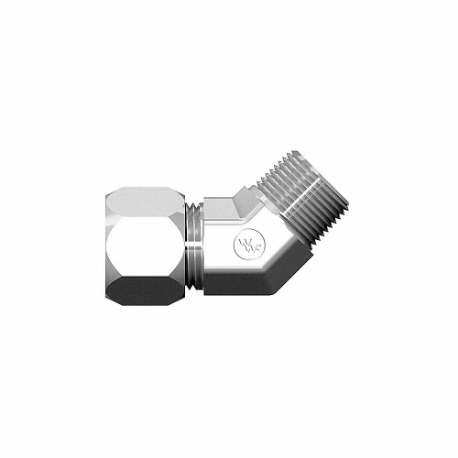

| E | 7355X10X08 | 3250 psi | 0.87" | 1/2"-14 | 5/8" | 7/8"-14 | - | - | - | €28.27 | |
| C | 7515X10X10 | 3250 psi | 0.87" | 7/8"-14 | 5/8" | 7/8"-14 | Elbow Adapter | 90° | 1 13/32" | €31.39 | |
| B | 7405X08X08 | 4500 psi | 0.87" | 1/2"-14 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 11/32" | €21.35 | |
| B | 7405X08X04 | 4500 psi | 3/4" | 1/4"-18 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 1/4" | €20.50 | |
| B | 7405X08X12 | 4500 psi | 1.06" | 3/4"-14 | 1/2" | 3/4"-16 | - | - | - | €38.47 | |
| D | 7505X08X08 | 4500 psi | 3/4" | 3/4"-16 | 1/2" | 3/4"-16 | Elbow | 90° | - | €26.83 | |
| C | 7515X08X08 | 4500 psi | 3/4" | 3/4"-16 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 1/4" | €22.58 | |
| C | 7515X08X10 | 4500 psi | 0.87" | 7/8"-14 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 11/32" | €28.27 | |
| C | 7515X08X12 | 4500 psi | 1.06" | 1 1/16"-12 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 7/16" | €36.59 | |
| A | 7455X08X04 | 4500 psi | 0.87" | 1/4"-18 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 7/32" | €22.73 | |
| B | 7405X08X06 | 4500 psi | 3/4" | 3/8"-18 | 1/2" | 3/4"-16 | - | - | - | €19.51 | |
| A | 7455X08X08 | 4500 psi | 1.06" | 1/2"-14 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 11/32" | €32.96 | |
| E | 7355X08X08 | 4500 psi | 0.87" | 1/2"-14 | 1/2" | 3/4"-16 | Elbow Adapter | 45° | 1 7/16" | €19.20 | |
| A | 7455X08X06 | 4500 psi | 0.87" | 3/8"-18 | 1/2" | 3/4"-16 | Elbow Adapter | 90° | 1 7/32" | €24.99 | |
| E | 7355X08X06 | 4500 psi | 3/4" | 3/8"-18 | 1/2" | 3/4"-16 | Elbow Adapter | 45° | 1 13/32" | €20.98 | |
| B | 7405X06X04 | 5000 psi | 14/25" | 1/4"-18 | - | 9/16"-18 | Elbow Adapter | 90° | 1 1/16" | €11.45 | |
| B | 7405X06X02 | 5000 psi | 14/25" | 1/8"-27 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/16" | €19.24 | |
| D | 7505X06X06 | 5000 psi | 14/25" | 9/16"-18 | 3/8" | 9/16"-18 | 90° Elbow | 90° | 1 1/16" | €16.69 | |
| A | 7455X06X04 | 5000 psi | 3/4" | 1/4"-18 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/16" | €17.96 | |
| A | 7455X06X06 | 5000 psi | 0.87" | 3/8"-18 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/8" | €23.06 | |
| E | 7355X06X04 | 5000 psi | 14/25" | 1/4"-18 | 3/8" | 9/16"-18 | Elbow Adapter | 45° | 1 1/8" | €14.13 | |
| B | 7405X06X08 | 5000 psi | 0.87" | 1/2"-14 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/4" | €22.30 | |
| C | 7515X06X06 | 5000 psi | 14/25" | 9/16"-18 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/16" | €18.87 | |
| B | 7405X06X06 | 5000 psi | 3/4" | 3/8"-18 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/8" | €14.81 | |
| C | 7515X06X08 | 5000 psi | 3/4" | 3/4"-16 | 3/8" | 9/16"-18 | Elbow Adapter | 90° | 1 1/8" | €23.06 | |

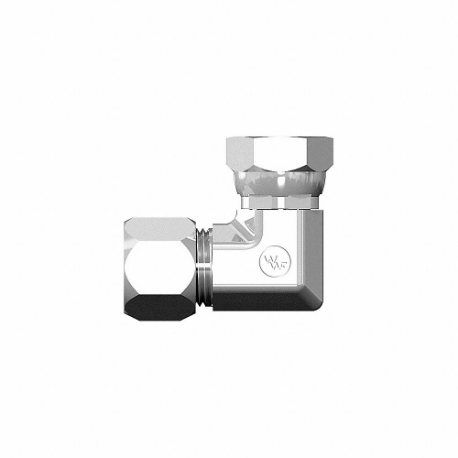

| F | 7506X06X06 | 5000 psi | 14/25" | 9/16"-18 | 3/8" | 9/16"-18 | Swivel Elbow Adapter | 90° | 1 1/16" | €19.24 | |
| B | 7405X05X02 | 5250 psi | 14/25" | 1/8"-27 | 0.312" | 1/2"-20 | - | - | - | €22.87 | |
| B | 7405X04X04 | 5250 psi | 14/25" | 1/4"-18 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 1 1/32" | €11.08 | |
| A | 7455X04X04 | 5250 psi | 3/4" | 1/4"-18 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 1 1/32" | €17.53 | |
| E | 7355X04X02 | 5250 psi | 0.43" | 1/8"-27 | 1/4" | 7/16"-20 | Elbow Adapter | 45° | 29/32" | €13.62 | |
| B | 7405X04X02 | 5250 psi | 0.43" | 1/8"-27 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 7/8" | €10.56 | |
| A | 7455X04X02 | 5250 psi | 14/25" | 1/8"-27 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 7/8" | €15.28 | |
| D | 7505X04X04 | 5250 psi | 0.43" | 7/16"-20 | 1/4" | 7/16"-20 | 90° Elbow | 90° | 7/8" | €15.24 | |
| E | 7355X04X04 | 5250 psi | 14/25" | 1/4"-18 | 1/4" | 7/16"-20 | Elbow Adapter | 45° | 1 3/32" | €16.83 | |
| C | 7515X04X04 | 5250 psi | 0.43" | 7/16"-20 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 7/8" | €14.13 | |
| B | 7405X05X04 | 5250 psi | 14/25" | 1/4"-18 | 5/16" | 1/2"-20 | Elbow Adapter | 90° | 1 1/32" | €25.88 | |
| D | 7505X05X05 | 5250 psi | 14/25" | 1/2"-20 | 5/16" | 1/2"-20 | 90° Elbow | 90° | 15/16" | €25.70 | |
| C | 7515X04X06 | 5250 psi | 14/25" | 9/16"-18 | 1/4" | 7/16"-20 | Elbow Adapter | 90° | 1 1/32" | €17.02 |
