TSUBAKI AS Metric Series Power-Locks
Filter
A
B
C| Style | Model | Transmissible Torque | P-shaft Contact Pressure | P-contact Pressure-hub Bore | Transmissible Thrust | L | D-hub Counter I.d. | Shaft Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A | PL019X047 | 181 lbs.-ft. | 30458 psi | 12328 psi | 5940 lbs. | 0.787 | 1.85" | 0.748" | €89.81 | |
| A | PL020X047 | 196 lbs.-ft. | 28863 psi | 12328 psi | 5940 lbs. | 0.787 | 1.85" | - | €89.81 | |
| A | PL022X047 | 217 lbs.-ft. | 26252 psi | 12328 psi | 5940 lbs. | 0.787 | 1.85" | 0.866" | €89.81 | |
| A | PL024X050 | 297 lbs.-ft. | 30603 psi | 14649 psi | 7480 lbs. | 0.787 | - | - | €93.56 | |
| A | PL025X050 | 311 lbs.-ft. | 29443 psi | 14649 psi | 7480 lbs. | 0.787 | - | - | €93.56 | |
| A | PL028X055 | 347 lbs.-ft. | 26107 psi | 13344 psi | 7480 lbs. | 0.787 | 2.165" | 1.102" | €95.44 | |
| A | PL030X055 | 376 lbs.-ft. | 24512 psi | 13344 psi | 7480 lbs. | 0.787 | 2.165" | - | €95.44 | |
| A | PL032X060 | 499 lbs.-ft. | 28718 psi | 15374 psi | 9460 lbs. | 0.787 | 2.362" | 1.26" | €101.04 | |
| A | PL035X060 | 550 lbs.-ft. | 26252 psi | 15374 psi | 9460 lbs. | 0.787 | 2.362" | - | €101.04 | |
| A | PL038X065 | 658 lbs.-ft. | 26542 psi | 15519 psi | 10560 lbs. | 0.787 | 2.559" | 1.496" | €106.66 | |
| A | PL040X065 | 694 lbs.-ft. | 25237 psi | 15519 psi | 10560 lbs. | 0.787 | 2.559" | - | €106.66 | |
| A | PL042X075 | 1099 lbs.-ft. | 31039 psi | 17550 psi | 15840 lbs. | 0.945" | 2.953" | 1.654" | €123.47 | |
| A | PL045X075 | 1180 lbs.-ft. | 29008 psi | 17550 psi | 15840 lbs. | 0.945" | 2.953" | 1.772" | €123.47 | |
| A | PL048X080 | 1254 lbs.-ft. | 27268 psi | 16390 psi | 15840 lbs. | 0.945" | 3.15" | 1.89" | €129.10 | |
| B | PL050X080 | 1306 lbs.-ft. | 26107 psi | 16390 psi | 15840 lbs. | 0.945" | - | - | €129.10 | |
| B | PL055X085 | 1763 lbs.-ft. | 29153 psi | 18855 psi | 19360 lbs. | 0.945" | 3.346" | 2.165" | €134.70 | |
| B | PL060X090 | 1925 lbs.-ft. | 26687 psi | 17840 psi | 19360 lbs. | 0.945" | 3.543" | 2.362" | €142.19 | |
| B | PL065X095 | 2279 lbs.-ft. | 26687 psi | 18275 psi | 21120 lbs. | 0.945" | 3.74" | - | €149.67 | |
| B | PL070X110 | 3540 lbs.-ft. | 30458 psi | 19290 psi | 31020 lbs. | 1.102" | 4.331" | 2.756" | €200.82 | |

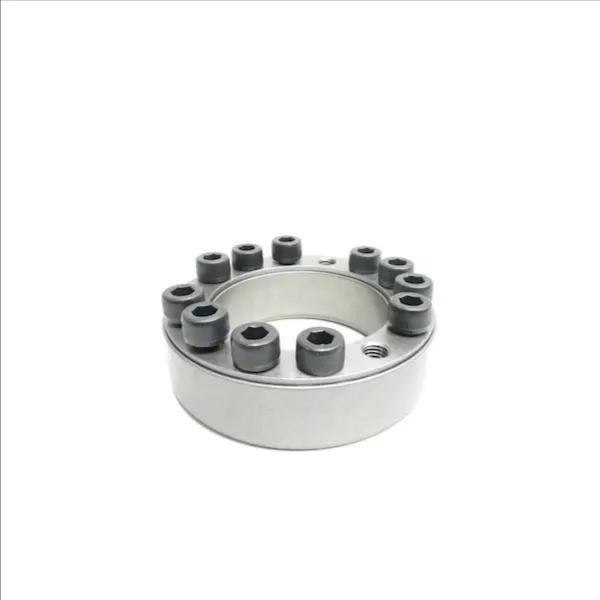

| C | PL075X115 | 3828 lbs.-ft. | 28428 psi | 18420 psi | 31020 lbs. | 1.102" | 4.528" | 2.953" | €199.73 | |
| B | PL080X120 | 4049 lbs.-ft. | 26687 psi | 17840 psi | 31020 lbs. | 1.102" | 4.724" | 3.15" | €203.01 | |
| A | PL085X125 | 4698 lbs.-ft. | 27413 psi | 18565 psi | 33660 lbs. | 1.102" | 4.921" | 3.346" | €211.19 | |
| B | PL090X130 | 4986 lbs.-ft. | 25817 psi | 17840 psi | 33660 lbs. | 1.102" | 5.118" | 3.543" | €315.15 | |
| B | PL095X135 | 5709 lbs.-ft. | 26542 psi | 18710 psi | 36520 lbs. | 1.102" | 5.315" | 3.74" | €237.38 | |
| B | PL100X145 | 7376 lbs.-ft. | 26687 psi | 18420 psi | 45100 lbs. | 1.299" | 5.709" | 3.937" | €391.05 | |
| B | PL110X155 | 8187 lbs.-ft. | 24367 psi | 17405 psi | 45100 lbs. | 1.299" | 6.102" | 4.331" | €283.22 | |
| B | PL120X165 | 9662 lbs.-ft. | 24367 psi | 17840 psi | 49280 lbs. | 1.299" | 6.496" | 4.724" | €289.78 | |
| A | PL130X180 | 13129 lbs.-ft. | 24077 psi | 17405 psi | 61600 lbs. | 1.496" | 7.087" | 5.118" | €423.64 | |
| A | PL140X190 | 15120 lbs.-ft. | 23787 psi | 17550 psi | 65560 lbs. | 1.496" | 7 12/25" | 5.512" | €439.82 | |
| B | PL150X200 | 18218 lbs.-ft. | 24947 psi | 18710 psi | 73920 lbs. | 1.496" | 7.874" | 5.906" | €472.14 | |
| A | PL160X210 | 20430 lbs.-ft. | 24657 psi | 18710 psi | 77880 lbs. | 1.496" | 8.268" | 6.299" | €502.86 | |
| A | PL170X225 | 25151 lbs.-ft. | 22771 psi | 17260 psi | 90200 lbs. | 1.732" | 8.858" | 6.693" | €519.90 | |
| A | PL180X235 | 28322 lbs.-ft. | 22916 psi | 17550 psi | 95700 lbs. | 1.732" | 9.252" | 7.087" | €545.13 | |
| A | PL190X250 | 35108 lbs.-ft. | 21321 psi | 16245 psi | 112640 lbs. | 2.047" | 9.843" | 7 12/25" | €681.04 | |
| A | PL200X260 | 38869 lbs.-ft. | 21176 psi | 16390 psi | 118360 lbs. | 2.047" | 10.236" | 7.874" | €699.26 | |
| A | PL220X285 | 50965 lbs.-ft. | 21611 psi | 16680 psi | 141020 lbs. | 2.205" | 11.22" | 8.661" | €875.83 | |
| A | PL240X305 | 61808 lbs.-ft. | 22046 psi | 17405 psi | 156640 lbs. | 2.205" | 12.008" | 9.449" | €947.30 | |
| A | PL260X325 | 76706 lbs.-ft. | 23351 psi | 18710 psi | 180180 lbs. | 2.205" | 12.795" | 10.236" | €1,010.35 | |
| A | PL280X355 | 95145 lbs.-ft. | 20886 psi | 16535 psi | 207240 lbs. | 2.598" | 13.976" | 11.024" | €1,713.84 | |
| A | PL300X375 | 111372 lbs.-ft. | 21321 psi | 17115 psi | 224400 lbs. | 2.598" | 14.764" | 11.811" | €1,970.27 |
