TSUBAKI AE Metric Series Power-Locks
Filter
A
B
C
D| Style | Model | Transmissible Torque | P-shaft Contact Pressure | P-contact Pressure-hub Bore | Transmissible Thrust | D-hub Counter I.d. | L | Shaft Outside Dia. | D1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PL019X047AE | 196 lbs.-ft. | 41627 psi | 13489 psi | 6314 lbs. | 1.85" | 0.748 | - | 2.087" | €89.81 | |
| A | PL020X047AE | 202 lbs.-ft. | 39451 psi | 13489 psi | 6314 lbs. | 1.85" | 0.748 | 0.787" | 2.087" | €89.81 | |
| A | PL022X047AE | 224 lbs.-ft. | 35970 psi | 13489 psi | 6314 lbs. | 1.85" | 0.748 | 0.866" | 2.087" | €89.81 | |
| A | PL024X050AE | 289 lbs.-ft. | 39741 psi | 14794 psi | 7370 lbs. | 1.968" | 0.748 | 0.945" | - | €93.56 | |
| A | PL025X050AE | 304 lbs.-ft. | 40901 psi | 14794 psi | 7370 lbs. | 1.968" | 0.748 | 0.984" | - | €93.56 | |
| A | PL028X055AE | 383 lbs.-ft. | 39016 psi | 15374 psi | 8426 lbs. | 2.165" | 0.748 | 1.102" | 2.441" | €95.44 | |
| A | PL030X055AE | 412 lbs.-ft. | 36405 psi | 15374 psi | 8426 lbs. | 2.165" | 0.748 | 1.181" | 2.441" | €95.44 | |
| A | PL032X060AE | 550 lbs.-ft. | 38726 psi | 16390 psi | 10538 lbs. | 2.362" | 0.807" | 1.26" | 2.638" | €101.04 | |
| A | PL035X060AE | 607 lbs.-ft. | 35390 psi | 16390 psi | 10538 lbs. | 2.362" | 0.807" | 1.378" | 2.638" | €101.04 | |
| A | PL038X065AE | 658 lbs.-ft. | 33069 psi | 15084 psi | 10538 lbs. | 2.559" | 0.807" | 1.496" | - | €106.66 | |
| A | PL040X065AE | 687 lbs.-ft. | 31474 psi | 15084 psi | 10538 lbs. | 2.559" | 0.807" | 1.575" | - | €106.66 | |
| A | PL045X075AE | 1291 lbs.-ft. | 38581 psi | 18855 psi | 17534 lbs. | 2.953" | 0.925" | 1.772" | - | €123.47 | |
| A | PL048X080AE | 1519 lbs.-ft. | 40611 psi | 19725 psi | 19492 lbs. | 3.15" | 0.925" | 1.89" | - | €127.22 | |
| A | PL050X080AE | 1593 lbs.-ft. | 39161 psi | 19725 psi | 19492 lbs. | 3.15" | 0.925" | 1.968" | - | €129.10 | |

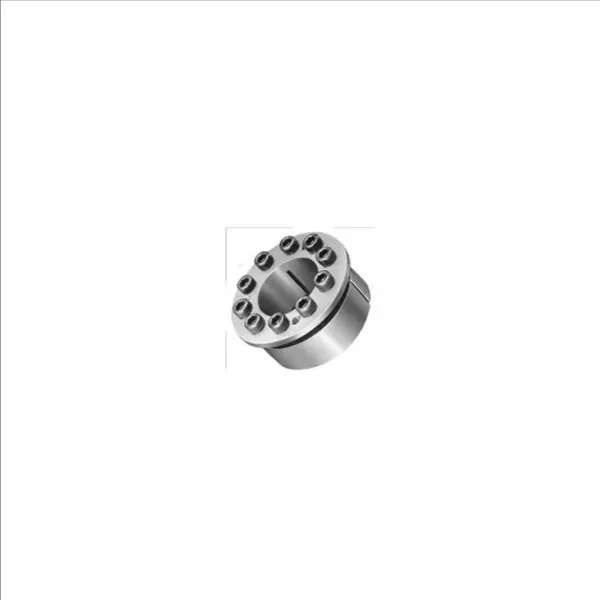

| B | PL055X085AE | 1733 lbs.-ft. | 35100 psi | 18565 psi | 19492 lbs. | 3.346" | 0.925" | 2.165" | - | €134.70 | |

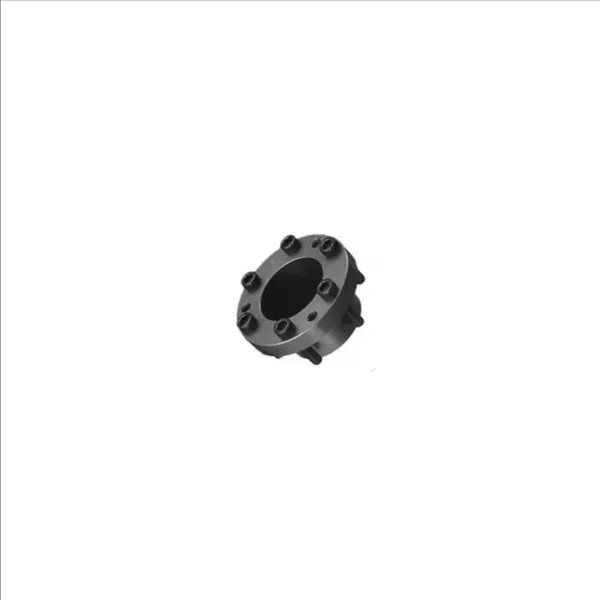

| C | PL060X090AE | 1881 lbs.-ft. | 31764 psi | 17695 psi | 19492 lbs. | 3.543" | 0.925" | 2.362" | - | €142.19 | |

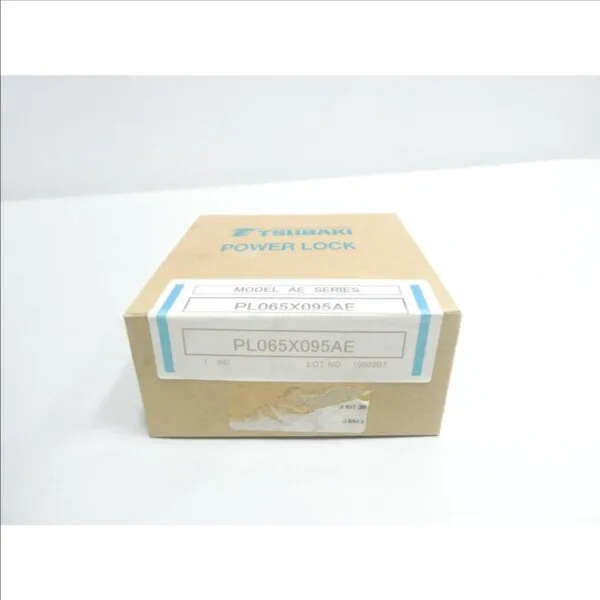

| D | PL065X095AE | 2456 lbs.-ft. | 35680 psi | 19871 psi | 23320 lbs. | 3.74" | 0.925" | 2.559" | - | €149.67 | |
| B | PL070X110AE | 3540 lbs.-ft. | 35825 psi | 19145 psi | 30800 lbs. | 4.331" | 1.102" | 2.756" | - | €200.82 | |
| B | PL075X115AE | 3762 lbs.-ft. | 33359 psi | 18275 psi | 30800 lbs. | 4.528" | 1.102" | 2.953" | 4.921" | €199.73 | |
| A | PL080X120AE | 4846 lbs.-ft. | 37710 psi | 21031 psi | 36960 lbs. | 4.724" | 1.102" | 3.15" | 5.118" | €203.01 | |
| A | PL085X125AE | 5133 lbs.-ft. | 35390 psi | 20161 psi | 36960 lbs. | 4.921" | 1.102" | 3.346" | 5.315" | €211.19 | |
| A | PL090X130AE | 5495 lbs.-ft. | 34955 psi | 19435 psi | 36960 lbs. | 5.118" | 1.102" | 3.543" | - | €225.94 | |
| B | PL095X135AE | 6719 lbs.-ft. | 38726 psi | 21901 psi | 43340 lbs. | 5.315" | 1.102" | 3.74" | - | €255.40 | |
| A | PL100X145AE | 7597 lbs.-ft. | 31619 psi | 17840 psi | 46420 lbs. | 5.709" | 1.339" | 3.937" | - | €276.67 | |
| B | PL120X165AE | 10990 lbs.-ft. | 31619 psi | 18855 psi | 55660 lbs. | 6.496" | 1.339" | 4.724" | - | €314.32 | |
| A | PL130X180AE | 14456 lbs.-ft. | 31039 psi | 18710 psi | 67540 lbs. | 7.087" | 1.496" | 5.118" | - | €423.64 | |
| A | PL140X190AE | 15563 lbs.-ft. | 28718 psi | 17840 psi | 67540 lbs. | 7 12/25" | 1.496" | 5.512" | - | €393.77 | |
| A | PL150X200AE | 19914 lbs.-ft. | 32054 psi | 20306 psi | 80960 lbs. | 7.874" | 1.496" | 5.906" | - | €438.61 |
