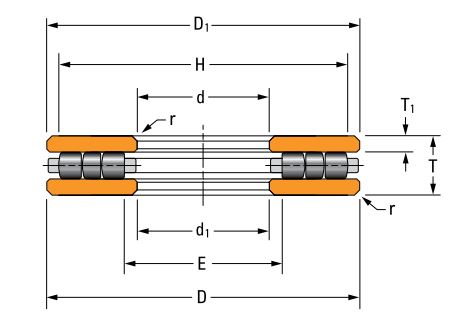

TIMKEN TP type Thrust Cylindrical Roller Bearing
Filter
A| Style | Model | Mounted | Bore Dia. | Cage Material | Dynamic Load Capacity | Static Load Capacity | Height | Type | Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 20TP103 | - | 2" | - | 84300 lbs. | 315400 lbs. | - | Type TP | -65°F to +250°F | €1,449.44 | |
| A | 60TP127 | No | 6" | - | 240600 lbs. | 1252500 lbs. | - | Type TP | -65°F to +250°F | - | RFQ
|
| A | 50TP121 | No | 5" x 5.062" | Steel | 184000 lbs. | 835900 lbs. | 2" | Type TP | -65°F to +250°F | €2,790.58 | |
| A | 80TP134 | No | 8" | - | 254000 lbs. | 1016000 lbs. | - | Type TP | -65°F to +250°F | €5,218.00 | |
| A | 60TP126 | No | 6" | - | 209600 lbs. | 1032600 lbs. | - | Type TP | -65°F to +250°F | €3,576.25 | |
| A | 60TP124 | No | 6" | - | 131100 lbs. | 543800 lbs. | - | Type TP | -65°F to +250°F | €2,050.43 | |
| A | 140TP159 | No | - | - | 677200 lbs. | 3753400 lbs. | - | Type TP | -65°F to +250°F | - | RFQ
|
| A | 30TP107 | No | 3" | - | 96100 lbs. | 401500 lbs. | - | Type TP | -65°F to +250°F | €2,551.96 | |
| A | 80TP135 | No | 8" | - | 346200 lbs. | 1558900 lbs. | - | Type TP | -65°F to +250°F | €8,266.27 | |
| A | 70TP131 | No | 7" | - | 226200 lbs. | 1180100 lbs. | - | Type TP | -65°F to +250°F | €3,512.51 | |
| A | 70TP130 | No | 7" | - | 183200 lbs. | 886500 lbs. | - | Type TP | -65°F to +250°F | €3,827.28 | |
| A | S-4792-A | No | 24 1/2" | Brass | - | - | 4 1/2" | - | - | - | RFQ
|
| A | 35TP113 | No | 3 1/2" | Steel | 37000 lbs. | 146200 lbs. | - | Type TP | -65°F to +250°F | €909.14 | |
| A | 70TP129 | No | 7" | - | 141600 lbs. | 625400 lbs. | - | Type TP | -65°F to +250°F | €2,491.37 | |
| A | 30TP106 | No | 3" | Steel | 74200 lbs. | 279500 lbs. | - | Type TP | -65°F to +250°F | €1,355.74 | |
| A | 40TP114 | No | 4" x 4.062" | Steel | 97200 lbs. | 372500 lbs. | 1 3/4" | Type TP | -65°F to +250°F | €1,655.20 | |
| A | 60TP125 | No | 6" x 6.062" | Steel | 164000 lbs. | 738800 lbs. | 2" | Type TP | -65°F to +250°F | €2,425.14 | |
| A | 50TP120 | No | 5" x 5.062" | Steel | 140400 lbs. | 645200 lbs. | 1 3/4" | Type TP | -65°F to +250°F | €1,933.36 | |
| A | 50TP119 | No | 5" | - | 110700 lbs. | 465800 lbs. | - | Type TP | -65°F to +250°F | €1,676.16 | |
| A | 40TP115 | No | 4" | - | 122800 lbs. | 515700 lbs. | - | Type TP | -65°F to +250°F | €1,602.81 | |
| A | 100TP145 | Yes | 10" x 10.094" | Steel | - | - | 3 3/4" | - | - | €21,441.98 | |
| A | E-2408-A | Yes | - | - | - | - | - | - | - | €84,669.84 | |
| A | 160TP164 | Yes | - | - | - | - | - | - | - | €45,918.20 | |
| A | 40TP117 | Yes | 4" x 4.062" | Steel | - | - | 1 3/4" | - | - | €3,325.32 | |
| A | 120TP152 | Yes | - | - | - | - | - | - | - | - | RFQ
|
| A | E-2259-A | Yes | - | - | - | - | - | - | - | €81,539.48 | |
| A | 50TP122 | Yes | 5" x 5.062" | Steel | - | - | 2" | - | - | €7,465.83 | |
| A | 180TP168 | Yes | - | - | - | - | - | - | - | - | RFQ
|
| A | 120TP153 | Yes | - | - | - | - | - | - | - | €33,502.48 | |
| A | 200TP171 | Yes | - | - | - | - | - | - | - | €92,007.75 | |
| A | 120TP151 | Yes | - | - | - | - | - | - | - | €15,259.16 | |
| A | 140TP160 | Yes | - | - | - | - | - | - | - | €50,062.35 | |
| A | F-2658-B | Yes | - | - | - | - | - | - | - | €29,950.81 | |
| A | 80TP136 | Yes | - | - | - | - | - | - | - | €11,507.87 | |
| A | 100TP143 | Yes | - | - | - | - | - | - | - | €6,907.88 | |
| A | 100TP144 | Yes | 10" x 10.094" | Steel | - | - | 3 3/4" | - | - | €15,763.90 | |
| A | E-2306-A | Yes | - | - | - | - | - | - | - | €62,565.22 | |
| A | 90TP139 | Yes | 9" x 9.094" | Steel | - | - | 3" | - | - | €12,561.72 |
