SPEEDAIRE Compressed Air Filter
Speedaire compressed air filters remove oil and liquid particles from compressed air, ensuring the air is clean and dry before use in various industrial applications. These units are ideally used in the automotive, food & beverage, pharmaceutical and semiconductor manufacturing industries.
Filter
A
B
C
D
E
F
G| Style | Model | Max. Flow Rate | Overall Width | Overall Height | Filter Rating | Inlet Size | Air Outlet Size | For Fluid Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4GNW6 | 15 CFM | 4" | 15 3/16" | 0.01 µm | 1/4 | 1/4" | Oil | - | €591.65 | |
| A | 4GNW8 | 15 CFM | 4" | 15 3/16" | 1 µm | 1/4 | 1/4" | Oil, Water | - | €591.65 | |
| A | 4GNW7 | 15 CFM | 4" | 15 3/16" | 5 µm | 1/4 | 1/4" | - | - | €591.65 | |
| B | 4GNX6 | 58 CFM | 4" | 15 3/16" | 5 µm | 1/2 | 1/2" | - | - | €687.56 | |
| C | 4GNX7 | 58 CFM | 4" | 15 3/16" | 1 µm | 1/2 | 1/2" | Oil, Water | General Purpose | €682.25 | |
| B | 4GNX5 | 58 CFM | 4" | 15 1/5" | 0.01 µm | - | - | Oil | Activated Carbon | €681.71 | |
| B | 4GNY2 | 88 CFM | 4 13/16" | 21 5/8" | 1 µm | 3/4 | 3/4" | Oil, Water | General Purpose | €676.12 | |
| D | 4GNY1 | 88 CFM | 4 13/16" | 21 5/8" | 5 µm | 3/4 | 3/4" | - | - | €688.83 | |
| A | 4GNX9 | 88 CFM | 4 13/16" | 21 5/8" | 0.01 µm | 3/4 | 3/4" | Oil | Activated Carbon | €676.12 | |

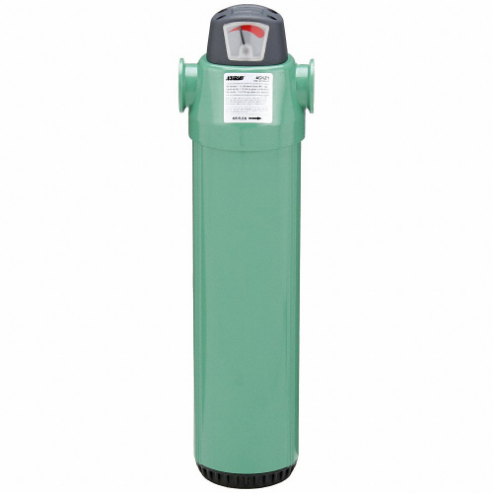

| E | 4GNZ1 | 147 CFM | 4 13/16" | 24 13/16" | 1 µm | 1" | 1" | Oil, Water | General Purpose | €917.40 | |
| B | 4GNY9 | 147 CFM | 4 13/16" | 24 13/16" | 5 µm | 1" | 1" | - | - | €923.74 | |
| B | 4GNY8 | 147 CFM | 4 13/16" | 24 13/16" | 0.01 µm | 1" | 1" | Oil | Activated Carbon | €909.76 | |

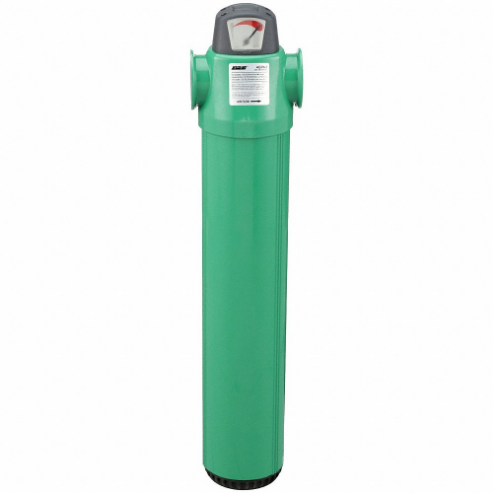

| F | 4GPA3 | 353 CFM | 4 13/16" | 26 3/8" | 5 µm | 1 1/2" NPT | 1 1/2" | - | - | €1,424.66 | |
| B | 4GPA4 | 353 CFM | 4 13/16" | 26 3/8" | 1 µm | 1 1/2" NPT | 1 1/2" | Oil, Water | General Purpose | €1,416.32 | |
| B | 4GPA2 | 353 CFM | 4 13/16" | 26 3/8" | 0.01 µm | 1 1/2" NPT | 1 1/2" | Oil | Activated Carbon | €1,416.32 | |
| G | 4GPA8 | 500 CFM | 7 3/16" | 36" | 1 µm | 2" NPT | 2" | Oil, Water | General Purpose | €1,580.35 | |
| A | 4GPA7 | 500 CFM | 7 3/16" | 36" | 5 µm | 2" NPT | 2" | - | - | €1,582.67 | |
| A | 4GPA6 | 500 CFM | 7 3/16" | 36" | 0.01 µm | 2" NPT | 2" | Oil | - | €1,580.35 | |
| B | 4GPC3 | 712 CFM | 7 3/16" | 36" | 1 µm | 2" NPT | 2" | Oil, Water | General Purpose | €1,953.11 | |
| A | 4GPC2 | 712 CFM | 7 3/16" | 36" | 5 µm | 2" NPT | 2" | - | - | €1,974.33 | |
| A | 4GPC1 | 712 CFM | 7 3/16" | 36" | - | 2" NPT | 2" | Oil | - | €1,953.11 |
Working Mechanism
- Compressed air is drawn into the filter.
- Large particles are trapped by the filter.
- Water condenses into larger droplets and is removed from the air stream.
- Smaller particles are coalesced into larger droplets and removed from the air stream.
- Clean and dry air is then released from the filter.
Features
- Speedaire compressed air filters feature aluminium construction to resist corrosion.
- They have nanopor microglass filter media, which is biologically inert and non-toxic.
- These air filters include a differential pressure indicator for convenient and accurate monitoring of the filters.
- They can be operated at temperatures up to 176 degrees F.
Frequently Asked Questions
What is the maximum flow rate of these Speedaire compressed air filters?
These Speedaire compressed air filters provide flow rates up to 2470 cfm.
How to maintain these Speedaire compressed air filters?
- Clean air compressor from dirt, rust and other external build-ups.
- Clean filters regularly.
- Pay attention to air quality.
What are the factors to consider while choosing the Speedaire compressed air filters?
- Type of filter
- Air flow
- Pressure drop
