QUANTUM STORAGE SYSTEMS Single Sided Steel Bin Rail Units
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Overall Width | Overall Depth | Bin Width | Bin Depth | Bin Height | Bin Color | Overall Height | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | QRU-12S-210-96GN | 15" | 36" | 4 1/8" | 5 3/8" | 3" | Green | 54" | 600 lbs. | €761.13 | |
| B | QRU-12S-210-96IV | 15" | 36" | 4 1/8" | 5 3/8" | 3" | Ivory | 54" | 600 lbs. | €761.13 | |
| C | QRU-12S-250-12RD | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Red | 54" | 600 lbs. | €746.20 | |
| D | QRU-12S-250-12BL | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Blue | 54" | 600 lbs. | €746.20 | |
| E | QRU-12S-250-12IV | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Ivory | 54" | 600 lbs. | €746.20 | |
| F | QRU-12S-210-96RD | 15" | 36" | 4 1/8" | 5 3/8" | 3" | Red | 54" | 600 lbs. | €761.13 | |
| G | QRU-12S-250-12GN | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Green | 54" | 600 lbs. | €746.20 | |
| H | QRU-12S-250-12BK | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Black | 54" | 600 lbs. | €746.20 | |
| I | QRU-12S-210-96BL | 15" | 36" | 4 1/8" | 5 3/8" | 3" | - | 54" | 600 lbs. | €761.13 | |
| J | QRU-12S-210-96YL | 15" | 36" | 4 1/8" | 5 3/8" | 3" | - | 54" | 600 lbs. | €712.41 | |
| K | QRU-12S-250-12YL | 15" | 36" | 16 1/2" | 14 3/4" | 7" | Yellow | 54" | 600 lbs. | €694.27 | |
| L | QRU-12S-210-96BK | 15" | 36" | 4 1/8" | 5 3/8" | 3" | Black | 54" | 600 lbs. | €761.13 | |

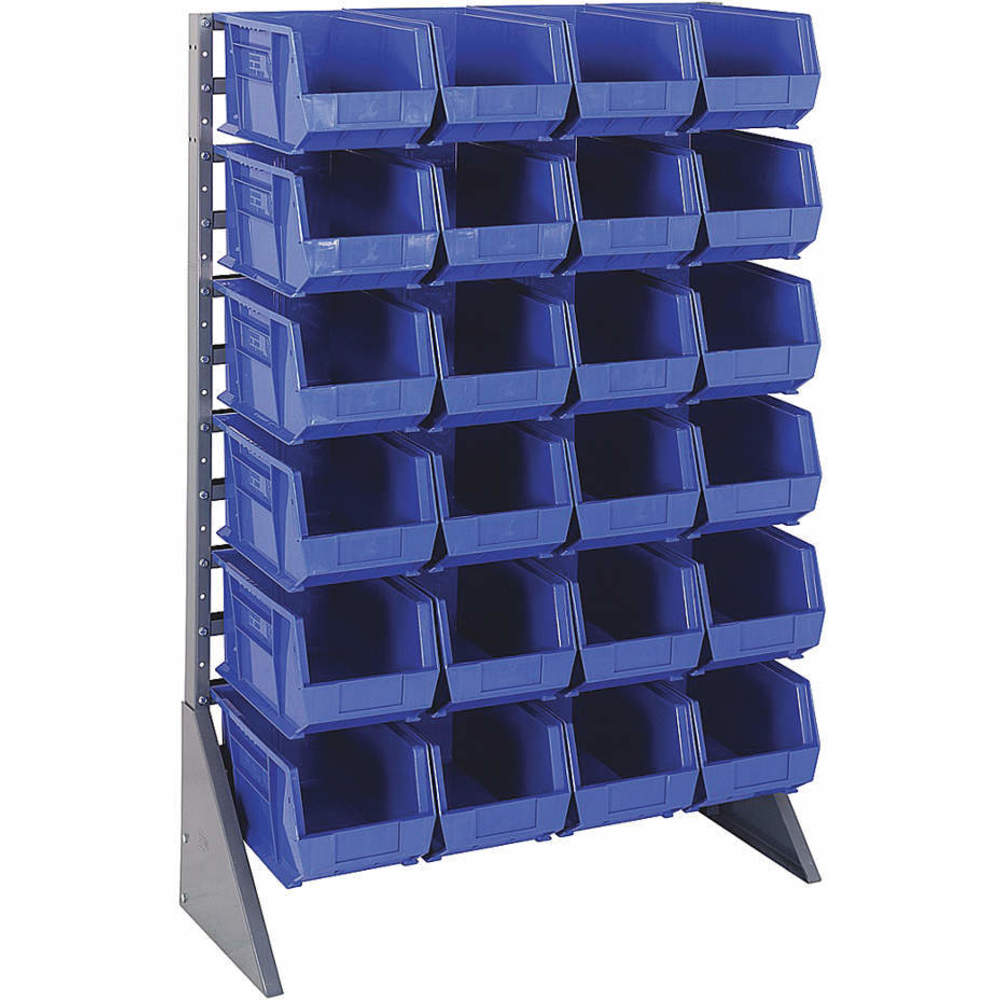

| M | QRU-12S-240-24BL | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Blue | 54" | 600 lbs. | €740.38 | |
| N | QRU-12S-240-24BK | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Black | 54" | 600 lbs. | €740.38 | |
| O | QRU-12S-220-96BL | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Blue | 54" | 600 lbs. | €743.72 | |
| P | QRU-12S-220-96BK | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Black | 54" | 600 lbs. | €743.72 | |

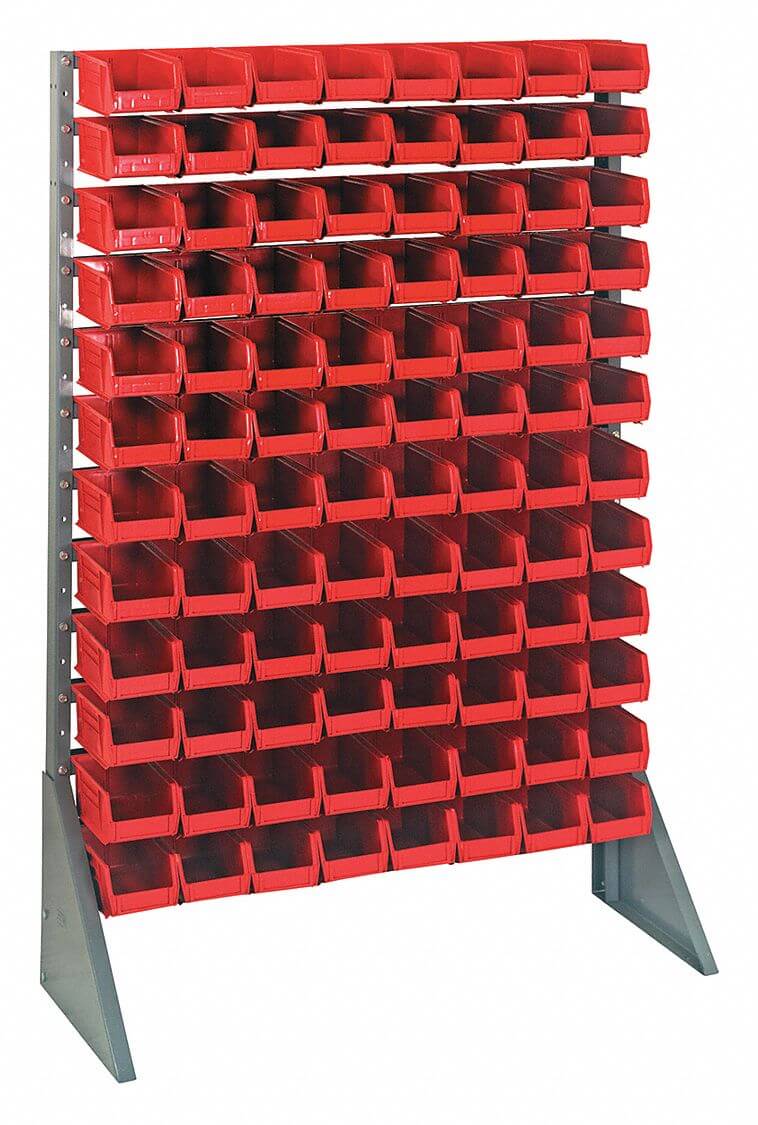

| Q | QRU-12S-220-96RD | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Red | 54" | 600 lbs. | €776.55 | |
| R | QRU-16S-230-48BL | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Blue | 54" | 600 lbs. | €791.73 | |
| S | QRU-12S-240-24YL | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Yellow | 54" | 600 lbs. | €740.38 | |
| T | QRU-16S-220230240CL | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Clear | 54" | 600 lbs. | €850.79 | |
| U | QRU-16S-220230240BK | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Black | 54" | 600 lbs. | €875.92 | |
| V | QRU-16S-230-48RD | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Red | 54" | 600 lbs. | €791.73 | |
| U | QRU-16S-220230240BL | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Blue | 54" | 600 lbs. | €788.85 | |
| W | QRU-12S-220-96CL | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Clear | 54" | 600 lbs. | €791.92 | |
| X | QRU-12S-240-24RD | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Red | 54" | 600 lbs. | €740.38 | |

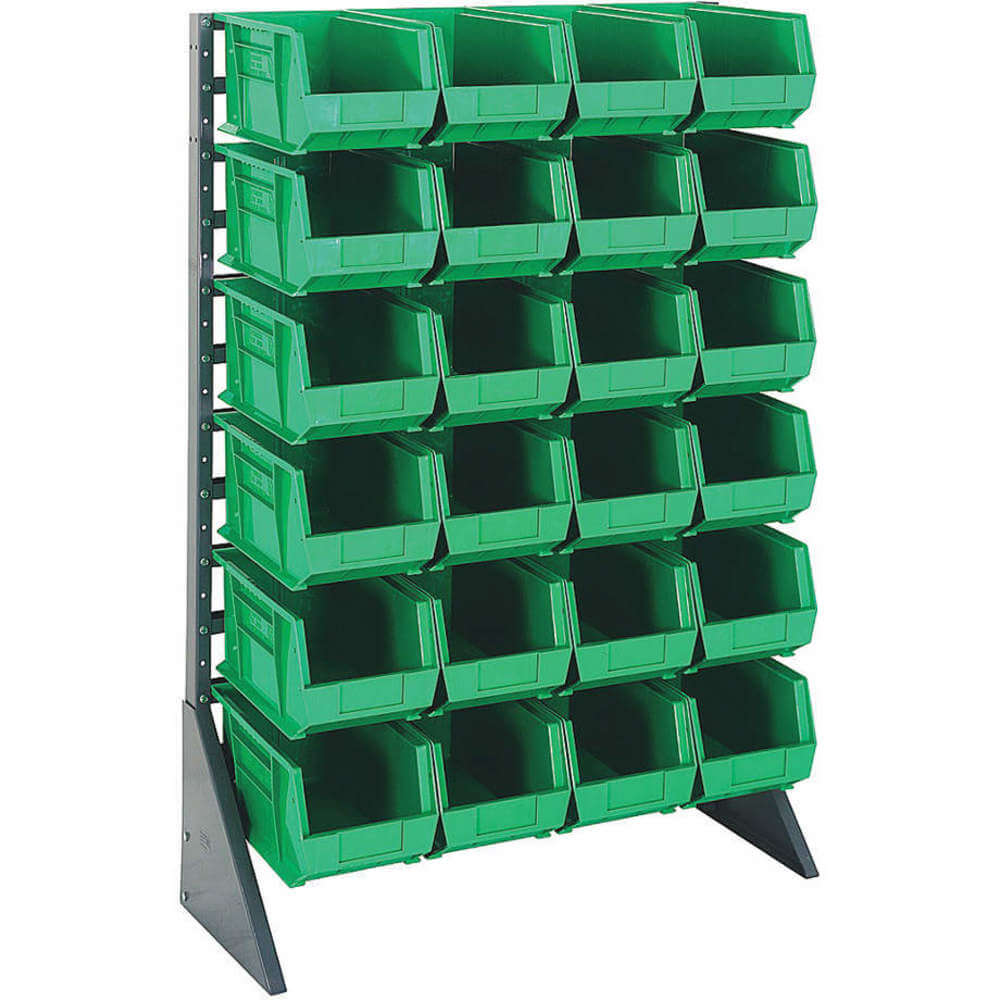

| Y | QRU-12S-240-24GN | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Green | 54" | 600 lbs. | €655.14 | |
| Z | QRU-12S-240-24CL | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Clear | 54" | 600 lbs. | €813.17 | |
| U | QRU-16S-220230240GN | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Green | 54" | 600 lbs. | €860.71 | |
| U | QRU-16S-220230240IV | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Ivory | 54" | 600 lbs. | €875.92 | |
| U | QRU-16S-220230240YL | 36" | 15" | 4 1/8", 5 1/2", 8 1/4" | 7 3/8", 10 7/8", 14 3/4" | 3", 5", 7" | Yellow | 54" | - | €788.85 | |

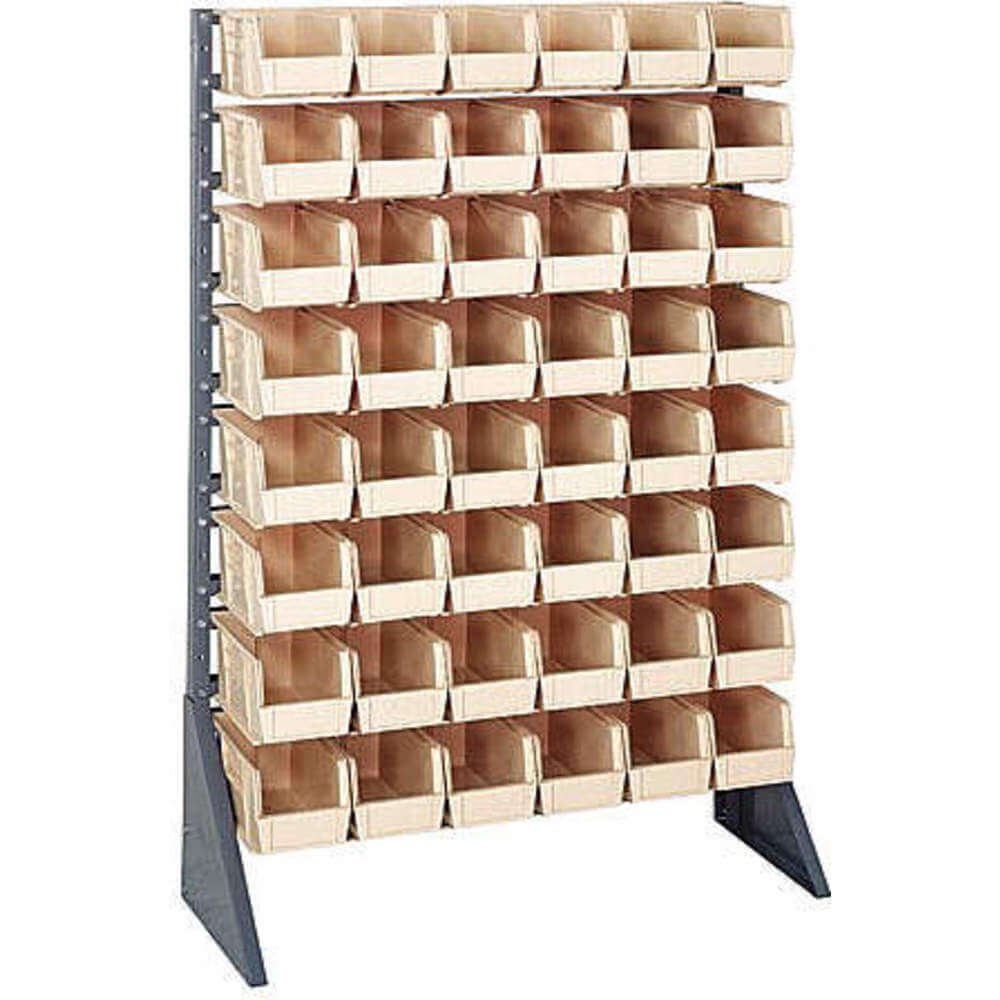

| A1 | QRU-16S-230-48IV | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Ivory | 54" | 600 lbs. | €817.99 | |
| B1 | QRU-12S-220-96IV | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Ivory | 54" | 600 lbs. | €743.72 | |
| C1 | QRU-12S-220-96YL | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Yellow | 54" | 600 lbs. | €743.72 | |
| D1 | QRU-16S-230-48BK | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Black | 54" | 600 lbs. | €817.99 | |
| E1 | QRU-16S-230-48YL | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Yellow | 54" | 600 lbs. | €791.73 | |
| U | QRU-16S-220230240RD | 36" | 15" | 5 1/2" | 10 7/8" | 5" | - | 54" | 600 lbs. | €860.71 | |

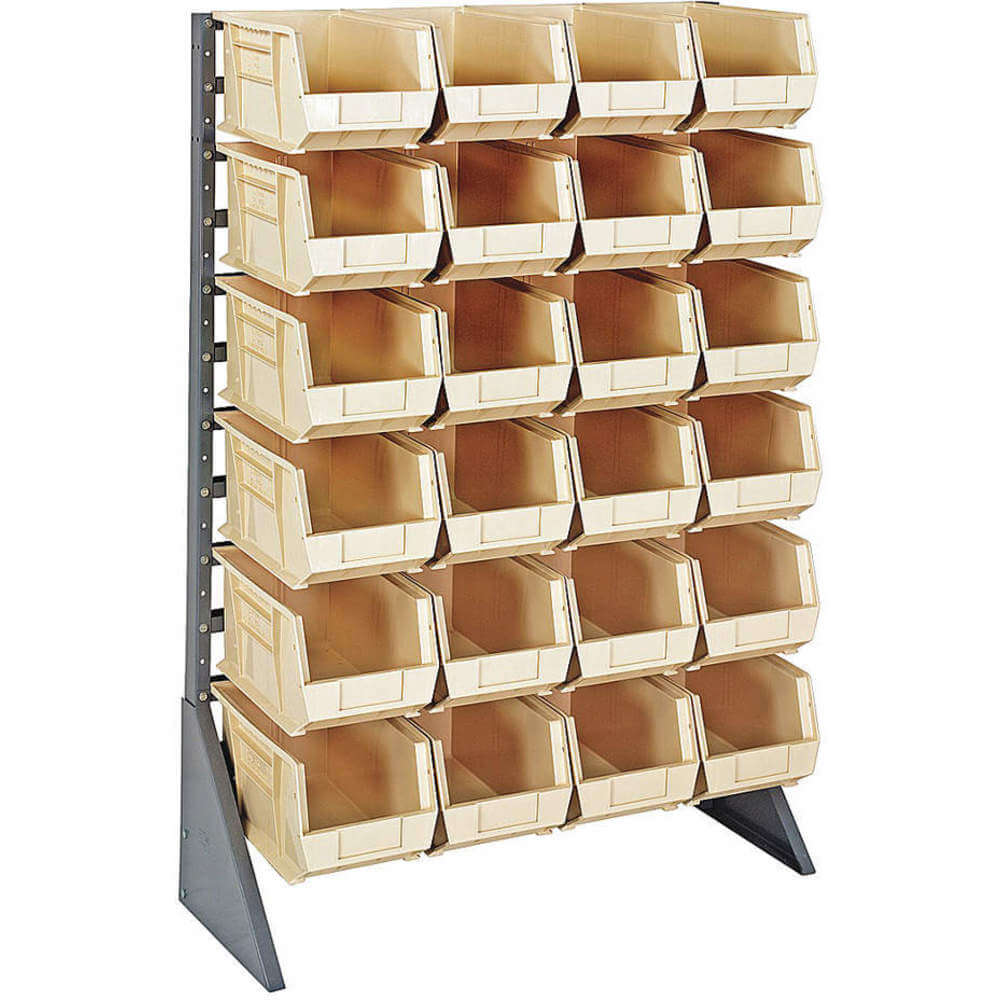

| F1 | QRU-12S-240-24IV | 36" | 15" | 8 1/4" | 14 3/4" | 7" | Ivory | 54" | 600 lbs. | €764.93 | |
| G1 | QRU-12S | 36" | 15" | - | - | - | - | 54" | 600 lbs. | €351.40 | |
| H1 | QRU-16S | 36" | 15" | - | - | - | - | 54" | 600 lbs. | €372.12 | |
| I1 | QRU-16S-230-48CL | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Clear | 54" | 600 lbs. | €872.49 | |
| J1 | QRU-16S-230-48GN | 36" | 15" | 5 1/2" | 10 7/8" | 5" | Green | 54" | 600 lbs. | €791.73 | |
| K1 | QRU-12S-220-96GN | 36" | 15" | 4 1/8" | 7 3/8" | 3" | Green | 54" | 600 lbs. | €776.55 |
Single Sided Steel Bin Rail Units
Quantum Storage Systems hanging rail units are ideal for mounting to surfaces such as walls, benches, carts & cabinets. The single-sided rails are fastened securely to the surface, ensuring equal load distribution and accepting 16 different sizes of Ultra) provide storage facility on both sides for holding up to 192 bins at a time..
