ONDRIVES US Keyless Rotary Shafts
Filter
A
B
C
D
E
F| Style | Model | Dia. | Dia. Tolerance | Grade | End Type | Length Tolerance | Material Hardness | Material | Straightness Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GS12.5K-240 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €291.56 | |
| A | GS12.5K-480 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €655.54 | |
| B | GS12.5K-120 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €163.13 | |
| A | GS12.5K-180 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €211.77 | |
| A | GS12.5K-360 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.001" | €374.06 | |
| A | GS12.5K-600 | 1 1/4" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €911.45 | |
| C | GTM1000-200 | 1 mm | -0.005 mm | Grade 316 | Edge Break | -0.25 mm to +0.25 mm | 79HRB | Stainless Steel | 0.01 mm | €5.75 | |
| D | GSM1000200 | 1 mm | - | Grade 303 | Edge Break | - | - | Stainless Steel | - | €3.75 | |
| E | GTM1000-400 | 1 mm | -0.005 mm | Grade 316 | Edge Break | -0.25 mm to +0.25 mm | 79HRB | Stainless Steel | 0.01 mm | €17.32 | |
| E | GPM1000-100 | 1 mm | -0.005 mm | Grade 17-4PH | Edge Break | -0.25 mm to +0.25 mm | 40HRC To 47HRC | - | 0.01 mm | €19.31 | |
| E | GPM1000-300 | 1 mm | -0.005 mm | Grade 17-4PH | Edge Break | -0.25 mm to +0.25 mm | 40HRC To 47HRC | - | 0.01 mm | €35.62 | |
| A | GS10K-600 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €590.16 | |

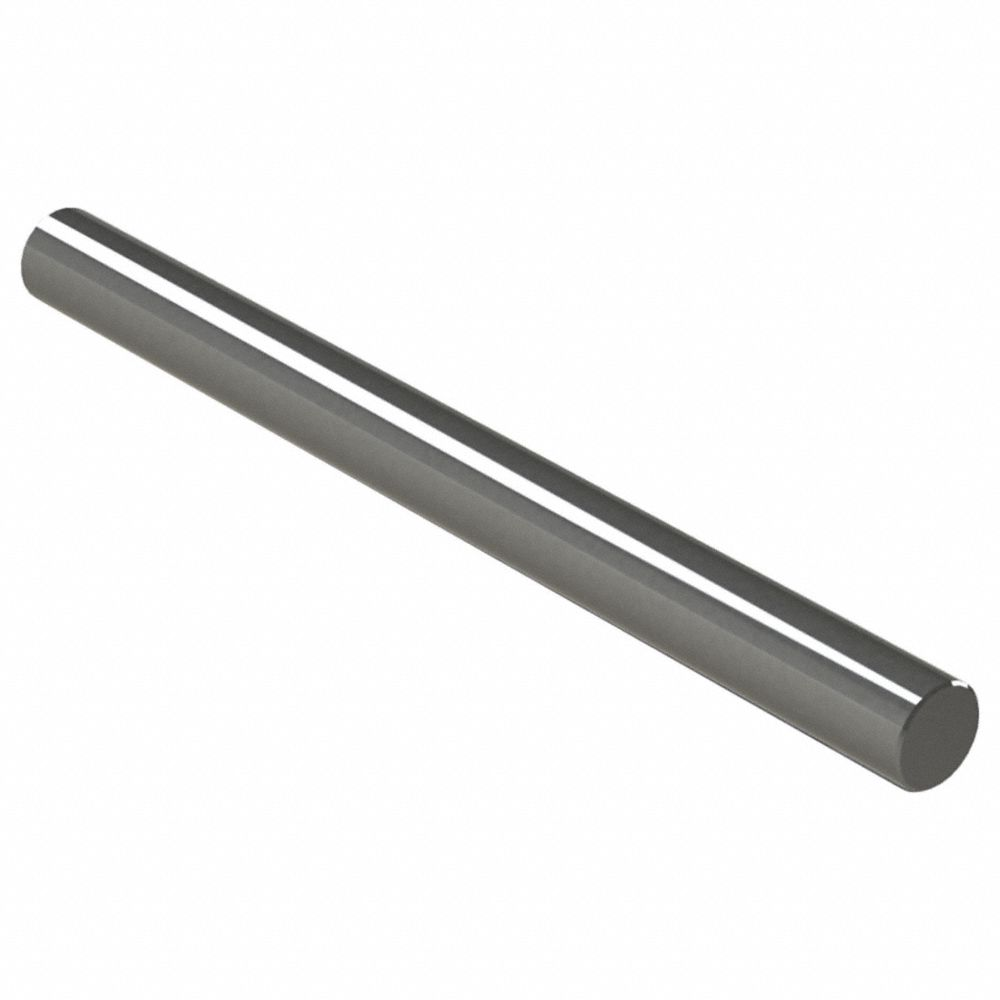

| F | GA10K240 | 1" | - | Grade 12L14 | Chamfered | - | - | Steel | - | €154.73 | |
| A | GS10K-480 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €421.04 | |
| E | GA10K-120 | 1" | -0.0004" | Grade 12L14 | Chamfered | -0.01" to +0.01" | 83HRB | - | 0.0006" | €85.54 | |
| A | GS10K-180 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €170.62 | |
| A | GS10K-360 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €332.76 | |
| A | GS10K-240 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €252.37 | |
| D | GS9997360 | 1" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €229.54 | |
| A | GS10K-120 | 1" | -0.0004" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.001" | €126.16 | |
| E | GPM1500-600 | 1.5 mm | -0.005 mm | Grade 17-4PH | Edge Break | -0.25 mm to +0.25 mm | 40HRC To 47HRC | - | 0.01 mm | €39.43 | |
| E | GPM1500-300 | 1.5 mm | -0.005 mm | Grade 17-4PH | Edge Break | -0.25 mm to +0.25 mm | 40HRC To 47HRC | - | 0.01 mm | €28.21 | |
| E | GTM1500-200 | 1.5 mm | -0.005 mm | Grade 316 | Edge Break | -0.25 mm to +0.25 mm | 79HRB | Stainless Steel | 0.01 mm | €8.64 | |
| E | GTM1500-400 | 1.5 mm | -0.005 mm | Grade 316 | Edge Break | -0.25 mm to +0.25 mm | 79HRB | Stainless Steel | 0.01 mm | €20.23 | |
| F | GPM1500400 | 1.5 mm | - | Grade 17-4PH | Edge Break | - | - | Stainless Steel | - | €36.39 | |
| F | GPM1500800 | 1.5 mm | - | Grade 17-4PH | Edge Break | - | - | Stainless Steel | - | €51.54 | |
| E | GA5000-360 | 1/2" | -0.0004" | Grade 12L14 | Chamfered | - | 83HRB | - | 0.0006" | €65.21 | |
| A | GS5000-120 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €35.92 | |
| A | GS4997-120 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €35.94 | |
| A | GS5000-160 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | - | RFQ
|
| A | GS5000-240 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €64.93 | |
| A | GS5000-360 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €95.34 | |
| A | GS5000-600 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €151.73 | |
| A | GS5000-480 | 1/2" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0006" | €127.21 | |
| F | GP500030 | 1/2" | - | Grade 17-4PH | Chamfered | - | - | Stainless Steel | - | €30.41 | |
| E | GA5000-120 | 1/2" | -0.0004" | Grade 12L14 | Chamfered | -0.01" to +0.01" | 83HRB | - | 0.0006" | €24.36 | |
| D | GS499737 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €13.76 | |
| D | GS4997130 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €40.72 | |
| D | GS499752 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €20.31 | |
| D | GS499760 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €21.99 | |
| D | GS499780 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €27.02 | |
| D | GS5000180 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €50.89 | |
| D | GS4997110 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €35.46 | |
| D | GS499765 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €21.99 | |
| D | GS4997160 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €48.55 | |
| D | GS5000720 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €212.76 | |
| D | GS499722 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €9.52 | |
| D | GS499733 | 1/2" | - | Grade 303 | Chamfered | - | - | Stainless Steel | - | €12.24 | |
| E | GP2500-180 | 1/4" | -0.0002" | Grade 17-4PH | Chamfered | -0.01" to +0.01" | 40HRC To 47HRC | - | 0.0006" | €31.69 | |
| E | GT2500-40 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €8.23 | |
| E | GT2500-90 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €12.41 | |
| E | GT2500-80 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €10.99 | |
| E | GT2500-70 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €9.74 | |
| E | GT2500-60 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €9.48 | |
| E | GT2500-50 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €8.11 | |
| E | GT2500-240 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €26.27 | |
| C | GT2500-360 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €42.76 | |
| E | GT2500-30 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €7.05 | |
| E | GP2500-120 | 1/4" | -0.0002" | 17-4PH | Chamfered | -0.01" to +0.01" | 40HRC To 47HRC | Stainless Steel | 0.001" | €26.24 | |
| E | GT2500-180 | 1/4" | -0.0002" | Grade 316 | Chamfered | -0.01" to +0.01" | 79HRB | Stainless Steel | 0.0004" | €20.41 | |
| A | GS2497-40 | 1/4" | -0.0002" | Grade 303 | Chamfered | -0.01" to +0.01" | 83HRB | Stainless Steel | 0.0004" | - | RFQ
|
