MARTIN SPROCKET Triplex Stock Bore B Type Metric Roller Chain Sprockets, 20B-3 Chain Number

Filter

MARTIN SPROCKET E20B12

A

MARTIN SPROCKET E20B13

B

MARTIN SPROCKET E20B14

C

MARTIN SPROCKET E20B15

D

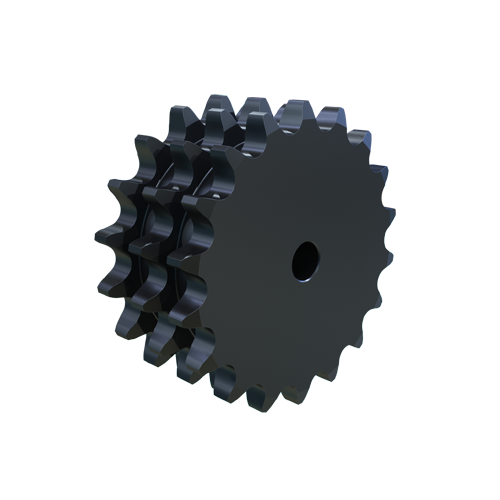

MARTIN SPROCKET E20B18

E

MARTIN SPROCKET E20B19

F

MARTIN SPROCKET E20B20

G

MARTIN SPROCKET E20B25

H

Style	Model	Pitch Dia.	No. Of Teeth	Length Through Bore	Hub Dia.	Bore Dia.	Material	Pitch	Chain Size	Price
A	E20B12	122.673 mm	12	115.011 mm	89.992 mm	25 mm to 62 mm	High Carbon Steel	31.75 mm	#20B-3	€748.83
B	E20B13	132.67 mm	13	115.011 mm	99.797 mm	25 mm to 70 mm	High Carbon Steel	31.75 mm	#20B-3	€820.28
C	E20B14	142.683 mm	14	115.011 mm	109.982 mm	25 mm to 76 mm	High Carbon Steel	31.75 mm	#20B-3	€840.71
D	E20B15	152.709 mm	15	115.037 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€929.47
A	E20B16	162.745 mm	16	115.011 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€986.37
A	E20B17	172.79 mm	17	115.011 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€1,049.40
E	E20B18	182.841 mm	18	115.011 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€1,349.33
F	E20B19	192.898 mm	19	115.011 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€1,560.40
G	E20B20	202.96 mm	20	115.011 mm	119.99 mm	25 mm to 84 mm	High Carbon Steel	31.75 mm	#20B-3	€1,761.30
A	E20B21	213.027 mm	21	115.011 mm	140.005 mm	25 mm to 98 mm	High Carbon Steel	31.75 mm	#20B-3	€1,958.59
A	E20B22	223.097 mm	22	115.011 mm	140.005 mm	25 mm to 98 mm	High Carbon Steel	31.75 mm	#20B-3	€2,057.72
A	E20B23	233.17 mm	23	140.411 mm	140.005 mm	25 mm to 98 mm	High Carbon Steel	31.75 mm	#20B-3	€2,137.48
A	E20B24	243.246 mm	24	120.015 mm	145.009 mm	32 mm to 102 mm	High Carbon Steel	31.75 mm	#20B-3	€2,191.00
H	E20B25	253.325 mm	25	121.006 mm	145.999 mm	32 mm to 102 mm	High Carbon Steel	31.75 mm	#20B-3	€2,276.84
A	E20B28	283.572 mm	28	120.015 mm	145.009 mm	32 mm to 102 mm	High Carbon Steel	31.75 mm	#20B-3	€2,599.19
A	E20B30	303.745 mm	30	120.015 mm	145.009 mm	32 mm to 102 mm	High Carbon Steel	31.75 mm	#20B-3	€2,873.77
A	E20B32	323.923 mm	32	127 mm	145.009 mm	32 mm to 102 mm	High Carbon Steel	31.75 mm	#20B-3	€3,020.35
