MARTIN SPROCKET Simplex Stock Bore B Type Metric Roller Chain Sprockets, 08B-1 Chain Number

Filter

Style	Model	Bore Dia.	Pitch Dia.	Outside Dia.	Hub Dia.	Length Through Bore	Pitch	Price
A	08B14	10 mm	57.073 mm	64.439 mm	42.012 mm	27.991 mm	12.7 mm	€62.29
B	08B15	10 mm	61.084 mm	68.45 mm	45.999 mm	27.991 mm	12.7 mm	€62.29
C	08B9	10 mm to 15 mm	37.132 mm	44.498 mm	21.006 mm	25 mm	12.7 mm	€51.08
D	08B10	10 mm to 20 mm	41.098 mm	48.464 mm	26.035 mm	25 mm	12.7 mm	€52.17
E	08B11	10 mm to 22 mm	45.078 mm	52.444 mm	30.201 mm	25 mm	12.7 mm	€57.20
F	08B12	10 mm to 22 mm	49.069 mm	56.435 mm	34.341 mm	28 mm	12.7 mm	€60.96
G	08B13	10 mm to 25 mm	53.068 mm	60.434 mm	37.998 mm	28 mm	12.7 mm	€62.29
H	08B22	12 mm	89.239 mm	96.605 mm	73 mm	27.991 mm	12.7 mm	€110.22
I	08B20	12 mm	81.184 mm	88.55 mm	67.005 mm	27.991 mm	12.7 mm	€97.07
J	08B19	12 mm	77.159 mm	84.525 mm	64.008 mm	27.991 mm	12.7 mm	€92.34
K	08B16	12 mm	65.098 mm	72.464 mm	50.013 mm	27.991 mm	12.7 mm	€64.92
L	08B21	12 mm	85.211 mm	92.577 mm	70.002 mm	27.991 mm	12.7 mm	€107.34
M	08B17	12 mm	69.116 mm	76.482 mm	54 mm	27.991 mm	12.7 mm	€76.15
N	08B18	12 mm	73.136 mm	80.502 mm	56.998 mm	27.991 mm	12.7 mm	€81.18
O	08B23	12 mm to 55 mm	93.268 mm	100.634 mm	78.003 mm	28 mm	12.7 mm	€121.42
P	08B25	14 mm	101.33 mm	108.696 mm	81.991 mm	29.997 mm	12.7 mm	€125.91
Q	08B24	14 mm	97.298 mm	104.664 mm	81.991 mm	27.991 mm	12.7 mm	€127.59
R	08B30	16 mm	121.498 mm	128.864 mm	89.002 mm	29.997 mm	12.7 mm	€149.16
S	08B26	16 mm	105.362 mm	112.728 mm	81.991 mm	29.997 mm	12.7 mm	€131.95
T	08B38	16 mm	153.791 mm	118.741 mm	87.935 mm	35.001 mm	12.7 mm	€169.37
U	08B28	16 mm to 55 mm	113.429 mm	120.795 mm	81.991 mm	30 mm	12.7 mm	€143.98
V	08B27	16 mm to 55 mm	109.395 mm	116.761 mm	81.991 mm	30 mm	12.7 mm	€139.03

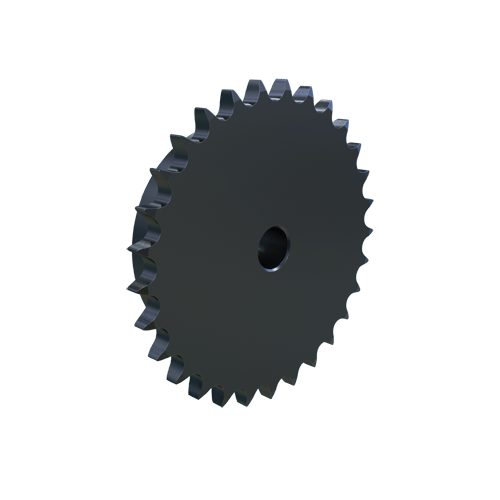

W	08B29	16 mm to 55 mm	117.463 mm	124.829 mm	81.991 mm	30 mm	12.7 mm	€146.80
X	08B31	16 mm to 55 mm	125.533 mm	132.899 mm	89.002 mm	30 mm	12.7 mm	€150.45
Y	08B32	16 mm to 55 mm	129.569 mm	136.935 mm	89.002 mm	30 mm	12.7 mm	€152.16
Z	08B36	16 mm to 60 mm	145.716 mm	112.684 mm	87.935 mm	35 mm	12.7 mm	€162.28
A1	08B35	16 mm to 60 mm	141.679 mm	149.045 mm	89.002 mm	30 mm	12.7 mm	€159.47
B1	08B34	16 mm to 60 mm	137.642 mm	145.008 mm	89.002 mm	30 mm	12.7 mm	€158.20
C1	08B33	16 mm to 60 mm	133.605 mm	140.971 mm	89.002 mm	30 mm	12.7 mm	€156.24
D1	08B37	16 mm to 60 mm	149.754 mm	115.713 mm	87.935 mm	35 mm	12.7 mm	€164.85
E1	08B42	19 mm to 60 mm	169.945 mm	130.856 mm	87.935 mm	35 mm	12.7 mm	€180.36
F1	08B39	19 mm to 60 mm	157.83 mm	121.769 mm	87.935 mm	35 mm	12.7 mm	€173.03
G1	08B40	19 mm to 60 mm	161.868 mm	124.798 mm	87.935 mm	35 mm	12.7 mm	€176.70
H1	08B45	19 mm to 60 mm	182.062 mm	139.944 mm	87.935 mm	35 mm	12.7 mm	€182.49
I1	08B76	19 mm to 64 mm	307.32 mm	233.887 mm	98.831 mm	35 mm	12.7 mm	€249.79
J1	08B48	19 mm to 64 mm	194.18 mm	149.032 mm	98.831 mm	35 mm	12.7 mm	€194.36
E1	08B54	19 mm to 64 mm	218.42 mm	167.212 mm	98.831 mm	35 mm	12.7 mm	€206.61
I1	08B70	19 mm to 64 mm	283.073 mm	215.702 mm	98.831 mm	35 mm	12.7 mm	€257.87
K1	08B57	19 mm to 64 mm	230.541 mm	176.303 mm	98.831 mm	35 mm	12.7 mm	€212.87
L1	08B84	19 mm to 64 mm	339.652 mm	258.136 mm	98.831 mm	35 mm	12.7 mm	€292.04
I1	08B72	19 mm to 64 mm	291.155 mm	221.763 mm	98.831 mm	35 mm	12.7 mm	€268.17
I1	08B80	19 mm to 64 mm	323.486 mm	246.012 mm	98.831 mm	35 mm	12.7 mm	€268.79
M1	08B64	19 mm to 64 mm	258.826 mm	197.517 mm	98.831 mm	35 mm	12.7 mm	€234.36
N1	08B60	19 mm to 64 mm	242.663 mm	185.394 mm	98.831 mm	35 mm	12.7 mm	€218.89

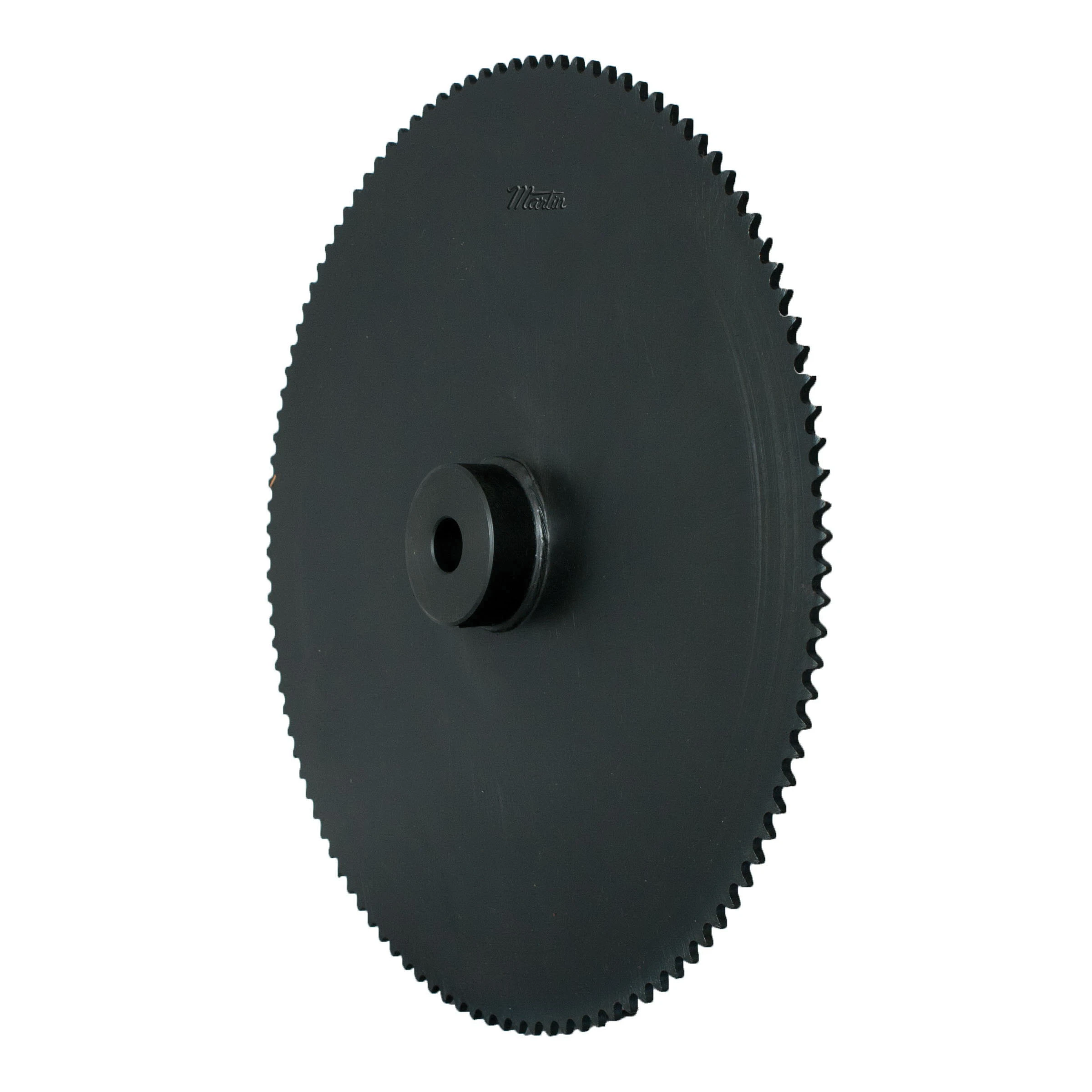

O1	08B114	25 mm to 64 mm	460.907 mm	349.078 mm	98.819 mm	35 mm	12.7 mm	€535.53
P1	08B95	25 mm to 64 mm	384.111 mm	291.48 mm	98.831 mm	35 mm	12.7 mm	€381.32
I1	08B96	25 mm to 64 mm	388.153 mm	294.512 mm	98.831 mm	35 mm	12.7 mm	€389.62
