LEESON Globetrotter Close-Coupled Pump Motors, JM, Dripproof
Marathon Globetrotter close-coupled pump (CCP) motors are used with close-coupled pumps in commercial and industrial pumping applications. These motors come with oversized, locked and shaft-end ball bearings for smooth operation and extended service life.
Filter
A
B
C
D
E
F
G
H
I
J
K| Style | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Motor Mounting Type | Voltage | Frame | Rpm Range | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 143TTDR16013 | 1 1/2 hp | 3515 RPM | Open Dripproof | Face | - | 143JMV | 3001-3600 RPM | 3-Phase | €227.02 | |
| B | 145TTDR6034 | 1 1/2 hp | 1755 RPM | Open Dripproof | Face, Base | 230/460V AC | 145JM | 1701-1800 RPM | 3 Phase | €787.73 | |
| C | 143TTDR16042 | 1 hp | 1800 RPM | Dripproof | C Face Footless | 200V AC | 143JMV | - | - | €183.11 | |
| D | 143TTDR16043 | 1 hp | 1800 RPM | Dripproof | Rigid Base | 200V AC | 143JMV | - | - | €207.02 | |

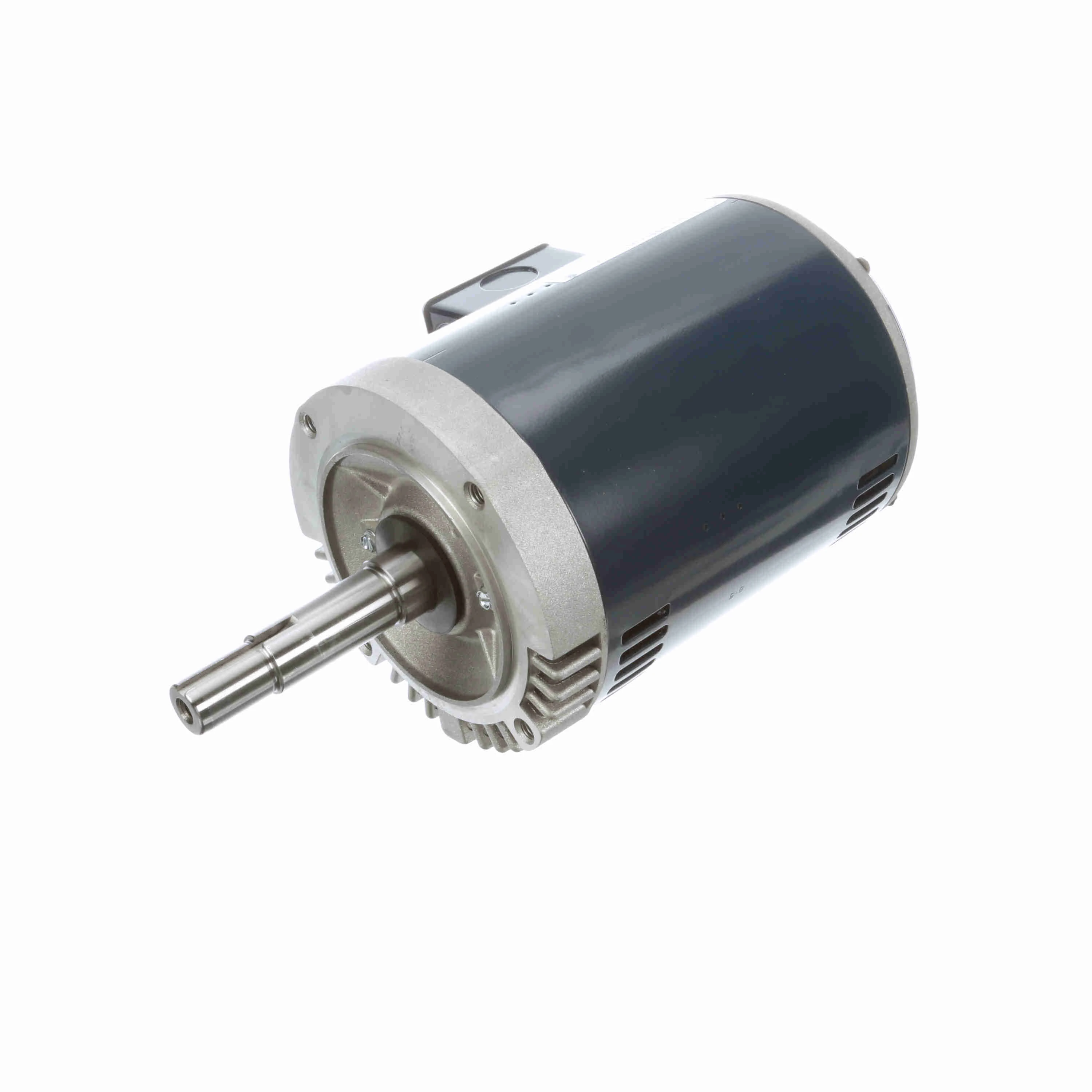

| E | 145TTDR16019 | 2 hp | 3600 RPM | Dripproof | C Face Footless | 230/460V AC | 145JMV | - | - | €927.24 | |
| F | 145TTDR16335 | 2 hp | 1800 RPM | Dripproof | Rigid Base | 200V AC | 145JMV | - | - | €188.78 | |

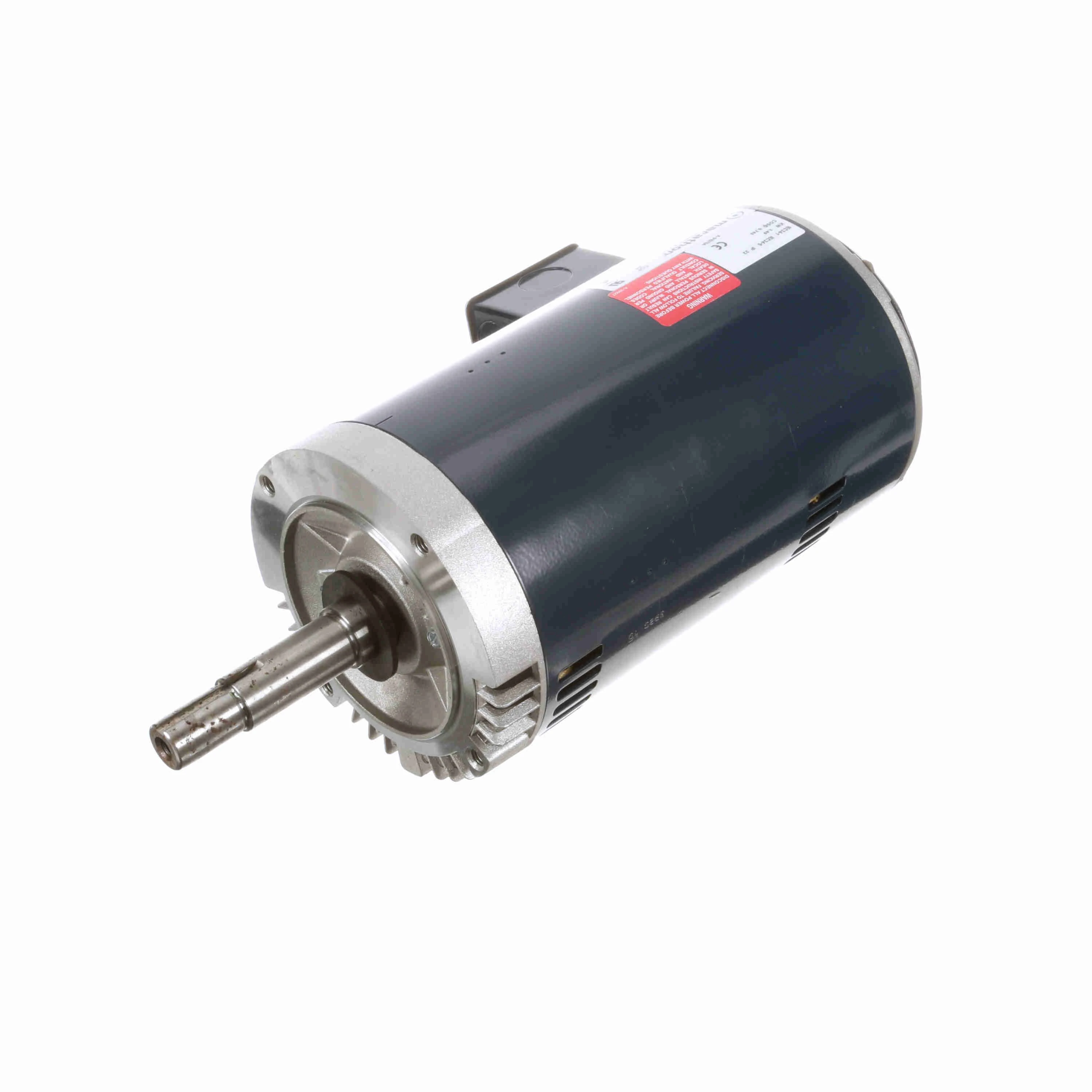

| G | 145TTDR16336 | 2 hp | 1800 RPM | Dripproof | C Face Footless | 200V AC | 145JMV | - | - | €892.06 | |
| H | 145TTDR16302 | 3 hp | 3600 RPM | Dripproof | C Face Footless | 575V AC | 145JMV | - | - | €179.69 | |
| I | 145TTDR16023 | 3 hp | 3600 RPM | Dripproof | Rigid Base | 200V AC | 145JMV | - | - | €1,034.68 | |

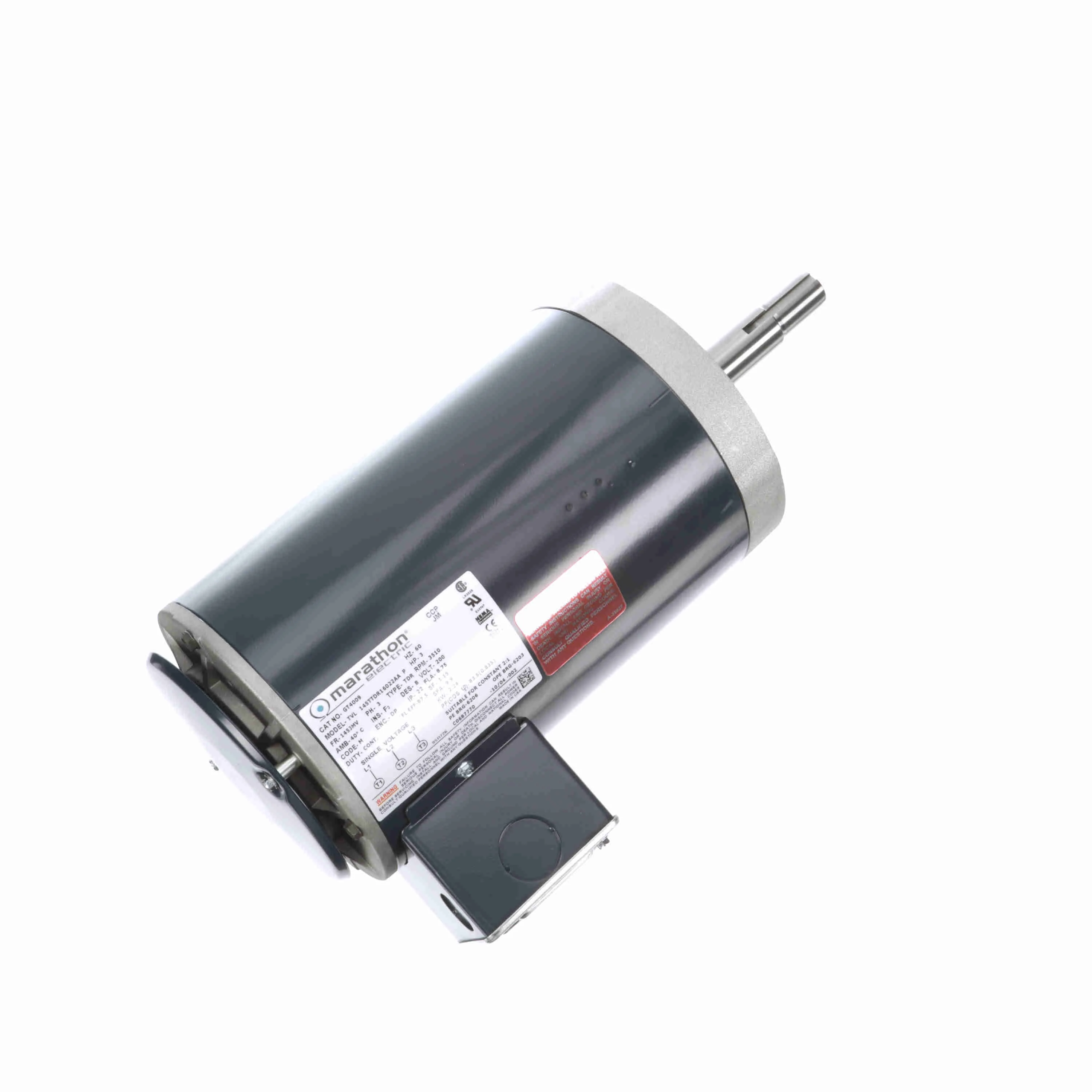

| J | 145TTDR16022 | 3 hp | 3600 RPM | Dripproof | C Face, Footless | 200V AC | - | - | - | €187.84 | |
| K | 145TTDR6013 | 3 hp | 3490 RPM | Open Dripproof | Face, Base | 230/460V AC | 145JM | 3001-3600 RPM | 3 Phase | €1,032.54 |
Features
- They come with an open dripproof enclosure to allow free airflow over the windings to prevent motors from overheating.
- These units feature an external slinger to keep the bearings protected from moisture and contaminants.
- They feature horizontal / shaft down orientation to allow proper lubrication with every stroke for reducing seal wear and inhibit corrosion.
- Models, such as GT400, comes with a three-phase design to offer a maximum speed rating 1800 rpm at 60 hz.
- They come equipped with a steel conduit box for encasing wire connections safely to prevent accidental contact.
Standards and Approvals
- UL
- CSA
- CE
Frequently Asked Questions
What is POLYREX EM grease?
POLYREX EM grease is used for lubricating motor bearings for durability and resisting rust, corrosion and washout.
What is F Insulation?
Motors with class F insulation help to withstand a maximum temperature rating of 155 degrees C. It can be enhanced with adhesives, silicone and alkyd-resin varnish of higher thermal endurance to resist damage.
What is a capacitor start design?
Capacitor start design provides high starting torque, high breakdown torque and relatively low starting current for various plumbing applications.
