GENERAL ELECTRIC TEB Series Circuit Breakers


General Electric TEB Series circuit breakers prevent electrical damage to connected devices due to excess current or short circuits. These TEB Series circuit breakers are used in distribution panels, control panels, motor control and other electrical equipment.

Filter
GENERAL ELECTRIC TEB122010WLA
GENERAL ELECTRIC TEB132060WLB

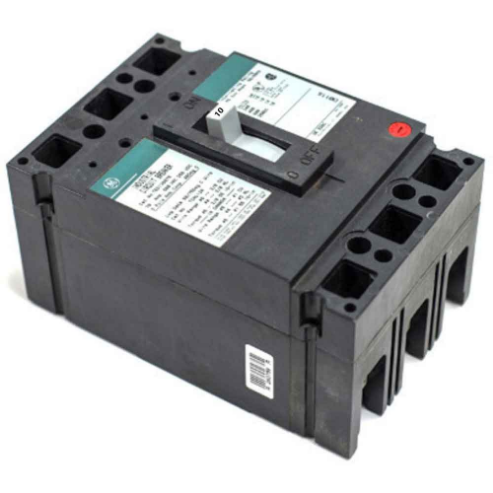

GENERAL ELECTRIC TEB132010WLC
StyleModelNumber Of PolesAic RatingFrame TypeVoltageVoltage TypePrice
A
TEB122010WL		210 kAIC @ 240VTEB240VAC€125.63
RFQ
A
TEB122080WL		210 kAIC @ 240VTEB240VAC-
RFQ
A
TEB122070WL		210 kAIC @ 240VTEB240VAC€587.56
RFQ
A
TEB122100WL		210 kAIC @ 240VTEB240VAC€747.80
A
TEB122090WL		210 kAIC @ 240VTEB240VAC€587.56
RFQ
B
TEB132060WL		310 kAIC @ 240VTEB240VAC€734.08
RFQ
B
TEB132Y100		314 kAIC @ 240VTEB240VAC€616.05
RFQ
B
TEB132045WL		310 kAIC @ 240VTEB240VAC€734.08
RFQ
C
TEB132010WL		310 kAIC @ 240VTEB240VAC€856.42
B
TEB132090WL		310 kAIC @ 240VTEB240V-€846.44
RFQ
B
TEB132035WL		310 kAIC @ 240VTEB240VAC€734.08
RFQ
B
TEB132015WL		310 kAIC @ 240VTEB240VAC€734.08
RFQ
B
TEB132020WL		310 kAIC @ 240VTEB240VAC€679.63
RFQ
B
TEB132050WL		310 kAIC @ 240VTEB240VAC€679.63
RFQ
B
TEB132040WL		310 kAIC @ 240VTEB240VAC€679.63
RFQ
B
TEB132070WL		310 kAIC @ 240VTEB240VAC€846.44
RFQ
B
TEB132025WL		310 kAIC @ 240VTEB240VAC€679.63
RFQ
B
TEB132080WL		310 kAIC @ 240VTEB240VAC€846.44
RFQ
B
TEB132030WL		310 kAIC @ 240VTEB240VAC€679.63
RFQ
B
TEB132100WL		310 kAIC @ 240VTEB240VAC€846.44
RFQ

TEB Series Circuit Breakers

General Electric E150 Line, TEB frame moulded case circuit breakers provide overcurrent and short-circuit protection when used with GE panelboards. These feed-thru breakers feature a thermal magnetic trip for both instantaneous and long-time overcurrent protection. They are equipped with line & load side lug terminals to accommodate aluminium and copper wires. These 3 phase breakers have a standard interrupt capacity of 10kA at 240 VAC. TEB frame circuit breakers are available in 2 and 3 pole configurations on Raptor Supplies.

Working Mechanism

  • TEB series circuit breakers use a thermal-magnetic trip unit for circuit protection.
  • The thermal-magnetic trip unit has a bimetallic strip and an electromagnetic coil that respond to overcurrent and short circuit conditions.
  • The bimetallic strip operates based on the temperature rise caused by the current passing through it, while the electromagnetic coil operates based on the magnetic field generated by the current.

Features

  • General Electric TEB Series circuit breakers come with a moulded case that holds trip devices and current-carrying components.
  • They feature a thermal-magnetic trip unit to provide long-time and instantaneous trip functions for current limiting protection.
  • These units further offer an interrupt rating of 10kAIC and an operating voltage of 240V.
  • Selected models, such as TEB132Y100 circuit breaker has an interrupt rating of 14kAIC at 240V.
  • These circuit breakers have a feed-thru connection that allows for easy installation and connection of multiple devices.

Frequently Asked Questions

How many poles are available in these TEB Series circuit breakers?

These GE TEB Series circuit breakers have 2 / 3 pole configuration for protecting up to 3 electrical circuits.

What are the points to inspect before operating General Electric TEB Series circuit breakers?

  • Check if the circuit breakers are properly installed and secured in the electrical panel.
  • Ensure that the circuit breakers have the correct size and rating for the application.
  • Inspect the wiring and connections to ensure that they are tight and secure.
  • Check that the circuit breaker's mechanical linkages, like the toggle actuator, are free to move by switching the unit ON & OFF several times.
  • Clean the dust, dirt, grease, moisture and any safety hazards near the circuit breaker area.
