EATON Bussmann Series HCL Fuses


Eaton Bussmann Series HCL fuses are high-current, low-voltage fuses that are designed for a wide range of DC power systems, including renewable energy, telecommunication and transportation systems in both primary and secondary protection applications. These non-disconnect fuses have amperage ratings up to 600A. Selected models feature a clip-lock mechanism to hold them in place within a fuse holder / panel....Read more

Filter
EATON 5HCL-500EA
EATON 15HCL-100EB
EATON 15HCL-150EC
StyleModelAmpsInterrupt RatingHeightMounting TypeFuse ClassPrice
A
5HCL-500E		-----€4,776.59
B
15HCL-100E		-----€3,651.91
B
15HCL-300E		-----€5,146.99
B
15HCL-200E		-----€4,755.41
A
5HCL-600E		-----€5,562.98
A
5HCL-400E		-----€4,693.67
C

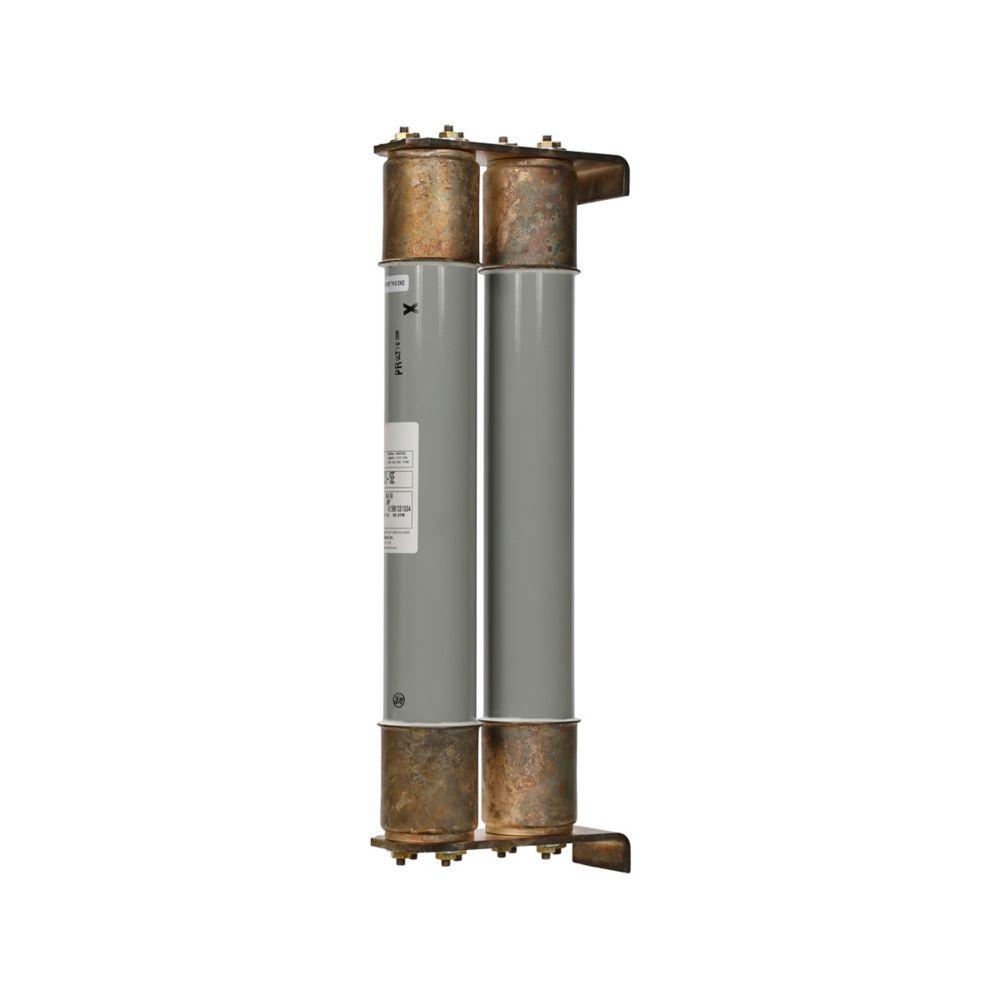

15HCL-150E		-----€4,755.41
B
15HCL-250E		-----€4,826.76
B
15HCL-65E		-----€3,281.51
A
5HCL-300E		-----€4,693.67
A
5HCL-200E		-----€3,032.65
A
5HCL-450E		-----€4,693.67
B
15HCL-80E		-----€3,651.91
B
15HCL-10E		10A63 Kaic3"Non DisconnectClass E€3,281.51
A
5HCL-10E		10A63 Kaic3"Non Disconnect-€1,848.13
A
5HCL-15E		15A63 Kaic3"Non Disconnect-€1,848.13
B
15HCL-15E		15A63 Kaic3"Non DisconnectClass E€3,281.51
B
15HCL-20E		20A63 Kaic3"Non DisconnectClass E€3,281.51
A
5HCL-20E		20A63 Kaic3"Non Disconnect-€1,848.13
B
15HCL-25E		25A63 Kaic3"Non Disconnect-€3,281.51
A
5HCL-25E		25A63 Kaic3"Non Disconnect-€1,848.13
A
5HCL-30E		30A63 Kaic3"Non Disconnect-€1,848.13
B
15HCL-30E		30A63 Kaic3"Non DisconnectClass E€3,281.51
A
5HCL-40E		40A63 Kaic3"Non Disconnect-€1,848.13
B
15HCL-40E		40A63 Kaic3"Non DisconnectClass E€3,281.51
B
15HCL-50E		50A63 Kaic3"Non DisconnectClass E€3,281.51
A
5HCL-50E		50A63 Kaic0.001"Non DisconnectClass E€1,848.13
A
5HCL-65E		65A63 Kaic0.001"Non DisconnectClass E€1,848.13
A
5HCL-80E		80A63 Kaic3"Non Disconnect-€1,848.13
A
5HCL-100E		100A63 Kaic3"Non Disconnect-€1,848.13
B
15HCL-125E		125A50 Kaic3"Non DisconnectClass E€3,651.91
A
5HCL-125E		125A63 Kaic3"Non Disconnect-€3,032.65
A
5HCL-150E		150A63 Kaic3"Non Disconnect-€3,032.65

Working Mechanism

  • When normal current flows through the circuit, the fuse element remains cool and intact.
  • When an overcurrent or short-circuit occurs and the current exceeds the rated current, the fuse element becomes hot & melts to break the circuit.

Frequently Asked Questions

What is the interrupt rating of these fuses?

Eaton offers HCL fuses with an interrupt rating of up to 61 kAIC.

What is the difference between single-barrel and double-barrel fuses?

A single-barrel fuse has only one element that fuses in case of overcurrent. Dual-barrel fuse contains two fuse elements within the same enclosure, each with its own melting characteristics. They allow the fuse to protect against both overcurrent and overvoltage faults to provide a higher level of protection.

What is the non-disconnect mounting method?

Non-disconnect mounting of a fuse refers to a type of fuse installation where the fuse cannot be disconnected from the circuit while it is in operation. The non-disconnect feature prevents accidental removal of the fuse to avoid dangerous arc flash or other electrical hazards.

What is the difference between a fuse and a breaker?

A fuse uses a metal filament that melts when the current flowing through it exceeds a certain level, breaking the circuit. The breaker, on the other hand, uses a mechanical mechanism to open and close the circuit.
