DAYTON Single Function Time Delay Relays
Filter
A
B
C
D
E
F
G
H
I
J
K
L| Style | Model | Min. Time Setting | Max. Time Setting | Socket Code | Delay Function | Input Voltage | Pins | Adjustment Method | Coil Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1EGB6 | 0.01 sec. | 1 sec. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EP06 | 0.01 sec. | 1 sec. | A | On Delay | 24V AC/DC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EN98 | 0.01 sec. | 5 sec. | A | On Delay | 12V DC | 8 | Potentiometer | 2 W | €77.85 | |
| B | 24EP19 | 0.01 sec. | 1 sec. | A | On Delay | 240V AC | 8 | Potentiometer | 2 VA | €77.85 | |
| C | 24EP46 | 0.05 sec. | 100 hrs. | A | Cycle Off | 240V AC | 8 | Potentiometer | 2 VA | €161.07 | |
| A | 1EGB4 | 0.05 sec. | 5 sec. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €74.55 | |
| C | 24EP44 | 0.05 sec. | 30 min. | A | Power Off Delay (True Off Delay) | 12V DC | 8 | Potentiometer | 2 W | €161.07 | |

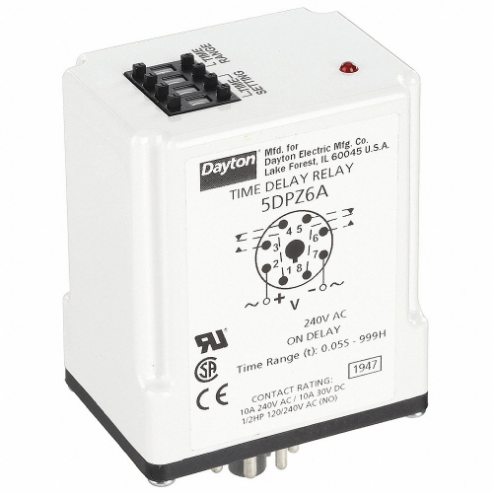

| D | 5DPZ6 | 0.05 sec. | 999 hrs. | A | On Delay | 240V AC | 8 | Push Button, Rotary Knob | 3 VA | €155.73 | |
| C | 5WMK2 | 0.05 sec. | 30 min. | A | Power Off Delay (True Off Delay) | 24V AC/DC | 8 | Potentiometer | 2 VA | €161.07 | |

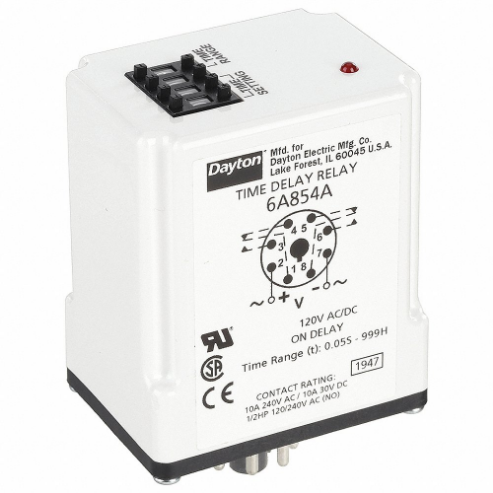

| E | 5DPZ7 | 0.05 sec. | 999 hrs. | A | On Delay | 12V DC | 8 | Push Button, Rotary Knob | 3 W | €155.73 | |

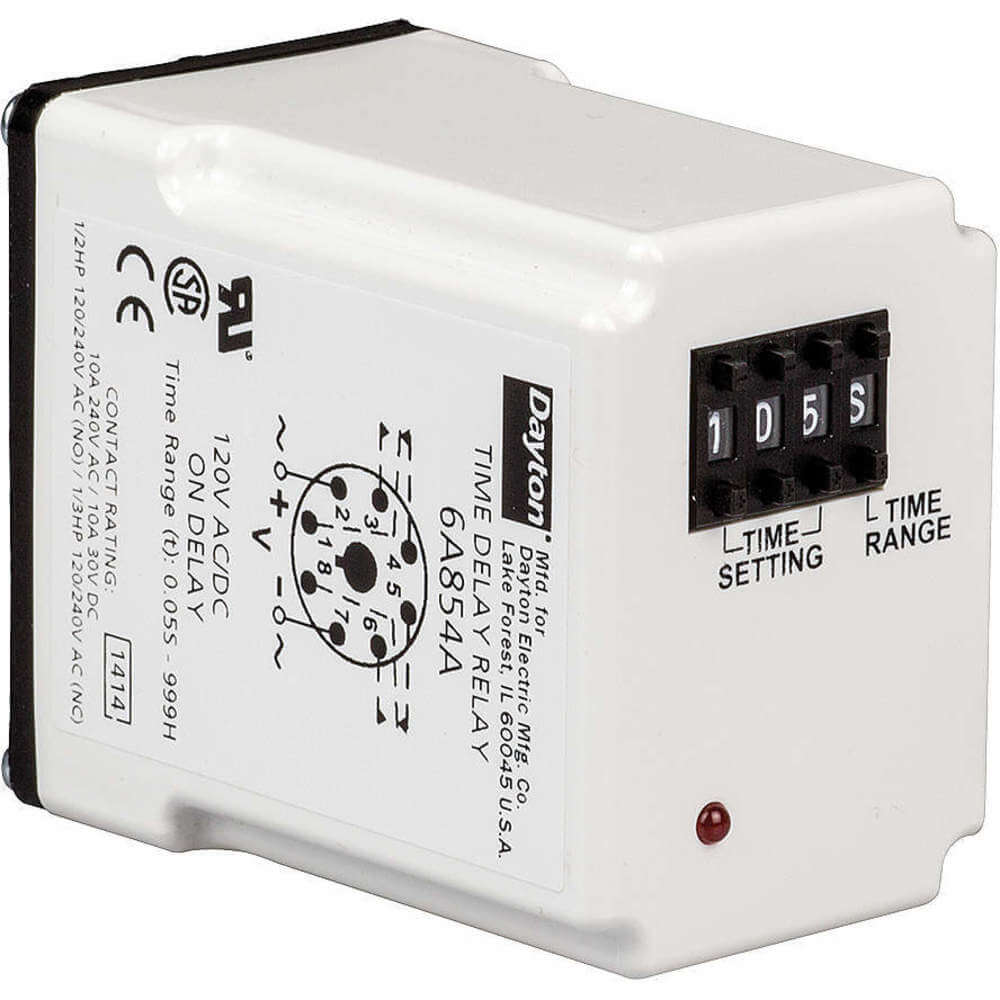

| F | 6A854 | 0.05 sec. | 999 hrs. | A | On Delay | 120V AC/DC | 8 | Push Button, Rotary Knob | 3 VA | €155.73 | |
| B | 24EN99 | 0.05 sec. | 5 sec. | A | On Delay | 12V DC | 8 | Potentiometer | 2 W | €74.55 | |

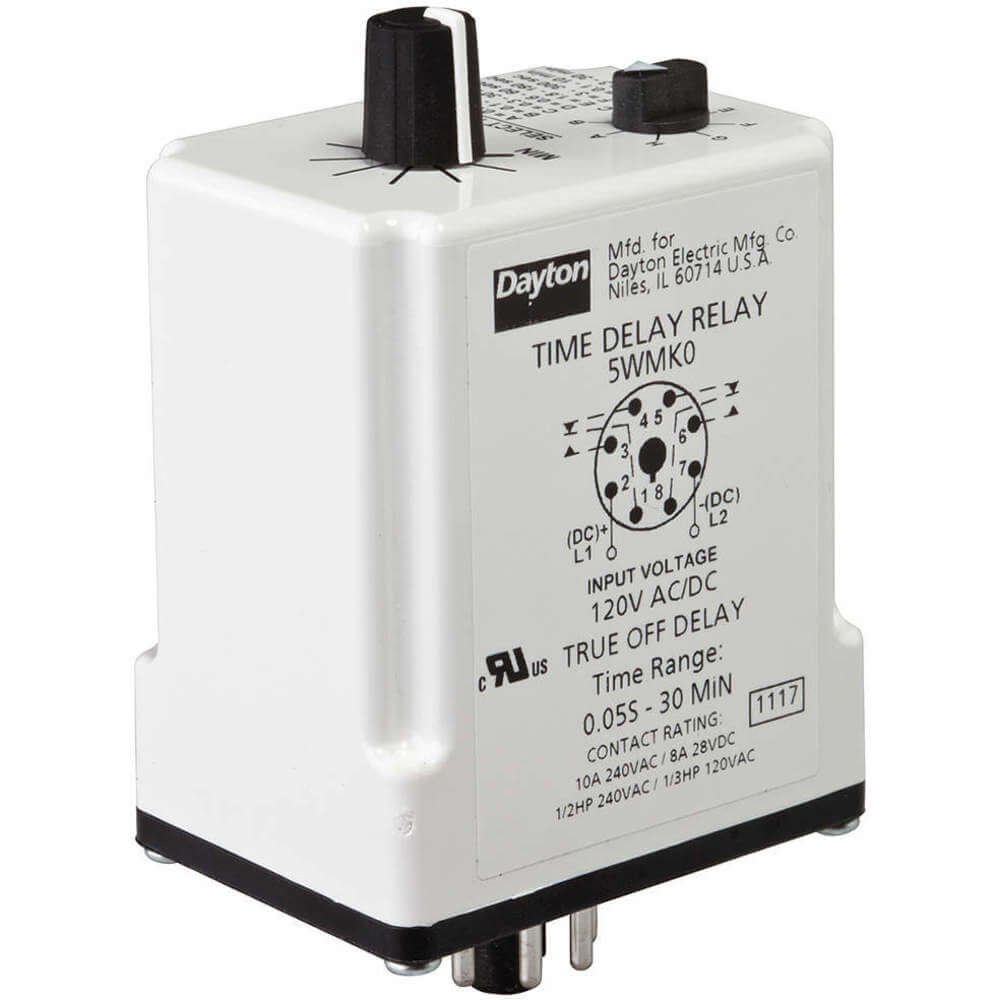

| C | 5WMK0 | 0.05 sec. | 30 min. | A | Power Off Delay (True Off Delay) | 120V AC/DC | 8 | Potentiometer | 2 VA | €161.07 | |
| E | 5DPZ8 | 0.05 sec. | 999 hrs. | A | On Delay | 24V AC/DC | 8 | Push Button, Rotary Knob | 3 VA | €155.73 | |
| B | 24EP20 | 0.05 sec. | 5 sec. | - | - | - | 8 | Potentiometer | 2 VA | €74.55 | |
| B | 24EP07 | 0.05 sec. | 5 sec. | A | On Delay | 24V AC/DC | 8 | Potentiometer | 2 VA | €74.55 | |
| G | 24EP26 | 0.1 sec. | 10 sec. | A | Cycle On | 12V DC | 8 | Potentiometer | 2 W | €104.91 | |
| A | 1EGC7 | 0.1 sec. | 10 sec. | A | Interval On | 120V AC/DC | 8 | Potentiometer | 2 VA | €78.42 | |
| B | 24EN69 | 0.1 sec. | 10 sec. | A | Interval On | 24V AC/DC | 8 | Potentiometer | 2 VA | €78.42 | |
| H | TR-50222-05B18 | 0.1 sec. | 10 sec. | A | On Delay | - | 8 | Potentiometer | 2 VA | €123.78 | |
| B | 24EN93 | 0.1 sec. | 10 sec. | B | Off Delay | 240V AC | 11 | Potentiometer | 2 VA | €150.15 | |
| G | 24EP39 | 0.1 sec. | 10 sec. | A | Cycle On | 240V AC | 8 | Potentiometer | 2 VA | €104.91 | |

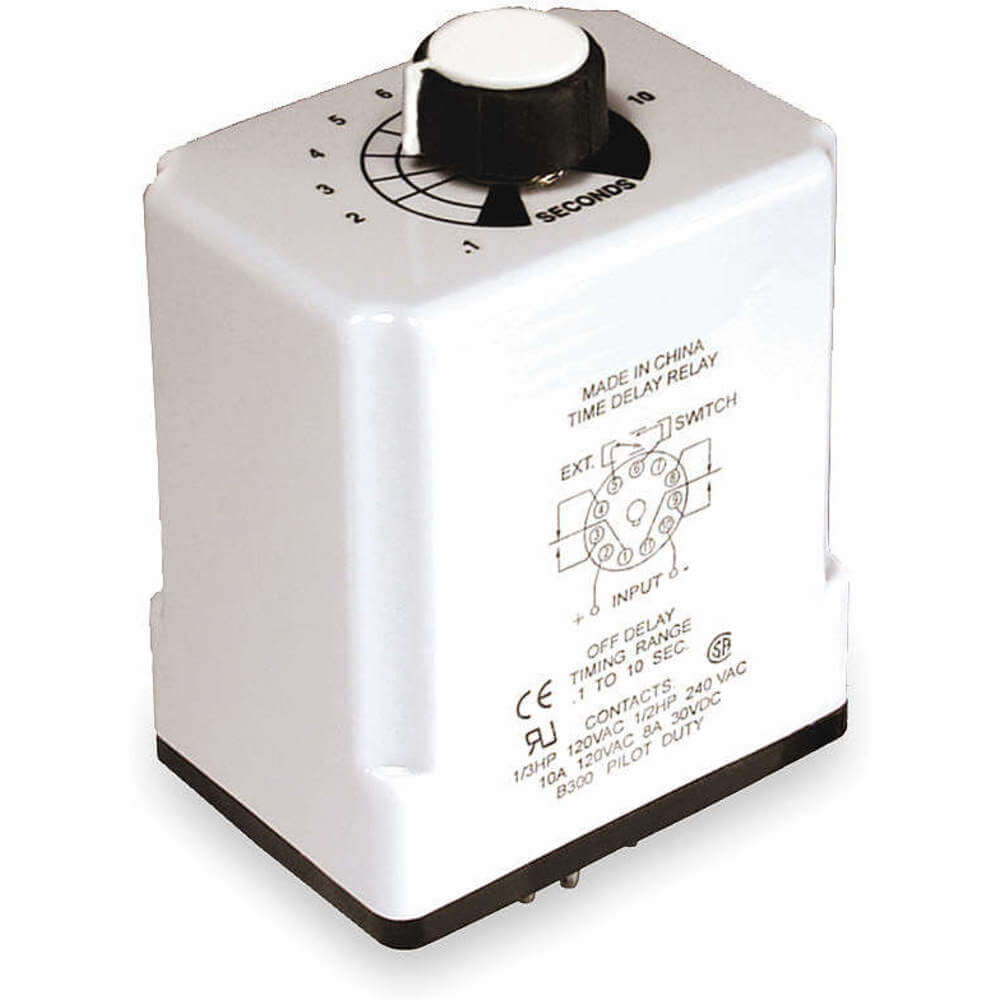

| I | 1EGC3 | 0.1 sec. | 10 sec. | B | Off Delay | 240V AC | 11 | Potentiometer | 2 VA | €150.15 | |
| B | 24EN65 | 0.1 sec. | 10 sec. | A | Interval On | 12V DC | 8 | Potentiometer | 2 W | €78.42 | |
| G | 24EP31 | 0.1 sec. | 10 sec. | A | Cycle On | 24V AC/DC | 8 | Potentiometer | 2 VA | €104.91 | |
| B | 24EN85 | 0.1 sec. | 10 sec. | B | Off Delay | 24V AC/DC | 11 | Potentiometer | 2 VA | €150.15 | |
| J | 1EGD1 | 0.1 sec. | 10 sec. | A | Cycle On | 120V AC | 8 | Potentiometer | 2 VA | €104.91 | |
| B | 24EN76 | 0.1 sec. | 10 sec. | A | Interval On | 240V AC | 8 | Potentiometer | 2 VA | €78.42 | |
| B | 24EP01 | 0.1 sec. | 10 sec. | A | On Delay | 12V DC | 8 | Potentiometer | 2 W | €123.78 | |
| B | 24EP08 | 0.1 sec. | 10 sec. | A | On Delay | 24V AC/DC | 8 | Potentiometer | 2 VA | €123.78 | |
| B | 24EN80 | 0.1 sec. | 10 sec. | B | Off Delay | 12V DC | 11 | Potentiometer | 2 W | €150.15 | |
| B | 24EP21 | 0.1 sec. | 10 sec. | A | On Delay | 240V AC | 8 | Potentiometer | 2 VA | €123.78 | |
| B | 24EP02 | 0.6 sec. | 60 sec. | A | On Delay | 12V DC | 8 | Potentiometer | 2 W | €122.95 | |
| K | 1EGC2 | 0.6 sec. | 60 sec. | B | Off Delay | 120V AC | 11 | Potentiometer | 2 VA | €151.88 | |
| B | 24EN73 | 0.6 sec. | 60 sec. | A | Interval On | 120V AC/DC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EN86 | 0.6 sec. | 60 sec. | B | Off Delay | 24V AC/DC | 11 | Potentiometer | 2 VA | €151.88 | |
| J | 1EGD2 | 0.6 sec. | 60 sec. | - | - | - | 8 | Potentiometer | 2 VA | €113.72 | |
| G | 24EP32 | 0.6 sec. | 60 sec. | A | Cycle On | 24V AC/DC | 8 | Potentiometer | 2 VA | €113.72 | |
| G | 24EP27 | 0.6 sec. | 60 sec. | A | Cycle On | 12V DC | 8 | Potentiometer | 2 W | €113.72 | |
| B | 24EN77 | 0.6 sec. | 60 sec. | A | Interval On | 240V AC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EN81 | 0.6 sec. | 60 sec. | B | Off Delay | 12V DC | 11 | Potentiometer | 2 W | €151.88 | |
| A | 1EGB3 | 0.6 sec. | 60 sec. | A | On Delay | 120V AC | 8 | Potentiometer | 2 VA | €122.95 | |
| B | 24EP09 | 0.6 sec. | 60 sec. | A | On Delay | 24V AC/DC | 8 | Potentiometer | 2 VA | €122.95 | |
| G | 24EP40 | 0.6 sec. | 60 sec. | A | Cycle On | 240V AC | 8 | Potentiometer | 2 VA | €113.72 | |
| B | 24EN94 | 0.6 sec. | 60 sec. | B | Off Delay | 240V AC | 11 | Potentiometer | 2 VA | €151.88 | |
| B | 24EN70 | 0.6 sec. | 60 sec. | A | Interval On | 24V AC/DC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EN66 | 0.6 sec. | 60 sec. | A | Interval On | 12V DC | 8 | Potentiometer | 2 W | €77.85 | |
| B | 24EP22 | 0.6 sec. | 60 sec. | A | - | - | 8 | Potentiometer | 2 VA | €122.95 | |
| B | 24EN87 | 1.8 sec. | 3 min. | B | Off Delay | 24V AC/DC | 11 | Potentiometer | 2 VA | €151.73 | |
| B | 24EN82 | 1.8 sec. | 3 min. | B | Off Delay | 12V DC | 11 | Potentiometer | 2 W | €151.73 | |
| A | 1EGC5 | 1.8 sec. | 3 min. | B | Off Delay | 120V AC/DC | 11 | Potentiometer | 2 VA | €151.73 | |
| L | 1EGD3 | 1.8 sec. | 3 min. | A | Cycle On | 120V AC/DC | 8 | Potentiometer | 2 VA | €102.10 | |
| B | 24EN78 | 1.8 sec. | 3 min. | A | Interval On | 240V AC | 8 | Potentiometer | 2 VA | €77.85 | |
| B | 24EP23 | 1.8 sec. | 3 min. | A | On Delay | 240V AC | 8 | Potentiometer | 2 VA | €123.92 | |
| B | 24EP03 | 1.8 sec. | 3 min. | A | On Delay | 12V DC | 8 | Potentiometer | 2 W | €123.92 | |
| B | 24EN95 | 1.8 sec. | 3 min. | B | Off Delay | 240V AC | 11 | Potentiometer | 2 VA | €151.73 | |
| G | 24EP33 | 1.8 sec. | 3 min. | A | Cycle On | 24V AC/DC | 8 | Potentiometer | 2 VA | €102.10 | |
| B | 24EN67 | 1.8 sec. | 3 min. | A | Interval On | 12V DC | 8 | Potentiometer | 2 W | €77.85 | |
| B | 24EN71 | 1.8 sec. | 3 min. | A | Interval On | 24V AC/DC | 8 | Potentiometer | 2 VA | €77.85 | |
| A | 1EGB9 | 1.8 sec. | 3 min. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €123.92 | |
| B | 24EP10 | 1.8 sec. | 3 min. | A | On Delay | 24V AC/DC | 8 | Potentiometer | 2 VA | €123.92 |
