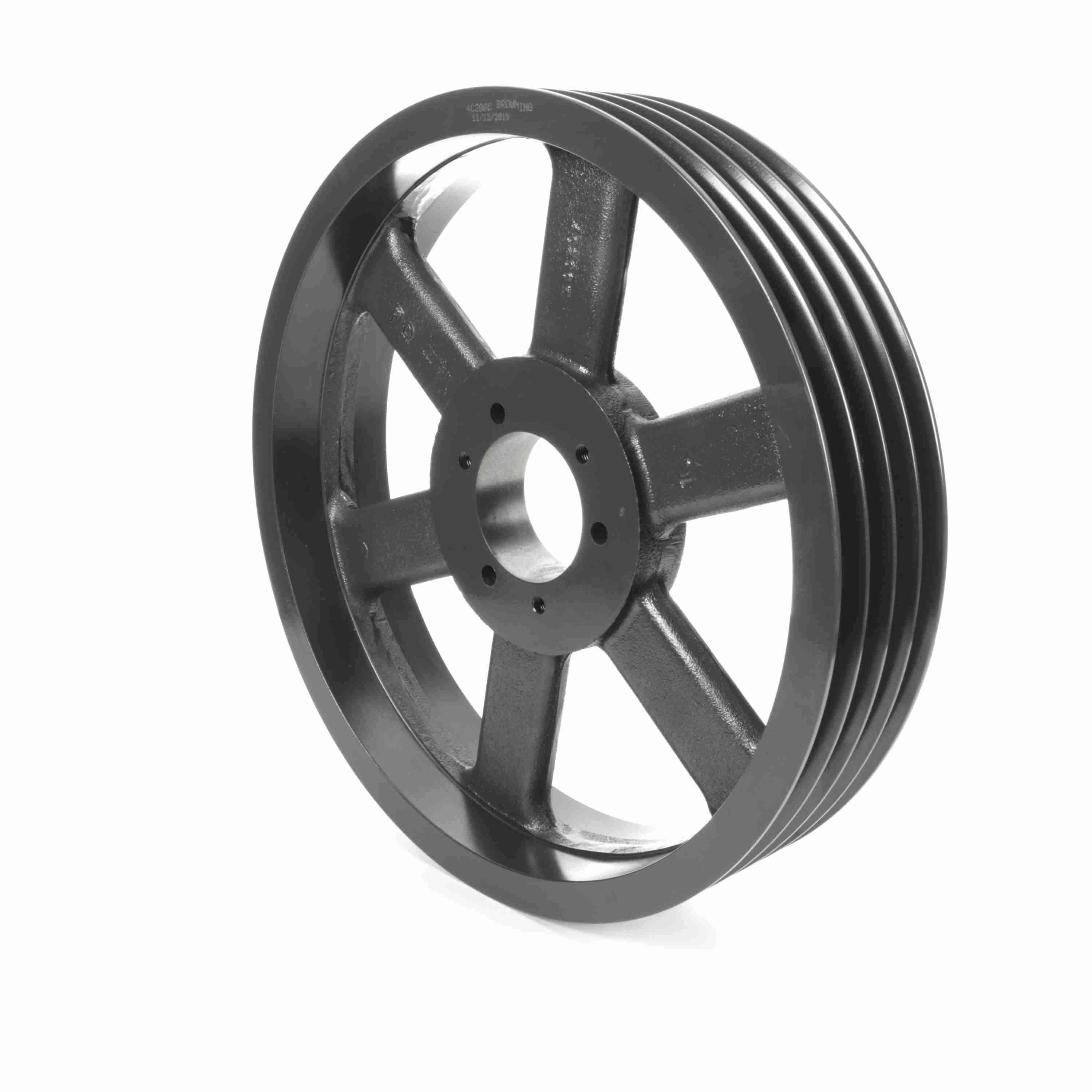

BROWNING Q-D Sheaves For C Belts, 4 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1008317 | 6 2/5" | 1/2" to 2 15/16" | Type A Solid | 6" | 6" | SF | Cast Iron | 4 1/4" | €798.64 | |
| B | 1006394 | 7 2/5" | 1/2" to 2 15/16" | Type A Solid | 7" | 7" | SF | Cast Iron | 4 1/4" | €909.11 | |
| C | 1006410 | 8 2/5" | 22/25" to 3 1/2" | Type A Solid | 8" | 8" | E | Cast Iron | 4 1/4" | €1,086.52 | |
| D | 1006428 | 8.9" | 22/25" to 3 1/2" | Type A Solid | 8 1/2" | 8 1/2" | E | Cast Iron | 4 1/4" | €1,185.65 | |
| E | 1006436 | 9 2/5" | 22/25" to 3 1/2" | Type A Solid | 9" | 9" | E | Cast Iron | 4 1/4" | €1,241.70 | |
| F | 1006444 | 9.9" | 22/25" to 3 1/2" | Type A Web | - | - | E | Cast Iron | 4 1/4" | €1,031.18 | |
| G | 1006451 | 10 2/5" | 22/25" to 3 1/2" | Type A Web | 10" | 10" | E | Cast Iron | 4 1/4" | €1,330.40 | |
| F | 1006469 | 10.9" | 22/25" to 3 1/2" | Type A Web | 10 1/2" | 10 1/2" | E | Cast Iron | 4 1/4" | €1,175.92 | |
| H | 1006477 | 11 2/5" | 22/25" to 3 1/2" | Type A Web | 11" | 11" | E | Cast Iron | 4 1/4" | €1,507.81 | |
| I | 1006485 | 12 2/5" | 22/25" to 3 1/2" | Type A Arm | 12" | 12" | E | Cast Iron | 4 1/4" | €1,438.26 | |
| J | 1006501 | 14 2/5" | 22/25" to 3 1/2" | Type A Arm | 14" | 14" | E | Cast Iron | 4 1/4" | €1,745.07 | |
| K | 1006527 | 18 2/5" | 22/25" to 3 1/2" | Type A Arm | - | - | E | Cast Iron | 4 1/4" | €2,089.42 | |
| K | 1008325 | 24 2/5" | 1" to 4" | Type D Arm | - | - | F | Cast Iron | 4 1/4" | €3,137.78 | |
| K | 1008341 | 30 2/5" | 1" to 4" | Type D Arm | 30" | 30" | F | Cast Iron | 4 1/4" | €3,487.63 | |
| K | 1008358 | 36 2/5" | 1" to 4" | Type D Arm | 36" | 36" | F | Cast Iron | 4 1/4" | €5,942.88 | |
| K | 1006543 | 44 2/5" | 1 1/2" to 4 1/2" | Type C Arm | - | - | J | Cast Iron | 4 1/4" | €7,163.28 | |
| K | 1006550 | 50 2/5" | 1 1/2" to 4 1/2" | Type C Arm | 50" | 50" | J | Cast Iron | 4 1/4" | €10,177.20 |
