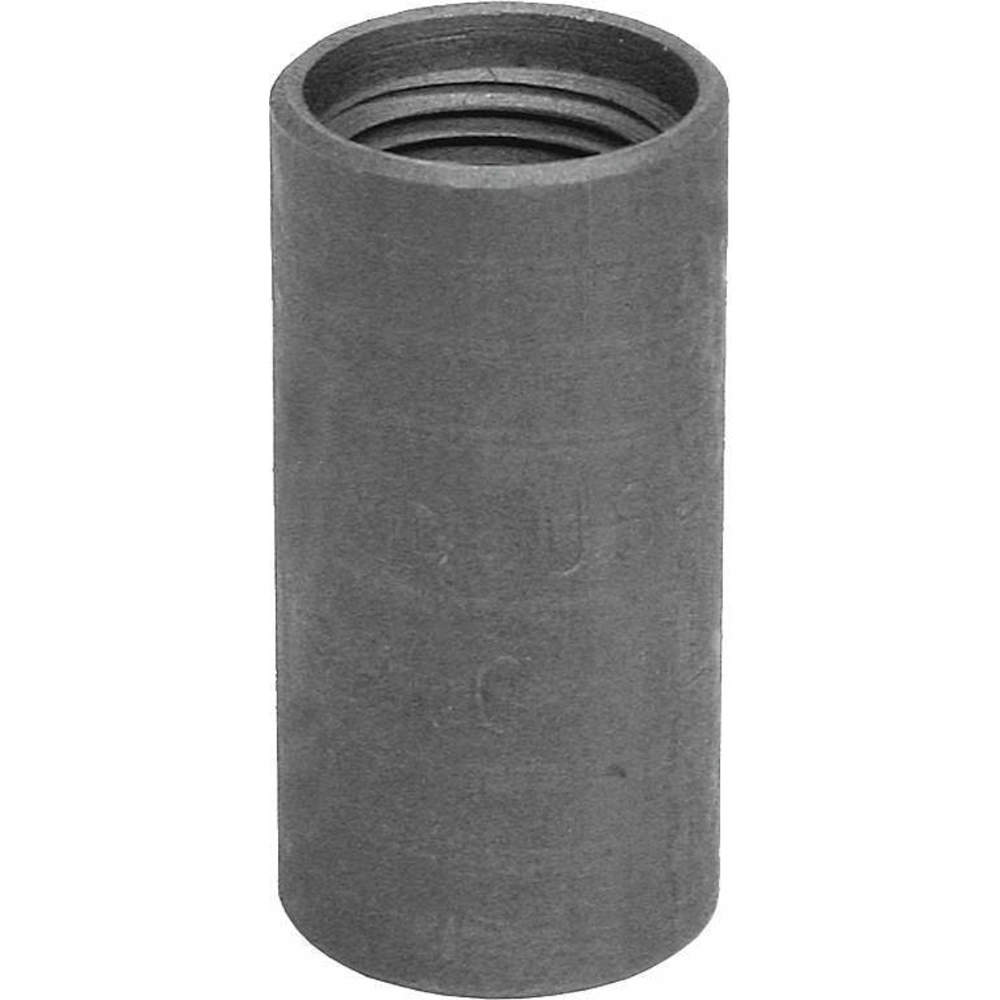

ANVIL Easy Alignment Couplings
Anvil easy alignment couplings are engineered particularly for oil field applications. The primary purpose of these couplings is to connect two pieces of rotating equipment while allowing some degree of misalignment.
Filter
A| Style | Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Basic Fitting Shape | Connection Type | Class | Application | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0320201825 | 1 1/2" | 1 1/2" | 1 1/2" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €78.07 | |
| A | 0320201817 | 1 1/4" | 1 1/4" | 1 1/4" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €76.99 | |
| A | 0320201809 | 1" | 1" | 1" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €45.84 | |
| A | 0320201783 | 1/2" | 1/2" | 1/2" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €34.94 | |
| A | 0320201767 | 1/4" | 1/4" | 1/4" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €24.68 | |
| A | 0320201759 | 1/8" | 1/8" | 1/8" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €18.74 | |
| A | 0320201833 | 2" | 2" | 2" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €156.46 | |
| A | 0320201791 | 3/4" | 3/4" | 3/4" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €38.30 | |
| A | 0320201775 | 3/8" | 3/8" | 3/8" | Coupling | FNPT | Class 150 | Natural Gas, Oil | -20°F to +150°F | €26.04 |
Features
- These Anvil easy alignment couplings can be installed using a quick-drying thread sealant, set up to a semi-hard condition and are vibration resistant.
- They come with a rust-preventive coating and can be easily installed with an anaerobic sealant.
Standards and Approvals
- API Specification 5L
Frequently Asked Questions
What is the difference between a clutch and a coupling?
A clutch is a device that offers a temporary association between the driver and the driven shaft. Coupling provides semi-permanent and permanent connections between two shaft ends.
What are the different types of misalignments?
Some major types of misalignments are radial, angular and axial displacement. The elements that affect misalignment comprise thermal imbalances, wear, settlement and creep.
