3M Highland Wire Connectors

Filter

Style	Model	Min. Wire Combination	Maximum Single Wire Size	Minimum Single Wire Size	Wire Connector Style	Max. Wire Combination	Type	Maximum Conductors	Overall Height	Pkg. Qty.	Price
A	7010290980	3 to 5#22	10 AWG	22 AWG	Standard	1#16 With 1#18 Or #22	Wire	-	-	1000	€201.92
B	7010349034	3 to 9#18	10 AWG	22 AWG	Wing	4#14 With 1-2#18	Wire	-	-	1000	€295.07

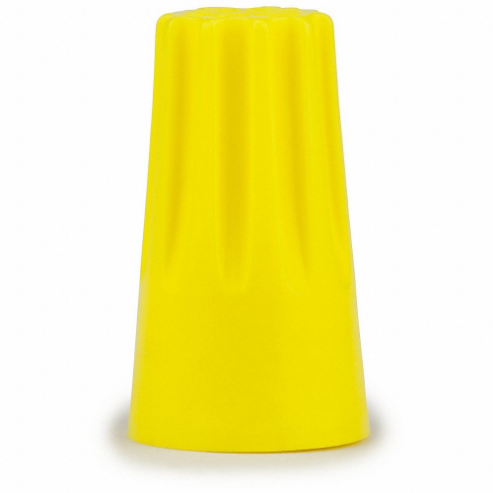

C	7010318552	4 to 5#22	12 AWG	18 AWG	Wing	2#14 With 1-2#18	Wire	7	0.95"	1000	€343.10
D	7010320417	4 to 5#22	12 AWG	22 AWG	Wing	2#14 With 1-2#18	Wire	7	-	5000	€965.98

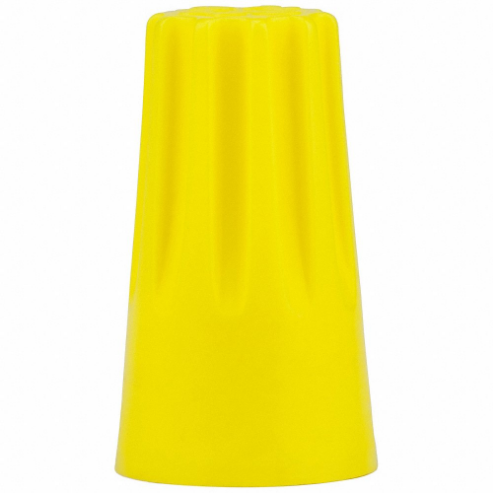

E	7010349033	4 to 5#22	12 AWG	18 AWG	Wing	-	-	7	0.95"	1000	€305.65

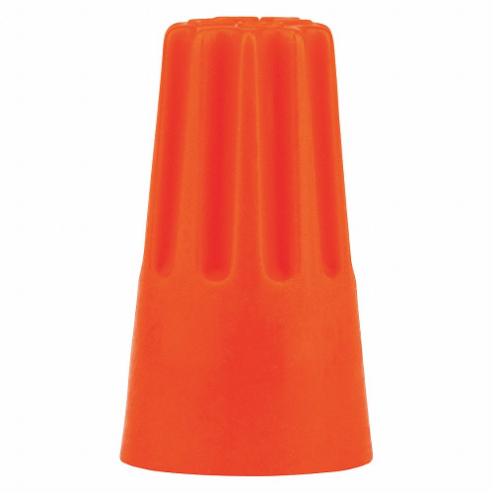

F	7010348891	5#22	14 AWG	18 AWG	Wing	2#14 With 1-3#20 Or #22	Wire	5	0.86"	1000	€302.90
G	7010293621	5#22	14 AWG	18 AWG	Wing	2#14 With 1-3#20 Or #22	Electrical Spring	5	0.86"	10000	€1,698.49

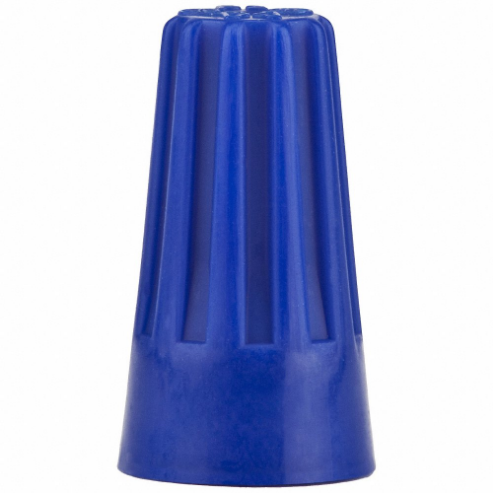

H	7010397048	5#22	16 AWG	22 AWG	Wing	1#14 With 1#18	Wire	5	0.67"	10000	€1,985.96

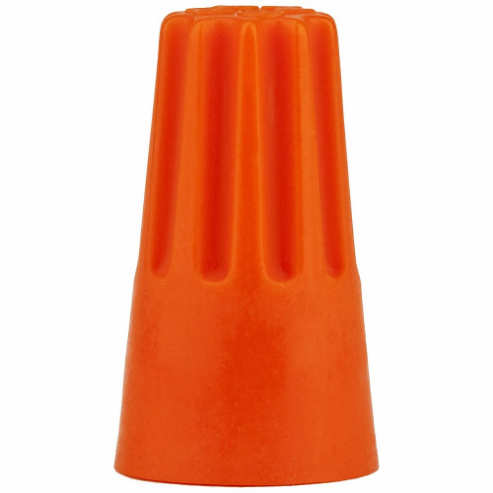

I	7010349040	5#22	14 AWG	18 AWG	Wing	2#14 With 1-3#20 Or #22	Wire	5	0.86"	1000	€340.66
J	7010303651	5#22	16 AWG	22 AWG	Wing	1#14 With 1#18	Wire	5	0.67"	1000	€249.44
K	7010304019	5#22	16 AWG	22 AWG	Standard	1#14 With 1#18	Wire	5	0.67"	1000	€255.72

Looking for a part not listed here?
