TEKS Self Drilling Screws

Filter

Teks self-drilling screws are designed to fasten two different types of materials together, such as metal to wood or metal-to-metal. These screws feature unique double-fluted points with precise...Read more
TEKS -

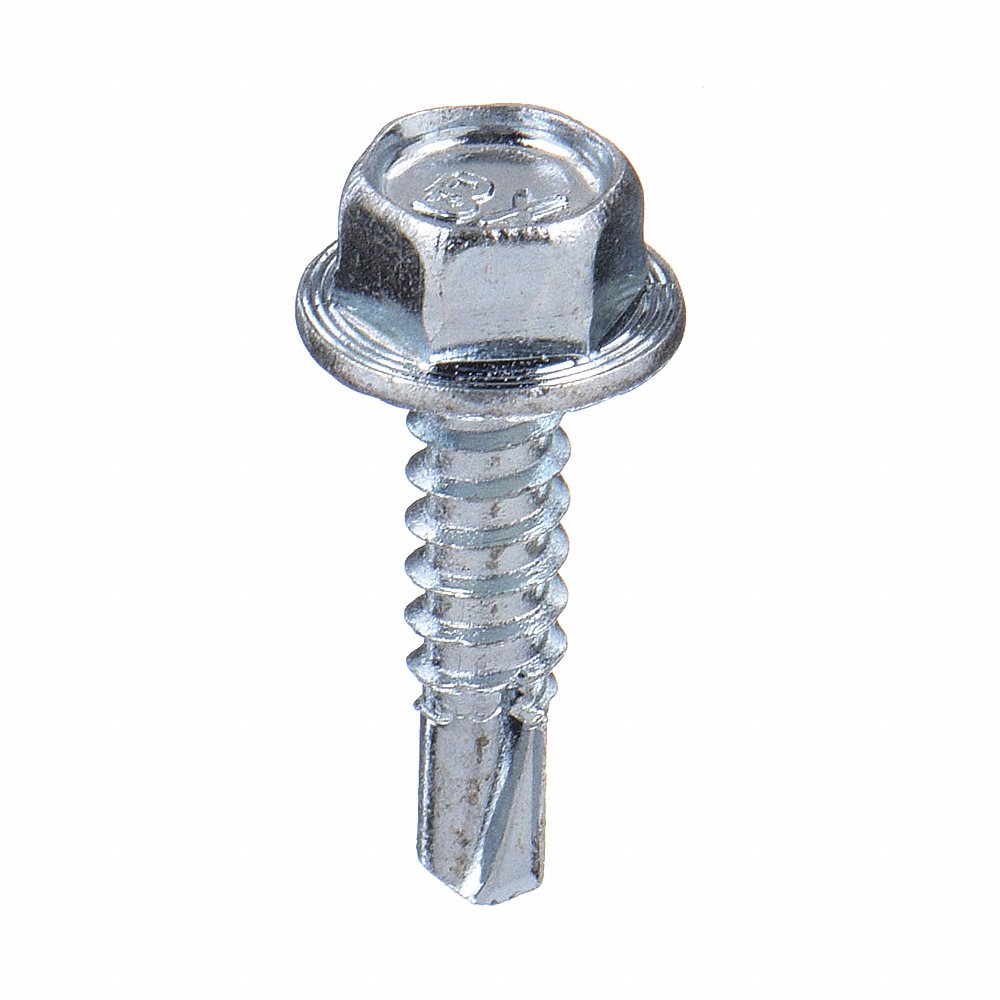

Hex Washer Head External Hex Climaseal Steel Self Drilling Screws

StyleModelDrive SizeHead Dia.Head HeightWasher Outside Dia.Max. ThicknessTypeDrill Point LengthApplicationPricePkg. Qty.
A15530003/8"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€57.78100
B10190003/8"3/8"0.23"1/2"0.21"Sealing1/2"Brick Tie To Steel Framing, Mansard Panel To Steel Framing, Retrofit Panels To Structural, Roof Panel To Purlin, Stitch Roof And Wall Panels, Wall Panel To Girt€155.84250
C11490003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€109.01250
D11470003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€220.63500
E15540003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€70.70100
F11550003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€181.58250
A10180003/8"3/8"7/25"0.575"0.21"Sealing1/2"Sheet To Steel Framing€141.41250
C11500003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€109.34250
A10480003/8"3/8"7/25"0.575"0.21"Sealing1/2"Sheet To Steel Framing€164.43250
C11520003/8"3/8"0.23"1/2"0.21"Self Drilling Screw1/2"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€129.19250
G10440003/8"3/8"7/25"0.575"0.21"Sealing1/2"Sheet To Steel Framing€137.51250
B11600003/8"3/8"0.23"1/2"0.21"Sealing1/2"Brick Tie To Steel Framing, Mansard Panel To Steel Framing, Retrofit Panels To Structural, Roof Panel To Purlin, Stitch Roof And Wall Panels, Wall Panel To Girt€149.63250
H11230005/16"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€84.12250
I11672535/16"0.313"0.29"0.587"0.21"Sealing7/16"Panel Over Et Insulation To Steel Frame, Roof Curb To Structural Steel€164.00250
J14040005/16"0.313"0.19"5/16"0.21"Sealing7/16"Brick Tie To Steel Framing, Mansard Panel To Steel Framing, Retrofit Panels To Structural, Roof Panel To Purlin, Stitch Roof And Wall Panels, Wall Panel To Girt€135.24250
E14280005/16"0.313"0.255"0.552"0.21"Sealing7/16"Panel Over Insulation To Steel Framing, Roof And Wall Panel To Steel Framing€141.41250
H11200005/16"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€141.41500
K10290005/16"0.313"0.255"0.552"0.21"Sealing7/16"Panel Over Insulation To Steel Framing, Roof And Wall Panel To Steel Framing€116.29250
L10880005/16"0.313"0.193"0.415"1/4"Self Drilling Screw3/8"Accessories To Structural Steel Or Bar Joist, Clips To Structural Steel Or Bar Joist, Liner Panels To Structural Steel Or Bar Joist, Longer Fasteners Can Be Used In Retrofit Clip And Sheet Applications, Metal Deck To Structural Steel Or Bar Joist€224.10500
G10230005/16"0.313"0.255"0.552"0.21"Sealing7/16"Panel Over Insulation To Steel Framing, Roof And Wall Panel To Steel Framing€174.51500
A11400005/16"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€113.45250
M10160005/16"0.313"0.19"0.415"0.21"Sealing7/16"Brick Tie To Steel Framing, Mansard Panel To Steel Framing, Retrofit Panels To Structural, Roof Panel To Purlin, Stitch Roof And Wall Panels, Wall Panel To Girt€166.28250
N11430005/16"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€70.70100
D10870005/16"0.313"0.19"0.415"0.21"Self Drilling Screw7/16"Accessories To Steel Framing, Clip To Steel Framing, Duct Work To Steel Framing, Retrofit Framing, Roof Deck To Steel Framing, Wall Panel To Girt€110.12500
B10090005/16"0.313"0.19"0.415"0.21"Sealing7/16"Brick Tie To Steel Framing, Mansard Panel To Steel Framing, Retrofit Panels To Structural, Roof Panel To Purlin, Stitch Roof And Wall Panels, Wall Panel To Girt€218.09500
StyleModelDrive SizeHead Dia.Head HeightWasher Outside Dia.GradeMax. ThicknessTypeDrill Point LengthPricePkg. Qty.
A18212005/16"0.313"0.205"0.435"Grade 10220.175"-23/64"€98.83500
TEKS -

Phillips Climaseal Steel Self Drilling Screws

StyleModelHead HeightDrill Point LengthDrive SizeColorHead Dia.GradeMax. ThicknessTypePricePkg. Qty.
A10790000.15"11/32"#2Gray0.563"Grade 10220.175"Self Drilling Screw€146.75500
B17910004/25"3/8"#2Gray0.563"Grade 10220.175"Self Drilling Screw€98.57250
TEKS -

Flat Phillips Climaseal Steel Self Drilling Screws

StyleModelDrive SizeHead Dia.Head HeightMax. ThicknessDrill Point LengthApplicationDrill Tip TypeColorPricePkg. Qty.
A1082000#20.41"0.18"0.175"15/32"Fascia To Steel Framing, Flooring To Steel Framing, Mansard To Steel Framing, Plywood To Steel Framing, Roofing To Steel Framing3Gray€185.75500
B1096000#30.476"0.21"1/4"19/32"Steel Framing4Gray€83.72100
B1094000#30.563"1/4"1/4"9/16"--Gray€172.76250
B1092000#30.563"1/4"1/4"9/16"Plywood To Steel Framing4Gray€141.20250
C1552500#30.476"1/4"1/4"9/16"Plywood To Steel Framing4Gray€125.42250
StyleModelHead Dia.Max. ThicknessDrill Point LengthDrive SizeColorHead HeightGradeTypePricePkg. Qty.
A15755530.438"0.21"7/16"#2Gray0.077"Grade 1022Self Drilling Screw€138.17500
A15605530.563"0.175"23/64"#2Gray0.077"Grade 1022Self Drilling Screw€113.76500
TEKS -

Self Drilling Screw, #12 Size, 1 1/2 Inch Lg, Steel, Climaseal, Hex Washer, External Hex, 250PK

ModelItemPrice (ex. VAT)Pkg. Qty.
1415000EA6BBA€177.41
250
