SPEEDAIRE Pneumatic Grippers

Filter

SPEEDAIRE -

Pneumatic Grippers

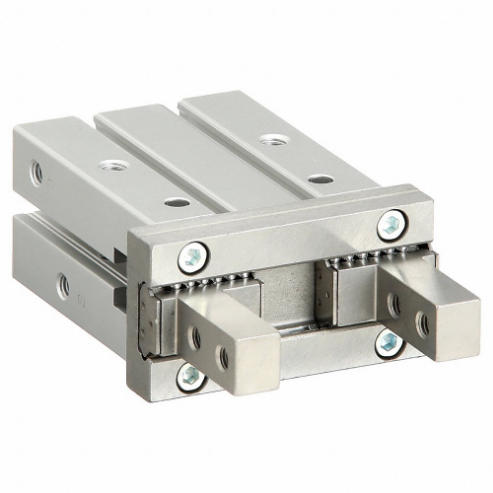

SPEEDAIRE MHZ2-20D

A

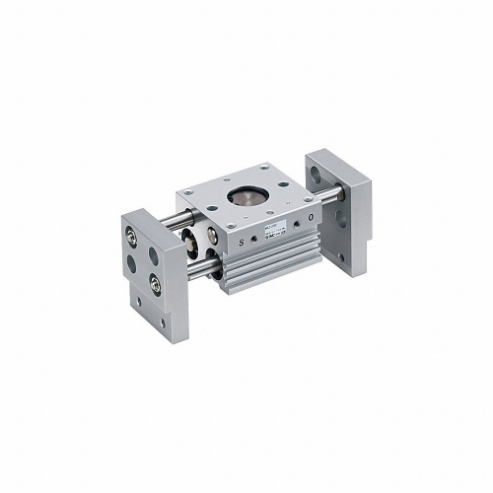

SPEEDAIRE MHL2-40D1

B

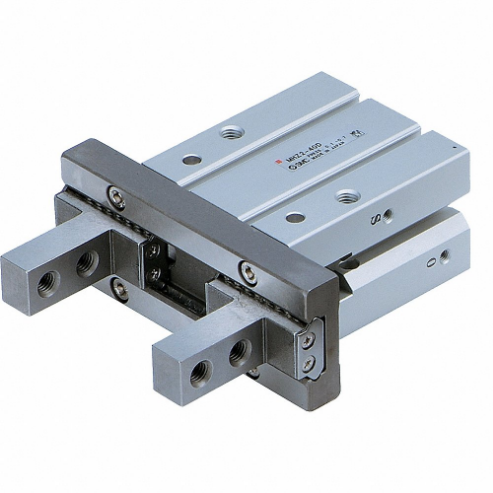

SPEEDAIRE MHZ2-10D

C

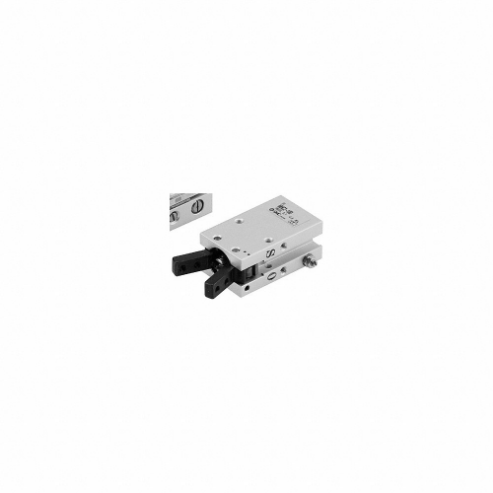

SPEEDAIRE MHC2-10D

D

Style	Model	Overall Height	Max. Pressure	Finger Material	Type	External Holding Force Lbf @ 72 Psi	Dimensions C	Height	Internal Holding Force Lbf @ 72 Psi	Price
A	MHZ2-20D	-	102 psi	Heat Treated Stainless Steel	Parallel	9.44 lbf.	27.6 mm	27.6 mm	14.84 lbf.	€532.69
B	MHL2-40D1	-	87 psi	Heat Treated Stainless Steel	Parallel	89 lbf.	117 mm	117 mm	89 lbf.	€1,492.18
C	MHZ2-10D	16.5 mm	102 psi	Stainless Steel	Parallel	2.47 lbf.	16.5 mm	16.5 mm	3.82 lbf.	€367.33
D	MHC2-10D	23 mm	87 psi	Stainless Steel	Angular	0.07 lbf.	23 mm	23 mm	0.07 lbf.	€210.54
C	MHZ2-16D	23.6 mm	102 psi	Stainless Steel	Parallel	7.64 lbf.	23.6 mm	23.6 mm	10.12 lbf.	€377.50
D	MHC2-16D	30.6 mm	87 psi	Stainless Steel	Angular	0.29 lbf.	30.6 mm	30.6 mm	0.29 lbf.	€234.30
A	MHZ2-25D	33.6 mm	102 psi	Stainless Steel	Parallel	14.61 lbf.	33.6 mm	33.6 mm	23.38 lbf.	€634.79
C	MHZ2-32D	40 mm	102 psi	Stainless Steel	Parallel	35.52 lbf.	40 mm	40 mm	43.39 lbf.	€846.97
D	MHC2-20D	42 mm	87 psi	Stainless Steel	Angular	0.52 lbf.	42 mm	-	-	€265.13
C	MHZ2-40D	48 mm	102 psi	Stainless Steel	Parallel	57.1 lbf.	48 mm	48 mm	71.49 lbf.	€969.75
D	MHC2-25D	52 mm	87 psi	Stainless Steel	Angular	1 lbf.	52 mm	52 mm	1 lbf.	€312.44
B	MHL2-32D1	100 mm	87 psi	Stainless Steel	Parallel	50 lbf.	100 mm	100 mm	50 lbf.	€1,229.55

SPEEDAIRE -

Long Stroke Grippers, 3 Finger
Speedaire pneumatic grippers are the pick-and-place equipment that employ compressed air to control gripper jaws, also known as fingers. These long stroke grippers feature aluminium body construction and carbon steel finger material. Choose from a range of these pneumatic grippers, available in 30, 52, 70 and 106 mm heights.

SPEEDAIRE MHS3-16D

A

SPEEDAIRE MHSL3-16D

B

Style	Model	Overall Height	Min. Operating Pressure	Stroke Length	Overall Width	Port Size	Closed Width	Opening Width	Series	Price
A	MHS3-16D	30 mm	29 psi	4 mm	30 mm	M3 x 0.5	17.5 mm	19.5 mm	MHS3 Series	€576.18
B	MHSL3-16D	30 mm	29 psi	10 mm	30 mm	M3 x 0.5	18.5 mm	23.5 mm	MHSL3 Series	€609.70
A	MHS3-32D	52 mm	14.5 psi	8 mm	52 mm	M5 x 0.8	31.5 mm	35.5 mm	MHS3 Series	€672.29
B	MHSL3-32D	52 mm	14.5 psi	16 mm	52 mm	M5 x 0.8	34 mm	42 mm	MHSL3 Series	€683.93
A	MHS3-50D	70 mm	14.5 psi	12 mm	70 mm	M5 x 0.8	42 mm	48 mm	MHS3 Series	€763.72
B	MHSL3-50D	70 mm	14.5 psi	28 mm	70 mm	M5 x 0.8	46 mm	60 mm	MHSL3 Series	€776.31
A	MHS3-80D	106 mm	14.5 psi	20 mm	106 mm	1/8"	63 mm	73 mm	MHS3 Series	€1,156.32
B	MHSL3-80D	106 mm	14.5 psi	40 mm	106 mm	1/8"	60.5 mm	80.5 mm	MHSL3 Series	€1,221.79

SPEEDAIRE -

Long Stroke Grippers, 4 Finger
Speedaire pneumatic grippers are designed to aid an automated or industrial system for grabbing and moving components in a manufacturing operation. These long stroke grippers have aluminium body construction and carbon steel finger material. Choose from a range of these pneumatic grippers available in 30, 56 and 70 mm heights.

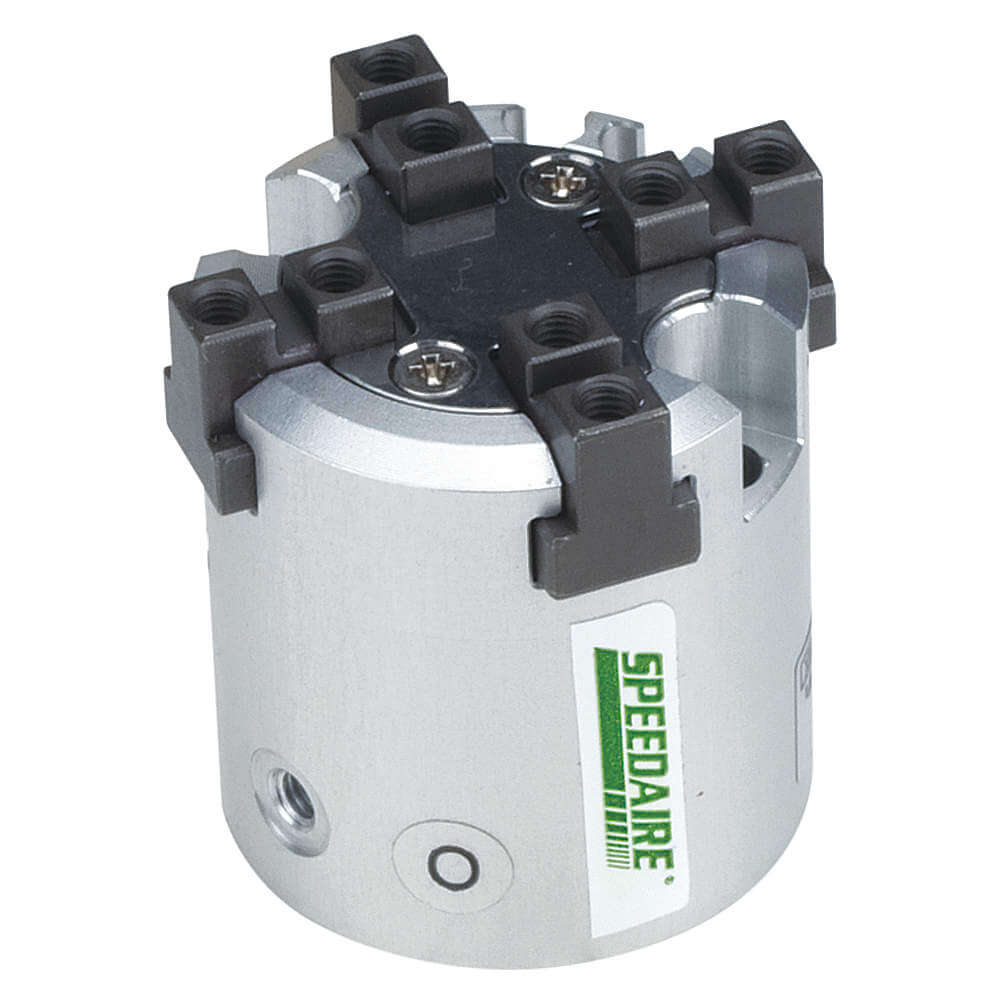

SPEEDAIRE MHS4-16D

A

Style	Model	Overall Height	Port Size	Height	Closed Width	Opening Width	Stroke Length	Overall Width	Max. Pressure	Price
A	MHS4-16D	-	M3 x 0.5	30 mm	33 mm	37 mm	-	-	87 psi	€694.38
A	MHS4-32D	56 mm	M5 x 0.8	56 mm	60 mm	68 mm	8 mm	56 mm	87 psi	€795.96
A	MHS4-50D	70 mm	M5 x 0.8	70 mm	74 mm	86 mm	12 mm	70 mm	87 psi	€895.40
