How to select the right pneumatic gripper?

Gripping force: The user must calculate the effective gripping force that would be required to conduct the operation.Workpiece weight: Ensure that the gripping force is able to support the weight of the workpiece.Air pressure: It has a direct effect upon the gripping force and influences gripper size.Build of the workpiece: The shape of the workpiece will determine whether 2 or 3 finger grippers are to be used.Environment: Grippers designed for clean environments might fail in harsh environments.

What is the advantage of parallel gripper over angular gripper?

As fingers fit into small areas, Destaco parallel grippers are capable of pulling a part down inside a machine, whereas angular grippers are only used to get tooling out of the way.

What is gripping force?

Gripping force is the force exerted by the gripper fingers on the workpiece. This force can differ depending upon the air pressure, coefficient of friction and gripping conditions between fingers and the workpiece.

DESTACO Pneumatic Grippers

Destaco pneumatic grippers offer actuator gripping solutions and are ideal for picking, placing, holding & releasing applications in the robotics and automation industries.

Filter

Destaco pneumatic grippers are equipped with tooling jaws or fingers to grasp an object. They run on compressed air and have the ability to pick up, place, hold and release objects while an action is...Read more

DESTACO -

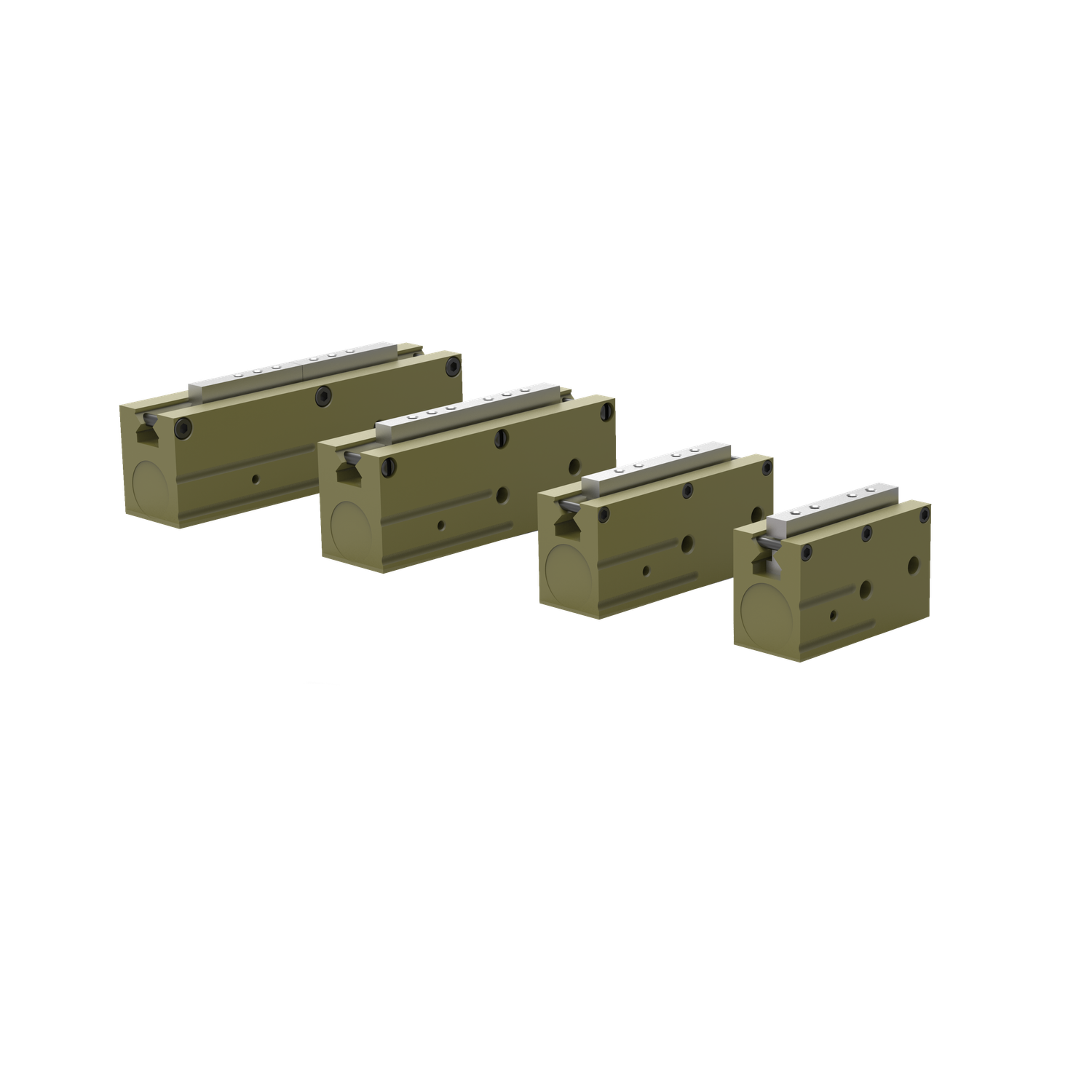

RPL Series 2 Jaw Precision Parallel Grippers

Style	Model	Open Width	Overall Length	Cylinder Bore	Finger Length	Grip Force	Stroke	Body Material	Number Of Jaws	Price
A	RPL-2	2 3/8"	3/4"	0.438"	3"	26 lbs.	1/2"	Aluminum	2	€1,305.49
B	RPL-4	3 7/8"	7/8"	1/2"	5"	160N	1"	Aluminum	2	€1,957.86

DESTACO -

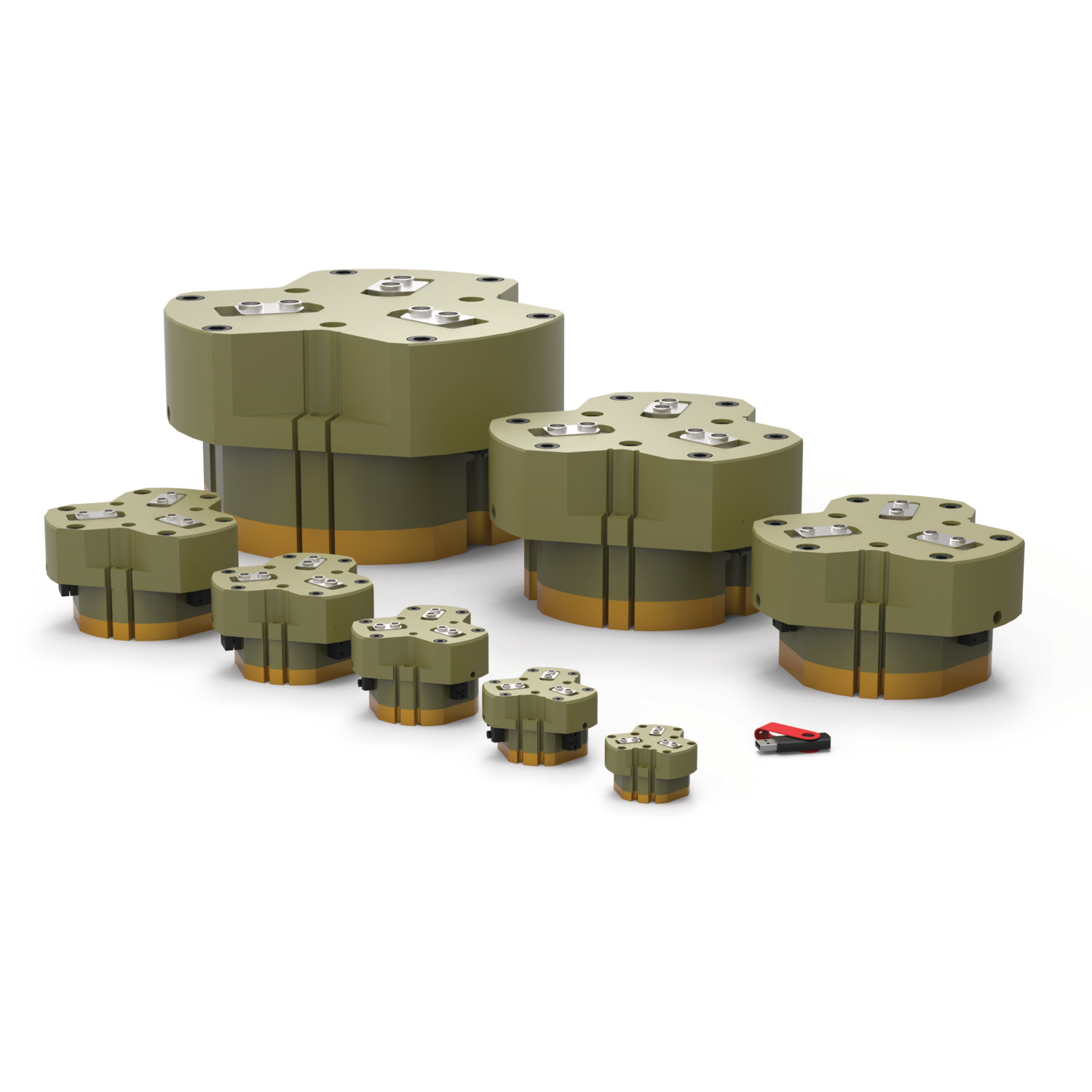

RTH Series 3 Jaw Parallel Grippers

Style	Model	Open Width	Overall Length	Size	Total Grip Force	Opening/closing Stroke	Dimension B	Dimension A	Dimension C	Price
A	RTH-1M-L	-	-	1m	443N	8 mm	10 mm	7 mm	4.1 mm	€2,371.45
A	RTH-1M	-	-	1m	682N	4 mm	12 mm	9 mm	2 mm	€2,304.06
B	RTH-2M	-	-	2m	1238N	6 mm	16.5 mm	13 mm	3 mm	€2,739.18
C	RTH-3M-L	-	-	3m	1349N	16 mm	16.5 mm	12 mm	8 mm	€2,968.50
C	RTH-3M	-	-	3m	2078N	8 mm	20.5 mm	16 mm	3.9 mm	€2,901.11
D	RTH-4M-L	-	-	4m	2366N	20 mm	20.5 mm	15 mm	10 mm	€3,545.19
D	RTH-4M	-	-	4m	3644N	10 mm	25.5 mm	20 mm	5 mm	€3,475.53
E	RTH-5M	-	-	5m	6353N	13 mm	30.5 mm	24.5 mm	6.5 mm	€4,447.24
F	RTH-5M-L	-	-	5m	4125N	26 mm	24 mm	18 mm	13 mm	€4,270.70
G	RTH-6M	-	-	6m	10202N	16 mm	39.5 mm	32 mm	8 mm	€5,761.97
H	RTH-7M	-	-	7m	17165N	25 mm	51 mm	42 mm	12.4 mm	€13,777.38
H	RTH-8M	-	-	8m	35288N	35 mm	69 mm	57 mm	17.7 mm	€18,300.87
H	RTH-8M-L	-	-	8m	22784N	70 mm	51.5 mm	39.5 mm	35.1 mm	€18,721.90
G	RTH-6M-L	-	-	6m	6629N	32 mm	31.5 mm	24 mm	16 mm	€5,842.93
B	RTH-2M-L	65 mm	49 mm	2m	812N	12 mm	13.5 mm	10 mm	6 mm	€2,806.58
I	RTH-7M-L	210 mm	143 mm	7m	11102N	50 mm	38.5 mm	29.5 mm	25 mm	€14,137.41

DESTACO -

RPMC Series 2 Jaw Parellel Grippers

Style	Model	Height	Size	Opening/closing Stroke	Opening Width	Port Size	Type	Operating Temp. Range	Seal Material	Price
A	RPMC-1M	23 mm	1	3.2 mm	19.2 mm	M2	Parallel	-30°F to +180°F	Buna N	€1,521.48

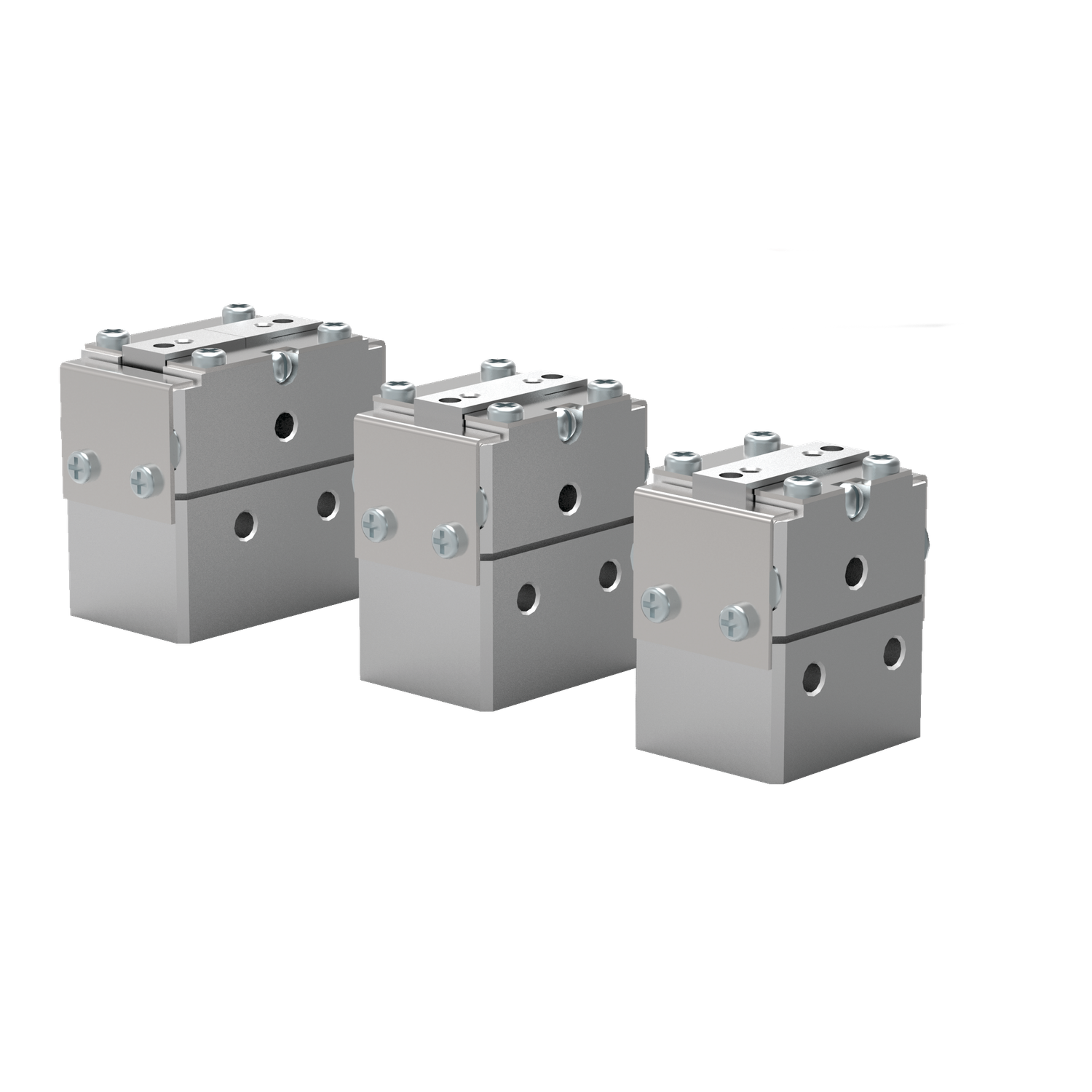

A	RPMC-2M	25 mm	2	4.8 mm	20.8 mm	M2	Parallel	-30°F to +180°F	Buna N	€1,552.59
A	RPMC-3M	25 mm	3	6.3 mm	26.4 mm	M2	Parallel	-30°F to +180°F	Buna N	€1,626.74

DESTACO -

RPM Series Parallel Grippers

Style	Model	Height	Open Width	Size	Opening/closing Stroke	Opening Width	Overall Length	Port Size	Type	Price
A	RPM-1M	23 mm	23 mm	1	3.2 mm	19.2 mm	16 mm	M2	Parallel	€1,299.00
B	RPM-3M	25 mm	30 mm	3	6.3 mm	26.4 mm	16 mm	M2	Parallel	€1,322.92

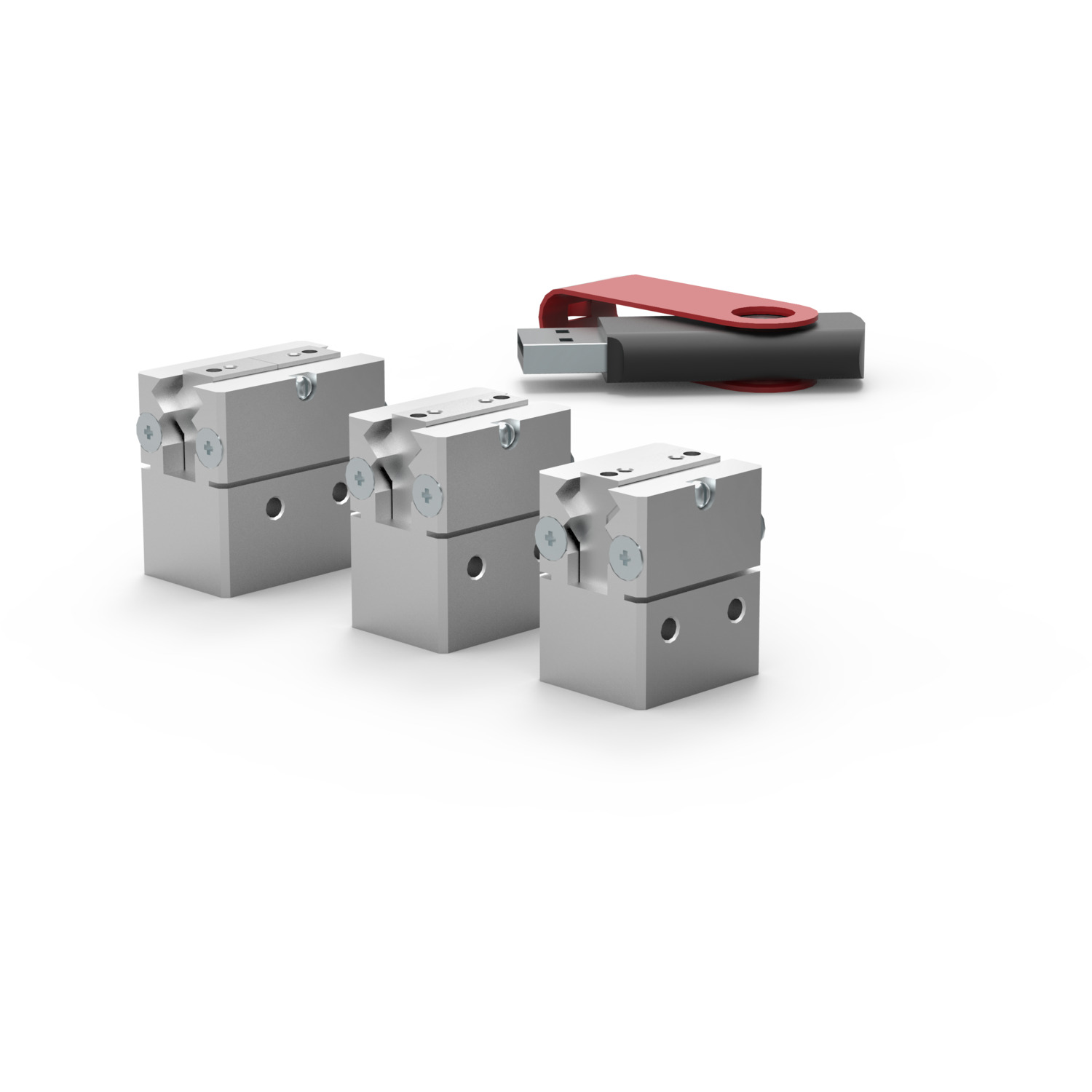

C	RPM-2M	25 mm	-	2	4.8 mm	20.8 mm	-	M2	Parallel	€1,291.83

DESTACO -

RPS Series Parallel Grippers

Style	Model	MPN	Price
A	RPS-17-C-V	RPS-17-C-V	€3,093.67
A	RPS-17M-D-C	RPS-17M-D-C	€3,208.56

DESTACO -

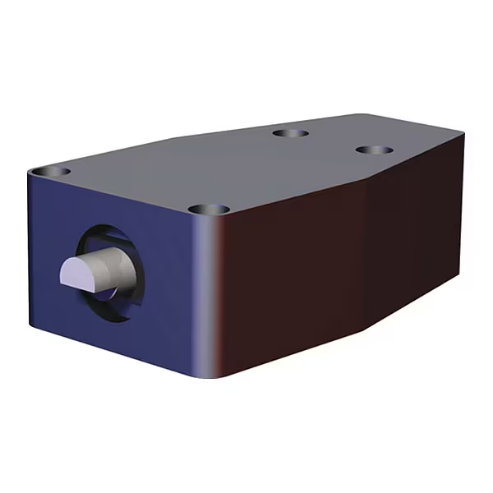

2P Series 2-Jaw Precision Parallel Grippers

Style	Model	MPN	Price
A	8002P-H-RE	8002P-H-RE	€1,712.60	RFQ
A	8002P-P-C-E3-V	8002P-P-C-E3-V	€2,346.92	RFQ
A	8002P-P-SD	8002P-P-SD	€2,450.59	RFQ
B	11002P-P-C-E3-V	11002P-P-C-E3-V	€1,163.01	RFQ
B	11002P-P-RE-C-E3-V	11002P-P-RE-C-E3-V	€2,568.76	RFQ
B	14002P-H-RI-KT1-C-V	14002P-H-RI-KT1-C-V	€1,333.30	RFQ
B	14002P-H-RI-SD-C-V	14002P-H-RI-SD-C-V	€2,420.03	RFQ
A	16502P-P	16502P-P	€2,398.33

DESTACO -

3P Series 3-Jaw Parallel Grippers

Style	Model	MPN	Price
A	6003P-P-RE-C	6003P-P-RE-C	€1,607.54	RFQ
B	8003P-P-C	8003P-P-C	€2,052.42	RFQ
B	14003P-P-C	14003P-P-C	€2,425.72
A	14003P-P-RE-SD	14003P-P-RE-SD	€2,360.31	RFQ

DESTACO -

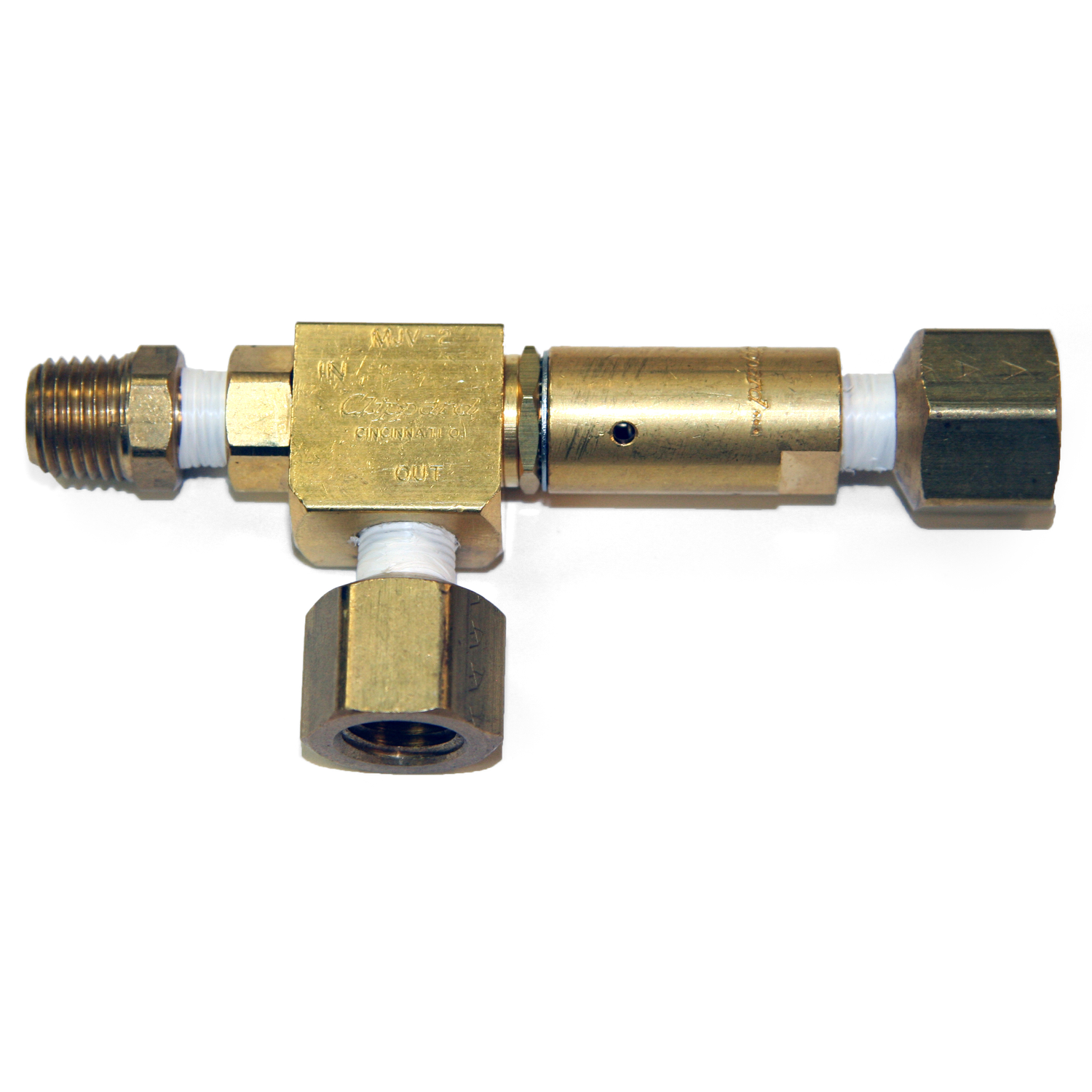

Pneumatic Grippers

Style	Model	Seal Material	Price

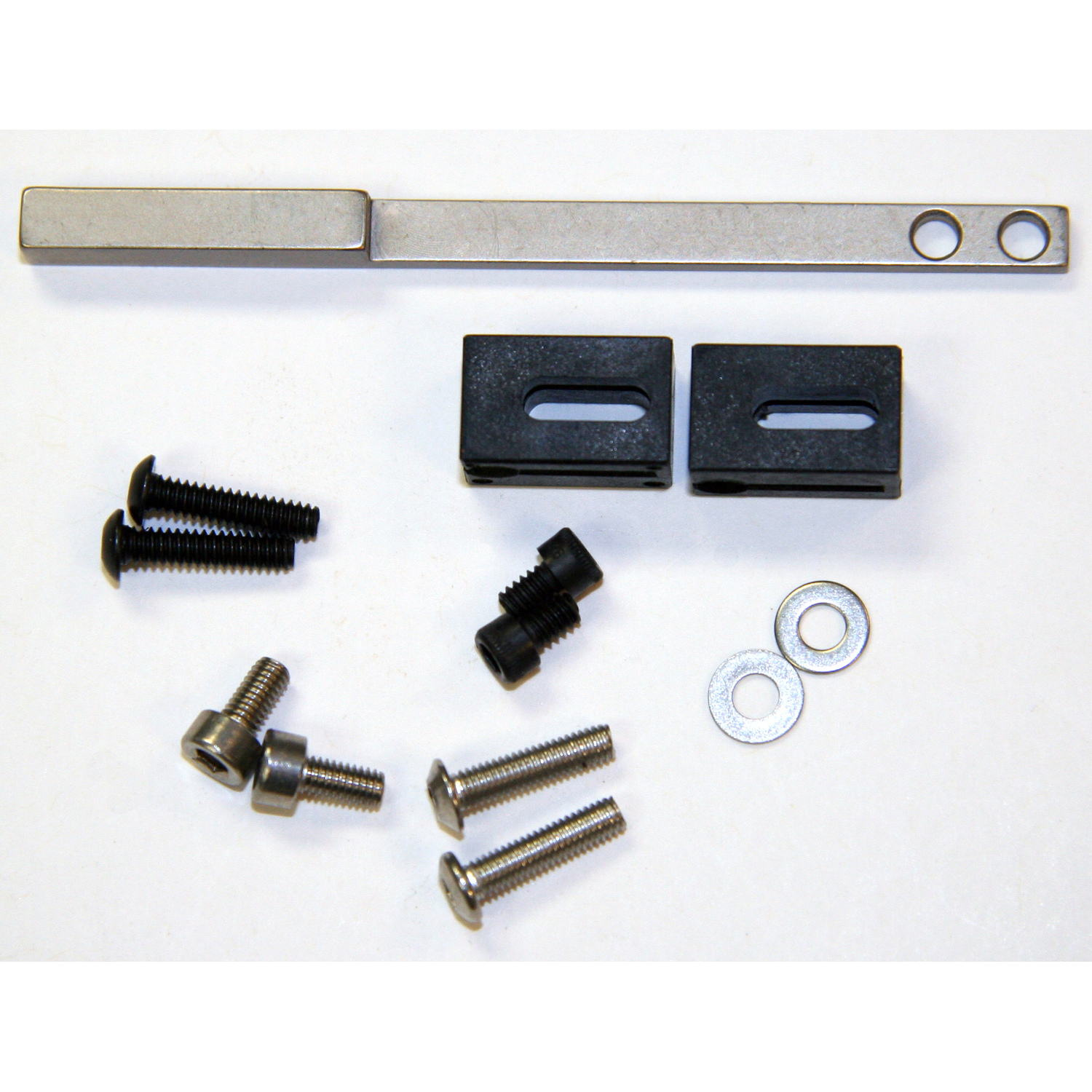

A	OSMK-072	-	€224.01
B	OISN-019	-	€493.05

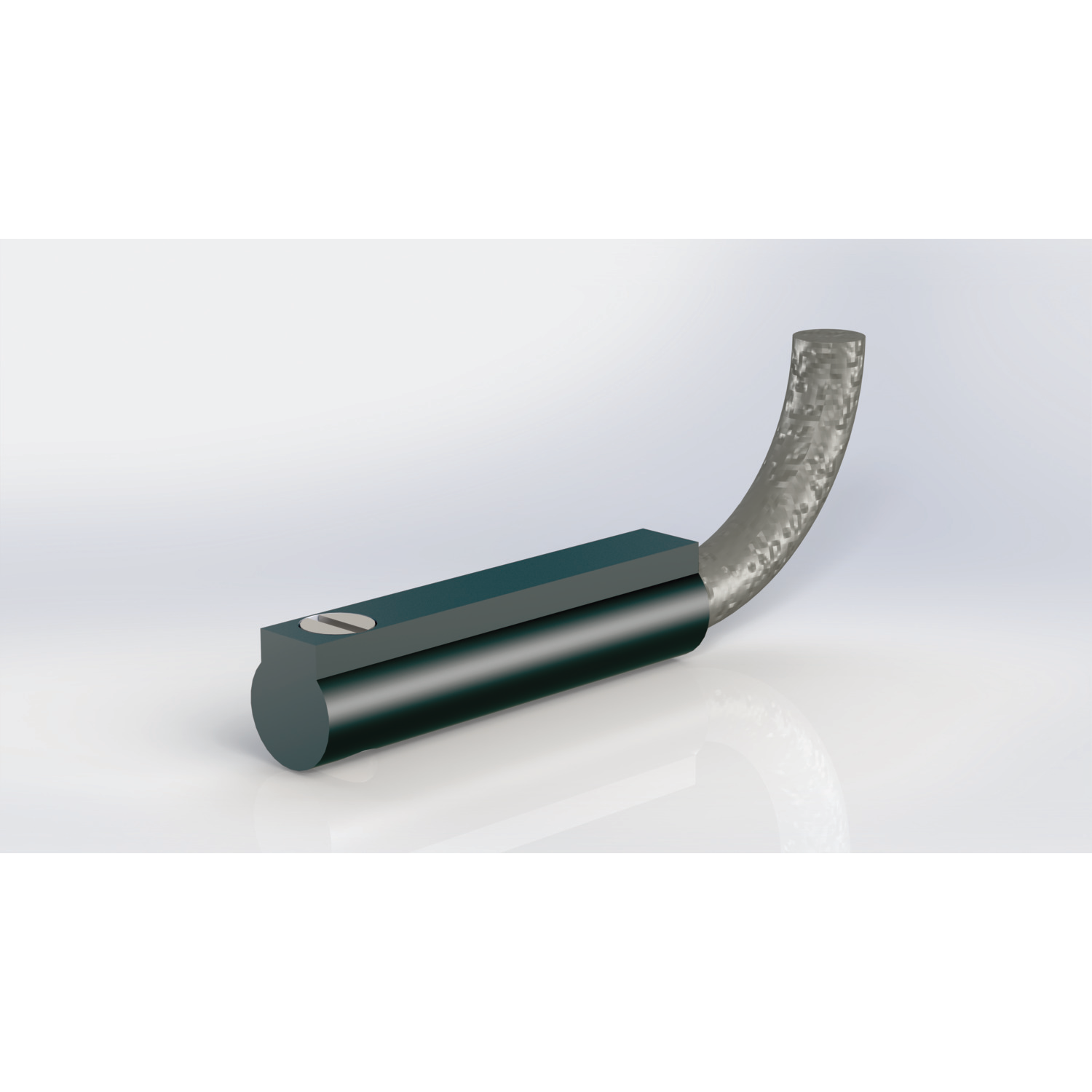

B	OISP-011	-	€625.02
B	OISP-019	-	€493.05

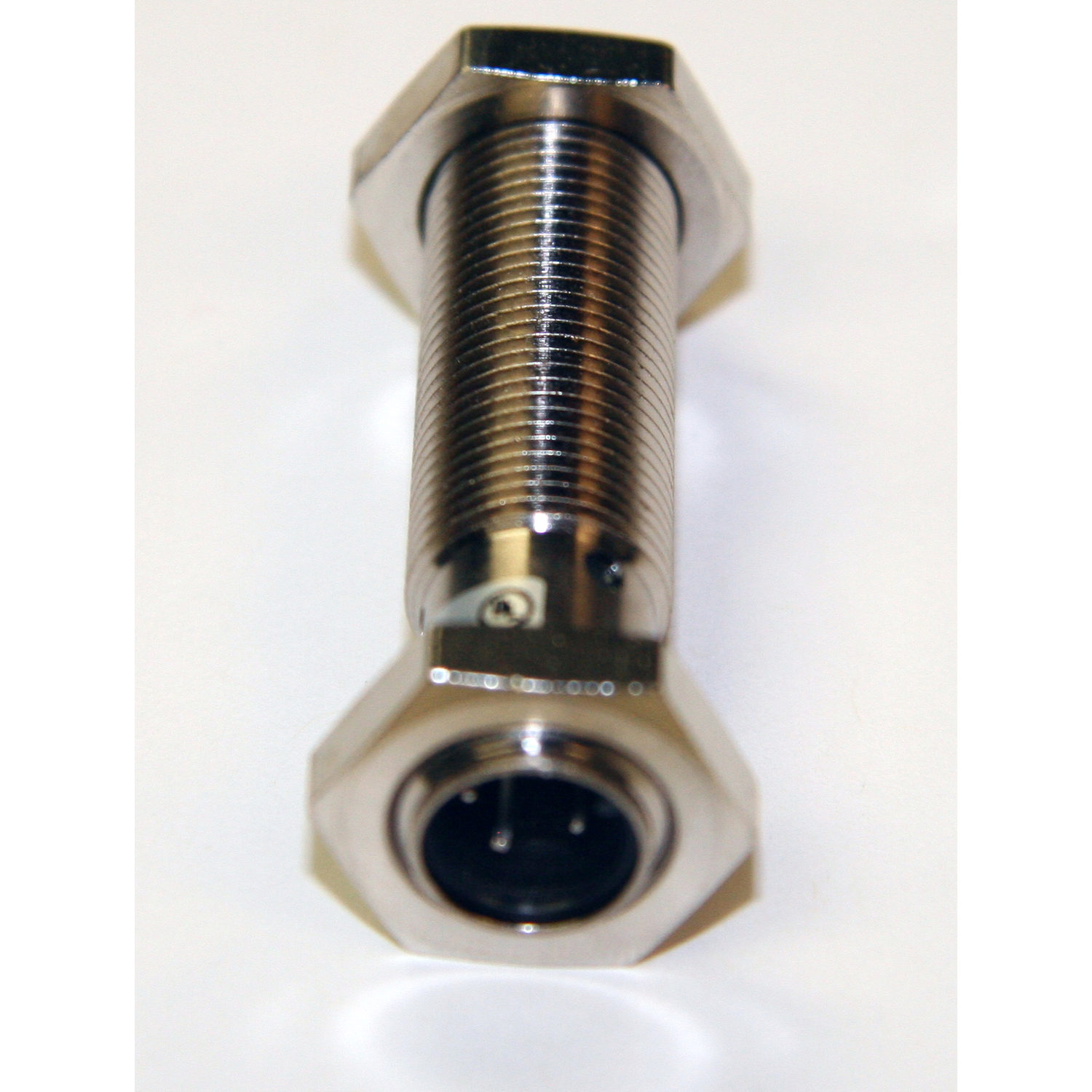

B	OISN-014	-	€479.99
B	OISP-014	-	€625.02
B	OISN-011	-	€625.02
A	OSMK-008	-	€107.84
C	OFSV-002	-	€300.40
D	OHSP-011	-	€325.82
E	OFSV-005	-	€300.40
F	OFSV-001	-	€300.40
G	OFSV-003	-	€331.98
F	OFSV-004	-	€318.81
G	OFSV-006	-	€331.98
H	DPP-14M-25	-	€2,378.09
H	RPB-24-11	-	€157.04
D	OHSP-017	-	€127.74
B	OHSN-017	-	€407.39
B	OHSN-011	-	€325.82
A	OSMK-118	-	€511.28
A	OSMK-073	-	€240.77
A	OSMK-012	-	€198.68
A	OSMK-097	-	€193.71
A	OSMK-001	-	€187.32

DESTACO -

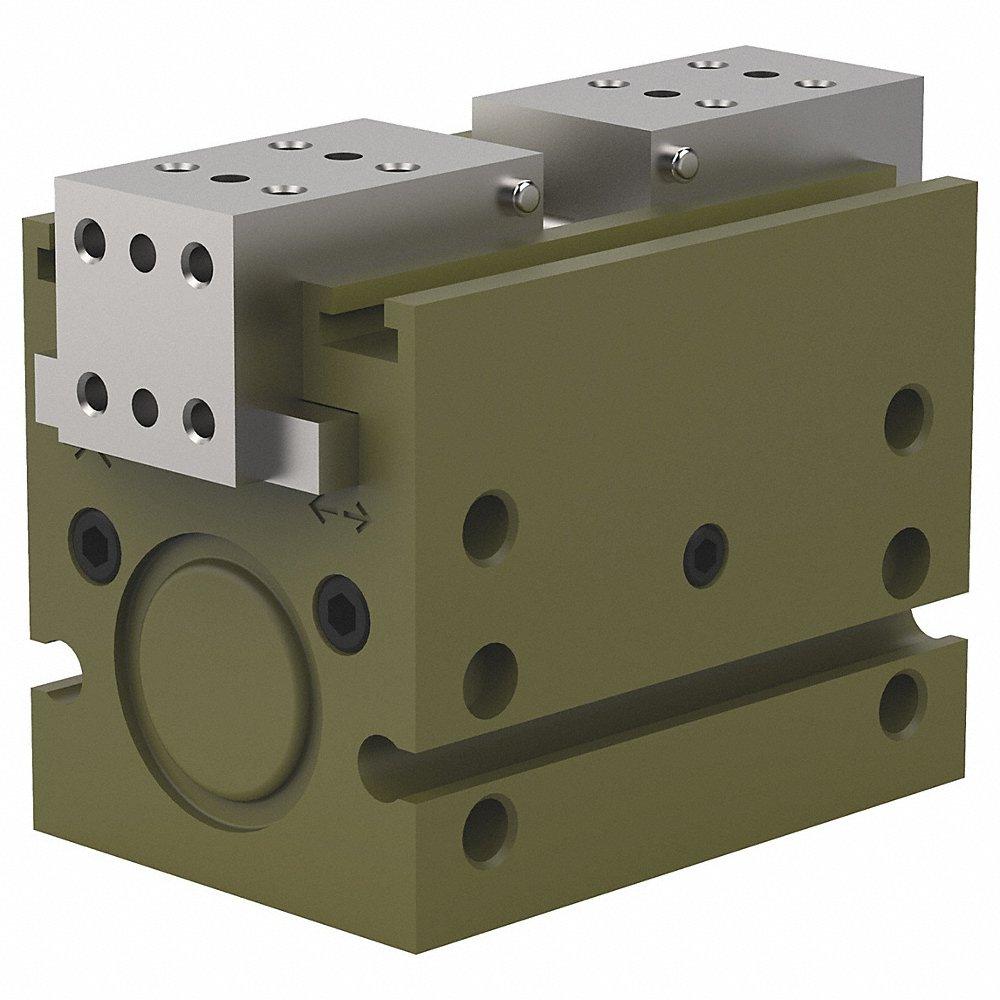

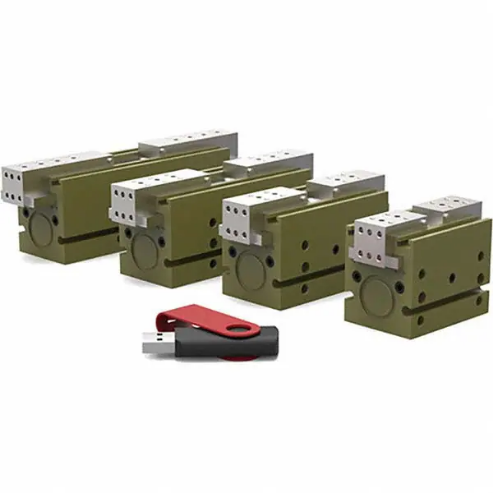

DPG Series Parallel Grippers

Style	Model	Open Width	Size	Opening/closing Stroke	Dimension B	Dimension A	Opening Width	Dimension C	Height	Price
A	DPG-10-2	-	-	-	-	-	-	-	-	€539.22	RFQ
A	DPG-10-2-O	-	-	-	-	-	-	-	-	€586.21	RFQ
A	DPG-10-2-O-T	-	-	-	-	-	-	-	-	€634.25	RFQ
A	DPG-10-2-T	-	-	-	-	-	-	-	-	€587.28	RFQ
A	DPG-10-3	-	-	-	-	-	-	-	-	€588.34	RFQ

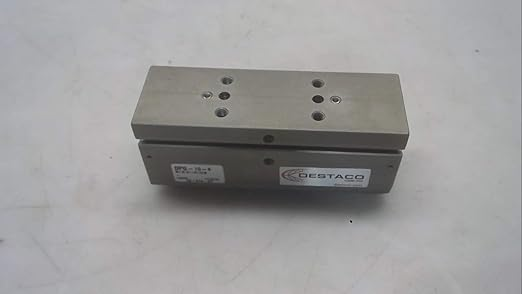

B	DPG-10-4	-	-	-	-	-	-	-	-	€638.53	RFQ
C	DPG-10M-1-C	-	-	-	-	-	-	-	-	€520.01	RFQ
D	DPG-10M-1-V	-	-	-	-	-	-	-	-	€521.07	RFQ
E	DPG-10M-1	-	1	6.4 mm	62 mm	50.8 mm	62 mm	55.6 mm	191 mm	€1,260.94

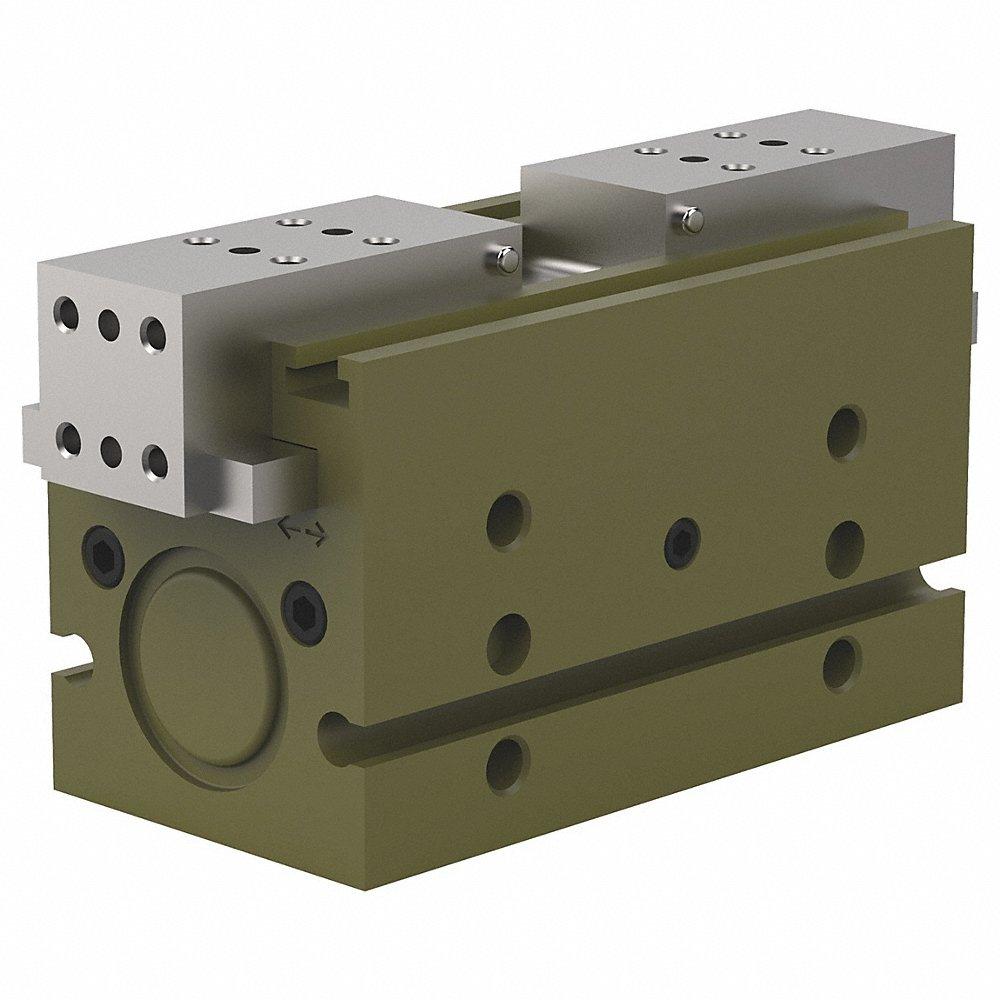

F	DPG-10M-2	86 mm	2	12.7 mm	85.6 mm	68.3 mm	85.6 mm	72.9 mm	191 mm	€1,467.42
G	DPG-10M-3	93.5 mm	3	19.1 mm	112.8 mm	88.9 mm	112.8 mm	93.7 mm	191 mm	€1,717.65

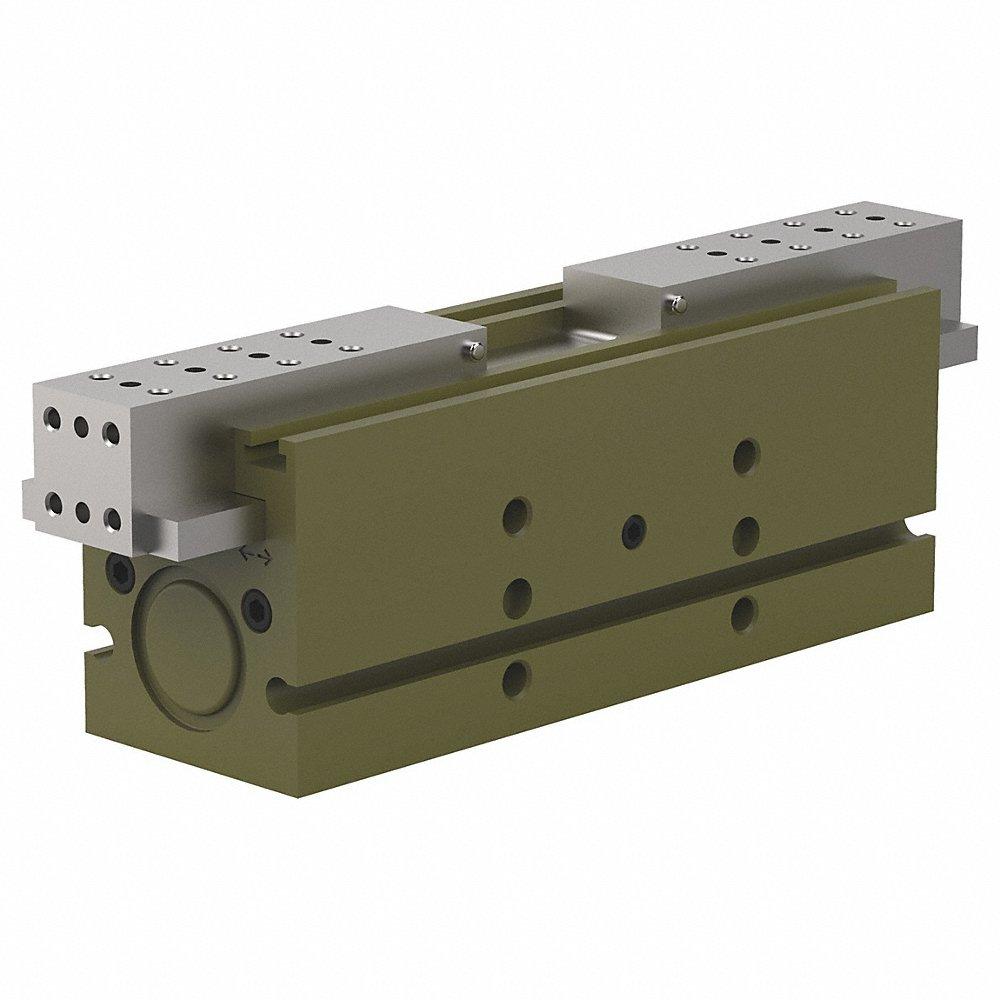

H	DPG-10M-4	111 mm	4	25.4 mm	136.7 mm	106.4 mm	136.7 mm	111.3 mm	191 mm	€1,813.33

DESTACO -

DPW Series Parallel Grippers

Style	Model	Overall Length	Height	Open Width	Port Size	Size	Bore Size	Opening/closing Stroke	Dimension B	Price
A	DPW-500M-1-V	-	-	-	-	-	-	-	-	€2,590.63
A	DPW-375M-2-W-V	-	-	-	-	-	-	-	-	€1,731.08	RFQ
A	DPW-500M-1-W	-	-	-	-	-	-	-	-	€1,044.57	RFQ
A	DPW-500M-2-W	-	-	-	-	-	-	-	-	€1,090.87	RFQ

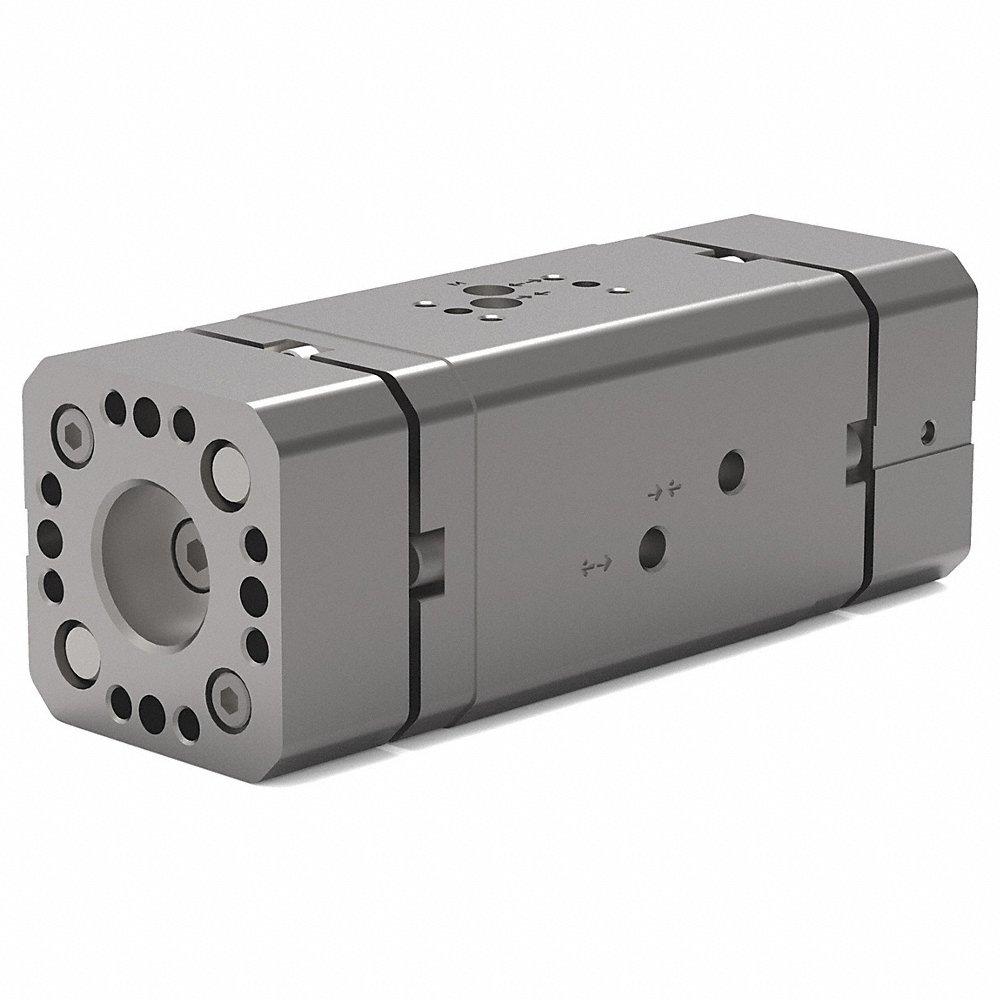

B	DPW-250M-2	37.6 mm	37.6 mm	-	M3	250m	15.9 mm	31.8 mm	67.1 mm	€1,897.08

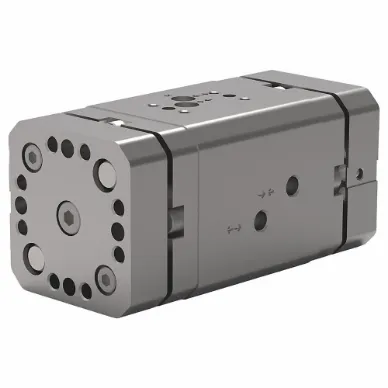

C	DPW-250M-1	37.6 mm	37.6 mm	98 mm	M3	250m	15.9 mm	19.1 mm	54.4 mm	€1,681.57
D	DPW-375M-2	54 mm	54 mm	198 mm	M5	375m	23.8 mm	50.8 mm	92.5 mm	€2,478.40

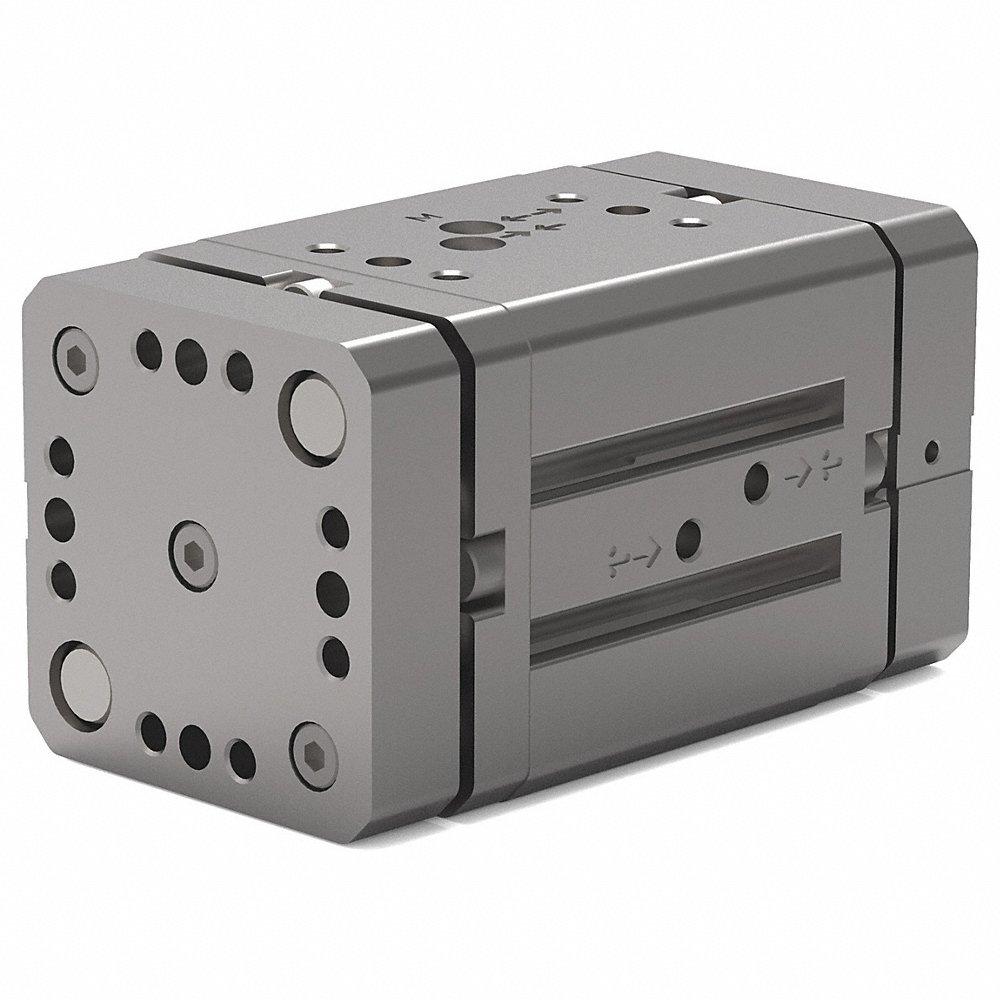

E	DPW-375M-1	54 mm	54 mm	122 mm	M5	375m	23.8 mm	25.4 mm	67.1 mm	€1,976.01
F	DPW-500M-1	63 mm	-	-	M5	500m	31.8 mm	38.1 mm	82.8 mm	€2,521.45

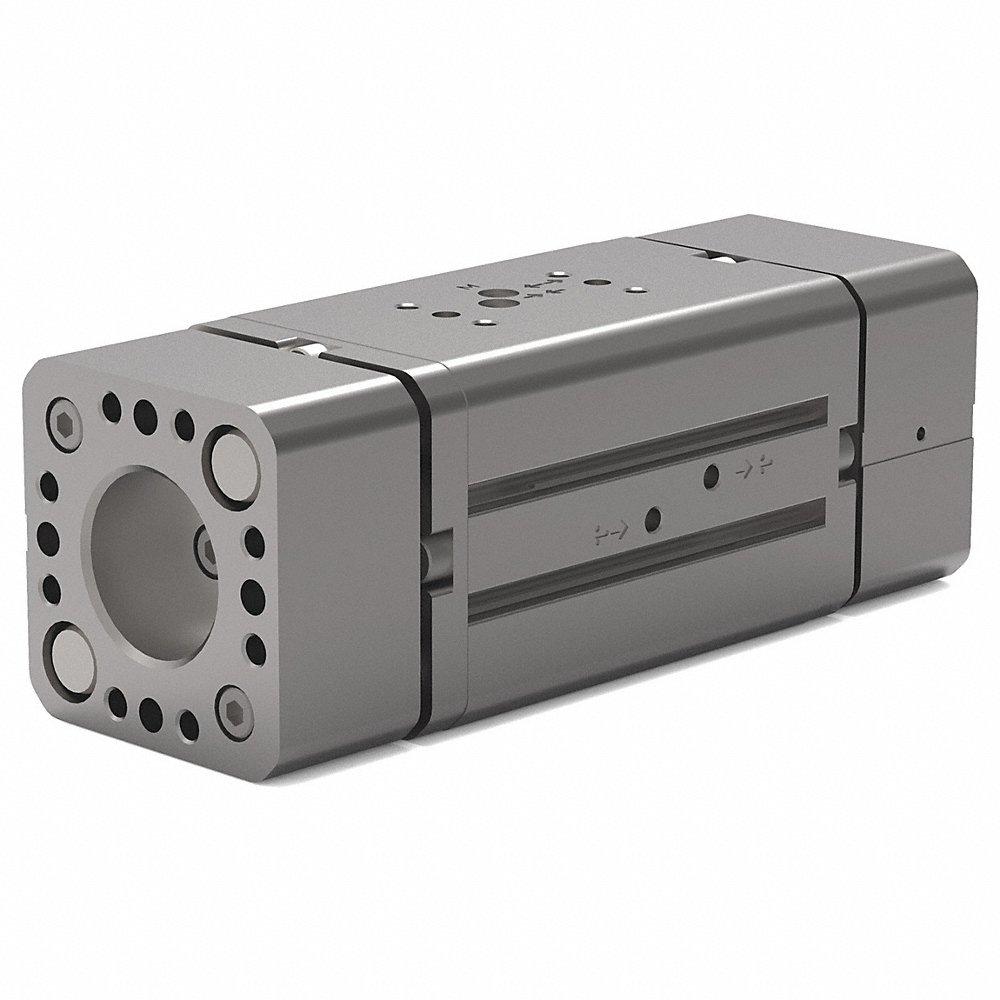

G	DPW-500M-2	63 mm	-	-	M5	500m	31.8 mm	63.5 mm	108.2 mm	€2,656.21

DESTACO -

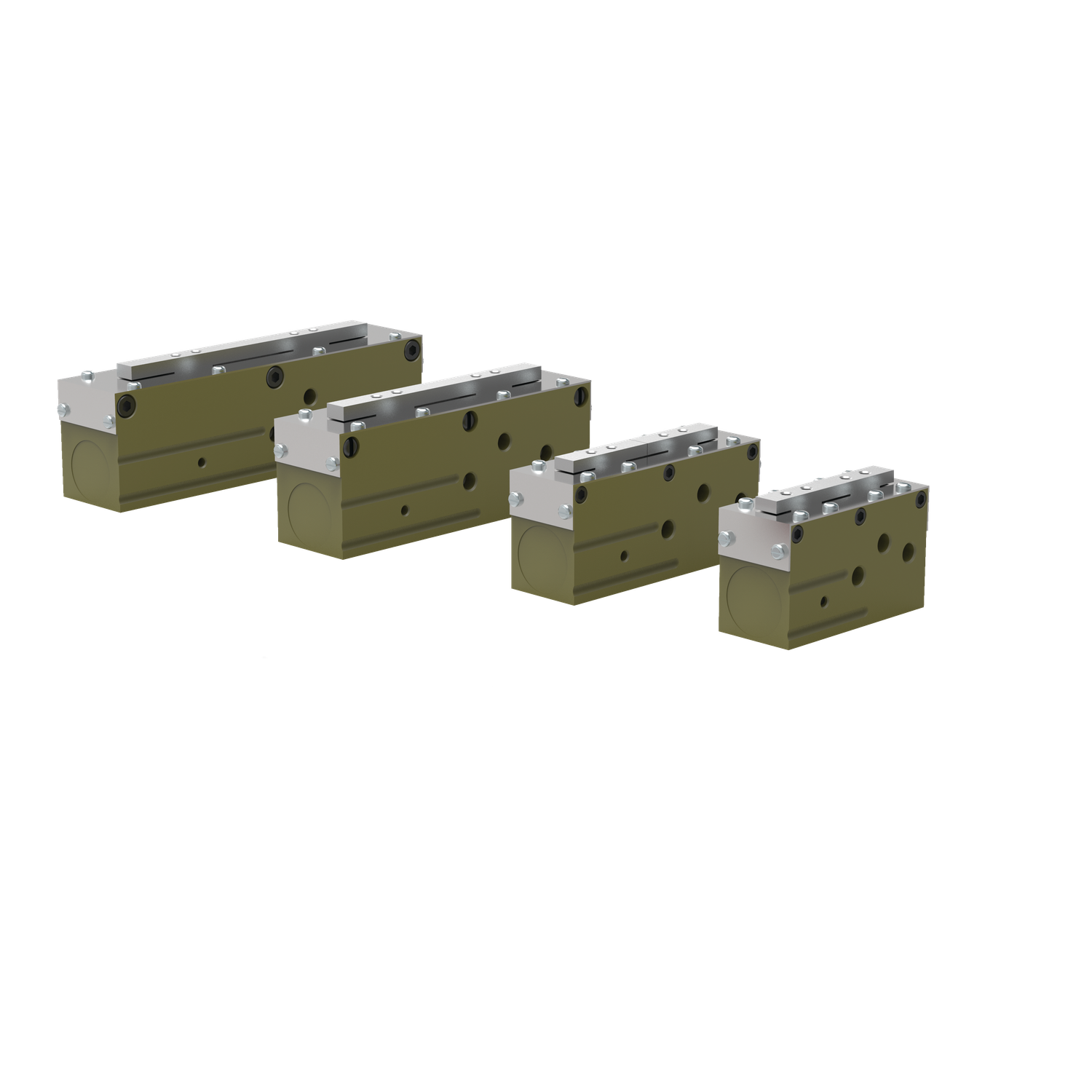

RPLC Series Parallel Grippers

Style	Model	Height	Open Width	Overall Length	Bore Size	Dimension A	Dimension C	Total Grip Force	Opening/closing Stroke	Price
A	RPLC-1M-V	-	-	-	-	-	-	-	-	€1,099.97
A	RPLC-3M-V	-	-	-	-	-	-	-	-	€1,943.95
A	RPLC-4-V	-	-	-	-	-	-	-	-	€2,299.62
A	RPLC-1-NS	-	-	-	-	-	-	-	-	€418.56	RFQ
B	RPLC-1	1.163"	1 7/8"	3/4"	0.438"	1.9"	11/25"	26 lbf.	1/4"	€1,287.04
C	RPLC-2	1.163"	-	-	0.438"	2.476"	0.62"	26 lbf.	1/2"	€1,602.81
C	RPLC-3	1.283"	-	-	1/2"	3.282"	19/25"	36 lbf.	3/4"	€2,157.83
C	RPLC-4	1.283"	-	-	1/2"	4.007"	1"	36 lbf.	1"	€2,373.12
C	RPLC-1M	29.5 mm	-	-	11.1 mm	48.3 mm	11 mm	116N	6.4 mm	€1,021.49
D	RPLC-2M	29.5 mm	62.9 mm	19.1 mm	11.1 mm	62.9 mm	16 mm	116N	12.7 mm	€1,399.47
E	RPLC-4M	32.6 mm	101.8 mm	22.2 mm	12.7 mm	101.8 mm	25 mm	160N	25.4 mm	€2,081.27
F	RPLC-3M	32.6 mm	83.4 mm	22.2 mm	12.7 mm	83.4 mm	19 mm	-	-	€1,968.84

DESTACO -

G110 Series Parallel Grippers

Style	Model	MPN	Price
A	G110-08M-05-N-B	G110-08M-05-N-B	€241.32	RFQ
A	G110-08M-10-N-B	G110-08M-10-N-B	€233.84	RFQ
A	G110-08M-15-N-B	G110-08M-15-N-B	€274.43	RFQ
A	G110-08M-20-N-B	G110-08M-20-N-B	€293.64	RFQ
A	G110-08M-25-N-B	G110-08M-25-N-B	€313.93	RFQ
A	G110-11M-05-N-B	G110-11M-05-N-B	€227.44	RFQ
A	G110-11M-10-N-B	G110-11M-10-N-B	€1,171.03	RFQ
A	G110-11M-15-N-B	G110-11M-15-N-B	€485.10	RFQ
A	G110-11M-20-N-B	G110-11M-20-N-B	€261.61	RFQ
A	G110-11M-25-N-B	G110-11M-25-N-B	€277.62	RFQ
A	G110-18M-06-N-B	G110-18M-06-N-B	€326.73	RFQ
A	G110-18M-12-N-B	G110-18M-12-N-B	€300.05	RFQ
A	G110-18M-18-N-B	G110-18M-18-N-B	€347.03	RFQ
A	G110-18M-24-N-B	G110-18M-24-N-B	€355.57	RFQ
A	G110-18M-30-N-B	G110-18M-30-N-B	€388.66	RFQ
A	G110-25M-10-N-B	G110-25M-10-N-B	€406.83	RFQ
A	G110-25M-20-N-B	G110-25M-20-N-B	€399.35	RFQ
A	G110-25M-30-N-B	G110-25M-30-N-B	€433.51	RFQ
A	G110-25M-40-N-B	G110-25M-40-N-B	€454.87	RFQ
A	G110-25M-50-N-B	G110-25M-50-N-B	€478.36	RFQ

DESTACO -

CP-3 Series Parallel Grippers

Style	Model	MPN	Price
A	CP-3-RE	CP-3-RE	€688.40	RFQ
A	CP-3-RE-C	CP-3-RE-C	€827.08	RFQ

DESTACO -

CP-6 Series Parallel Grippers

Style	Model	MPN	Price
A	CP-6-RE	CP-6-RE	€1,132.23	RFQ
A	CP-6-RI-C-V	CP-6-RI-C-V	€1,416.71	RFQ

DESTACO -

DCT Series Angular Grippers

Style	Model	MPN	Price

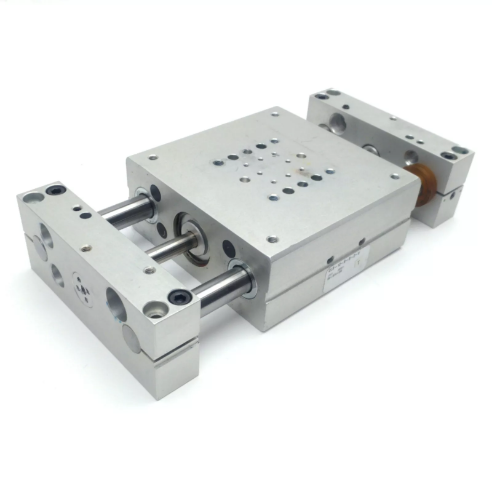

A	DCT-12M	DCT-12M	€543.77
A	DCT-16M	DCT-16M	€566.48
B	DCT-20M	DCT-20M	€774.70	RFQ
A	DCT-25M	DCT-25M	€804.22

DESTACO -

DGC Series 2 Jaw Precision Parallel Grippers

Style	Model	MPN	Price
A	DGC-25	DGC-25	€1,387.36	RFQ
A	DGC-45	DGC-45	€537.39	RFQ
A	DGC-65	DGC-65	€1,200.26	RFQ
A	DGC-65-V	DGC-65-V	€1,300.76	RFQ

DESTACO -

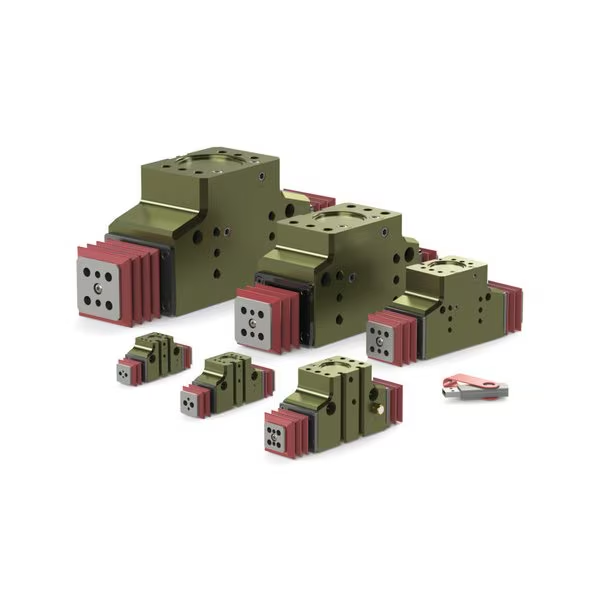

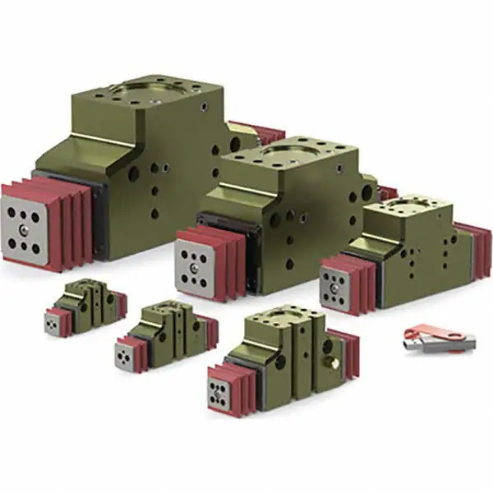

DPDL Series Parallel Grippers

Style	Model	MPN	Price
A	DPDL-047M-038-E	DPDL-047M-038-E	€947.11	RFQ
B	DPDL-056M-050	DPDL-056M-050	€741.03
B	DPDL-088M-075	DPDL-088M-075	€1,119.03
C	DPDL-088M-075-E	DPDL-088M-075-E	€3,512.20
C	DPDL-125M-100-B	DPDL-125M-100-B	€4,444.42
C	DPDL-125M-100-CR	DPDL-125M-100-CR	€4,629.04
A	DPDL-125M-100-E-S	DPDL-125M-100-E-S	€1,709.24	RFQ
A	DPDL-175M-150-E-S-V	DPDL-175M-150-E-S-V	€1,921.43	RFQ
A	DPDL-250-200-B-S-V	DPDL-250-200-B-S-V	€3,259.54	RFQ

DESTACO -

DPDS Series Parallel Grippers

Style	Model	MPN	Price

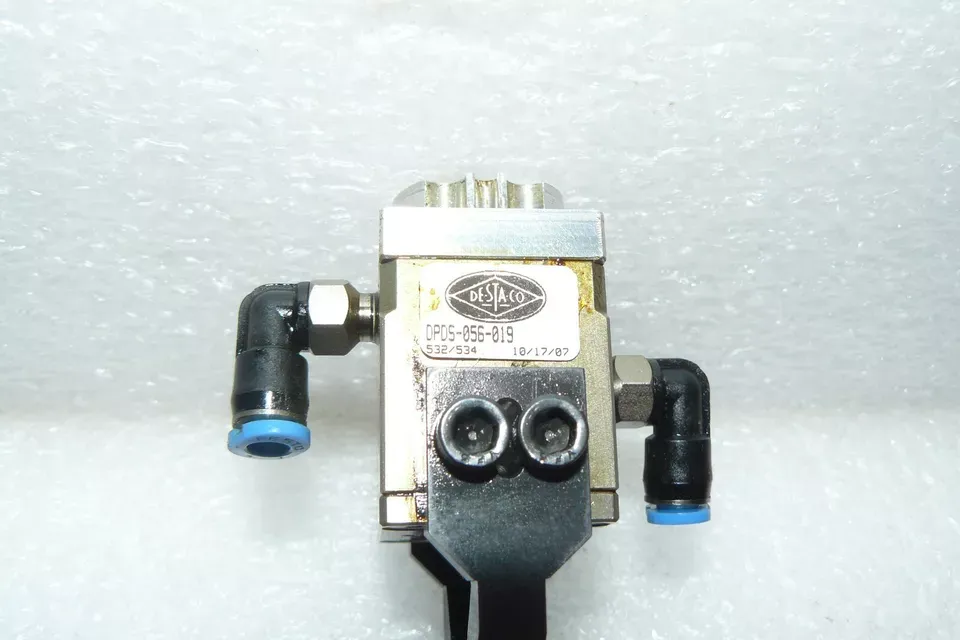

A	DPDS-056-019	DPDS-056-019	€620.87	RFQ

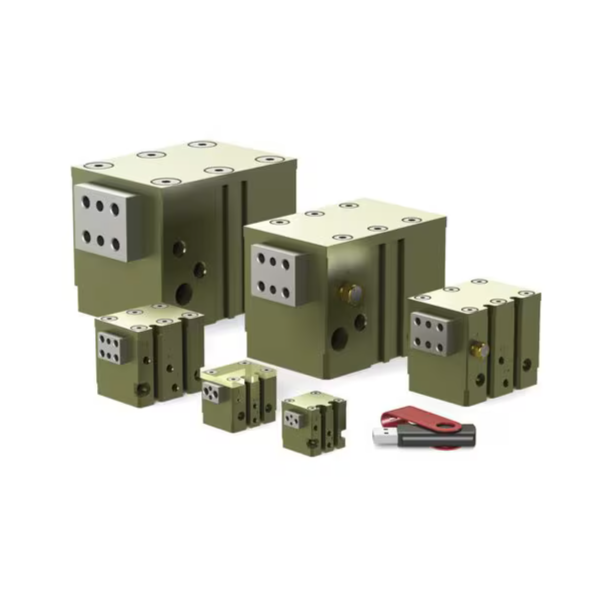

B	DPDS-088M-025	DPDS-088M-025	€812.58
C	DPDS-088M-025-B	DPDS-088M-025-B	€884.11	RFQ
C	DPDS-125M-038-B	DPDS-125M-038-B	€2,028.08	RFQ
D	DPDS-250M-075	DPDS-250M-075	€1,813.08	RFQ

DESTACO -

DPP Series Parallel Grippers

Style	Model	MPN	Price

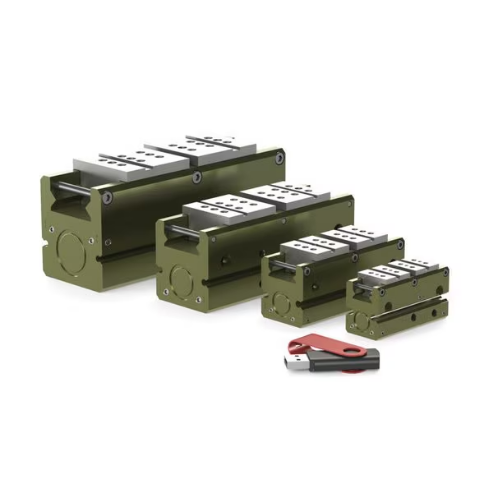

A	DPP-10M-06	DPP-10M-06	€568.05
A	DPP-10M-12	DPP-10M-12	€597.95
A	DPP-20M-25	DPP-20M-25	€868.10	RFQ
A	DPP-20M-38	DPP-20M-38	€1,013.31	RFQ
A	DPP-28M-50	DPP-28M-50	€1,225.81	RFQ

DESTACO -

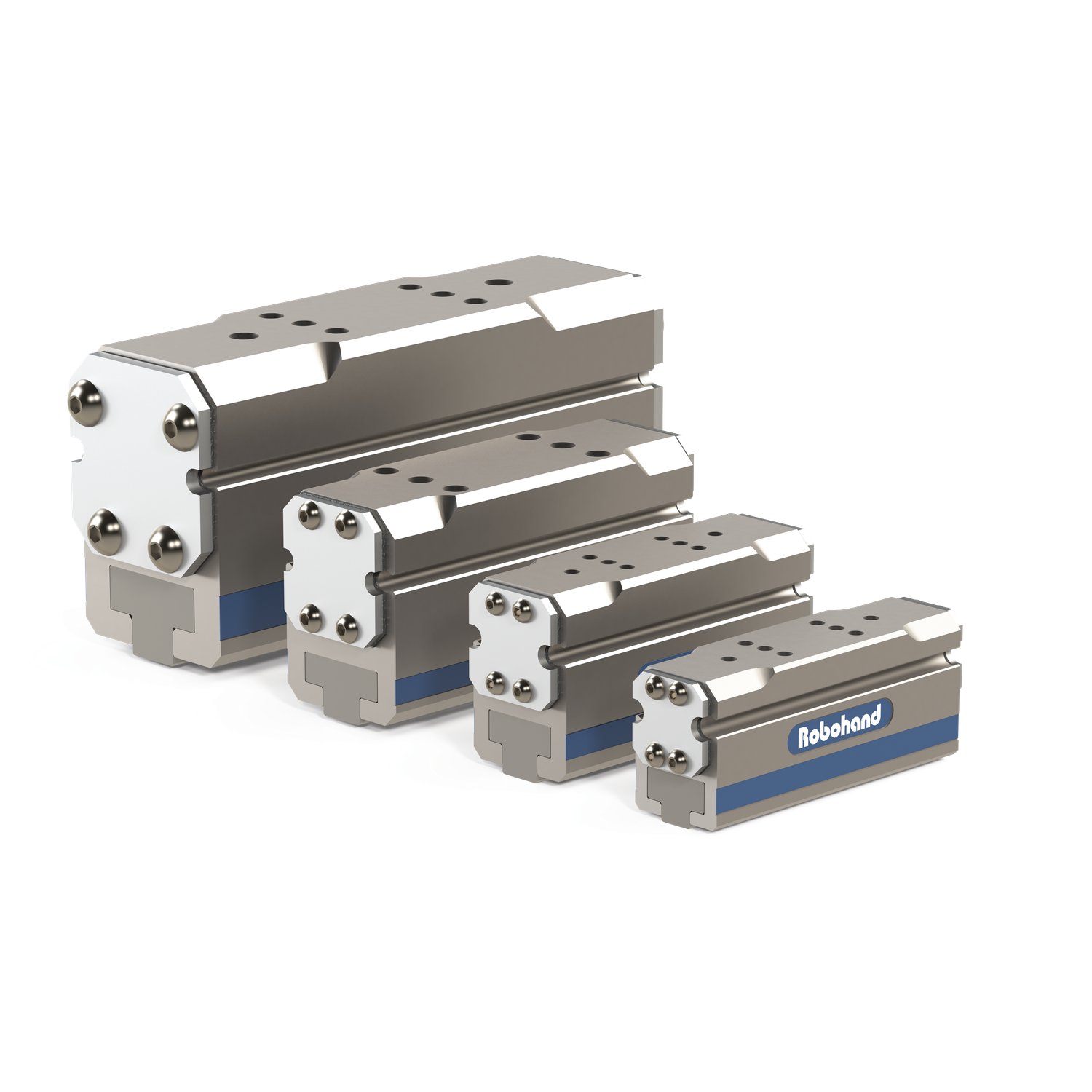

G120 Series Parallel Grippers

Style	Model	MPN	Price
A	G120-08M-05-N-B	G120-08M-05-N-B	€255.20	RFQ
A	G120-08M-10-N-B	G120-08M-10-N-B	€274.43	RFQ
A	G120-11M-05-N-B	G120-11M-05-N-B	€261.61	RFQ
A	G120-11M-10-N-B	G120-11M-10-N-B	€287.23	RFQ
A	G120-18M-12-N-B	G120-18M-12-N-B	€379.06	RFQ
A	G120-18M-24-N-B	G120-18M-24-N-B	€444.19	RFQ
A	G120-25M-20-N-B	G120-25M-20-N-B	€483.70	RFQ

DESTACO -

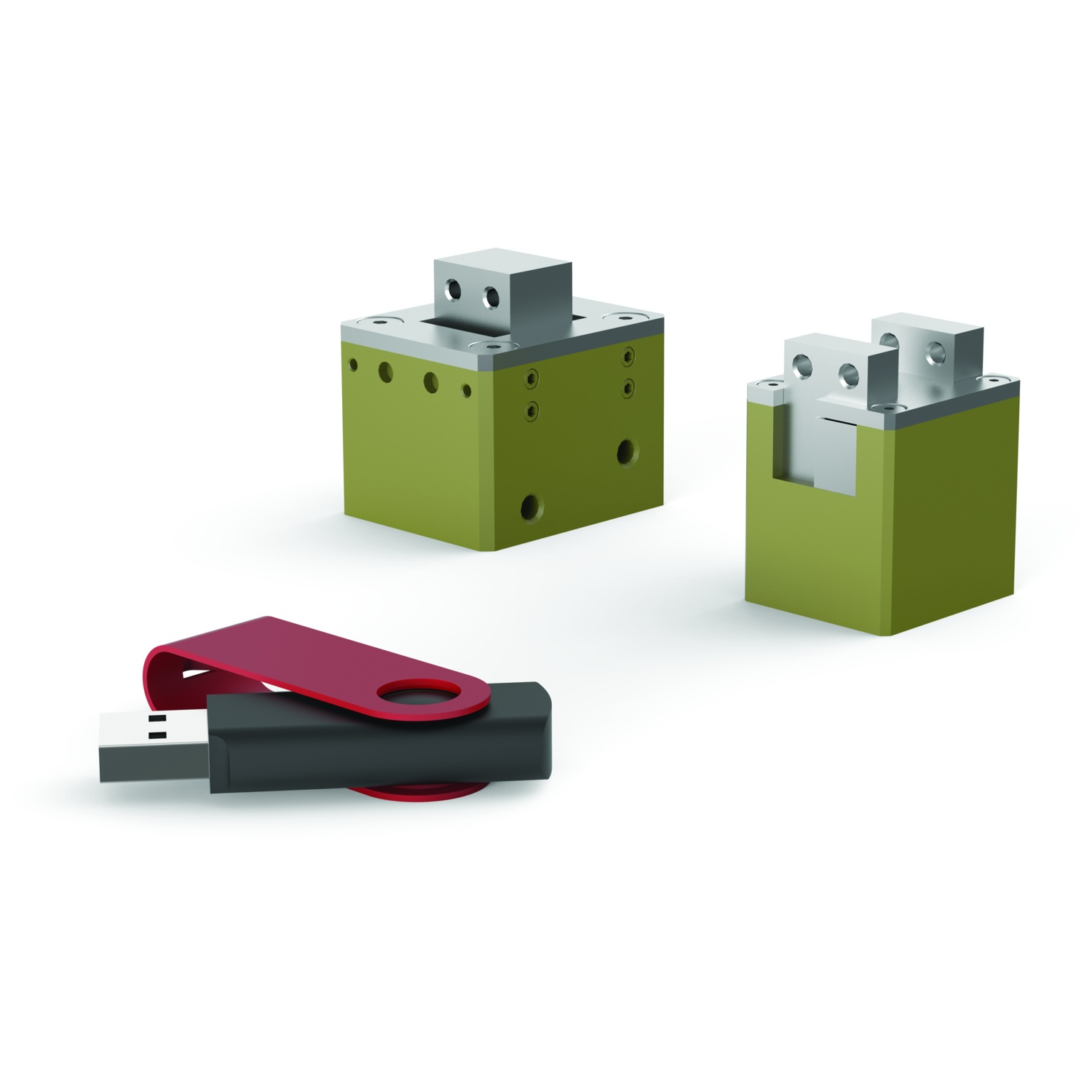

RP Series Parallel Grippers

Style	Model	Height	Overall Length	Open Width	Port Size	Size	Bore Size	Opening Width	Opening/closing Stroke	Price
A	RP-5-FS	-	-	-	-	-	-	-	-	€1,198.92
A	RP-1005M	-	-	-	-	-	-	-	-	€103.81
B	RP-10	-	1 1/4"	1 1/2"	M5	10	1"	19/25"	1/4"	€1,369.29
A	RP-5M-FS	-	-	-	-	-	-	-	-	€461.28

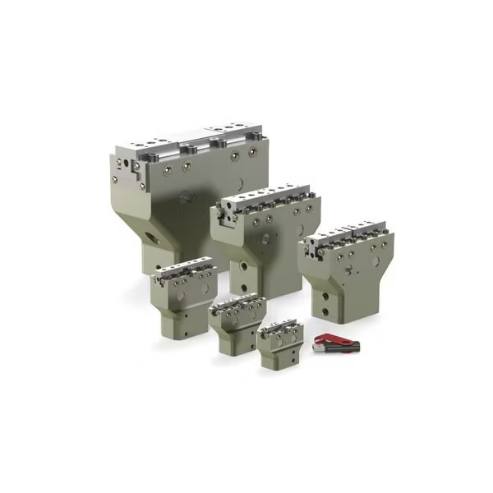

C	RP-50PM	-	-	-	-	-	-	-	-	€970.61
C	RP-50P	-	-	-	-	-	-	-	-	€1,365.66
C	RP-25PM	-	-	-	-	-	-	-	-	€1,262.11	RFQ
A	RP-18-V	-	-	-	-	-	-	-	-	€1,353.93	RFQ
A	RP-18M-V	-	-	-	-	-	-	-	-	€1,353.93	RFQ

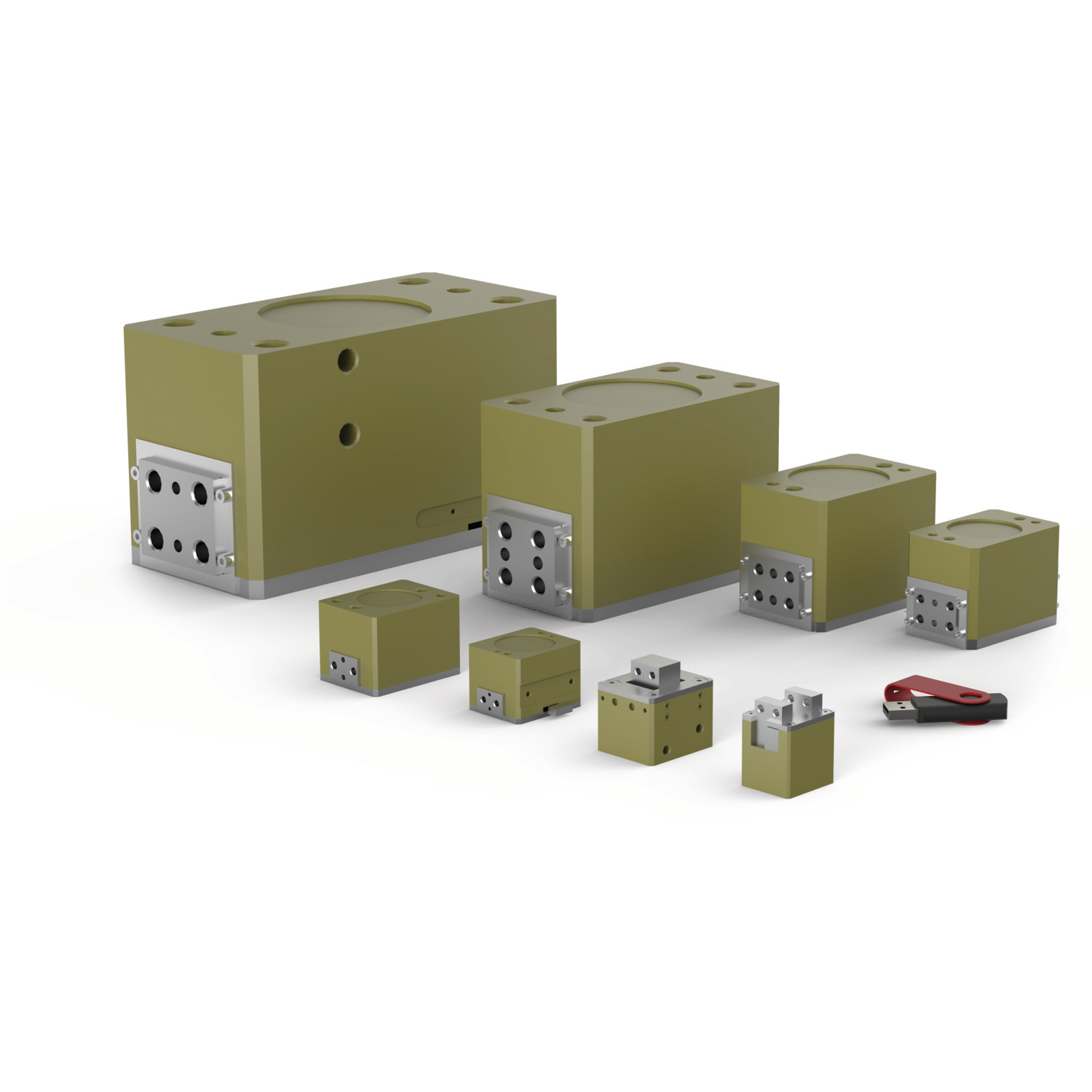

A	RP-17M-D	-	-	-	-	-	-	-	-	€1,501.28	RFQ
A	RP-17-D	-	-	-	-	-	-	-	-	€997.30	RFQ
A	RP-15M-D	-	-	-	-	-	-	-	-	€742.10	RFQ
A	RP-11-V	-	-	-	-	-	-	-	-	€553.10	RFQ
A	RP-11-D	-	-	-	-	-	-	-	-	€577.67	RFQ
C	RP-100PM	-	-	-	-	-	-	-	-	€970.61
D	RP-5	-	1"	1 1/8"	M5	5	3/4"	1.14"	4/25"	€1,150.43
A	RP-25P	-	2"	5 5/8"	-	-	-	-	-	€3,559.77
A	RP-18-D	-	-	-	-	-	-	-	-	€3,816.48

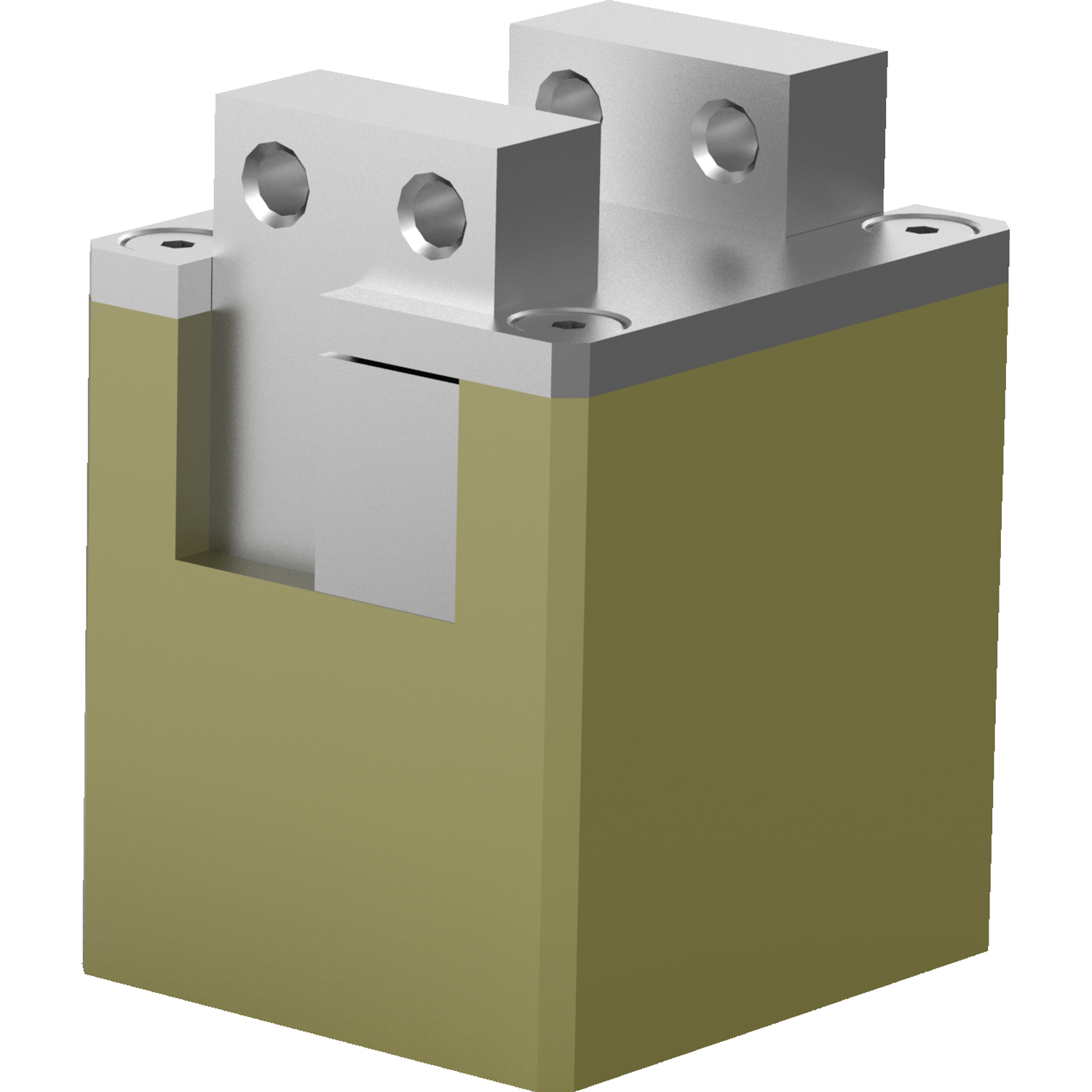

E	RP-5M	-	25.4 mm	28.6 mm	M5	5	19.1 mm	29 mm	-	€1,125.31

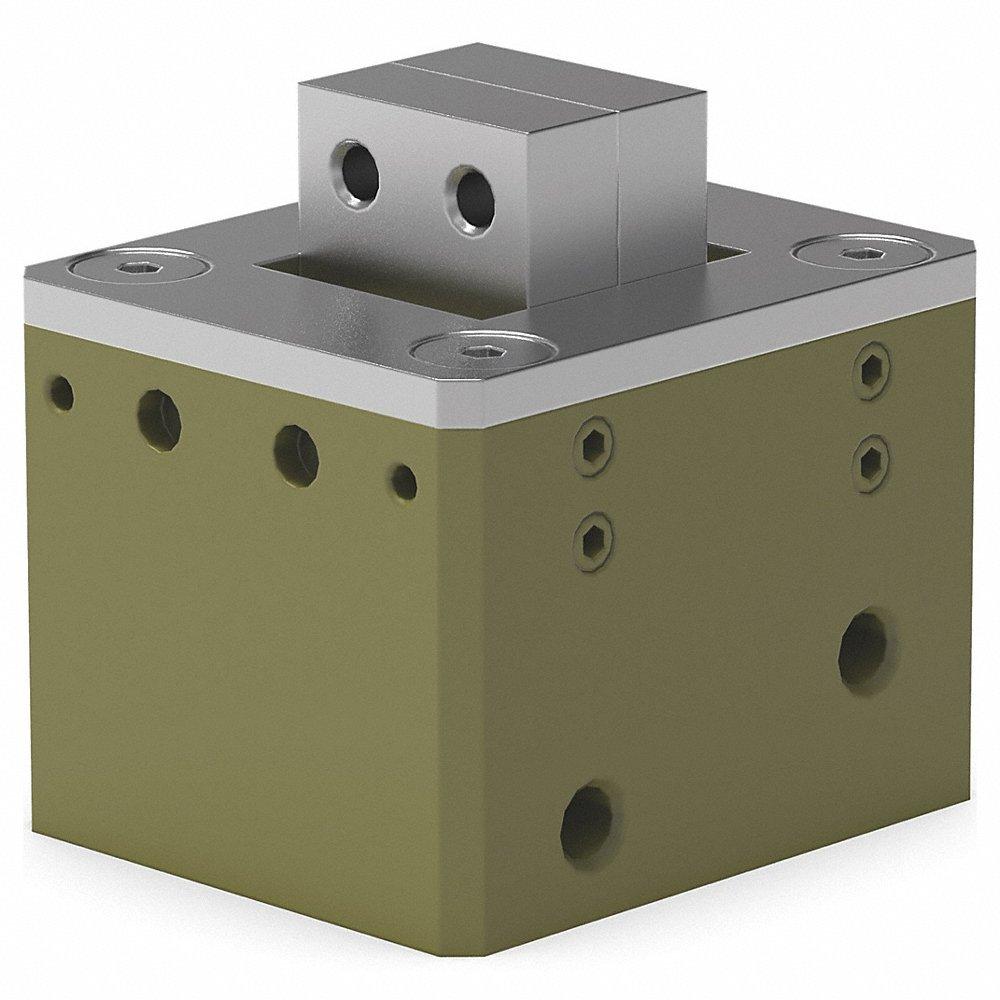

F	RP-10M	-	-	-	M5	10	25.4 mm	19 mm	6.4 mm	€1,423.39

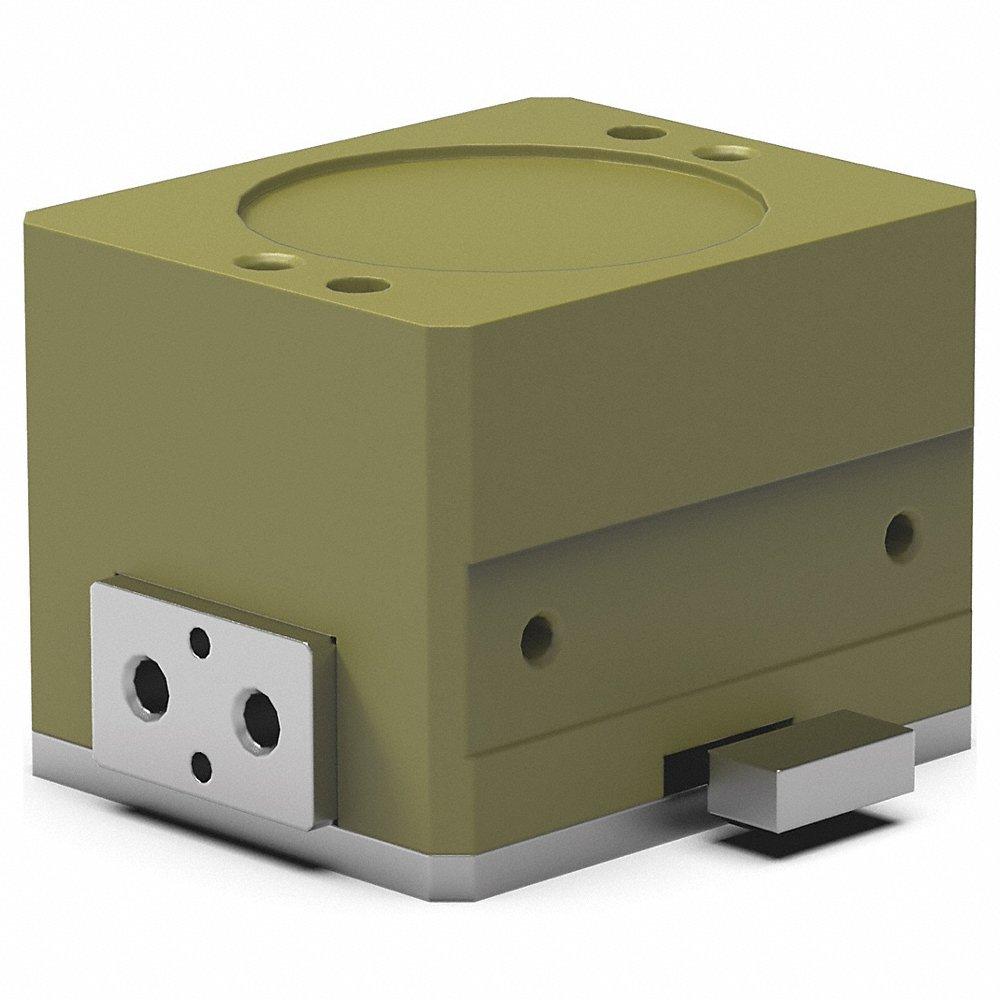

G	RP-11	1.126"	1 1/4"	1 7/8"	M5	11	1"	1 22/25"	1/4"	€1,586.07

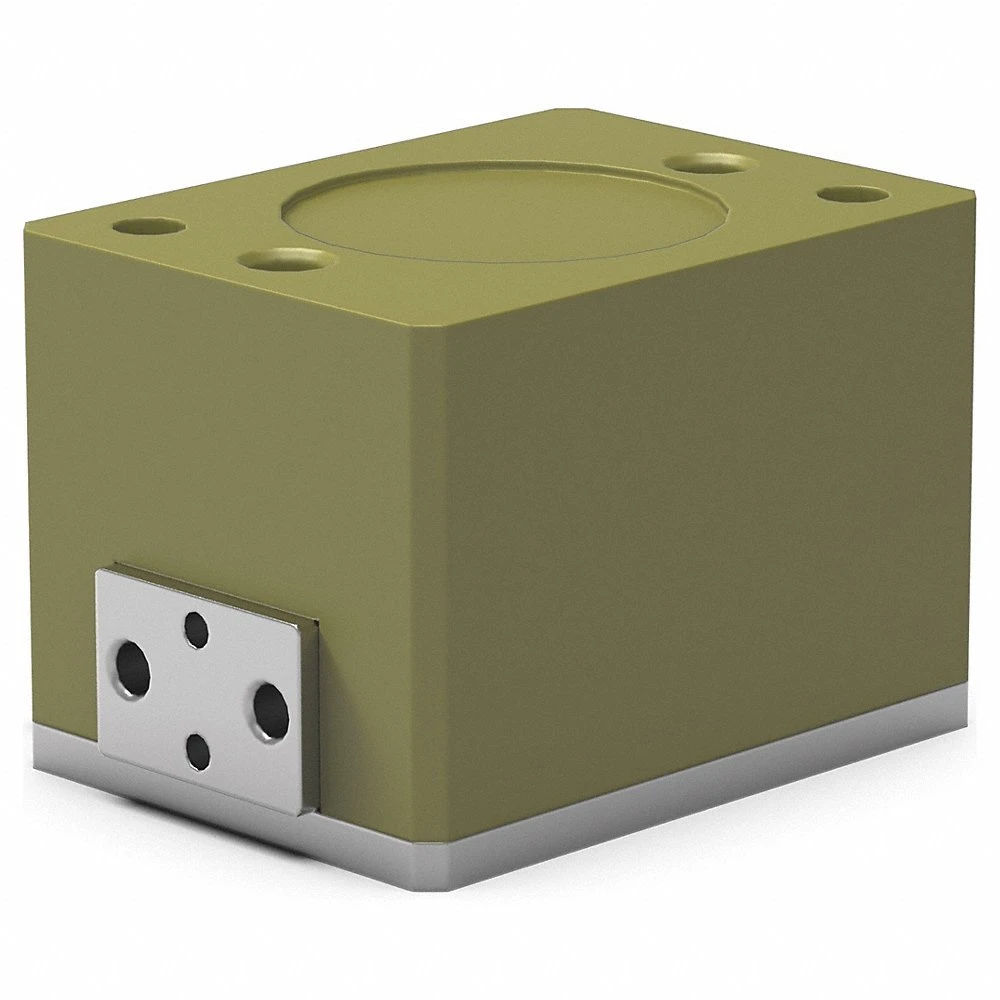

H	RP-12	1.402"	1 1/2"	-	M5	12	1"	2 1/2"	0.38"	€1,450.24
I	RP-18	2.95"	-	-	g1/8"	18	2 1/2"	7"	1 1/4"	€3,600.36
J	RP-17	2.126"	-	-	g1/8"	17	1.813"	4 1/4"	3/4"	€2,286.35

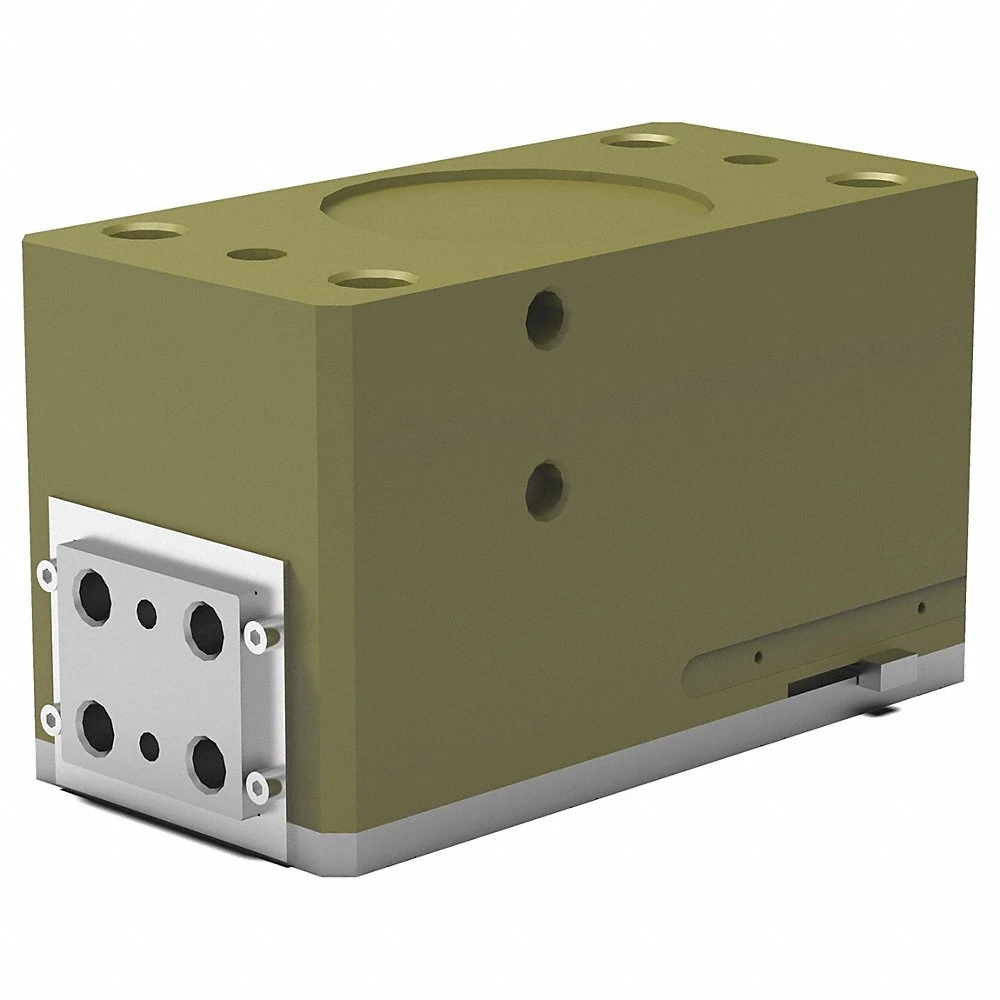

K	RP-19	3.95"	-	-	g1/4"	19	3 1/2"	10 1/2"	2"	€7,286.85

DESTACO -

REP Series Parallel Grippers

Style	Model	MPN	Price
A	REP-62-P-RE-V	REP-62-P-RE-V	€864.34	RFQ
A	REP-62-P-RI-V	REP-62-P-RI-V	€864.34	RFQ
A	REP-63-P-RE-C	REP-63-P-RE-C	€1,595.28	RFQ

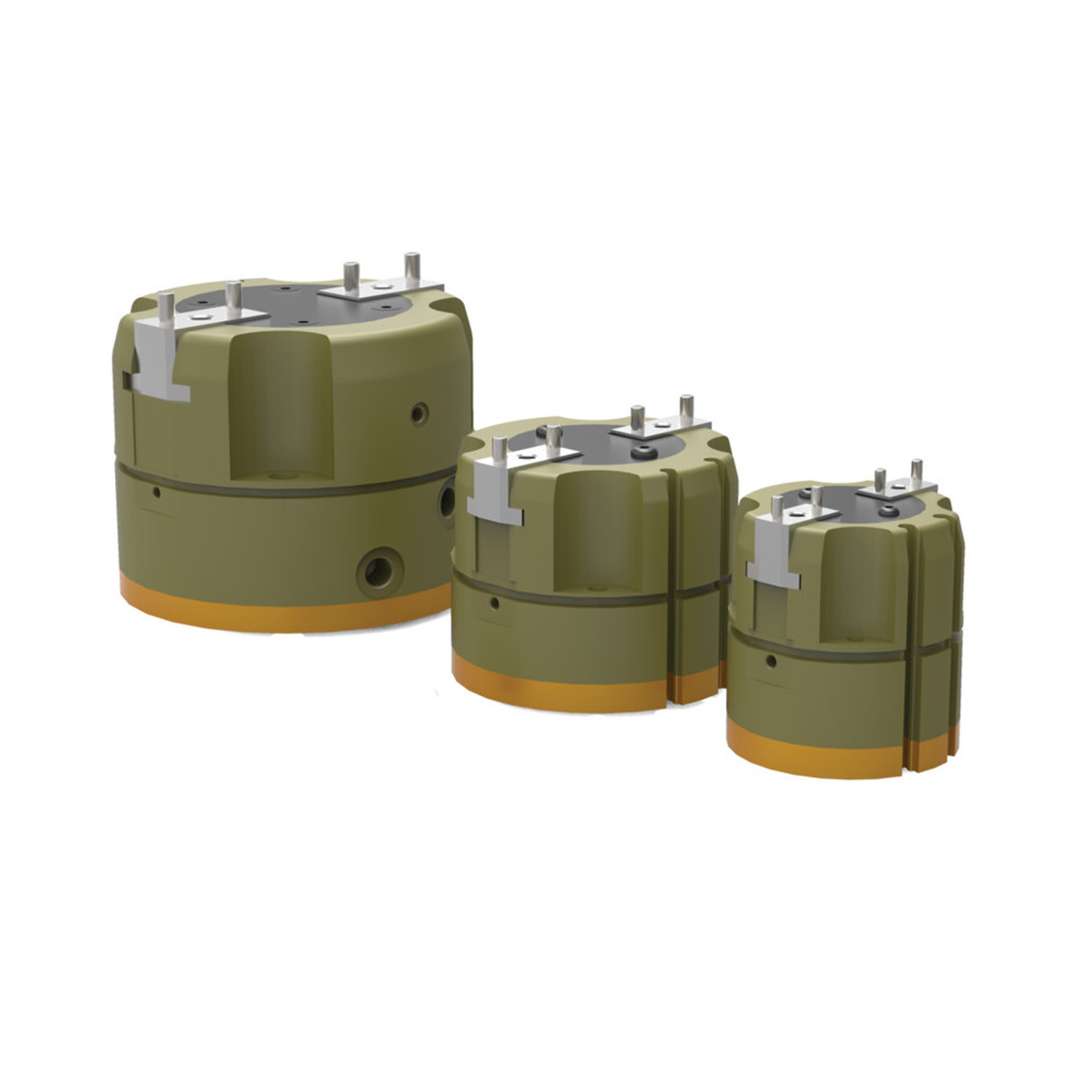

A	REP-112-P-RE-C	REP-112-P-RE-C	€1,806.96	RFQ
A	REP-113-P-RI-C	REP-113-P-RI-C	€2,205.48	RFQ

DESTACO -

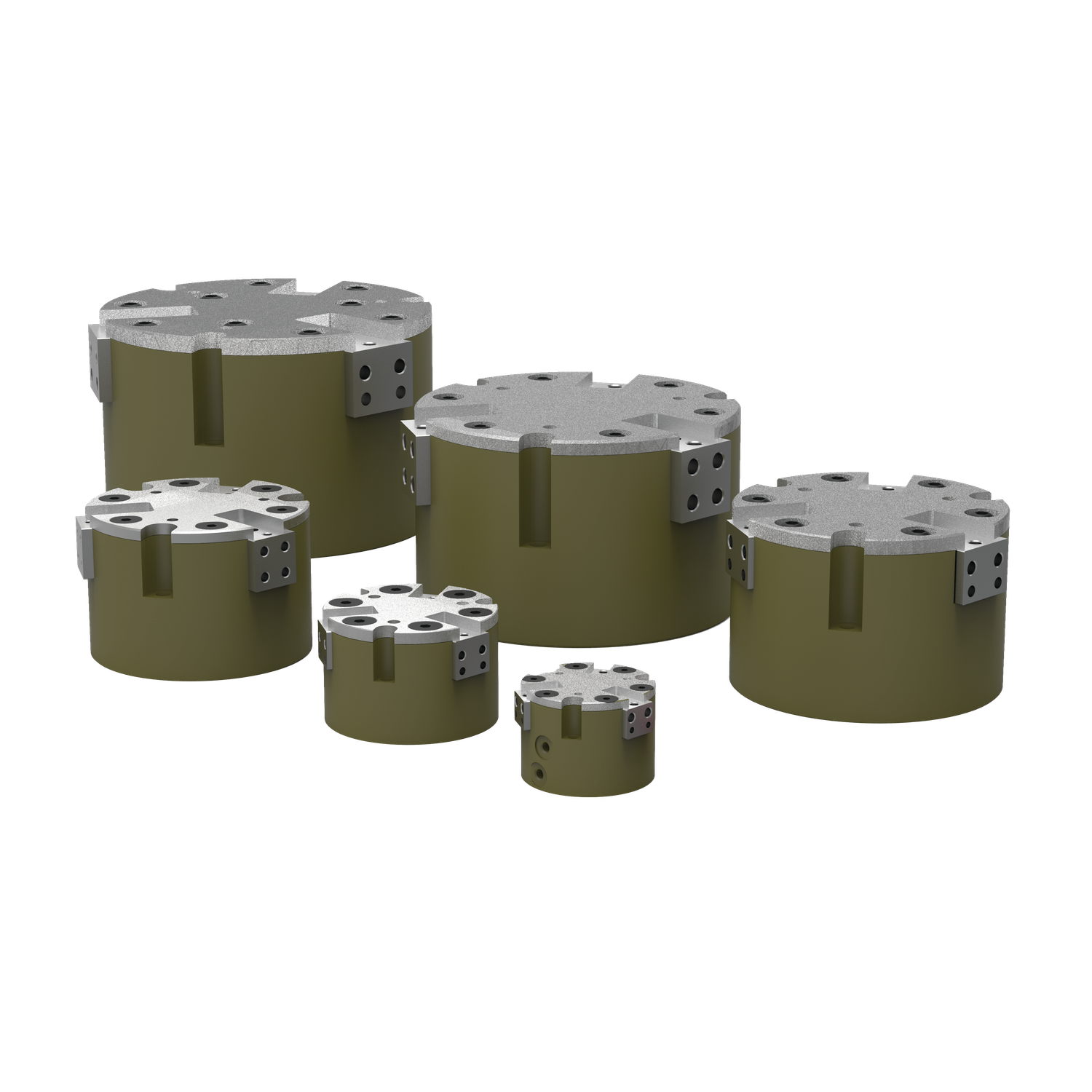

RPC Series Parallel Grippers

Style	Model	MPN	Price
A	RPC-320M	RPC-320M	€1,240.76
B	RPC-331M-V	RPC-331M-V	€2,639.05	RFQ

DESTACO -

RTH Series Parallel Grippers

Style	Model	MPN	Price
A	RTH-2M-L-C	RTH-2M-L-C	€1,070.78	RFQ
A	RTH-3M-L-SP	RTH-3M-L-SP	€1,243.95	RFQ
A	RTH-4M-L-C	RTH-4M-L-C	€1,362.36	RFQ
A	RTH-4M-L-O	RTH-4M-L-O	€1,362.36	RFQ
A	RTH-5M-L-C	RTH-5M-L-C	€1,505.85	RFQ
A	RTH-7M-L-O	RTH-7M-L-O	€6,094.38	RFQ

DESTACO -

RUA Series Angular Grippers

Style	Model	MPN	Price
A	RUA-82M-P-RE	RUA-82M-P-RE	€938.07	RFQ
A	RUA-82M-P-RE-SD	RUA-82M-P-RE-SD	€999.24	RFQ

DESTACO -

RPC Series 3 Jaw Parallel Grippers

Style	Model	MPN	Price
A	RPC-320	RPC-320	€3,578.37
A	RPC-320-01	RPC-320-01	€1,178.14
A	RPC-320-SP	RPC-320-SP	€3,942.13
A	RPC-331M	RPC-331M	€4,557.04
A	RPC-344M-03	RPC-344M-03	€763.50
A	RPC-356-06	RPC-356-06	€273.76

DESTACO -

RPW Series Parallel Grippers

Style	Model	Height	Overall Length	Open Width	Port Size	Total Grip Force	Opening/closing Stroke	Dimension A	Opening Width	Price
A	RPW-625M-2-NS	-	-	-	-	-	-	-	-	€1,688.15	RFQ
A	RPW-625M-1-V	-	-	-	-	-	-	-	-	€1,382.77	RFQ
A	RPW-375M-2-NS-V	-	-	-	-	-	-	-	-	€1,207.66	RFQ
A	RPW-375-2-V	-	-	-	-	-	-	-	-	€1,150.71	RFQ
A	RPW-375-106	-	-	-	-	-	-	-	-	€82.82
B	RPW-250	1.61"	-	-	M5	50 lbf.	3/4"	1.31"	3.65"	€2,885.09
C	RPW-375-1	1.99"	2"	3 3/4"	M5	90 lbf.	1"	19.05 mm	4.74"	€2,971.20
D	RPW-375-2	1.99"	2"	5 3/8"	M5	90 lbf.	2"	50.8 mm	7.38 mm	€3,241.53
E	RPW-500-1	2.615"	2 5/8"	6 3/4"	g1/8"	150 lbf.	1 1/2"	76.2 mm	6.73"	€3,834.81
F	RPW-625-2	3 6/25"	-	-	g1/8"	240 lbf.	3 1/2"	136.5 mm	12.63"	€5,093.14
G	RPW-625-1	3 6/25"	-	-	g1/8"	240 lbf.	2"	98.4 mm	8.63"	€4,155.38
H	RPW-750	3.928"	-	-	g1/8"	470 lbf.	4 1/2"	5 1/2"	16.14"	€6,573.96
I	RPW-250M	40.9 mm	40.9 mm	-	M5	222N	19.1 mm	33 mm	93 mm	€2,444.90
J	RPW-375M-2	50.5 mm	50.5 mm	136 mm	M5	400N	50.8 mm	50.8 mm	187 mm	€2,711.97
K	RPW-375M-1	50.5 mm	50.5 mm	95 mm	M5	400N	25.4 mm	19.05 mm	120 mm	€2,612.36
L	RPW-500M-2	66.4 mm	66.4 mm	-	g1/8"	667N	63.5 mm	101.6 mm	234 mm	€3,370.70
M	RPW-500M-1	66.4 mm	66.4 mm	-	g1/8"	667N	38.1 mm	76.2 mm	171 mm	€3,171.05
N	RPW-625M-2	82.3 mm	82.3 mm	-	g1/8"	1068N	88.9 mm	136.5 mm	321 mm	€4,734.31
O	RPW-625M-1	82.3 mm	82.3 mm	-	g1/8"	1068N	50.8 mm	98.4 mm	219 mm	€3,693.66
P	RPW-750M	99.8 mm	99.8 mm	-	g1/8"	2091N	114.3 mm	139.7 mm	410 mm	€6,215.11

DESTACO -

Parallel Grippers

Style	Model	Overall Length	Open Width	Body Material	Port Size	Type	Operating Temp. Range	Seal Material	Action Type	Price
A	84L3-210000000	-	-	-	-	-	-	-	-	€482.25	RFQ
A	8JW-025-1	-	-	-	-	-	-	-	-	€120.69	RFQ
A	CA-5-RE	-	-	-	-	-	-	-	-	€965.74	RFQ
A	RPS-11M-C	-	-	-	-	-	-	-	-	€672.71	RFQ
A	84B3-120000000	-	-	-	-	-	-	-	-	€1,146.18	RFQ
A	84C2-110000000	-	-	-	-	-	-	-	-	€950.05	RFQ
A	84C2-11AC00000	-	-	-	-	-	-	-	-	€1,006.92	RFQ
A	84C2-120000000	-	-	-	-	-	-	-	-	€810.01	RFQ
A	84D3-1CD300000	-	-	-	-	-	-	-	-	€1,550.29	RFQ
B	DPE-200-25	2 1/8"	3 1/4"	Aluminum	M8	Parallel	+40°F to +140°F	Buna N	Double	€3,576.51
C	DPL-4040	3 1/4"	-	-	-	-	-	-	-	€6,136.17

DESTACO -

RPL Series Parallel Grippers

Style	Model	Height	Overall Length	Open Width	Size	Total Grip Force	Bore Size	Dimension A	Dimension C	Price
A	RPL-1-V	-	-	-	-	-	-	-	-	€549.54	RFQ
A	RPL-2M-NS	-	-	-	-	-	-	-	-	€442.05	RFQ
A	RPL-3M-NS	-	-	-	-	-	-	-	-	€609.70	RFQ
A	RPL-1-NS	-	-	-	-	-	-	-	-	€326.73	RFQ
B	RPL-1	1.163"	3/4"	-	1	26 lbf.	0.438"	1 3/4"	0.45"	€1,019.97
C	RPL-3	1.283"	7/8"	3 1/8"	3	36 lbf.	1/2"	3.15"	19/25"	€1,803.18
D	RPL-1M	29.5 mm	19.1 mm	44.5 mm	1	116N	11.1 mm	44.5 mm	11 mm	€851.65
E	RPL-2M	29.5 mm	-	-	2	116N	11.1 mm	59.5 mm	16 mm	€1,203.32
F	RPL-4M	32.6 mm	22.2 mm	98.4 mm	4	160N	12.7 mm	98.4 mm	25 mm	€1,875.55
G	RPL-3M	32.6 mm	22.2 mm	80 mm	3	160N	12.7 mm	80 mm	19 mm	€1,641.10

DESTACO -

RA Series Cam Driven Angular Grippers

Style	Model	Height	Open Width	Overall Length	Size	Total Grip Force	Bore Size	Port Size	Type	Price
A	RA-6-V	-	-	-	-	-	-	-	-	€331.01	RFQ
A	RA-6M-V	-	-	-	-	-	-	-	-	€331.01	RFQ
A	RA-5M-V	-	-	-	-	-	-	-	-	€269.08	RFQ
B	RA-5	1.187"	-	-	5	20 lbf.	0.813"	M5	Angular	€703.31
B	RA-10	1.437"	-	-	10	16 lbf.	0.813"	M3	Angular	€717.86
C	RA-6	1.482"	2 3/8"	2 3/8"	6	44 lbf.	1 1/4"	M5	Angular	€747.94
B	RA-7	2"	-	-	7	120 lbf.	1 3/4"	g1/8"	Angular	€1,512.97
B	RA-90	2.65"	-	-	90	80 lbf.	0.782"	M5	Angular	€2,110.92
B	RA-15	2.468"	-	-	15	70 lbf.	3/4"	M5	Angular	€1,261.10
B	RA-8	3"	-	-	8	180 lbf.	2 1/2"	g1/8"	Angular	€2,353.31
D	RA-5M	30.1 mm	44.5 mm	44.5 mm	5	89N	20.6 mm	M5	Angular	€703.31
E	RA-10M	36.5 mm	-	-	10	71N	20.6 mm	M3	Angular	€717.86
C	RA-6M	37.6 mm	61.4 mm	61.4 mm	6	196N	31.8 mm	M5	Angular	€783.42
F	RA-7M	50.8 mm	91.4 mm	91.4 mm	7	534N	44.4 mm	-	Angular	€1,512.97
B	RA-15M	62.7 mm	-	-	15	311N	19.1 mm	M5	Angular	€1,319.99
G	RA-90M	67.3 mm	-	-	90	356N	19.9 mm	M5	Angular	€1,927.70
B	RA-8M	76.2 mm	-	-	8	801N	63.5 mm	g1/8"	Angular	€2,353.31

DESTACO -

RDH Series Parallel Grippers

Style	Model	Height	Open Width	Overall Length	Port Size	Size	Total Grip Force	Bore Size	Opening/closing Stroke	Price
A	RDH-6M-L-O	-	-	-	-	-	-	-	-	€2,130.90	RFQ
B	RDH-7M-L-C	-	258 mm	120 mm	M5 x 6	7m	6404N	115.06 mm	50 mm	€12,518.74
A	RDH-3M-L-C	-	-	-	-	-	-	-	-	€808.57	RFQ
A	RDH-4M-L-C	-	-	-	-	-	-	-	-	€1,283.57	RFQ
A	RDH-4M-L-O	-	-	-	-	-	-	-	-	€1,097.05	RFQ
A	RDH-8M-L-C-V	-	-	-	-	-	-	-	-	€5,845.75	RFQ
A	RDH-5M-C	-	-	-	-	-	-	-	-	€1,016.63	RFQ
A	RDH-2M-L-C	-	-	-	-	-	-	-	-	€1,009.14	RFQ
B	RDH-7M-C	-	-	-	M5 x 6	7m	9901N	115.06 mm	25 mm	€12,454.16
C	RDH-1M	63 mm	-	-	M3 x 3	1m	555N	27.2 mm	4 mm	€2,371.91
D	RDH-1M-L	63 mm	63 mm	33 mm	M3 x 3	1m	361N	27.2 mm	8 mm	€2,484.54
E	RDH-2M-L	83 mm	-	-	M3 x 4	2m	494N	32 mm	12 mm	€2,619.78
F	RDH-2M	83 mm	-	-	M3 x 4	2m	754N	32 mm	6 mm	€2,507.16
E	RDH-3M	104 mm	-	-	M4 x 5	3m	1317N	41.9 mm	8 mm	€2,657.76
E	RDH-3M-L	104 mm	104 mm	50 mm	M4 x 5	3m	854N	41.9 mm	16 mm	€2,718.37
G	RDH-4M	129 mm	129 mm	60 mm	M4 x 5	4m	2177N	48.8 mm	10 mm	€2,840.51
E	RDH-4M-L	129 mm	129 mm	60 mm	M4 x 5	4m	1414N	48.8 mm	20 mm	€2,901.11
H	RDH-5M-L	162 mm	-	-	M5 x 6	5m	2333N	69.1 mm	26 mm	€3,657.81
I	RDH-5M	162 mm	162 mm	76 mm	M5 x 6	5m	3593N	69.1 mm	13 mm	€3,597.21
H	RDH-6M	205 mm	205 mm	100 mm	M5 x 6	6m	6250N	90.9 mm	16 mm	€5,183.02
B	RDH-6M-L	205 mm	-	-	M5 x 6	6m	4062N	90.9 mm	32 mm	€5,243.62
J	RDH-8M-L	355 mm	-	-	M8 x 10	8m	14178N	171.5 mm	70 mm	€14,193.48
J	RDH-8M	355 mm	-	-	M8 x 10	8m	21958N	171.5 mm	35 mm	€14,136.67

DESTACO -

Double Wedge Parallel Gripper, 0.5 Inch Stroke, 2 Jaws

Model	Item	Price (ex. VAT)
RP-15	AH2HCG	€1,755.93

DESTACO -

Parallel Gripper Wide Body, 40-100 Psi

Model	Item	Price (ex. VAT)
RPW-500-2	AH2HCJ	€3,486.95

DESTACO -

Paralell Gripper, 2 Jaw

Model	Item	Price (ex. VAT)
CP-5-RE	CW3GLG	€1,011.92	RFQ

DESTACO -

Angular Gripper, 2 Jaw , 180 Degree

Model	Item	Price (ex. VAT)
CT-50M-RE	CW3GLL	€1,450.66	RFQ

DESTACO -

Electric Gripper

Model	Item	Price (ex. VAT)
RPE-100M	CW3GYK	€805.20	RFQ

Features

Destaco pneumatic parallel grippers feature 2-jaw configuration for grasping, placing, holding or releasing an object.
They are equipped with patented & preloaded, dual-V roller bearings for accuracy and maintaining zero side play.
Some models are integrated with a hardened steel bottom for ease in part pressing applications.
Selected models include Buna-N seal for handling harsh chemicals & compounds, grit or debris. They also feature a long finger grip design for handling large and wide parts in gantry systems.
These grippers incorporate a patented double wedge design with a robust sealed interior for superior gripping force in high impact applications.
They offer excellent parallelism and accuracy between gripper mounting surfaces and jaw surfaces.
They have hardened & plated jaws for wear resistance and long life.
They offer high grip force with respect to weight, owing to the extremely efficient drive mechanism.

Working Mechanism

As the packed air is brought into the cylinder, it controls the piston rod.
The piston rod is associated with the gripping fingers. As the pneumatic force moves the piston up and down, the fingers open or close in a parallel or angular manner.

Frequently Asked Questions

Popular Search Queries

Keyed Shaft

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

DESTACO Pneumatic Grippers Destaco pneumatic grippers offer actuator gripping solutions and are ideal for picking, placing, holding & releasing applications in the robotics and automation industries.

Double Wedge Parallel Gripper, 0.5 Inch Stroke, 2 Jaws

Parallel Gripper Wide Body, 40-100 Psi

Paralell Gripper, 2 Jaw

Angular Gripper, 2 Jaw , 180 Degree

Electric Gripper

Features

Working Mechanism

Frequently Asked Questions

How to select the right pneumatic gripper?

What is the advantage of parallel gripper over angular gripper?

What is gripping force?

Popular Search Queries

Explore More

DESTACO Pneumatic Grippers

Destaco pneumatic grippers offer actuator gripping solutions and are ideal for picking, placing, holding & releasing applications in the robotics and automation industries.
