Style	Model	Overall Height	Carriage Length	Carriage Width	For Rail Width	Carriage Height	Slide Height	Linear Guide Design	Static Load Capacity	Price

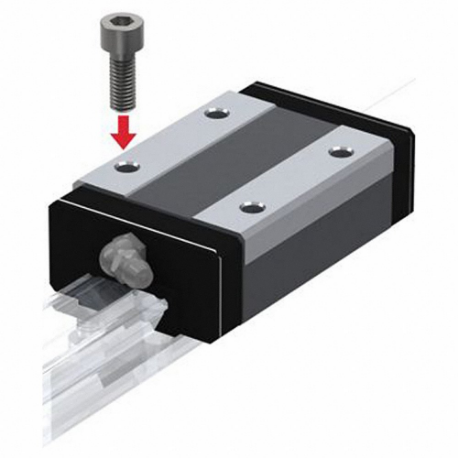

A	SR25W1SS	-	83 mm	48 mm	23 mm	-	33 mm	Standard Carriage	44.7 kN	€329.63

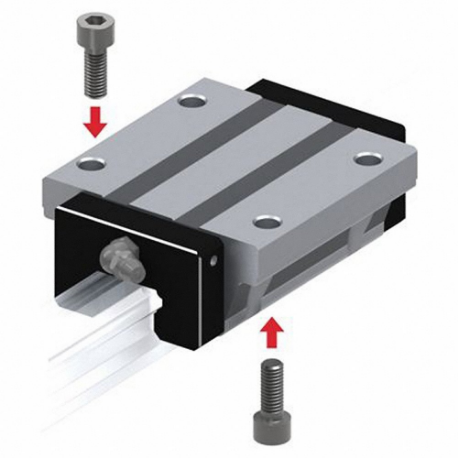

B	HSR25C1SS	-	83.1 mm	70 mm	23 mm	30.5 mm	36 mm	Flanged Carriage	36.4 kN	€449.05

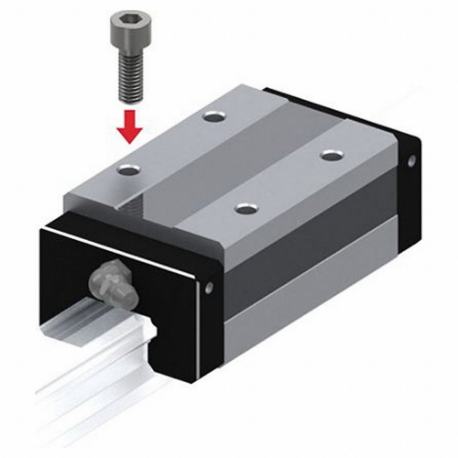

C	SHS35R1SS	-	122 mm	70 mm	34 mm	47.5 mm	55 mm	Standard Carriage	96.6 kN	€513.02
D	SHS45C1SSC1	-	140 mm	120 mm	45 mm	51.1 mm	60 mm	Flanged Carriage	126 kN	€749.13
E	HRW17CA1UU	17 mm	50.8 mm	60 mm	33 mm	14.5 mm	17 mm	Flanged Carriage	9.1 kN	€505.01

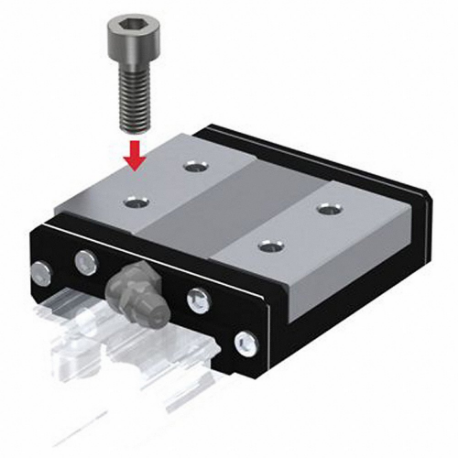

F	HRW17CR1UU	17 mm	50.8 mm	50 mm	33 mm	14.5 mm	17 mm	Standard Carriage	9.1 kN	€505.01
C	SHS15R1SS	20 mm	64.4 mm	34 mm	15 mm	25 mm	20 mm	Standard Carriage	24.2 kN	€319.38
E	HRW21CA1UU	21 mm	58.8 mm	68 mm	37 mm	18 mm	21 mm	Flanged Carriage	12.9 kN	€527.57
G	SR15TB1SS	24 mm	56.9 mm	52 mm	15 mm	18.2 mm	24 mm	Flanged Carriage	20.5 kN	€352.48
D	SHS15C1SSC1	24 mm	64.4 mm	47 mm	15 mm	21 mm	24 mm	Flanged Carriage	24.2 kN	€340.56
D	SHS15C1SS	24 mm	64.4 mm	47 mm	15 mm	21 mm	24 mm	Flanged Carriage	-	€330.96

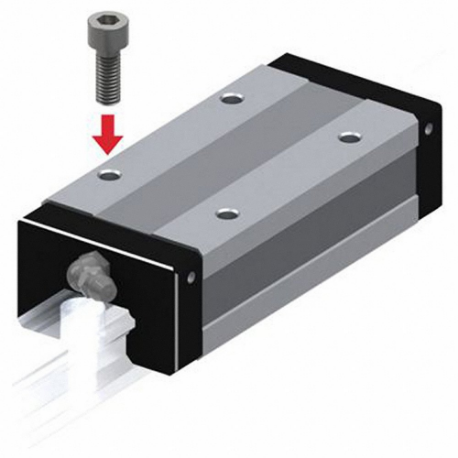

H	SHS15LV1SS	24 mm	79.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Long Carriage	-	€365.86
I	SSR15XW1SSC1	24 mm	56.9 mm	34 mm	15 mm	19.5 mm	24 mm	Standard Carriage	16.5 kN	€338.95
J	SHS15V1SSC1	24 mm	64.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Carriage	-	€339.60
J	SHS15V1SS	24 mm	64.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Carriage	24.2 kN	€321.03

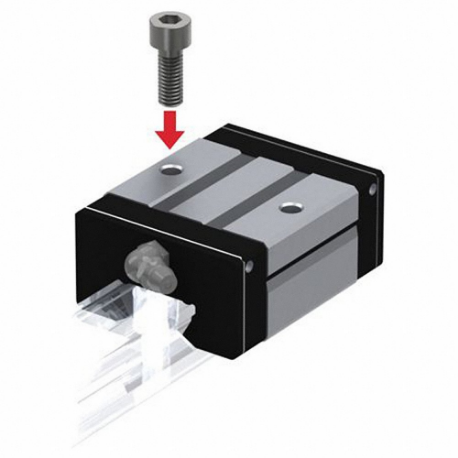

K	SSR15XV1SS	24 mm	40.3 mm	34 mm	15 mm	19.5 mm	24 mm	Short Carriage	9.7 kN	€278.77
A	SR15W1SS	24 mm	57 mm	34 mm	15 mm	18.2 mm	24 mm	Standard Carriage	20.5 kN	€321.03
I	SSR15XW1SS	24 mm	56.9 mm	34 mm	15 mm	19.5 mm	24 mm	Standard Carriage	16.5 kN	€329.05

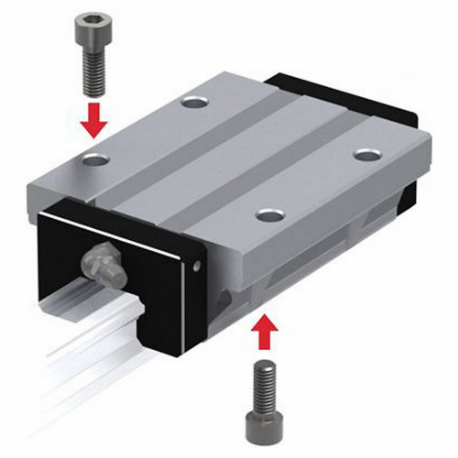

L	SHS15LC1SS	24 mm	79.4 mm	47 mm	15 mm	21 mm	24 mm	Long Flanged Carriage	-	€377.18
M	SR15V1SSC1	24 mm	40.4 mm	34 mm	15 mm	18.2 mm	24 mm	Short Carriage	11.7 kN	€288.72
B	HSR15C1SS	24 mm	56.6 mm	47 mm	15 mm	19.3 mm	24 mm	Flanged Carriage	15.7 kN	€354.71

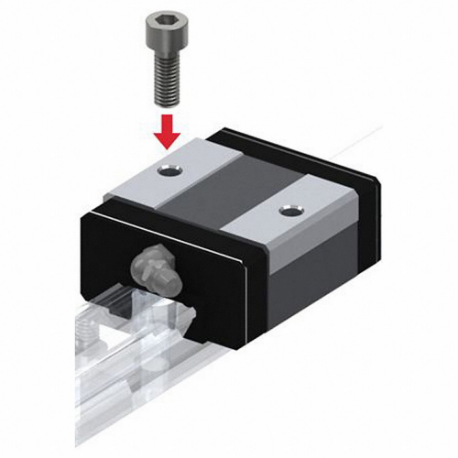

M	SR15V1SS	24 mm	40.4 mm	34 mm	15 mm	18.2 mm	24 mm	Short Carriage	11.7 kN	€276.45
I	SSR25XW1SS	25 mm	83 mm	48 mm	23 mm	26.2 mm	25 mm	Standard Carriage	36.4 kN	€348.55
I	SSR25XW1SSC1	25 mm	83 mm	48 mm	23 mm	26.2 mm	25 mm	Standard Carriage	36.4 kN	€338.06
E	HRW27CA1SSC1	27 mm	72.8 mm	80 mm	42 mm	24 mm	27 mm	Flanged Carriage	21.6 kN	€567.43

THK -

Linear Guide Rails

A

B

Style	Model	Nominal Rail Size	Overall Width	Overall Height	Overall Length	Mounting Hole Center To Center	Number Of Rail Holes	Material	Rail Material	Price
A	HSR15-820L	15	15 mm	15 mm	820 mm	60 mm	14	Steel	Carbon Steel	€688.84
A	SHS15-160L	15	15 mm	13 mm	160 mm	60 mm	3	-	Carbon Steel	€165.99
A	HSR15-640L	15	15 mm	15 mm	640 mm	60 mm	11	Steel	Carbon Steel	€521.00
B	SR15-160L	15	15 mm	12.5 mm	160 mm	60 mm	-	Steel	-	€173.39
A	SHS15-820L	15	15 mm	13 mm	820 mm	60 mm	14	-	Carbon Steel	€675.77
A	SHS15-460L	15	15 mm	13 mm	460 mm	-	-	-	-	€375.99
A	SHS15-280L	15	15 mm	13 mm	280 mm	60 mm	5	-	Carbon Steel	€297.01
A	SHS15-220L	15	15 mm	13 mm	220 mm	60 mm	4	-	Carbon Steel	€243.43
A	SHS15-3000L	15	15 mm	13 mm	-	60 mm	38	-	Carbon Steel	€2,863.84
A	HSR15-520L	15	15 mm	15 mm	520 mm	60 mm	9	Steel	Carbon Steel	€604.73
A	HSR15-160L	15	15 mm	15 mm	160 mm	60 mm	3	Steel	Carbon Steel	€165.52
A	HSR15-220L	15	15 mm	15 mm	220 mm	60 mm	4	Steel	Carbon Steel	€244.40
A	HSR15-460L	15	15 mm	15 mm	460 mm	60 mm	8	Steel	Carbon Steel	€458.28
A	HSR20-220L	20	20 mm	18 mm	220 mm	60 mm	4	Steel	Carbon Steel	€228.11
A	HSR20-460L	20	20 mm	18 mm	460 mm	60 mm	8	Steel	Carbon Steel	€554.87
A	HSR20-640L	20	20 mm	18 mm	640 mm	60 mm	11	Steel	Carbon Steel	€766.25
A	HSR20-820L	20	20 mm	18 mm	820 mm	60 mm	14	Steel	Carbon Steel	€725.46
B	SR20-3000L	20	20 mm	15.5 mm	3000 mm	60 mm	-	Steel	-	€1,822.05
B	SR20-280L	20	20 mm	15.5 mm	280 mm	60 mm	5	Steel	Carbon Steel	€323.13
A	SHS20-460L	20	20 mm	16.5 mm	460 mm	60 mm	8	-	Carbon Steel	€512.07
A	SHS20-280L	20	20 mm	16.5 mm	280 mm	60 mm	5	-	Carbon Steel	€335.61
A	HSR20-340L	20	20 mm	18 mm	340 mm	60 mm	6	Steel	Carbon Steel	€313.17
A	SHS20-1000L	20	20 mm	16.5 mm	1000 mm	60 mm	17	-	Carbon Steel	€894.37
A	SHS20-220L	20	25 mm	16.5 mm	220 mm	60 mm	4	-	Carbon Steel	€232.68
A	HSR20-1000L	20	20 mm	18 mm	1000 mm	60 mm	17	Steel	Carbon Steel	€896.70
