THK Guides

Filter

Style	Model	Overall Height	Carriage Length	Carriage Width	For Rail Width	Carriage Height	Slide Height	Linear Guide Design	Static Load Capacity	Price
A	SHS45C1SSC1	-	140 mm	120 mm	45 mm	51.1 mm	60 mm	Flanged Carriage	126 kN	€699.19
B	HSR25C1SS	-	83.1 mm	70 mm	23 mm	30.5 mm	36 mm	Flanged Carriage	36.4 kN	€449.05
C	SR25W1SS	-	83 mm	48 mm	23 mm	-	33 mm	Standard Carriage	44.7 kN	€329.63
D	SHS35R1SS	-	122 mm	70 mm	34 mm	47.5 mm	55 mm	Standard Carriage	96.6 kN	€513.02
E	HRW17CA1UU	17 mm	50.8 mm	60 mm	33 mm	14.5 mm	17 mm	Flanged Carriage	9.1 kN	€505.01
F	HRW17CR1UU	17 mm	50.8 mm	50 mm	33 mm	14.5 mm	17 mm	Standard Carriage	9.1 kN	€505.01
D	SHS15R1SS	20 mm	64.4 mm	34 mm	15 mm	25 mm	20 mm	Standard Carriage	24.2 kN	€319.38
E	HRW21CA1UU	21 mm	58.8 mm	68 mm	37 mm	18 mm	21 mm	Flanged Carriage	12.9 kN	€527.57
G	SHS15V1SS	24 mm	64.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Carriage	24.2 kN	€321.03
H	SHS15LC1SS	24 mm	79.4 mm	47 mm	15 mm	21 mm	24 mm	Long Flanged Carriage	-	€377.18
I	SHS15LV1SS	24 mm	79.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Long Carriage	-	€365.86
J	SR15V1SSC1	24 mm	40.4 mm	34 mm	15 mm	18.2 mm	24 mm	Short Carriage	11.7 kN	€288.72
K	SR15TB1SS	24 mm	56.9 mm	52 mm	15 mm	18.2 mm	24 mm	Flanged Carriage	20.5 kN	€352.48
J	SR15V1SS	24 mm	40.4 mm	34 mm	15 mm	18.2 mm	24 mm	Short Carriage	11.7 kN	€276.45
A	SHS15C1SS	24 mm	64.4 mm	47 mm	15 mm	21 mm	24 mm	Flanged Carriage	-	€330.96
C	SR15W1SS	24 mm	57 mm	34 mm	15 mm	18.2 mm	24 mm	Standard Carriage	20.5 kN	€321.03
L	SSR15XV1SS	24 mm	40.3 mm	34 mm	15 mm	19.5 mm	24 mm	Short Carriage	9.7 kN	€278.77
M	SSR15XW1SSC1	24 mm	56.9 mm	34 mm	15 mm	19.5 mm	24 mm	Standard Carriage	16.5 kN	€338.95
M	SSR15XW1SS	24 mm	56.9 mm	34 mm	15 mm	19.5 mm	24 mm	Standard Carriage	16.5 kN	€329.05
A	SHS15C1SSC1	24 mm	64.4 mm	47 mm	15 mm	21 mm	24 mm	Flanged Carriage	24.2 kN	€340.56
G	SHS15V1SSC1	24 mm	64.4 mm	34 mm	15 mm	21 mm	24 mm	Narrow Carriage	-	€339.60
B	HSR15C1SS	24 mm	56.6 mm	47 mm	15 mm	19.3 mm	24 mm	Flanged Carriage	15.7 kN	€354.71
M	SSR25XW1SS	25 mm	83 mm	48 mm	23 mm	26.2 mm	25 mm	Standard Carriage	36.4 kN	€348.55
M	SSR25XW1SSC1	25 mm	83 mm	48 mm	23 mm	26.2 mm	25 mm	Standard Carriage	36.4 kN	€338.06
E	HRW27CA1SS	27 mm	72.8 mm	80 mm	42 mm	24 mm	27 mm	Flanged Carriage	21.6 kN	€682.74
E	HRW27CA1SSC1	27 mm	72.8 mm	80 mm	42 mm	24 mm	27 mm	Flanged Carriage	21.6 kN	€567.43

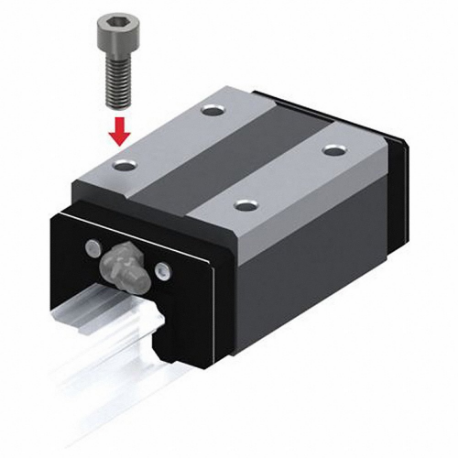

N	HSR15R1SS	28 mm	56.6 mm	34 mm	15 mm	23.3 mm	28 mm	Narrow Carriage	8.33 kN	€321.03
J	SR20V1SS	28 mm	47.3 mm	42 mm	20 mm	22 mm	28 mm	Short Carriage	17.2 kN	€290.28
M	SSR20XW1SS	28 mm	66.5 mm	42 mm	20 mm	22 mm	28 mm	Standard Carriage	23.4 kN	€333.59
L	SSR20XV1SS	28 mm	47.7 mm	42 mm	20 mm	22 mm	28 mm	Short Carriage	14.4 kN	€278.02
C	SR20W1SS	28 mm	66.2 mm	42 mm	20 mm	22 mm	28 mm	Standard Carriage	28.6 kN	€341.49
K	SR20TB1SS	28 mm	66.2 mm	59 mm	20 mm	22 mm	28 mm	Flanged Carriage	28.6 kN	€287.39

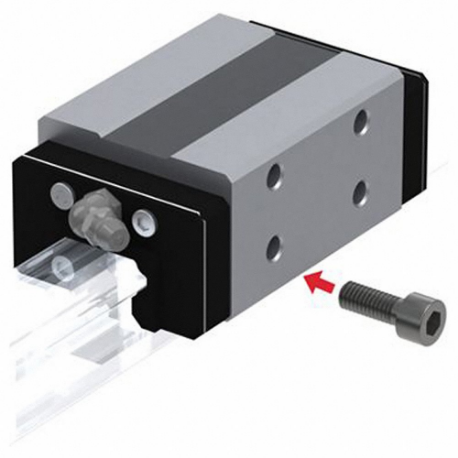

O	HSR15YR1SS	28 mm	56.6 mm	33.5 mm	15 mm	23.3 mm	28 mm	Side Tapped Standard Carriage	8.33 kN	€408.44
O	HSR20YR1SS	30 mm	74 mm	43.5 mm	20 mm	26 mm	30 mm	Side Tapped Standard Carriage	-	€190.84

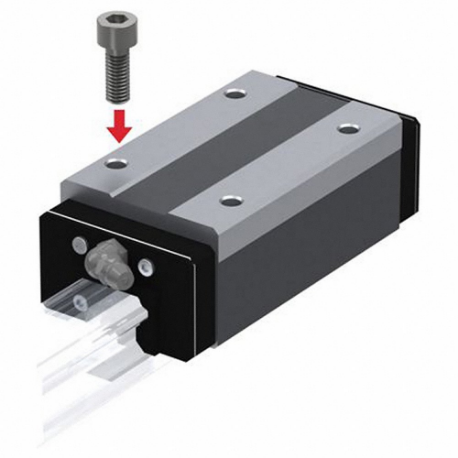

P	HSR20LR1SS	30 mm	90 mm	44 mm	20 mm	26 mm	30 mm	-	-	€411.24
N	HSR20R1SS	30 mm	74 mm	44 mm	20 mm	26 mm	30 mm	Narrow Carriage	-	€354.81
A	SHS20C1SS	30 mm	79 mm	63 mm	20 mm	25.4 mm	30 mm	Flanged Carriage	38.4 kN	€354.81
A	SHS20C1SSC1	30 mm	79 mm	63 mm	20 mm	25.4 mm	30 mm	Flanged Carriage	38.4 kN	€371.68
B	HSR20C1SS	30 mm	74 mm	63 mm	20 mm	26 mm	30 mm	Flanged Carriage	27.4 kN	€388.76
G	SHS20V1SS	30 mm	79 mm	44 mm	20 mm	25.4 mm	30 mm	Narrow Carriage	38.4 kN	€359.38

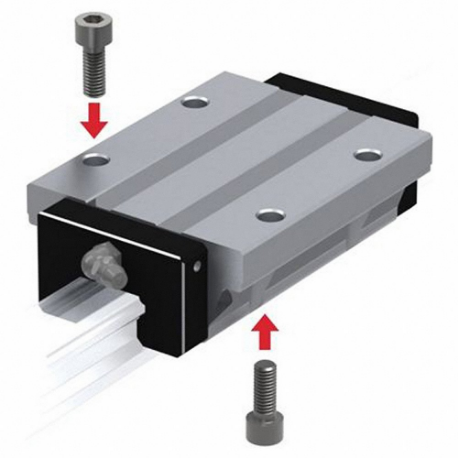

Q	HSR20LC1SS	30 mm	90 mm	63 mm	20 mm	26 mm	30 mm	Long Flanged Carriage	-	€410.96
I	SHS20LV1SS	30 mm	98 mm	44 mm	20 mm	25.4 mm	30 mm	Narrow Long Carriage	50.3 kN	€408.17
G	SHS20V1SSC1	30 mm	79 mm	44 mm	20 mm	25.4 mm	30 mm	-	38.4 kN	€388.22
L	SSR25XV1SS	33 mm	60 mm	48 mm	23 mm	26.2 mm	33 mm	Short Carriage	22.5 kN	€282.62
J	SR25V1SS	33 mm	59.2 mm	48 mm	23 mm	26 mm	33 mm	Short Carriage	26.8 kN	€288.06
K	SR25TB1SS	33 mm	83 mm	73 mm	23 mm	26 mm	33 mm	Flanged Carriage	44.7 kN	€377.18
C	SR25W1SSC1	33 mm	83 mm	48 mm	23 mm	26 mm	33 mm	Standard Carriage	44.7 kN	€338.75
E	HRW35CA1SSC1	35 mm	106.6 mm	120 mm	69 mm	31 mm	35 mm	Flanged Carriage	-	€863.77
E	HRW35CA1SS	35 mm	106.6 mm	120 mm	69 mm	31 mm	35 mm	Flanged Carriage	48.6 kN	€804.55
F	HRW35CR1SS	35 mm	106.6 mm	100 mm	69 mm	31 mm	35 mm	Standard Carriage	-	€829.43
B	HSR25C1SSC1	36 mm	83.1 mm	70 mm	23 mm	30.5 mm	36 mm	Flanged Carriage	36.4 kN	€439.45
Q	HSR25LC1SS	36 mm	102.2 mm	70 mm	23 mm	30.5 mm	36 mm	Long Flanged Carriage	51.6 kN	€484.27
H	SHS25LC1SS	36 mm	109 mm	70 mm	23 mm	30.2 mm	36 mm	Long Flanged Carriage	64.7 kN	€502.62
G	SHS25V1SS	36 mm	92 mm	48 mm	23 mm	30.2 mm	36 mm	-	52.4 kN	€417.87
A	SHS25C1SSC1	36 mm	92 mm	70 mm	23 mm	30.2 mm	36 mm	Flanged Carriage	52.4 kN	€439.20
H	SHS25LC1SSC1	36 mm	109 mm	70 mm	23 mm	30.2 mm	36 mm	Long Flanged Carriage	-	€524.01
A	SHS25C1SS	36 mm	92 mm	70 mm	23 mm	30.2 mm	36 mm	Flanged Carriage	52.4 kN	€417.87
I	SHS25LV1SS	36 mm	109 mm	48 mm	23 mm	30.2 mm	36 mm	Narrow Long Carriage	64.7 kN	€487.55
O	HSR25YR1SS	40 mm	83.1 mm	47.5 mm	25 mm	34.5 mm	40 mm	Side Tapped Standard Carriage	19.9 kN	€553.87
P	HSR25LR1SS	40 mm	102.2 mm	48 mm	25 mm	34.5 mm	40 mm	-	27.2 kN	€502.62
N	HSR25R1SS	40 mm	83.1 mm	48 mm	25 mm	34.5 mm	-	Narrow Carriage	19.9 kN	€458.60
