Sandvik Coromant Jobber Length Drill Bits

SANDVIK COROMANT -

Jobber Drill Bits

A

B

Style	Model	Overall Length	Coolant Fed	Cutting Direction	Flute Type	Shank Dia.	Shank Length	Price
A	R411.5-20034D19.75 P20	154 mm	Coolant Through	Right Hand	Spiral	25 mm	56 mm	€659.05
A	R411.5-20534D20.50 P20	159 mm	Coolant Through	Right Hand	Spiral	25 mm	56 mm	€602.48
A	R411.5-21534D21.50 P20	164 mm	Coolant Through	Right Hand	Spiral	25 mm	56 mm	€644.92

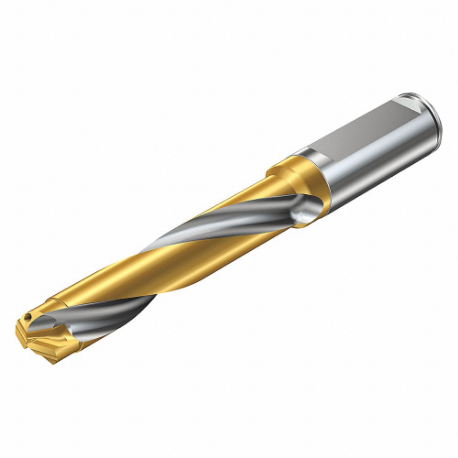

B	R411.5-19054D19.00 P20	178 mm	Coolant Through	Right Hand	Spiral	25 mm	56 mm	€656.93

SANDVIK COROMANT -

Non Coolant Through Solid Carbide Jobber Length Drill Bits

A

SANDVIK COROMANT 460.1-0640-032A1-XM GC34

B

C

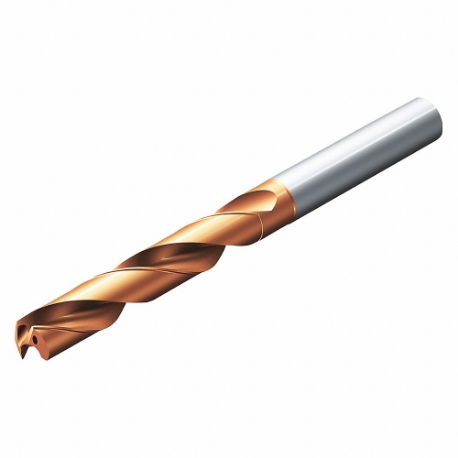

SANDVIK COROMANT 860.1-1580-044A1-PM 4234

D

E

SANDVIK COROMANT 861.1-0400-012A1-GP GC34

F

SANDVIK COROMANT 460.1-0620-031A0-XM GC34

G

H

I

J

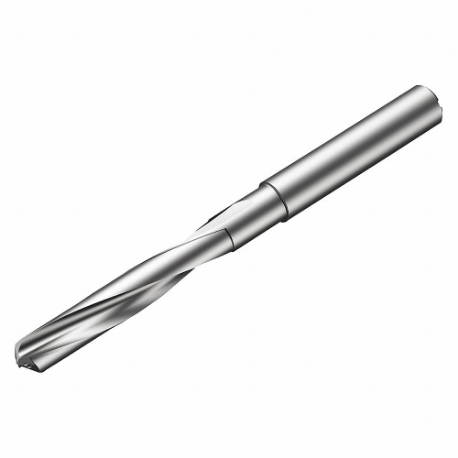

SANDVIK COROMANT 860.1-0635-051A1-NM H10F

K

L

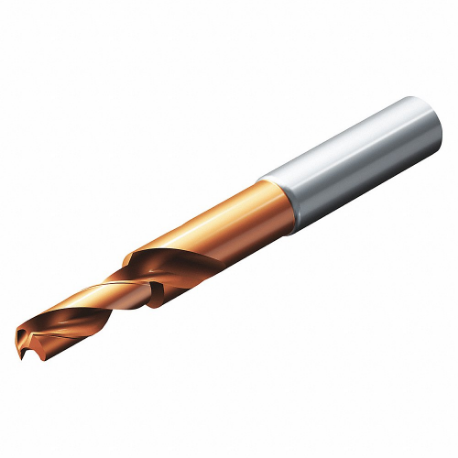

SANDVIK COROMANT 860.2-1050-032A1-PM 4234

M

Style	Model	Decimal Equivalent	Overall Length	Cutting Direction	Flute Length	Drill Bit Size	Coolant Fed	Max. Drilling Depth	Drill Bit Point Angle	Price

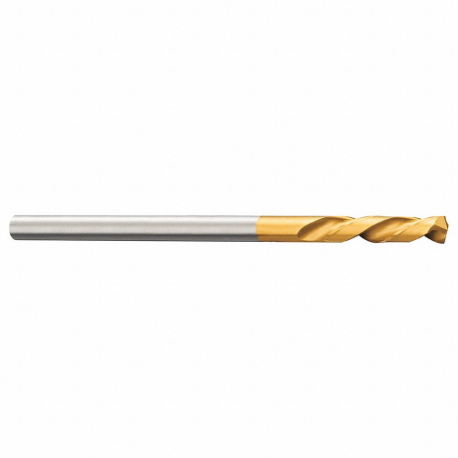

A	R840-0200-50-A0B 1020	0.0781	1 15/32"	Right Hand	15/32"	5/64"	Non Coolant Through	0.469"	140°	€110.32
B	460.1-0640-032A1-XM GC34	0.375	3 9/16"	Right Hand	2 1/16"	3/8"	Coolant Through	2.078"	140°	-	RFQ
B	460.1-0820-041A1-XM GC34	0.375	4 1/32"	Right Hand	2 3/8"	3/8"	Coolant Through	2.391"	140°	€196.02

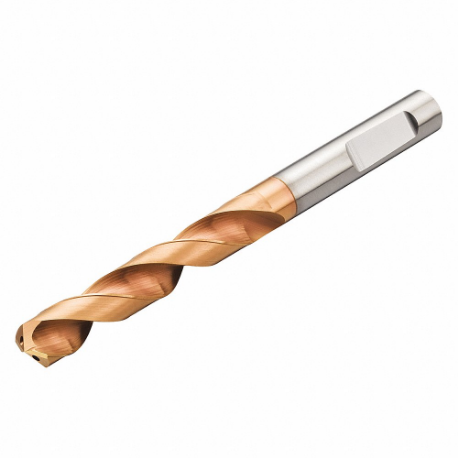

C	R840-1110-50-W1A 1220	0.437	4.646"	Right Hand	2.795"	1.9 mm	Coolant Through	2.781"	140°	€405.41
D	860.1-1580-044A1-PM 4234	0.622	4.528"	Right Hand	-	-	Coolant Through	2.547"	-	€691.15

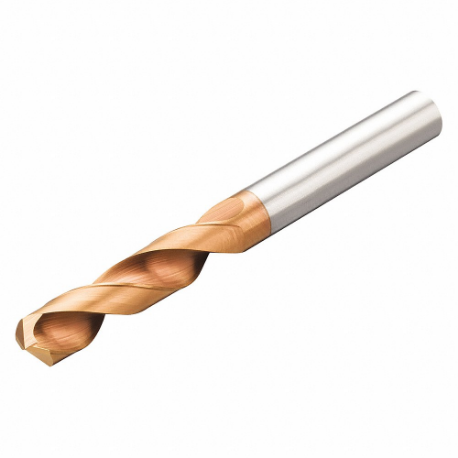

E	R840-1750-30-A0A 1220	0.689	4.843"	Right Hand	2.874"	4.1 mm	Non Coolant Through	2.859"	140°	€616.28
F	861.1-0400-012A1-GP GC34	0.1406	2.594"	Right Hand	0.938"	-	Coolant Through	0.938"	-	€215.62
G	460.1-0620-031A0-XM GC34	0.2031	3 9/16"	Right Hand	2 1/16"	13/64"	Non Coolant Through	2.078"	140°	€110.32
B	460.1-0714-036A1-XM GC34	0.2031	3 9/16"	Right Hand	2 1/16"	13/64"	Coolant Through	2.078"	140°	-	RFQ

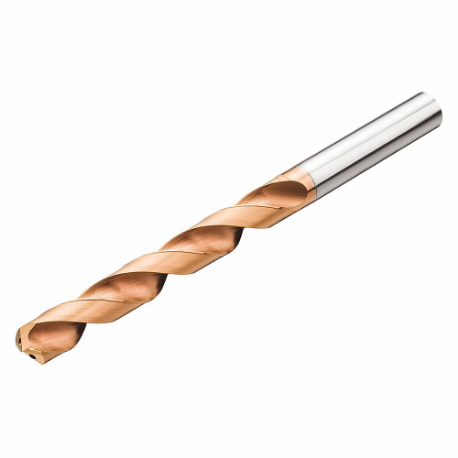

H	R840-0520-70-A1A 1220	0.2188	3 21/32"	Right Hand	1 31/32"	7/32"	Coolant Through	1.969"	140°	€259.88
H	R840-0714-70-A1A 1220	0.2188	4 1/8"	Right	2 5/8"	7/32"	Coolant Through	-	140°	€294.17

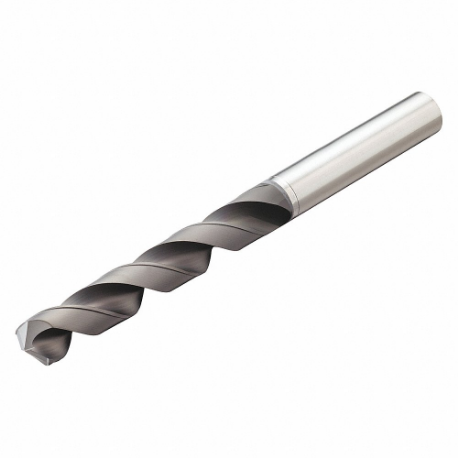

I	854.1-0476-05-A0 N20C	0.2344	3 7/32"	Right Hand	1 23/32"	15/64"	Non Coolant Through	1.719"	130°	-	RFQ
J	R840-0440-50-A1A 1220	0.2344	2 29/32"	Right	1 13/32"	15/64"	Coolant Through	-	140°	€217.05
D	860.1-0460-018A1-PM 4234	0.2344	2 19/32"	Right Hand	15/16"	15/64"	Coolant Through	0.938"	141°	€194.21
K	860.1-0635-051A1-NM H10F	0.2656	4 3/4"	Right Hand	3 1/8"	17/64"	Coolant Through	3.141"	130°	€376.99
J	R840-0940-50-A1A 1220	0.3701	4.055"	Right Hand	2.402"	0.55 mm	Coolant Through	2.391"	140°	€325.60

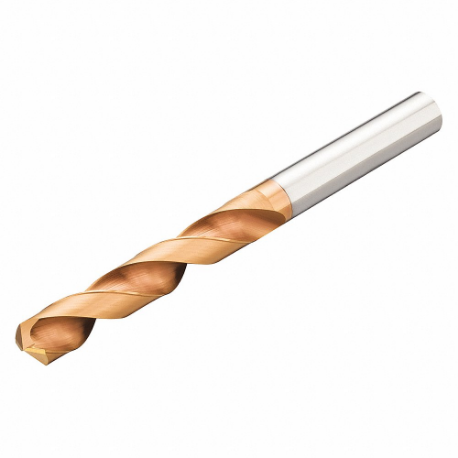

L	R840-0670-50-A0A 1220	0.3906	3 9/16"	Right Hand	2 1/16"	25/64"	Non Coolant Through	2.078"	140°	€194.47
B	460.1-0660-033A1-XM GC34	0.3906	3 9/16"	Right Hand	2 1/16"	25/64"	Coolant Through	2.078"	140°	€154.87
D	860.1-1000-031A1-PM 4234	0.3937	3.504"	Right Hand	1.85"	0.9 mm	Coolant Through	1.844"	143°	€274.17
G	460.1-1032-052A0-XM GC34	0.4063	4.646"	Right Hand	2.795"	1.25 mm	Non Coolant Through	2.781"	140°	€192.32
B	460.1-0850-043A1-XM GC34	0.4063	4 1/32"	Right Hand	2 3/8"	13/32"	-	2.391"	140°	-	RFQ
B	460.1-1032-052A1-XM GC34	0.4063	4.646"	Right Hand	2.795"	1.1 mm	Coolant Through	2.781"	140°	€267.30
K	860.1-1050-084A1-NM H10F	0.4134	6.732"	Right Hand	4.724"	1.5 mm	Coolant Through	4.719"	130°	€622.61
M	860.2-1050-032A1-PM 4234	0.4134	115 mm	Right Hand	59 mm	17 mm	Coolant Through	59 mm	143°	€631.16
D	860.1-0870-031A1-PM 4234	0.4219	3 1/2"	Right Hand	1 27/32"	27/64"	Coolant Through	1.844"	145°	€274.17

SANDVIK COROMANT -

Indexable Drill Bit Inserts

A

B

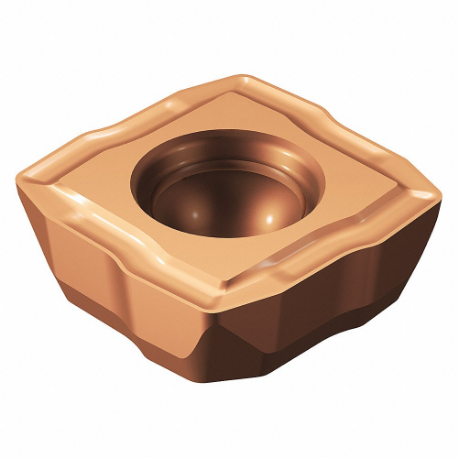

SANDVIK COROMANT 880-04 03 05H-C-GR 1044

C

Style	Model	Cutting Direction	Insert Style	Insert Size	Inscribed Circle	Chip-breaker	Rake	Price

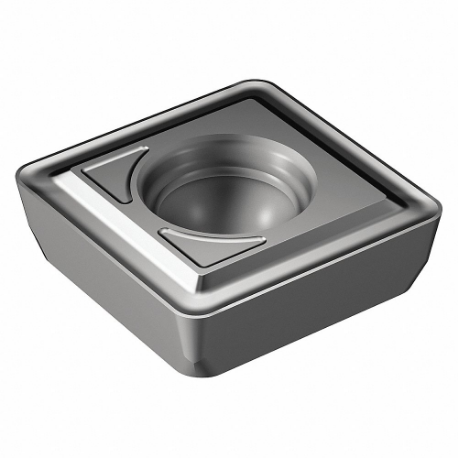

A	880-06 04 W06H-P-GM 4324	Right	Corodrill 880	604	0.419"	GM	Positive	-	RFQ

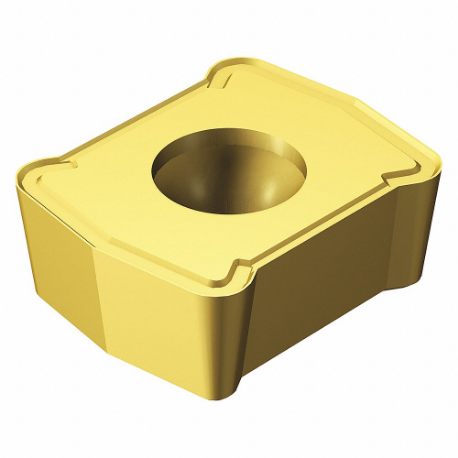

B	LCMX 03 03 08-53 1020	Right Hand	U-DRILL(R)	030308	0.219"	53	Positive	€24.89
A	880-05 03 W05H-P-GM 4044	Right Hand	Corodrill 880	05 03	0.35"	GM	Positive	€30.55
A	880-06 04 W06H-P-GM 4024	Right Hand	Corodrill 880	604	0.419"	GM	Positive	€36.07
C	880-04 03 05H-C-GR 1044	Right Hand	Corodrill 880	403	0.268"	GR	Positive	€28.78
C	880-07 04 06H-C-GR 1044	Right Hand	Corodrill 880	704	0.486"	GR	Positive	€37.13
A	880-04 03 W07H-P-LM 4024	Right Hand	Corodrill 880	0403	0.291"	-	Positive	-	RFQ

SANDVIK COROMANT -

Indexable Drill Bits for Small Diameter Drilling

A

B

C

D

E

F

G

H

I

Style	Model	Flute Length	Shank Dia.	Overall Length	Shank Length	Coolant Fed	Cutting Direction	Price
A	880-D1950L25-03	4.669"	0.984"	4.803"	2.205"	Non Coolant Through	Right Hand	-	RFQ

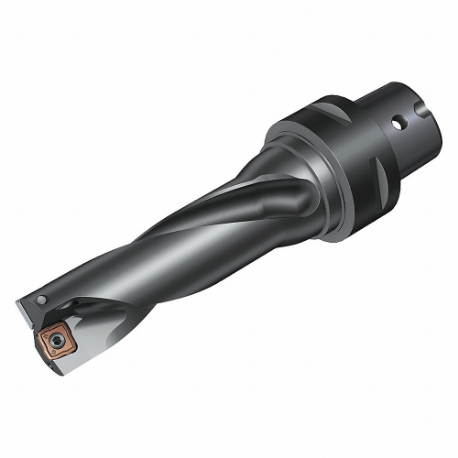

B	A880-D0750C4-03	4.717"	2.48"	7.277"	-	Non Coolant Through	Right Hand	-	RFQ
A	880-D2300L25-03	4.811"	2.48"	7.402"	2.205"	Non Coolant Through	Right Hand	€889.52
A	A880-D0875LX25-03	5.304"	1 1/4"	9.761"	2.205"	Non Coolant Through	Right Hand	-	RFQ

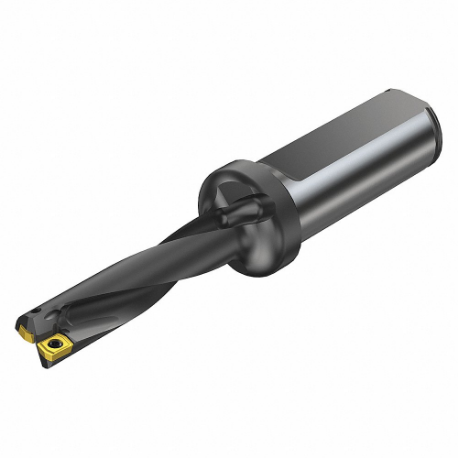

C	880-D1900L25-04	5.756"	0.984"	5.591"	2.205"	Non Coolant Through	Right Hand	€917.06

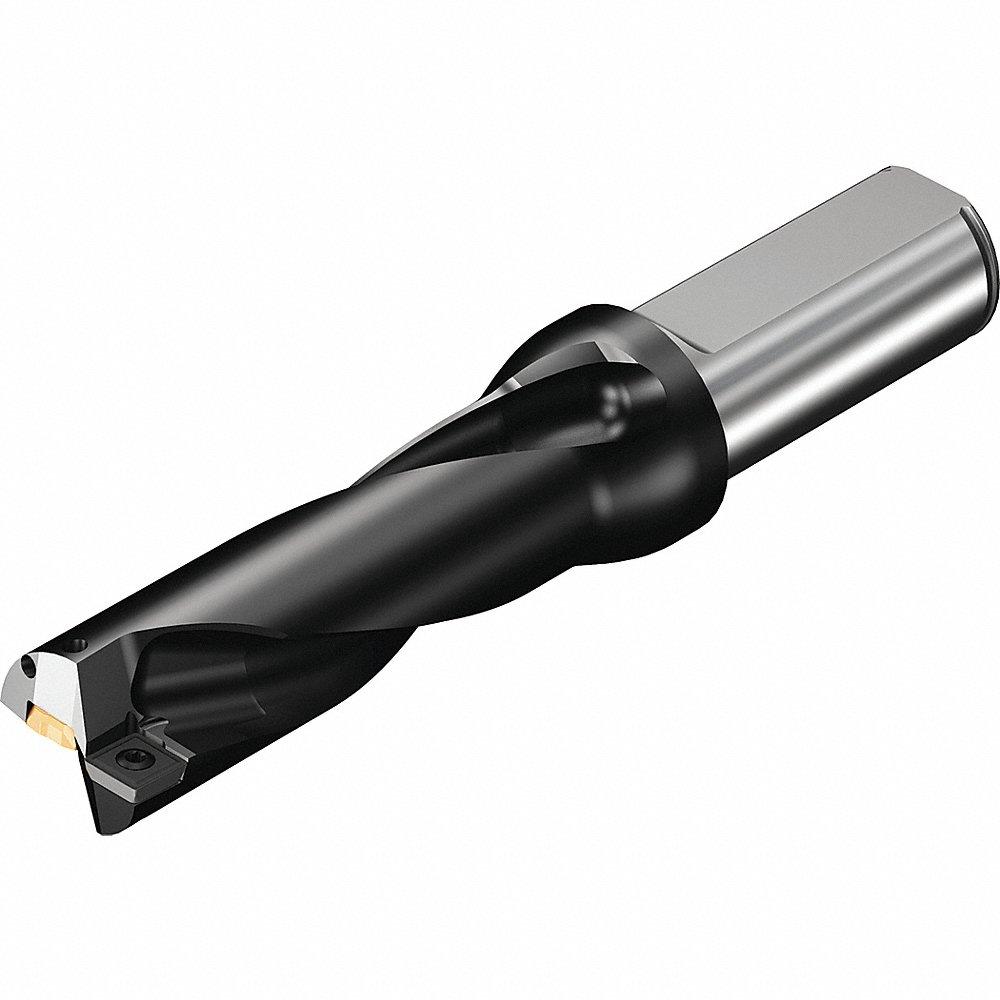

D	880-D1500L20-03	5.756"	1.575"	5.118"	1.969"	Non Coolant Through	Right Hand	€818.14

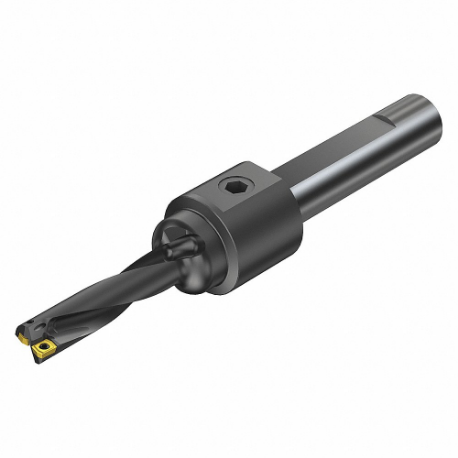

E	A880-D1187P31-04	5.764"	1 1/2"	10.222"	2.98"	Non Coolant Through	Right Hand	€1,127.28
A	A880-D0562LX19-03	5.937"	2.48"	5.825"	1.969"	Non Coolant Through	Right Hand	€818.14
A	880-D3800L40-03	6.094"	1.575"	9.055"	2.756"	Non Coolant Through	Right Hand	€1,019.04

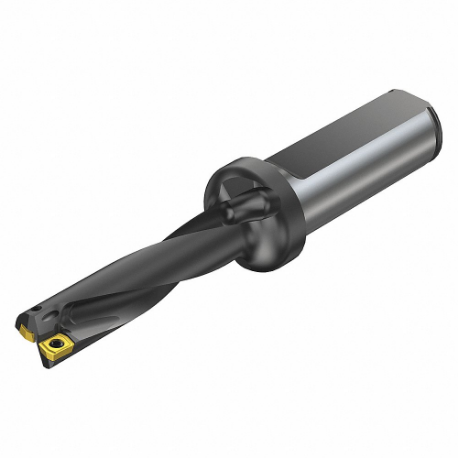

F	A880-D0656LX19-04	6.299"	1"	5.902"	1.969"	Non Coolant Through	Right Hand	-	RFQ

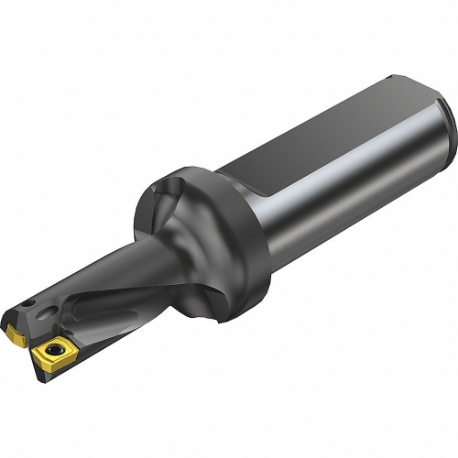

G	A880-D0750LX25-02	6.936"	1"	6.137"	2.205"	Non Coolant Through	Right Hand	-	RFQ

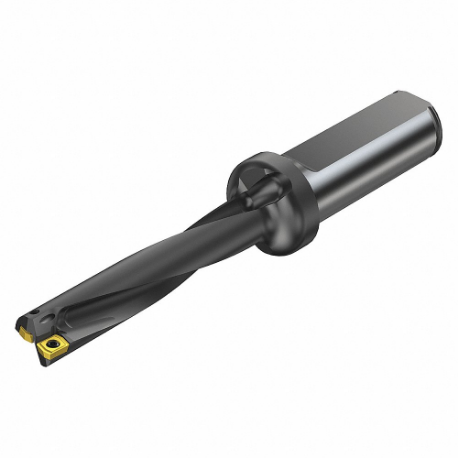

H	A880-D1187LX31-05	7.325"	1 1/2"	10.279"	2.362"	Non Coolant Through	Right Hand	€1,224.96
C	880-D3800L40-04	7.748"	1.969"	11.102"	2.756"	Non Coolant Through	Right Hand	€1,243.44

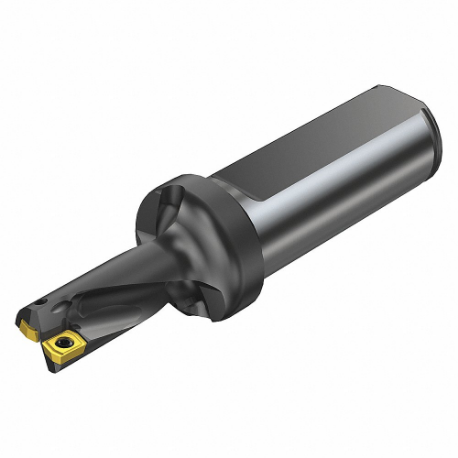

I	880-D3600L40-02	8.693"	1.575"	7.205"	2.756"	Non Coolant Through	Right Hand	€996.58

SANDVIK COROMANT -

Brazed carbide drills

A

Style	Model	Shank Dia.	Overall Length	Shank Length	Cutting Direction	Price

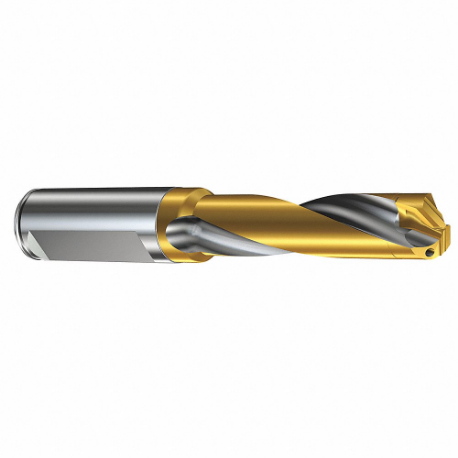

A	R411.5-17034D16.75 P20	20 mm	133 mm	50 mm	Right Hand	€616.63
A	R411.5-28534D28.50 P20	32 mm	204 mm	60 mm	Right Hand	€671.78
