DAYTON Jaw Coupling Spiders

Filter

DAYTON -

Hytrel Jaw Coupling Inserts, Tan

Dayton spider inserts are used in conjunction with metal jaw couplings for uniform power transmission while maintaining their structure and position. These hytrel spider inserts offer excellent oil and impact resistance and are capable of withstanding temperatures ranging from -60 to 70 degrees F. The complete assembly comprises two jaw hubs and a spider for transmitting higher torque and preventing misalignment (angular & parallel) between the connecting shafts. Choose from an array of these jaw coupling spiders, available in lengths ranging between 0.433 & 0.866 inches.

DAYTON 29HZ16A
StyleModelCoupling SizeOutside Dia.Maximum SpeedHeightCoupling Weight (lb.)Hp Rating @ 1200 RpmHp Rating @ 1800 RpmHp Rating @ 3600 RpmPrice
A29HZ16L0701 23/64"14000 RPM1.339"0.015 lbs.2 17/100 hp3 1/4 hp6 51/100 hp€17.88
A29HZ17L0751 47/64"11000 RPM1.732"0.029 lbs.4 8/25 hp6 12/25 hp12 97/100 hp€27.10
A29HZ18L090, L0952 3/32"-2.087"0.036 lbs.---€39.26
A29HZ15L099, L1002 17/32"-2 13/25"0.075 lbs.---€77.63
A29HZ14L1103 19/64"-3.287"0.138 lbs.43 9/50 hp64 77/100 hp129 11/20 hp€110.54
A29HZ13L1503 47/64"-1.063"0.228 lbs.70 3/5 hp105 9/10 hp211 4/5 hp€119.75
A29HZ19L1904 15/32"5000 RPM4.469"0.29 lbs.89 1/10 hp133 33/50 hp267 3/10 hp€126.53
DAYTON -

Buna N Spider Inserts, For Use W/ Jaw Couplings

Dayton jaw coupling inserts are used for dampening shock & vibrations between coupling hubs to accommodate small amount of misalignment including angular, parallel and axial. The complete assembly requires two jaw hubs and a spider for transmitting higher torque and prevent misalignment between the connecting shafts. These Buna-N inserts provide excellent oil and impact resistance and are capable of withstanding temperatures up to 212 degrees F. Choose from an extensive range of these jaw coupling inserts, available in lengths ranging from 0.433 to 0.866 inches.

DAYTON 29HZ10A
StyleModelOutside Dia.Coupling SizeMaximum SpeedTorqueHeightCoupling Weight (lb.)Hp Rating @ 1200 RpmHp Rating @ 1800 RpmPrice
A29HZ101 1/16"--25.8 lbs.-in.1.063"0.012 lbs.49/100 hp73/100 hp€3.67
A29HZ091 23/64"L07014000 RPM44.1 lbs.-in.1.339"0.015 lbs.83/100 hp1 1/4 hp€5.41
A29HZ111 47/64"L07511000 RPM88.2 lbs.-in.1.732"0.029 lbs.1 67/100 hp2 51/100 hp€8.77
A29HZ082 3/32"L090, L0959000 RPM189 lbs.-in., 315 lbs.-in.2.087"0.036 lbs.--€7.48
A29HZ072 17/32"L099, L100-315 lbs.-in., 415 lbs.-in.2 13/25"0.075 lbs.--€22.73
A29HZ123 19/64"L110-788 lbs.-in.3.287"0.138 lbs.15 hp22 1/2 hp€29.74
A29HZ053 47/64"L150-1260 lbs.-in.3.732"0.228 lbs.23 99/100 hp35 49/50 hp€42.05
A29HZ064 15/32"L190-1702 lbs.-in.4.469"0.29 lbs.32 2/5 hp48 3/5 hp€53.39
DAYTON -

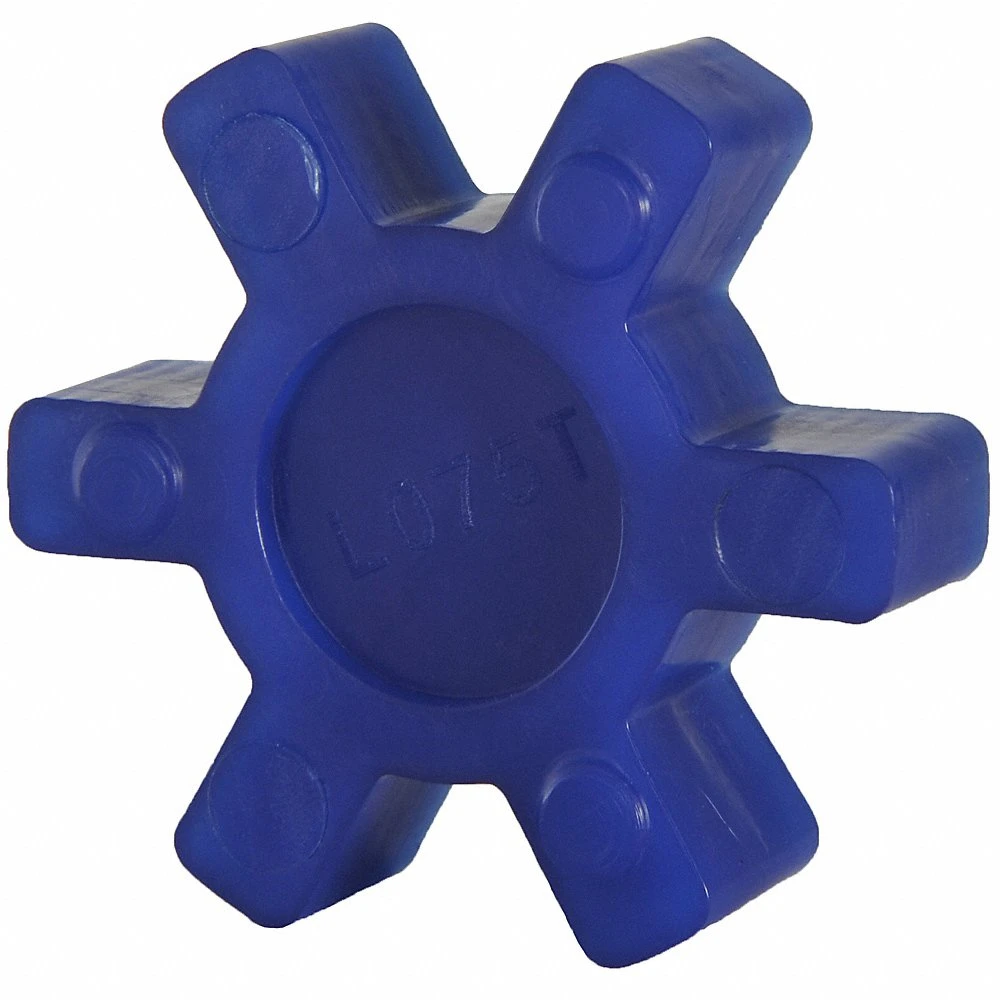

Jaw Coupling Insert, L075 Coupling Size, 1 47/64 Inch Outside Dia, 11000 RPM Max Speed

Jaw Coupling Insert, L075 Coupling Size, 1 47/64 Inch Outside Dia, 11000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J65EA7QRP€18.64
DAYTON -

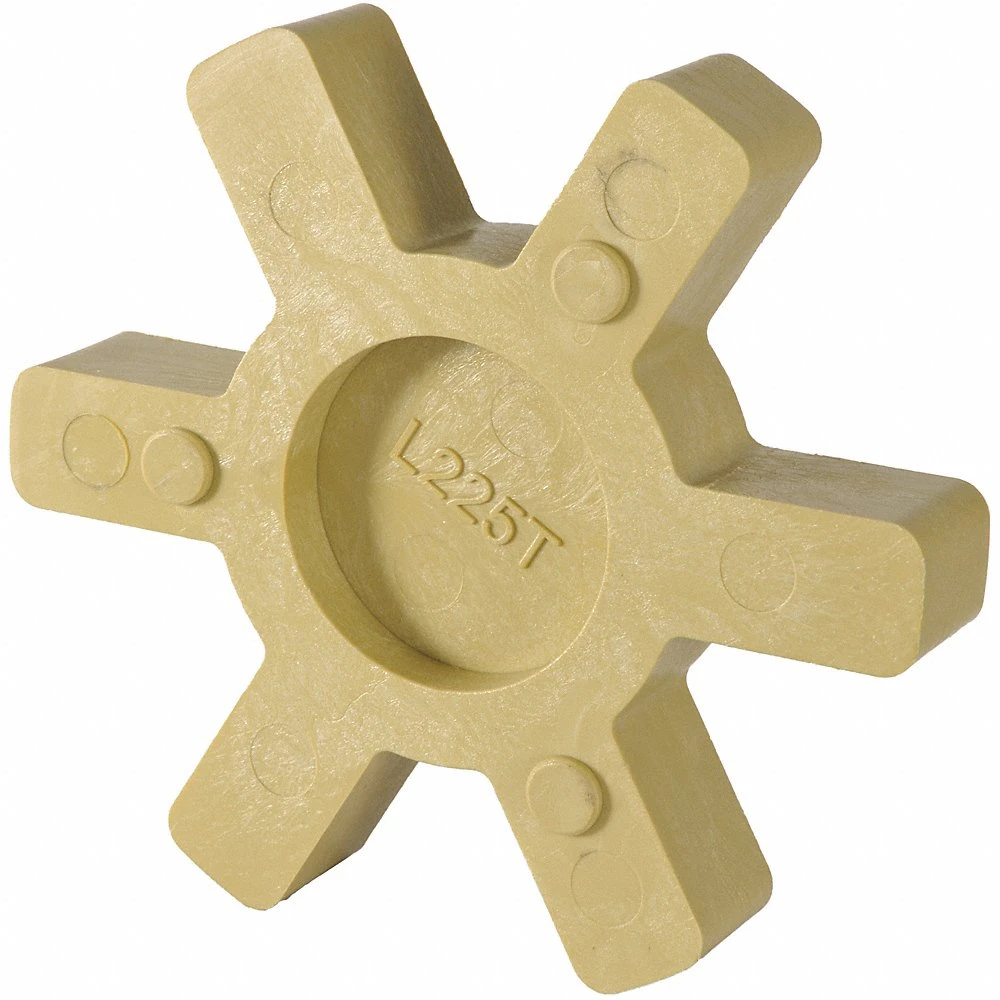

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed
ModelItemPrice (ex. VAT)
817J60EA7QRJ€201.85
DAYTON -

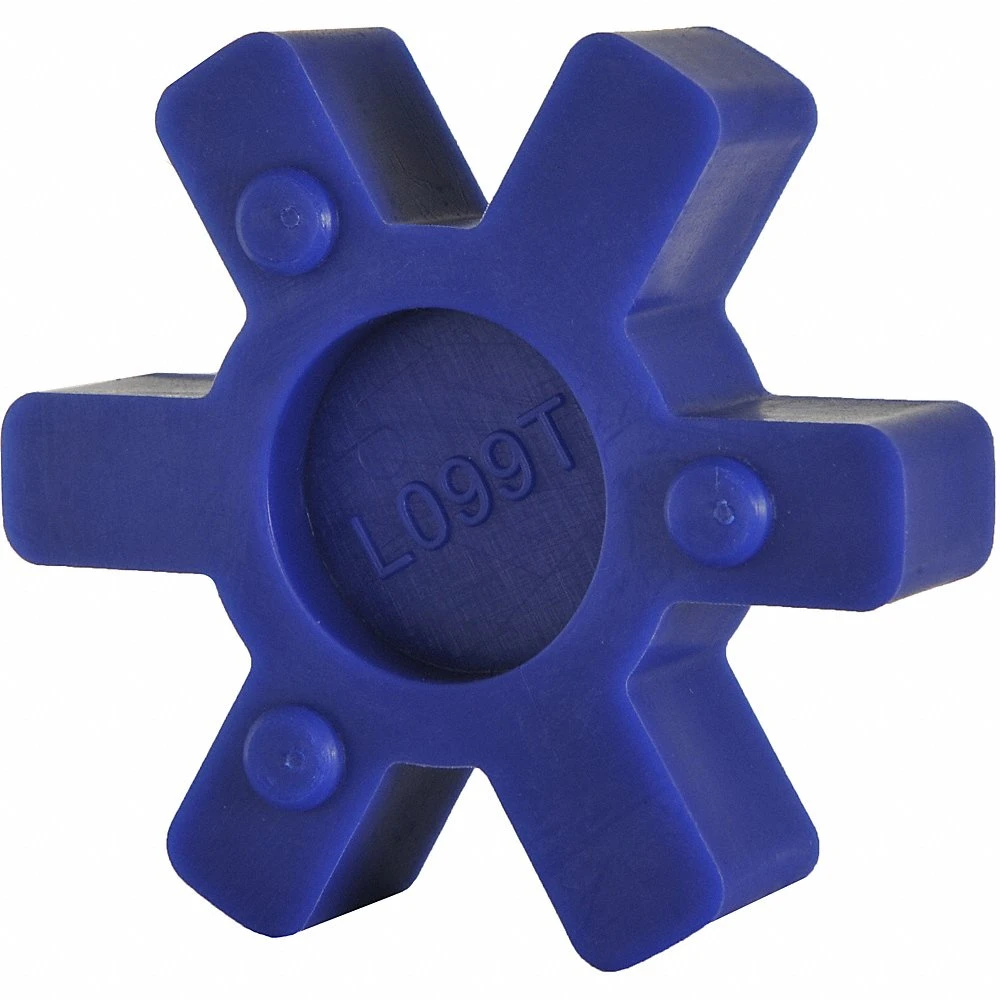

Jaw Coupling Insert, L099/L100 Coupling Size, 2 33/64 Inch Outside Dia, 0.77 HP, 90A

Jaw Coupling Insert, L099/L100 Coupling Size, 2 33/64 Inch Outside Dia, 0.77 HP, 90A
ModelItemPrice (ex. VAT)
817J63EA7QRM€45.67
DAYTON -

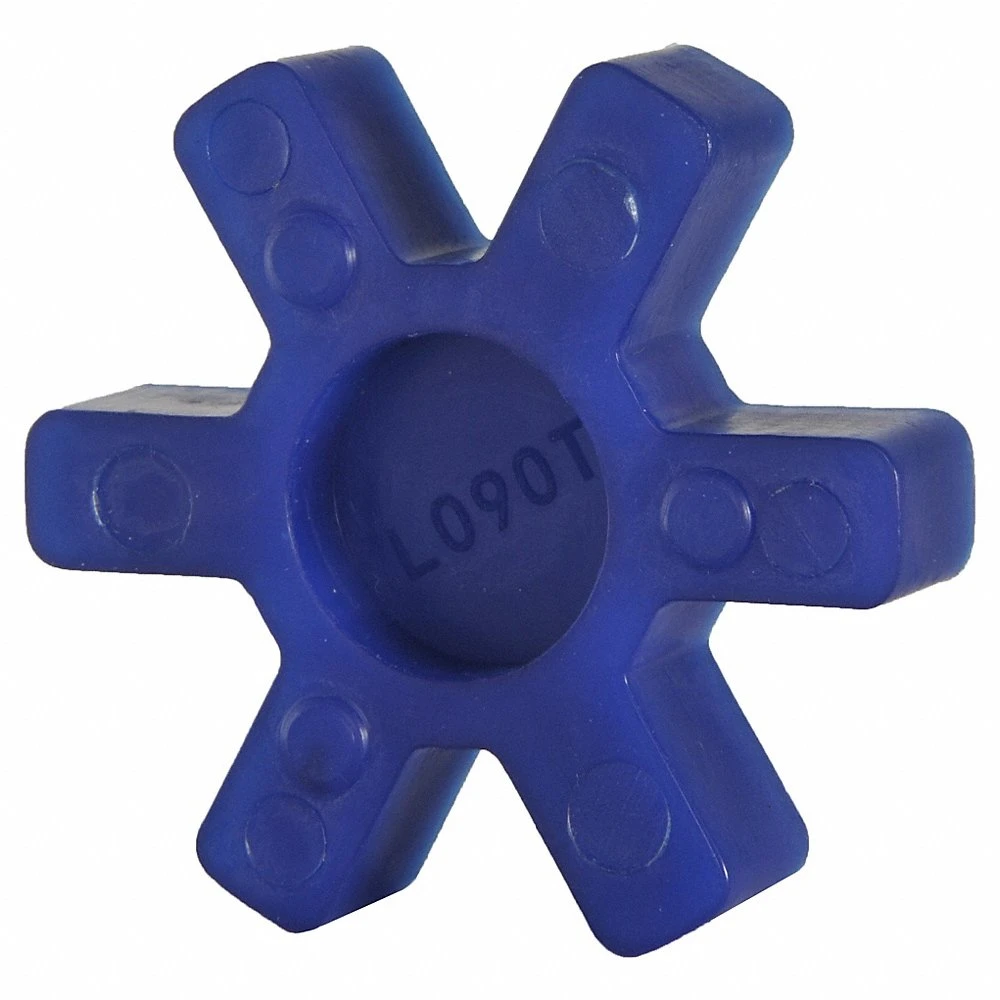

Jaw Coupling Insert, L090/L095 Coupling Size, 2 3/32 Inch Outside Dia, 0.35 HP, 90A

Jaw Coupling Insert, L090/L095 Coupling Size, 2 3/32 Inch Outside Dia, 0.35 HP, 90A
ModelItemPrice (ex. VAT)
817J64EA7QRN€25.25
DAYTON -

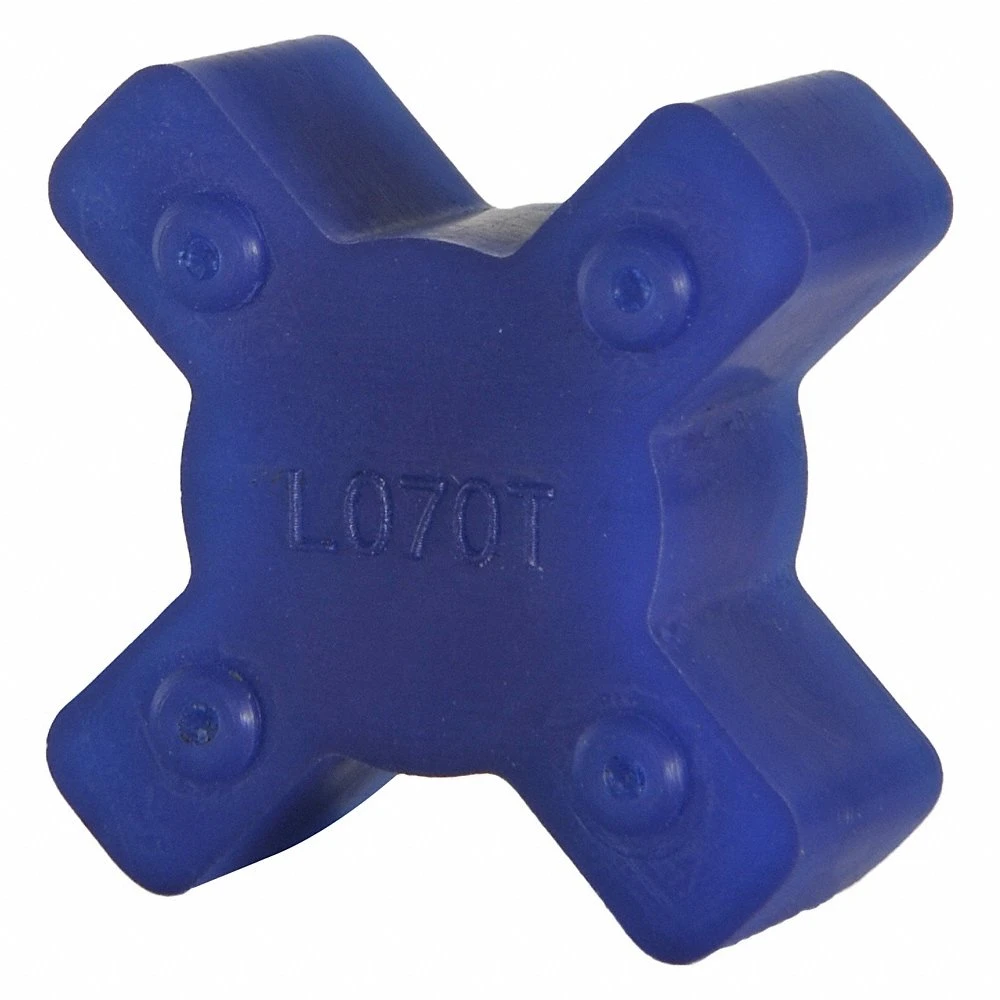

Jaw Coupling Insert, L070 Coupling Size, 1 11/32 Inch Outside Dia, 14000 RPM Max Speed

Jaw Coupling Insert, L070 Coupling Size, 1 11/32 Inch Outside Dia, 14000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J66EA7QRQ€15.19
DAYTON -

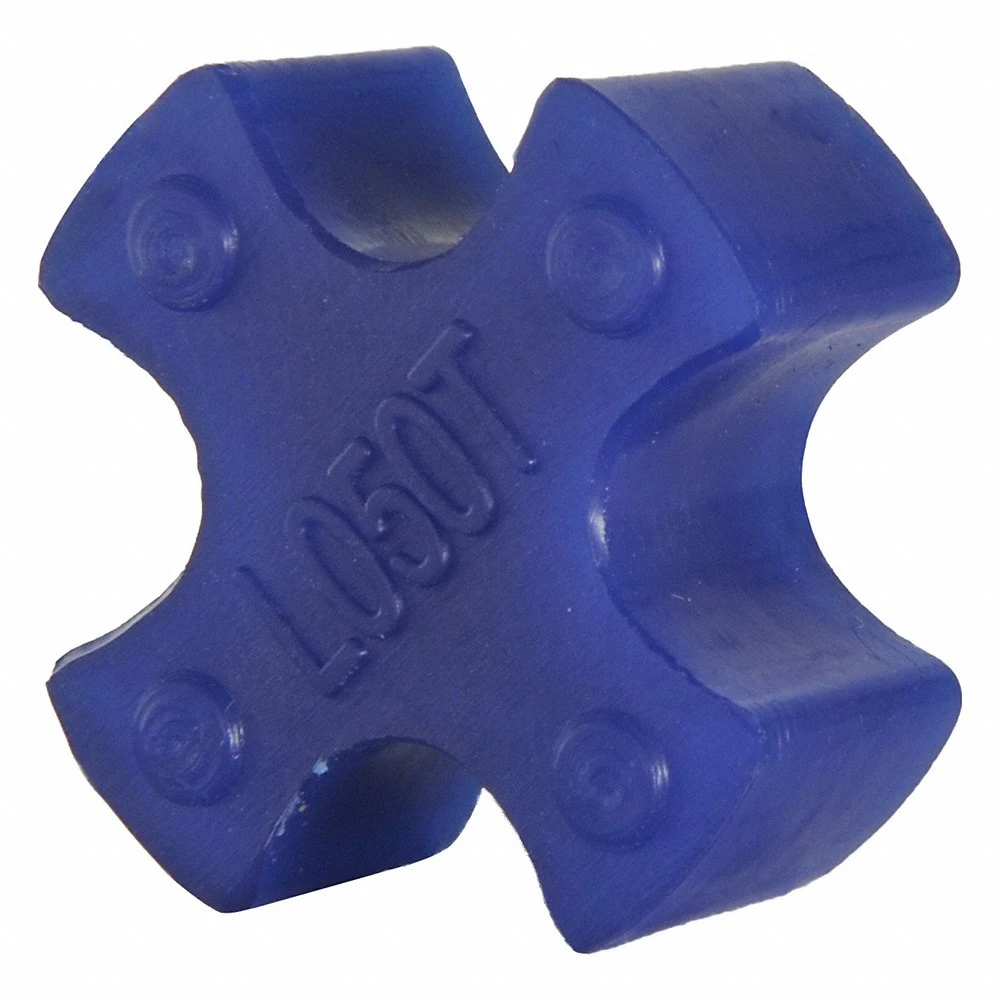

Jaw Coupling Insert, L050 Coupling Size, 1 1/16 Inch Outside Dia, 18000 RPM Max Speed

Jaw Coupling Insert, L050 Coupling Size, 1 1/16 Inch Outside Dia, 18000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J67EA7QRR€10.56
DAYTON -

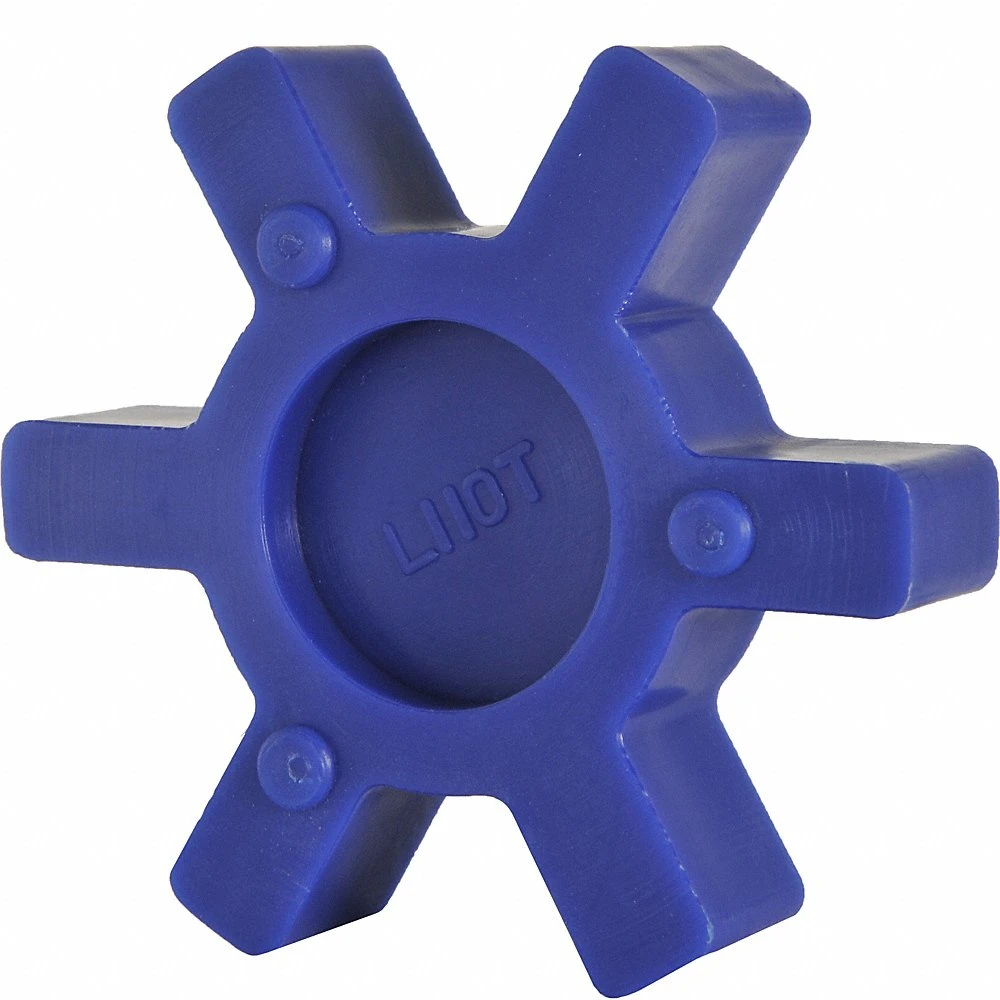

Jaw Coupling Insert, L110 Coupling Size, 3 19/64 Inch Outside Dia, 5000 RPM Max Speed

Jaw Coupling Insert, L110 Coupling Size, 3 19/64 Inch Outside Dia, 5000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J70EA7QRV€53.10
DAYTON -

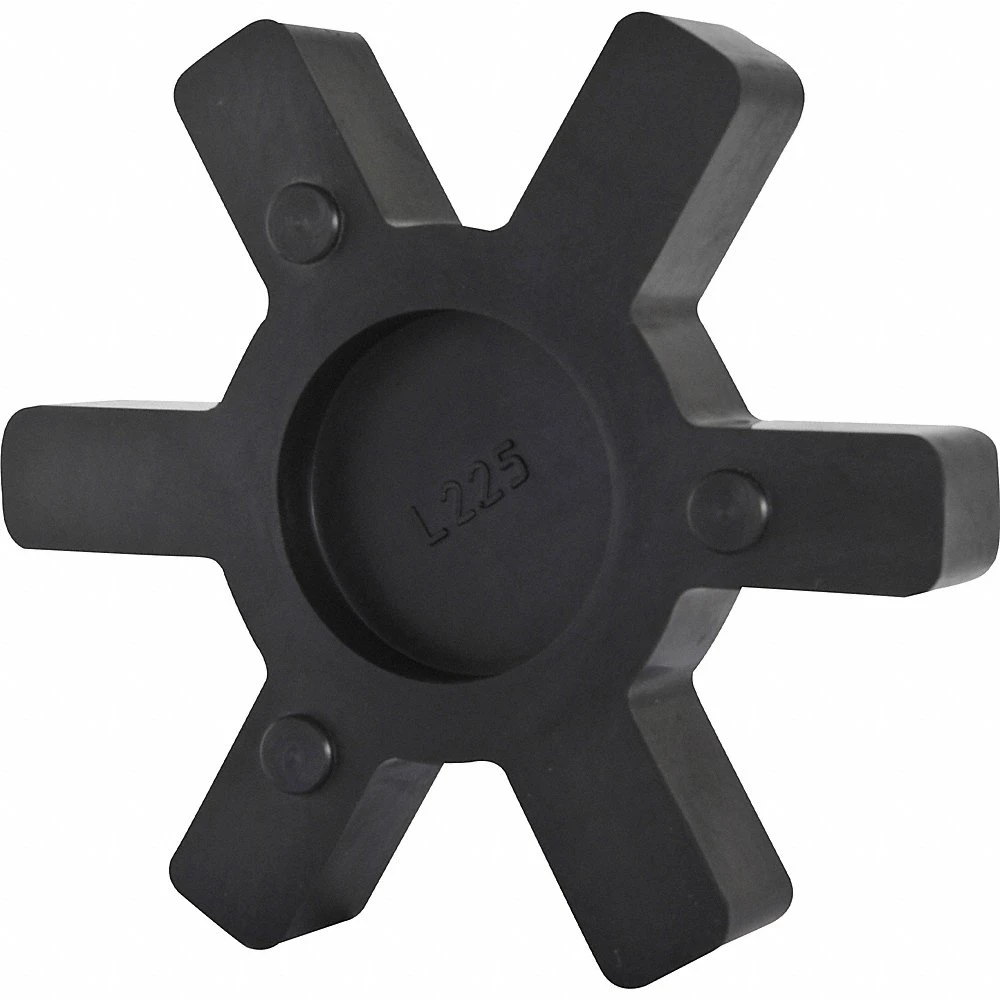

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed
ModelItemPrice (ex. VAT)
817J61EA7QRK€68.57
DAYTON -

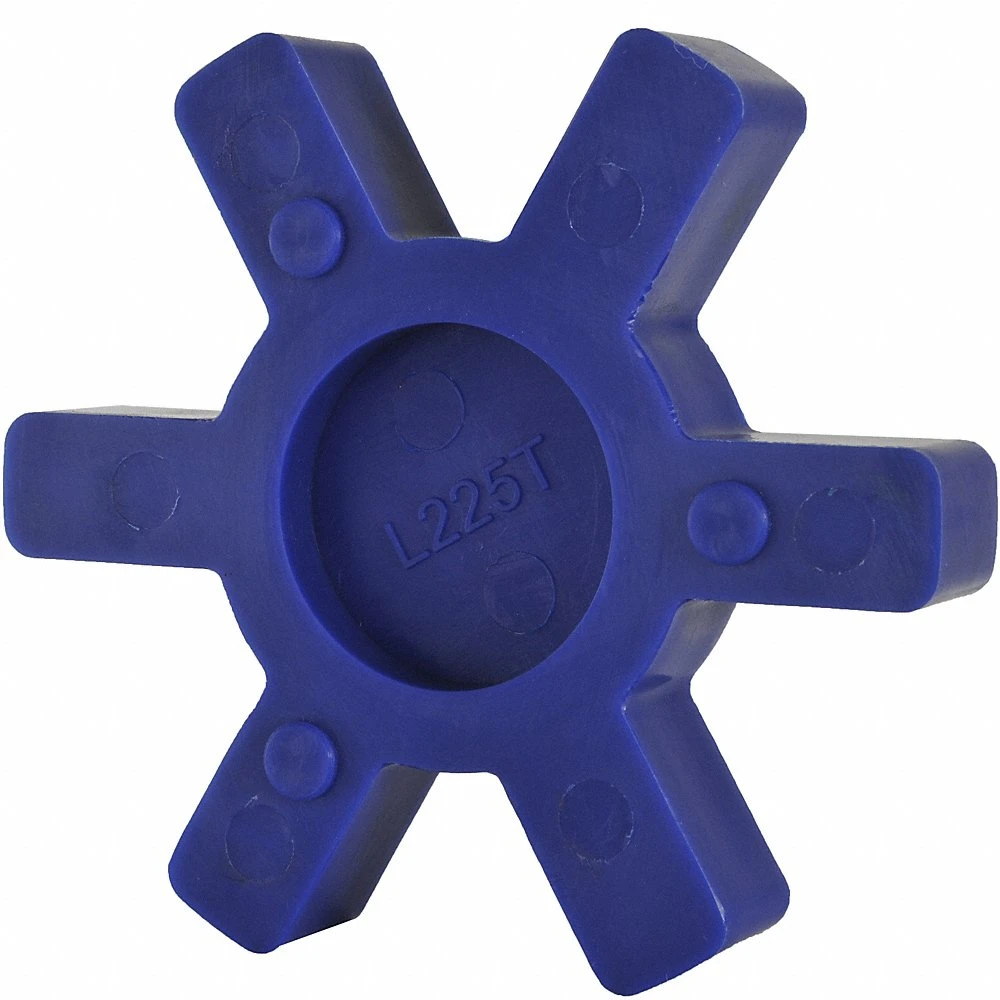

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed

Jaw Coupling Insert, L225 Coupling Size, 4 61/64 Inch Outside Dia, 4,600 RPM Max Speed
ModelItemPrice (ex. VAT)
817J62EA7QRL€156.95
DAYTON -

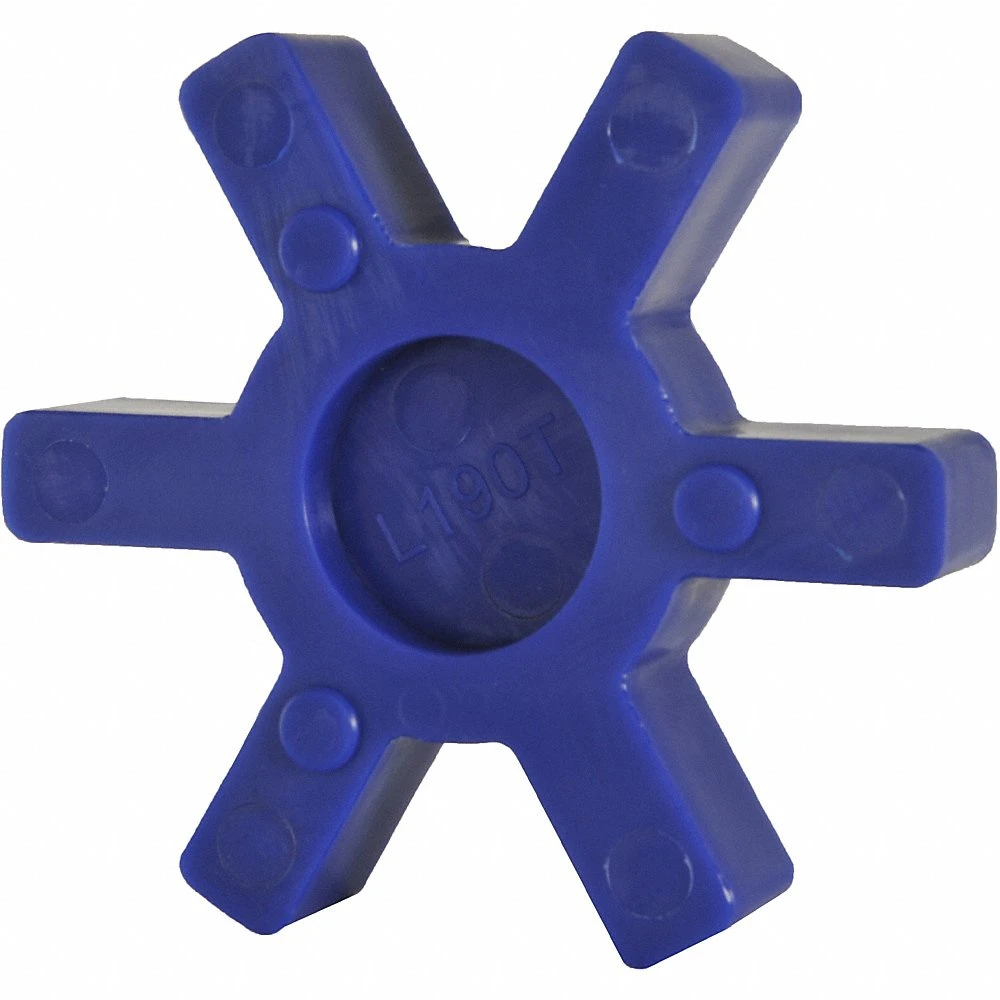

Jaw Coupling Insert, L190 Coupling Size, 4 15/32 Inch Outside Dia, 5000 RPM Max Speed

Jaw Coupling Insert, L190 Coupling Size, 4 15/32 Inch Outside Dia, 5000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J68EA7QRT€99.86
DAYTON -

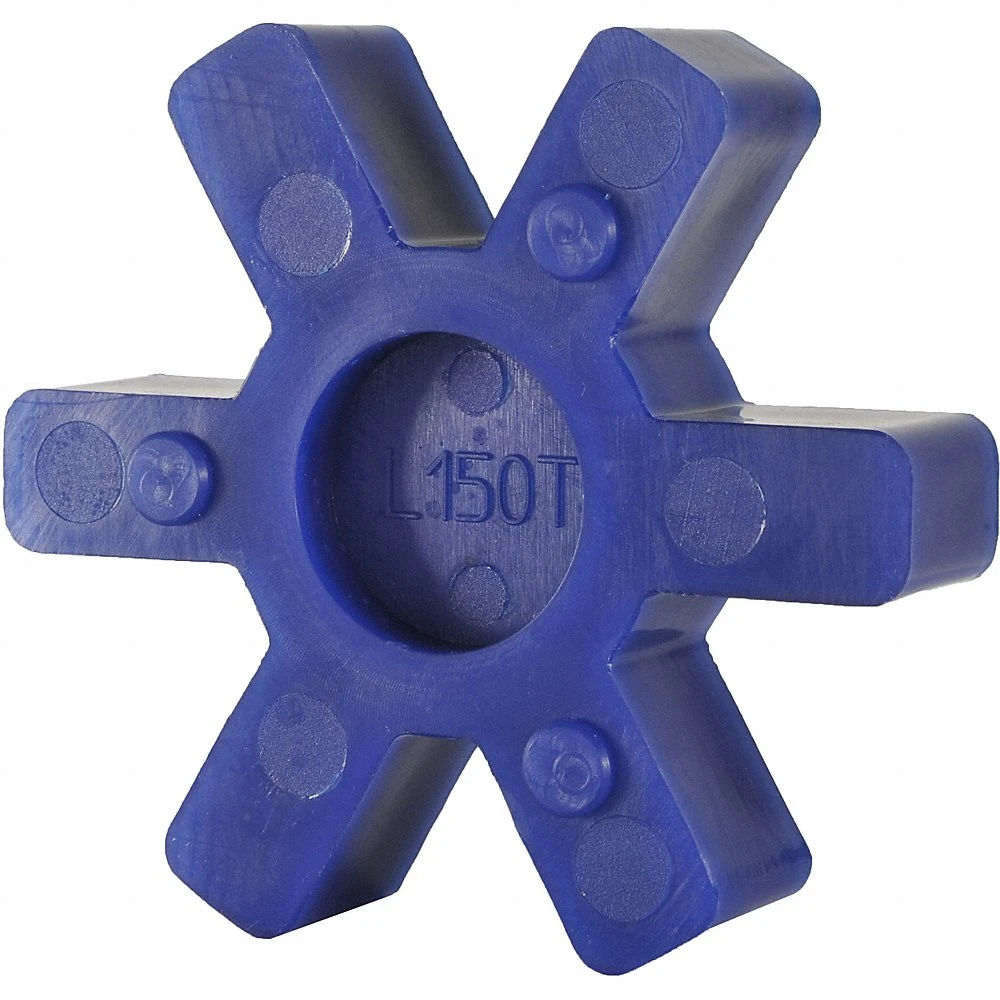

Jaw Coupling Insert, L150 Coupling Size, 3 47/64 Inch Outside Dia, 5000 RPM Max Speed

Jaw Coupling Insert, L150 Coupling Size, 3 47/64 Inch Outside Dia, 5000 RPM Max Speed
ModelItemPrice (ex. VAT)
817J69EA7QRU€83.71
