WIDIA Drill Bits

Filter

WIDIA -

Solid Carbide Extended Length Drill Bits

A

B

C

D

E

F

G

Style	Model	Decimal Equivalent	Drill Bit Size	Overall Length	Max. Drilling Depth	Shank Dia.	Price
A	3899698	-	F	162 mm	104 mm	7 mm	€501.50
B	3899622	0.5	1/2"	406 mm	322 mm	13 mm	€1,656.56
A	3900659	0.5	1/2"	276 mm	195 mm	13 mm	€1,248.12
C	3899800	0.5	1/2"	341 mm	258 mm	13 mm	€1,441.59
D	3899677	0.5	1/2"	471 mm	385 mm	13 mm	€2,006.40
A	3899696	0.25	1/4"	162 mm	104 mm	7 mm	€498.57
E	3899823	0.25	1/4"	197 mm	136 mm	7 mm	€545.00
B	3899748	0.25	-	232 mm	167 mm	7 mm	€594.52
F	3899589	0.25	1/4"	267 mm	199 mm	7 mm	€717.56
A	3899627	0.125	1/8"	105 mm	58 mm	4 mm	€426.79
E	3899803	0.125	1/8"	125 mm	74 mm	4 mm	€431.44
G	3899709	0.125	1/8"	145 mm	90 mm	4 mm	€506.97
F	3899540	0.125	1/8"	165 mm	106 mm	4 mm	€616.74
E	3899809	0.159	#21	149 mm	93 mm	5 mm	€433.65
F	3899576	0.159	#21	199 mm	133 mm	5 mm	€623.34
A	3899683	0.159	#21	124 mm	73 mm	5 mm	€432.94
E	3899812	0.182	#14	149 mm	98 mm	5 mm	€433.65
A	3899686	0.182	#14	124 mm	75 mm	5 mm	€438.05
F	3899579	0.182	#14	199 mm	144 mm	5 mm	€617.89
A	3899690	0.213	#3	143 mm	89 mm	6 mm	€453.88
E	3899816	0.213	#3	173 mm	116 mm	-	€470.69
F	3899583	0.213	#3	233 mm	170 mm	6 mm	€677.06
E	3899825	0.257	F	197 mm	137 mm	7 mm	€535.48
B	3899750	0.257	F	232 mm	170 mm	7 mm	€646.96
F	3899594	0.272	I	267 mm	208 mm	7 mm	-	RFQ

WIDIA -

Modular Drill Bits for General Drilling

A

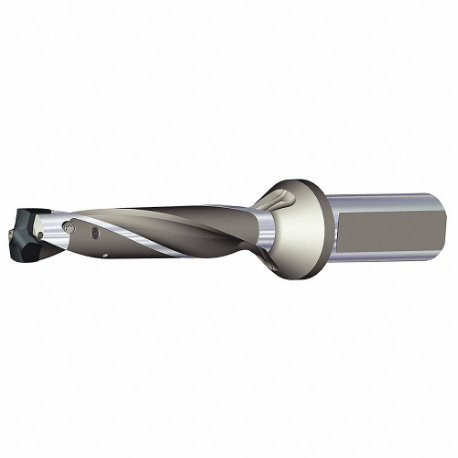

WIDIA TDMX1497R5SL150

B

WIDIA TDMX1497R3SL150

C

WIDIA TDMX1260R8SL150

D

Style	Model	Shank Dia.	Max. Drilling Depth	Overall Length	Price

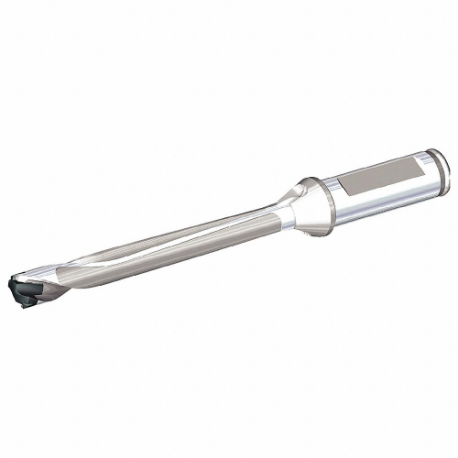

A	3992234	-	24.99 mm	292.5 mm	€1,026.04
B	TDMX1497R5SL150	1 1/2"	40 mm	13.189"	€1,452.13
C	TDMX1497R3SL150	1 1/2"	40 mm	255 mm	€1,313.86
B	TDMX1339R5SL150	1 1/2"	36 mm	12.1654"	€1,261.98
D	TDMX1260R8SL150	1 1/2"	34 mm	15.6693"	€1,313.86

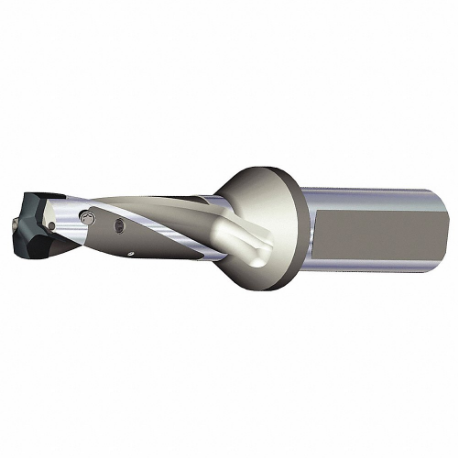

C	TDMX1260R3SL150	1 1/2"	34 mm	8.9764"	€1,106.38
C	TDMX1339R3SL150	1 1/2"	36 mm	9.3307"	€1,192.87
D	TDMX1497R8SL150	1 1/2"	40 mm	17.9134"	€1,590.45
C	TDMX1418R3SL150	1 1/2"	38 mm	9.685"	€1,192.87
D	TDMX1339R8SL150	1 1/2"	36 mm	16.4173"	€1,385.99
B	TDMX1418R5SL150	1 1/2"	38 mm	-	€1,261.98
D	TDMX1418R8SL150	1 1/2"	38 mm	17.1653"	€1,383.00
B	TDMX1260R5SL150	1 1/2"	34 mm	11.6535"	€1,175.54
D	TDMX0945R8SL125	1 1/4"	25 mm	11.8898"	€976.74
D	TDMX1063R8SL125	1 1/4"	28 mm	13.0315"	€1,158.26
B	TDMX1182R5SL125	1 1/4"	31 mm	10.4724"	€1,123.69
C	TDMX1221R3SL125	1 1/4"	32 mm	8.2283"	€1,071.84
C	TDMX0945R3SL125	1 1/4"	25 mm	6.9685"	€743.36
B	TDMX1103R5SL125	1 1/4"	29 mm	9.9606"	€1,019.98
C	TDMX1182R3SL125	1 1/4"	31 mm	-	€994.04
C	TDMX1142R3SL125	1 1/4"	30 mm	7.874"	€994.04
D	TDMX1142R8SL125	1 1/4"	30 mm	13.7795"	€1,261.98
C	TDMX1024R3SL125	1 1/4"	27 mm	7.3228"	€821.15
B	TDMX1063R5SL125	1 1/4"	28 mm	9.7244"	€1,019.98
D	TDMX0985R8SL125	1 1/4"	26 mm	12.2835"	€1,080.45

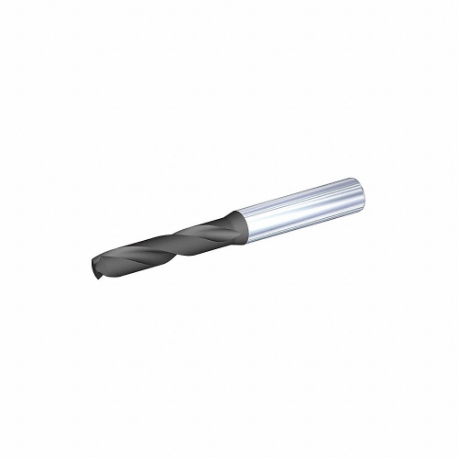

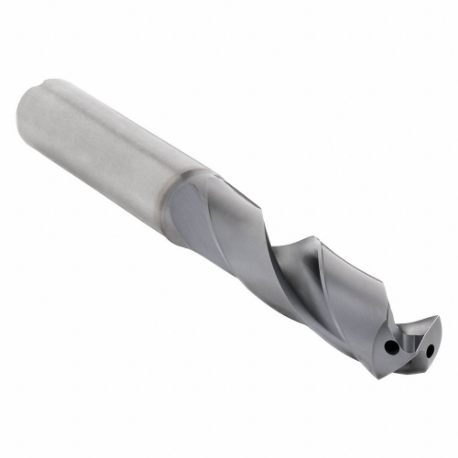

WIDIA -

Solid Carbide Screw Machine Length Drill Bits

WIDIA VDS201A16900

A

B

WIDIA VDS201A04090

C

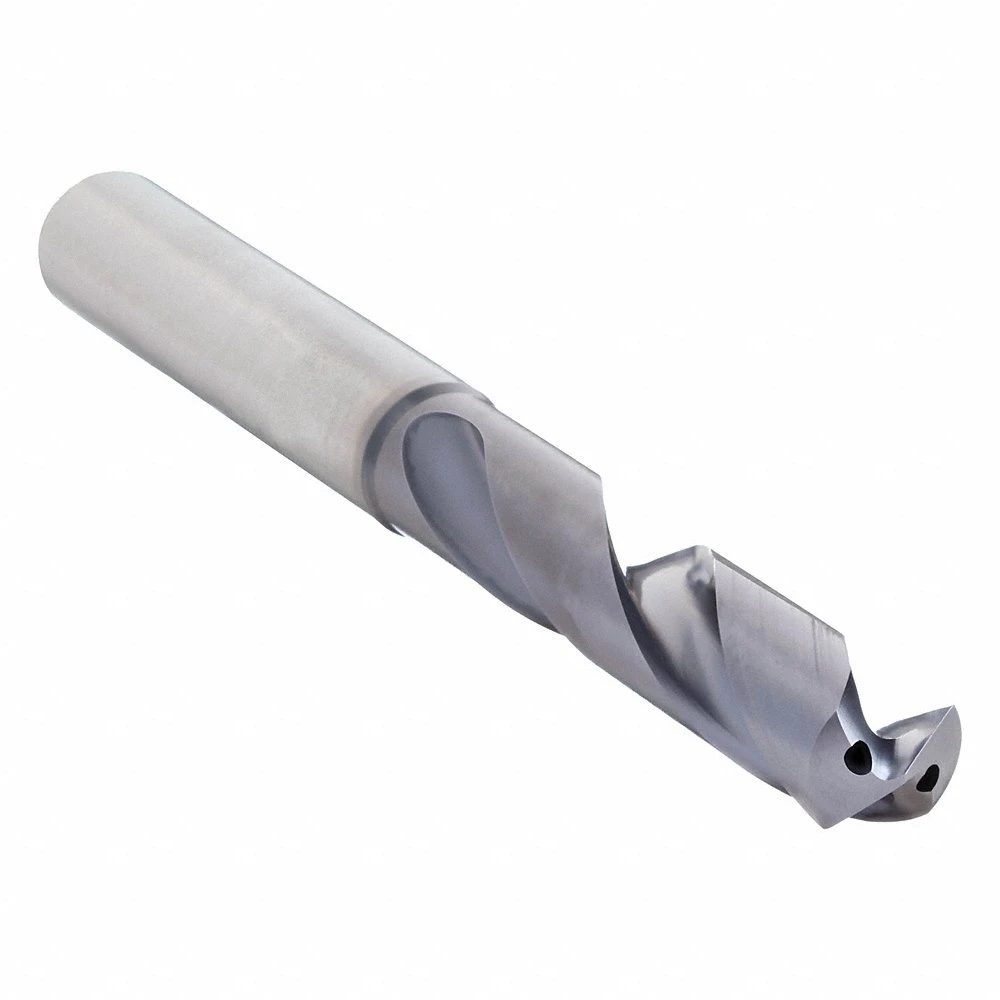

WIDIA VDS401A05616

D

WIDIA TDS401A04623

E

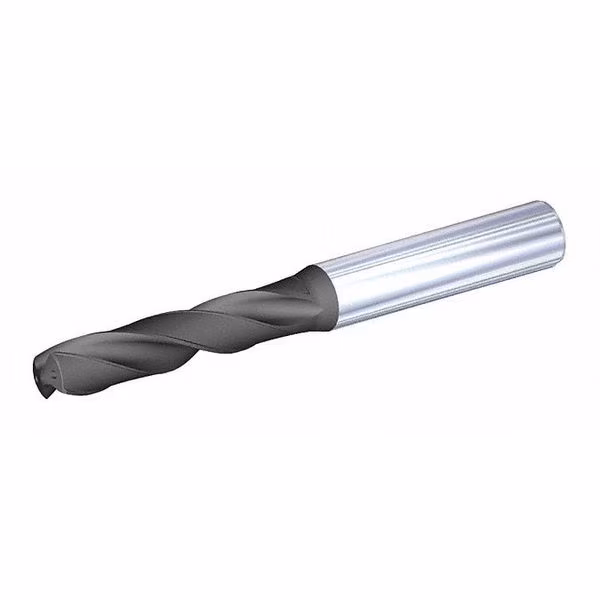

WIDIA TDS401A04700

F

Style	Model	Shank Dia.	Drill Bit Size	Decimal Equivalent	Overall Length	Max. Drilling Depth	Price
A	VDS201A16900	-	16.9 mm	0.6654	123 mm	-	€316.64
B	4163407	-	15.5 mm	0.6102	115 mm	-	€569.44
A	VDS201A17300	-	17.3 mm	0.6811	123 mm	-	€379.66
B	TDS411A03734	0.234"	#26	0.147	2.4409"	35/64"	€106.78
B	TDS411A04039	0.234"	#21	0.159	2 19/32"	21/32"	€110.32
C	VDS201A04090	0.234"	#20	0.161	2 19/32"	21/32"	€82.90
B	4157819	0.234"	#20	0.161	2 19/32"	21/32"	€118.04

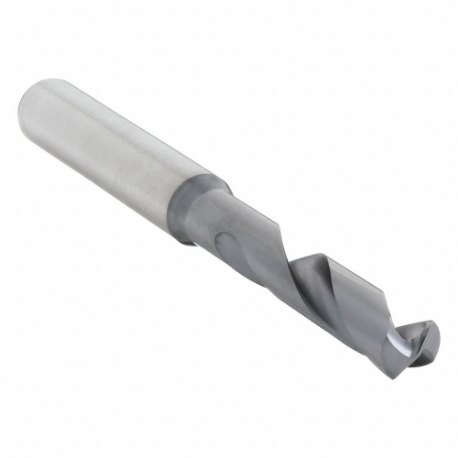

C	VDS201A05616	0.234"	#2	0.221	2 19/32"	25/32"	€80.92
D	VDS401A05616	0.234"	#2	0.221	2 19/32"	25/32"	€113.17
D	VDS401A04217	0.234"	#19	0.166	2 19/32"	21/32"	€91.57
C	VDS201A04217	0.234"	#19	0.166	2 19/32"	21/32"	€82.18
B	4157822	0.234"	#19	0.166	2 19/32"	21/32"	€118.04
B	4157828	0.234"	#14	0.182	2 19/32"	21/32"	€118.04
C	VDS201A04623	0.234"	#14	0.182	2 19/32"	21/32"	€80.84
D	VDS401A04623	0.234"	#14	0.182	2 19/32"	21/32"	€111.17
E	TDS401A04623	0.234"	#14	0.182	2 19/32"	21/32"	€110.32
C	VDS201A04700	0.234"	#13	0.185	2 19/32"	21/32"	€82.18
B	TDS411A04700	0.234"	#13	0.185	2 19/32"	21/32"	€110.32
D	VDS401A04700	0.234"	#13	0.185	2 19/32"	21/32"	€111.17
F	TDS401A04700	0.234"	#13	0.185	2 19/32"	21/32"	€110.32
D	VDS401A04800	0.234"	#12	0.189	2 19/32"	25/32"	€114.02
C	VDS201A03970	0.234"	5/32"	0.1562	2 19/32"	21/32"	€81.49
B	TDS411A03970	0.234"	5/32"	0.1562	2 19/32"	21/32"	€106.78
C	VDS201A04039	0.234"	#21	0.159	2 19/32"	21/32"	€82.90
B	TDS411A05954	0.234"	15/64"	0.2344	2 19/32"	25/32"	€112.43
