ASHCROFT Differential Pressure Gauges

Designed for measuring the difference between pressure points in wastewater management and fluid and chemical handling operations. Come equipped with magnets for offering a smooth pointer motion and an accurate output

Filter

ASHCROFT -

1130 Series Differential Pressure Gauges

A

B

C

D

Style	Model	Rated Total Pressure	Differential Pressure Range	Pressure Range Minor Div.	Seal Material	Pressure Range	Maximum Working Static Pressure	Case Depth	Primary Scale Minor Graduations	Price

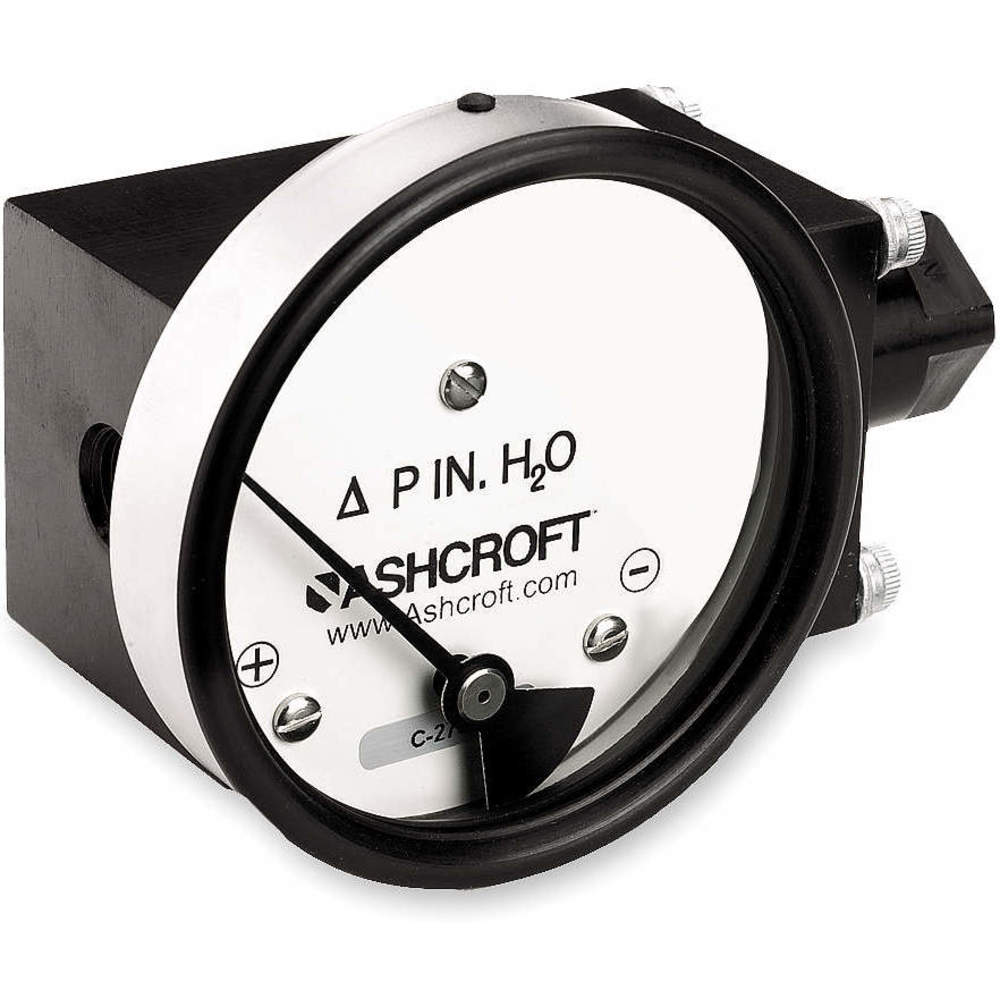

A	351132FD25SXCYLM25IWD	1500 psi	0 in. wc to 25 in. wc	2 in. wc	Buna N, Viton, EPDM	0 in. wc to 25 in. wc	1500 psig	2.74"	2	€433.96
A	351132FD25SXCYLM50IWD	1500 psi	0 in. wc to 50 in. wc	4 in. wc	Buna N, Viton, EPDM	0 in. wc to 50 in. wc	1500 psig	2.74"	4	€433.96
A	351132FD25SXCYLM100IWD	1500 psi	0 in. wc to 100 in. wc	10 in. wc	Buna N, Viton, EPDM	0 in. wc to 100 in. wc	1500 psig	2.74"	10	€433.96
B	351132FD25SXCYLM200IWD	1500 psi	0 in. wc to 200 in. wc	20 in. wc	Buna N, Viton, EPDM	0 in. wc to 200 in. wc	1500 psig	2.74"	20	€433.96

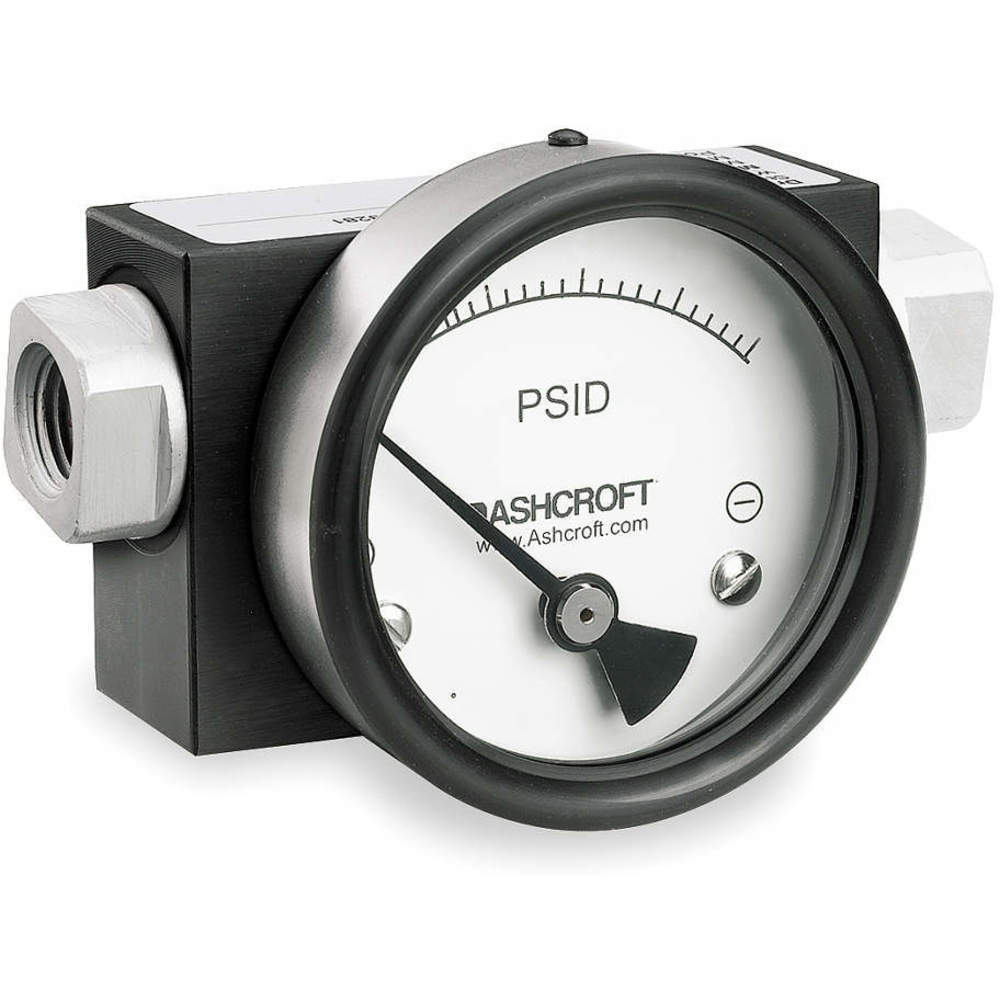

C	351130FD25SXCYLM15PSID	6000 psi	0 psi to 15 psi	1 psi	Buna N	0 psid to 15 psid	6000 psid	1 3/4"	1	€266.31

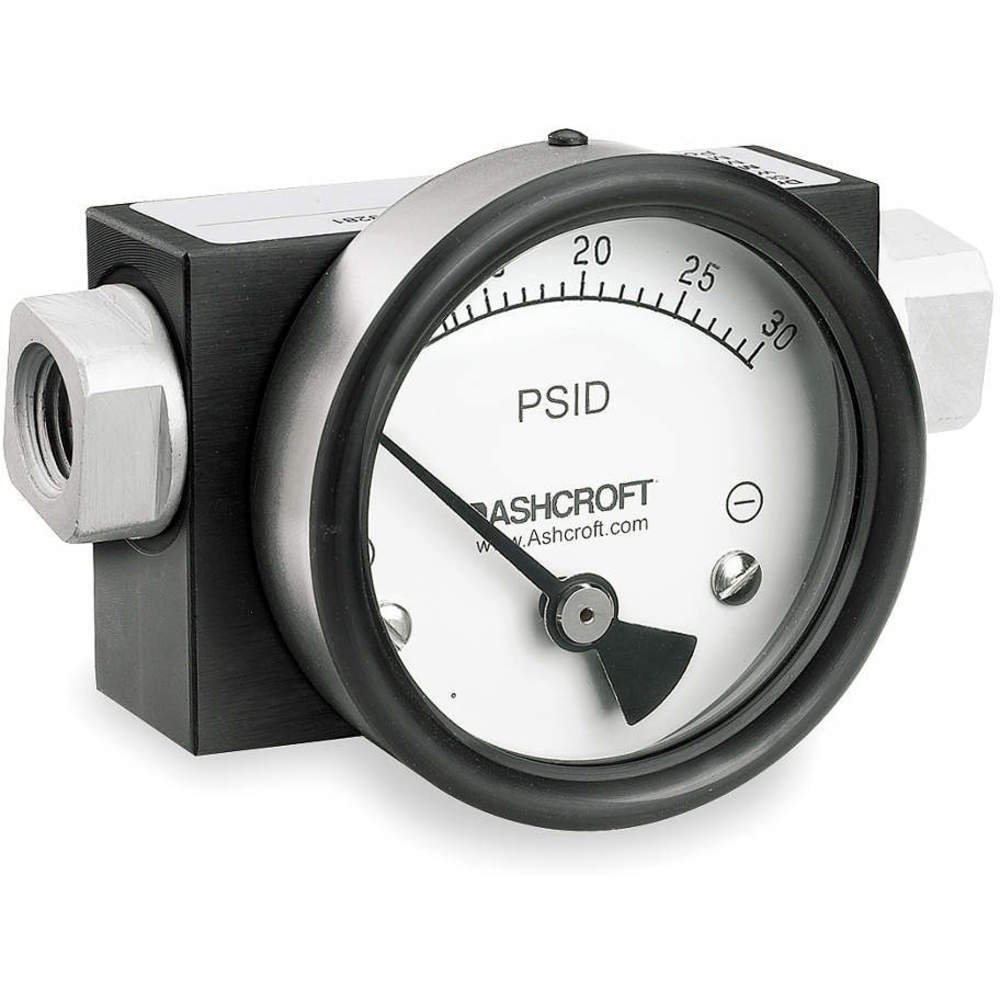

D	351130FD25SXCYLM30PSID	6000 psi	0 psi to 30 psi	1 psi	Buna N, Viton, EPDM	0 psid to 30 psid	6000 psig	1 3/4"	1	€266.31
C	351130FD25SXCYLM60PSID	6000 psi	0 psi to 60 psi	5 psi	Buna N, Viton, EPDM	0 psid to 60 psid	6000 psig	1 3/4"	5	€266.31
C	351130FD25SXCYLM100PSID	6000 psi	0 psi to 100 psi	10 psi	Buna N, Viton, EPDM	0 psid to 100 psid	6000 psig	1 3/4"	10	€266.31

ASHCROFT -

1134 Series Differential Pressure Gauges

A

B

C

D

Style	Model	Process Connection Location	Differential Pressure Range	Ambient Operating Temperature Range	Ip Rating, Nema Rating	Pressure Range	Adjustable Set Points	Sensor Material	Process Temperature Range	Price
A	451134EDRQMXCYLM2IWD	-	0 in. wc to 2 in. wc	0° to 170.0°	-	0 in. wc to 2 in. wc	Yes	-	-	€208.06

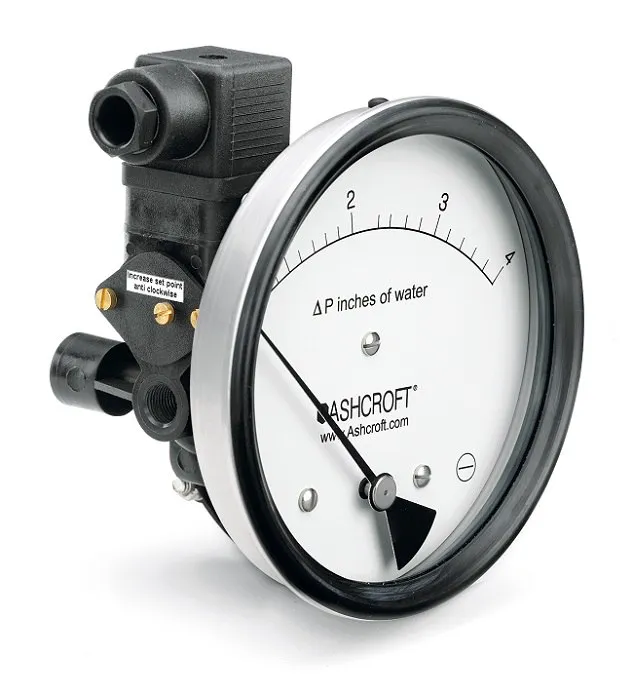

B	451134EDRQMXCYLM60IW	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
B	451134EDRQMXCYLM15IW/0/15IW	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
B	451134EDRQMXCYLM50MW	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
B	451134EDRQMXCYLM1IW/0/1IW	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
B	451134EDRQMXCYLM5IW/0/5IW	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
B	451134EDRQMXCYLM1IW/PA	Back, In Line, Dual	-	-	IP65	0.6 in. H2O to 60 in. H2O	Yes	Buna N, EPDM, Viton	0°F to +140°F	€208.33
C	451134EDRQMXV5CYLM10IWD	Dual Back And In-Line	0 in. wc to 10 in. wc	0° to 170.0°	Not Rated	0 in. wc to 10 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
C	451134EDRQMXV5CYLM.6IWD	Dual Back And In-Line	0 in. wc to 0.6 in. wc	0° to 170.0°	Not Rated	0 in. wc to 0.6 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€206.58
C	451134EDRQMXV5CYLM25IWD	Dual Back And In-Line	0 in. wc to 25 in. wc	0° to 170.0°	Not Rated	0 in. wc to 25 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
C	451134EDRQMXV5CYLM50IWD	Dual Back And In-Line	0 in. wc to 50 in. wc	0° to 170.0°	Not Rated	0 in. wc to 50 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
C	451134EDRQMXV5CYLM3IWD	Dual Back And In-Line	0 in. wc to 3 in. wc	0° to 170.0°	Not Rated	0 in. wc to 3 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
C	451134EDRQMXV5CYLM5IWD	Dual Back And In-Line	0 in. wc to 5 in. wc	0° to 170.0°	Not Rated	0 in. wc to 5 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
C	451134EDRQMXV5CYLM2IWD	Dual Back And In-Line	0 in. wc to 2 in. wc	0° to 170.0°	Not Rated	0 in. wc to 2 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27

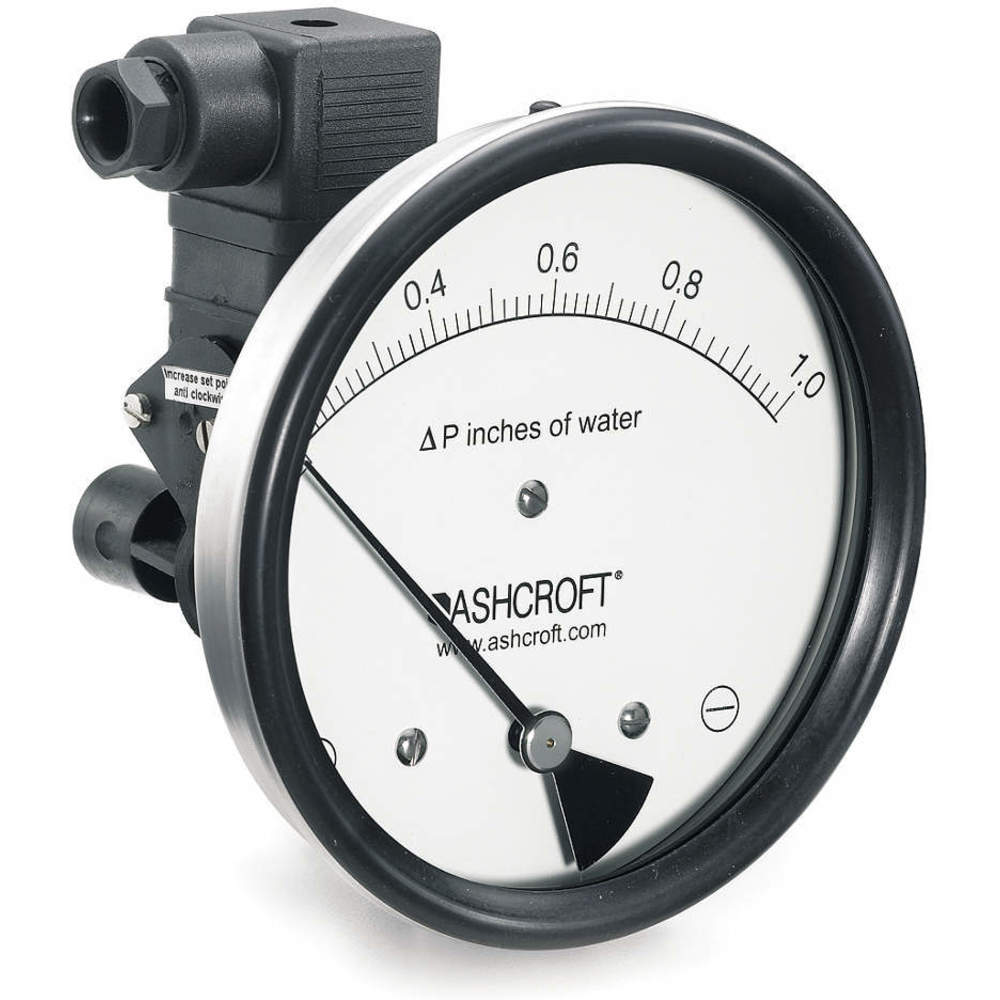

D	451134EDRQMXV5CYLM1IWD	Dual Back And In-Line	0 in. wc to 1 in. wc	0° to 170.0°	Not Rated	0 in. wc to 1 in. wc	No	Buna N	0°F to 175°F, 0°C to 80°C	€201.27
A	451134EDRQMXCYLM3IWD	Dual In-Line Or Back	0 in. wc to 3 in. wc	0°F to 140°F	-	0 in. wc to 3 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM4IWD	Dual In-Line Or Back	0 in. wc to 4 in. wc	0°F to 140°F	-	0 in. wc to 4 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM5IWD	Dual In-Line Or Back	0 in. wc to 5 in. wc	0°F to 140°F	-	0 in. wc to 5 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM8IWD	Dual In-Line Or Back	0 in. wc to 8 in. wc	0°F to 140°F	-	0 in. wc to 8 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM10IWD	Dual In-Line Or Back	0 in. wc to 10 in. wc	0°F to 140°F	-	0 in. wc to 10 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM40IWD	Dual In-Line Or Back	0 in. wc to 40 in. wc	0°F to 140°F	-	0 in. wc to 40 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM30IWD	Dual In-Line Or Back	0 in. wc to 30 in. wc	0°F to 140°F	-	0 in. wc to 30 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM25IWD	Dual In-Line Or Back	0 in. wc to 25 in. wc	0°F to 140°F	-	0 in. wc to 25 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM1IWD	Dual In-Line Or Back	0 in. wc to 1 in. wc	0°F to 140°F	-	0 in. wc to 1 in. wc	Yes	Buna N	32°F to 175°F	€208.06
A	451134EDRQMXCYLM20IWD	Dual In-Line Or Back	0 in. wc to 20 in. wc	0°F to 140°F	-	0 in. wc to 20 in. wc	Yes	Buna N	32°F to 175°F	€208.06

ASHCROFT -

Pressure Gauges
Ashcroft pressure gauges are designed to measure the pressure applied on a surface by a fluid and are used as replacement gauges on filters. They alert the operator to replace the filter canister when the pressure drops below a certain level. These pressure gauges feature a circular dial with readings, calibrated to provide data with an accuracy of +/-0.25%. The needle and scale are protected by glass or polycarbonate clear lenses. These pressure gauges are available in plastic, aluminium & stainless steel cases on Raptor Supplies.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Connection Size	Pressure Range	Connection Type	Material	Price

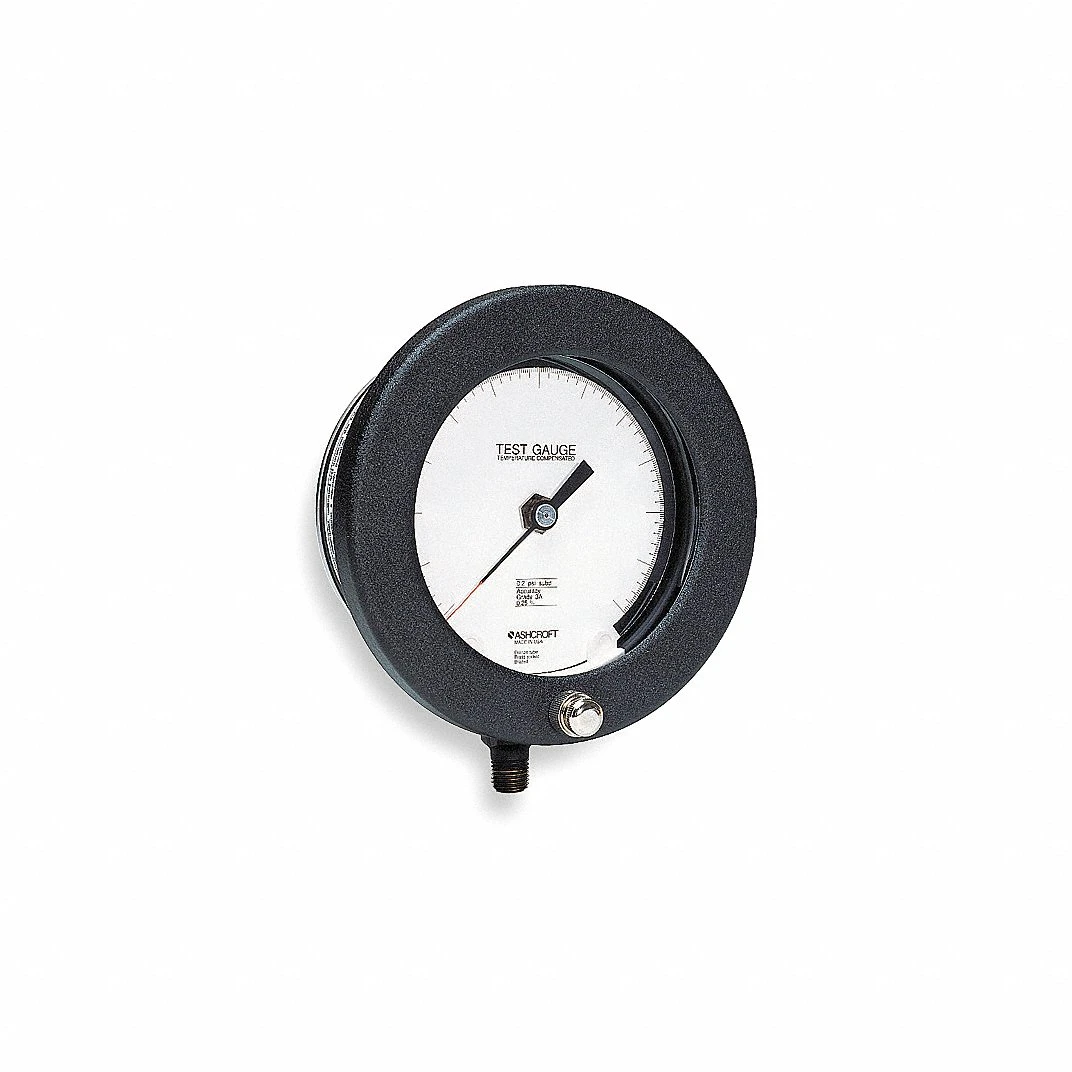

A	601082AS02B300#	-	-	-	-	-	RFQ

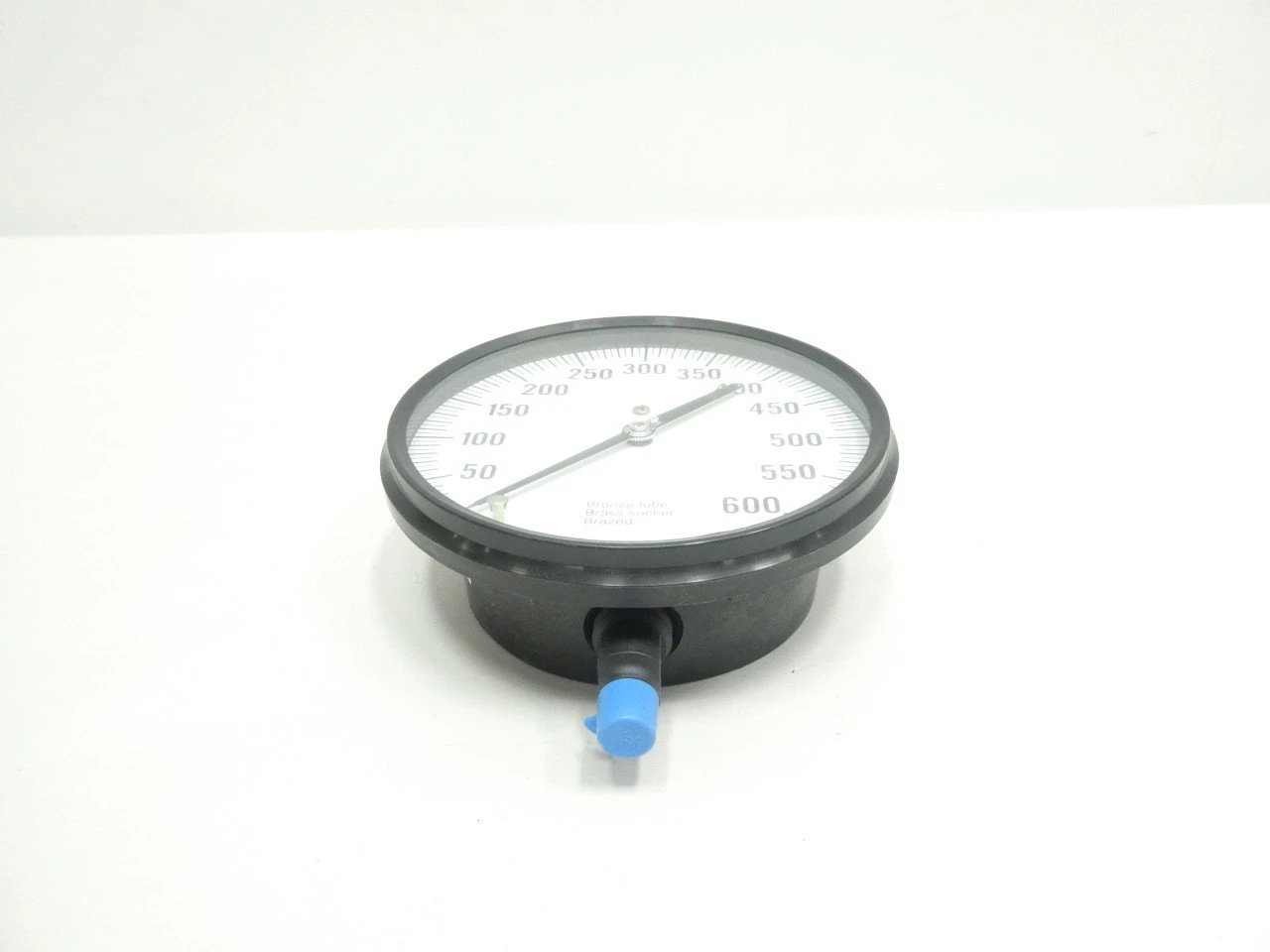

B	60-1220-A-02L-600#	-	-	-	-	-	RFQ
C	25-1130-SD-25S-XGM-NH-PD-VD-25	-	-	-	-	-	RFQ

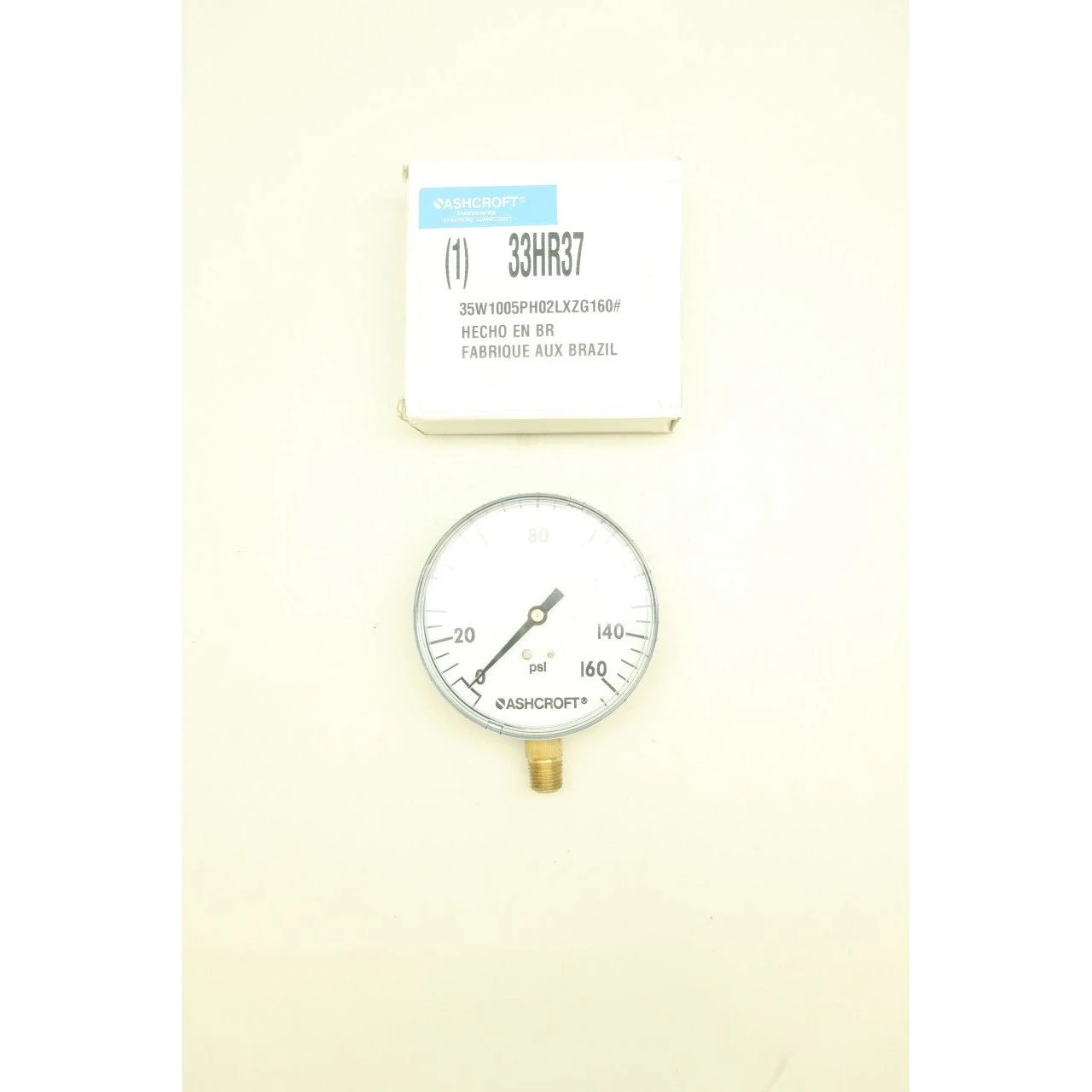

D	35-W1005-PH-02L-XZG-160	-	-	-	-	-	RFQ

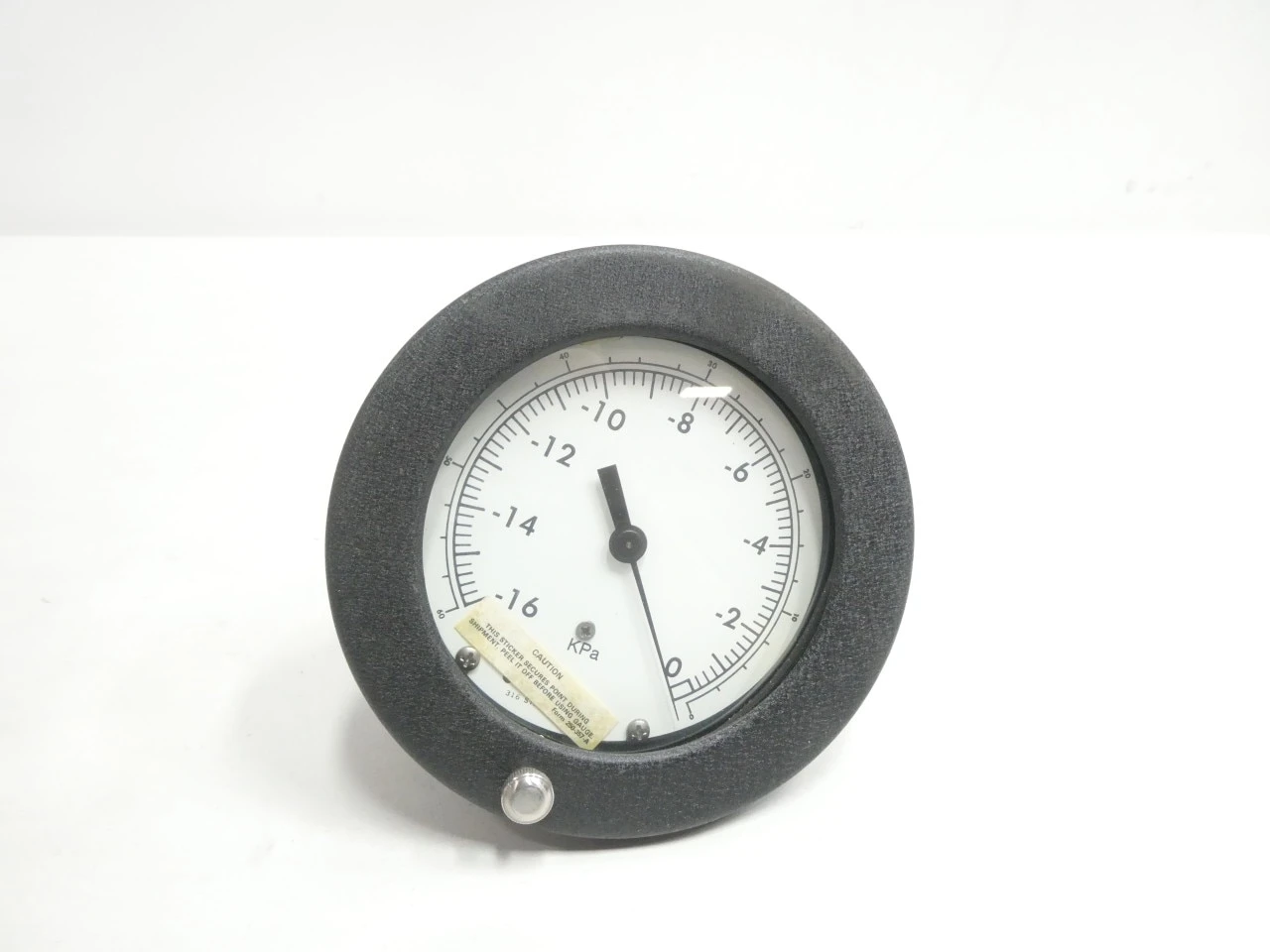

E	45-1187S-2B-16KPA/VAC	-	-	-	-	-	RFQ
F	45-1279SS-4L-1600	-	-	-	-	-	RFQ

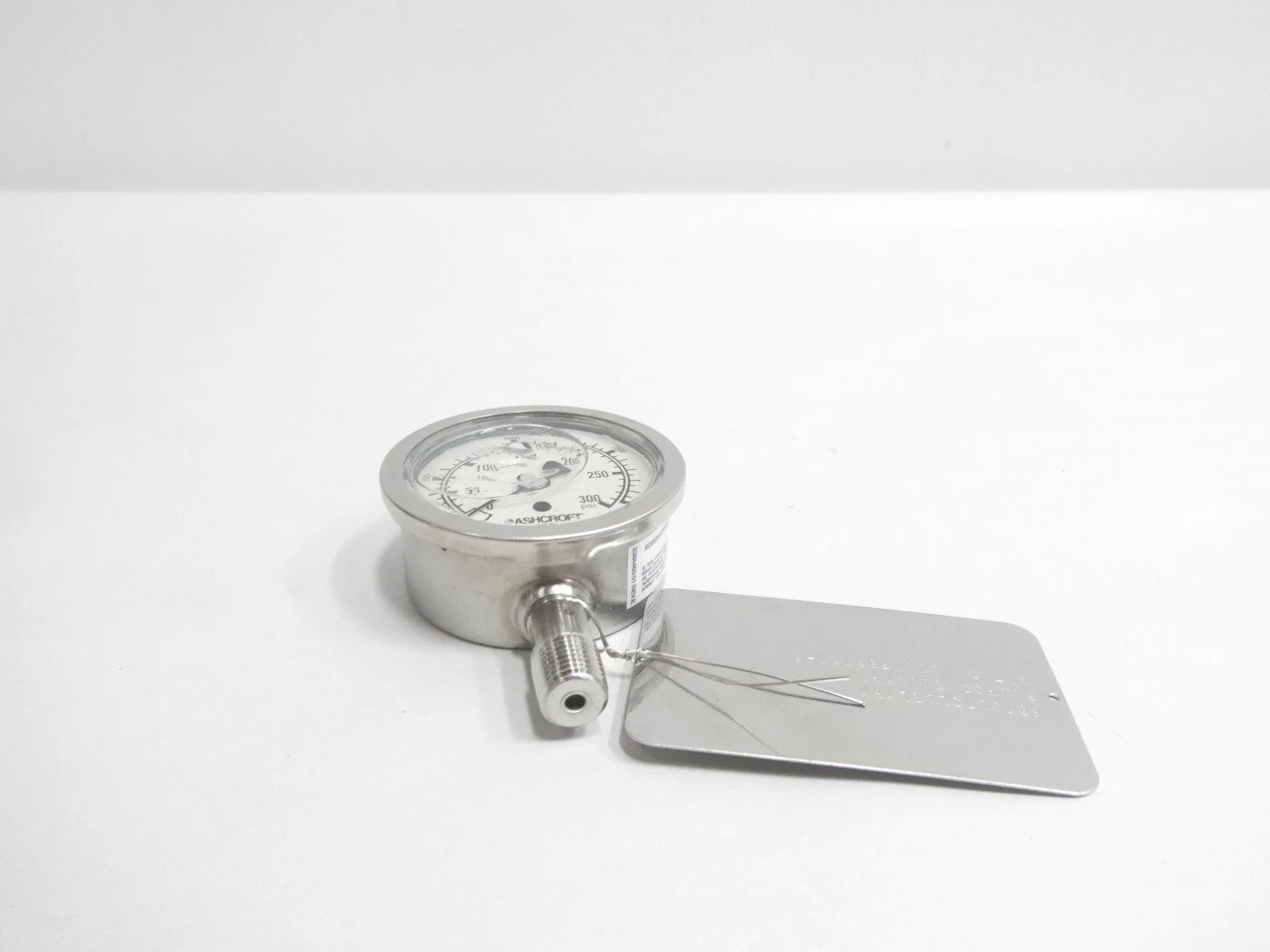

G	631008SL02LXGX300PSI/2000KPA	-	-	-	-	-	RFQ

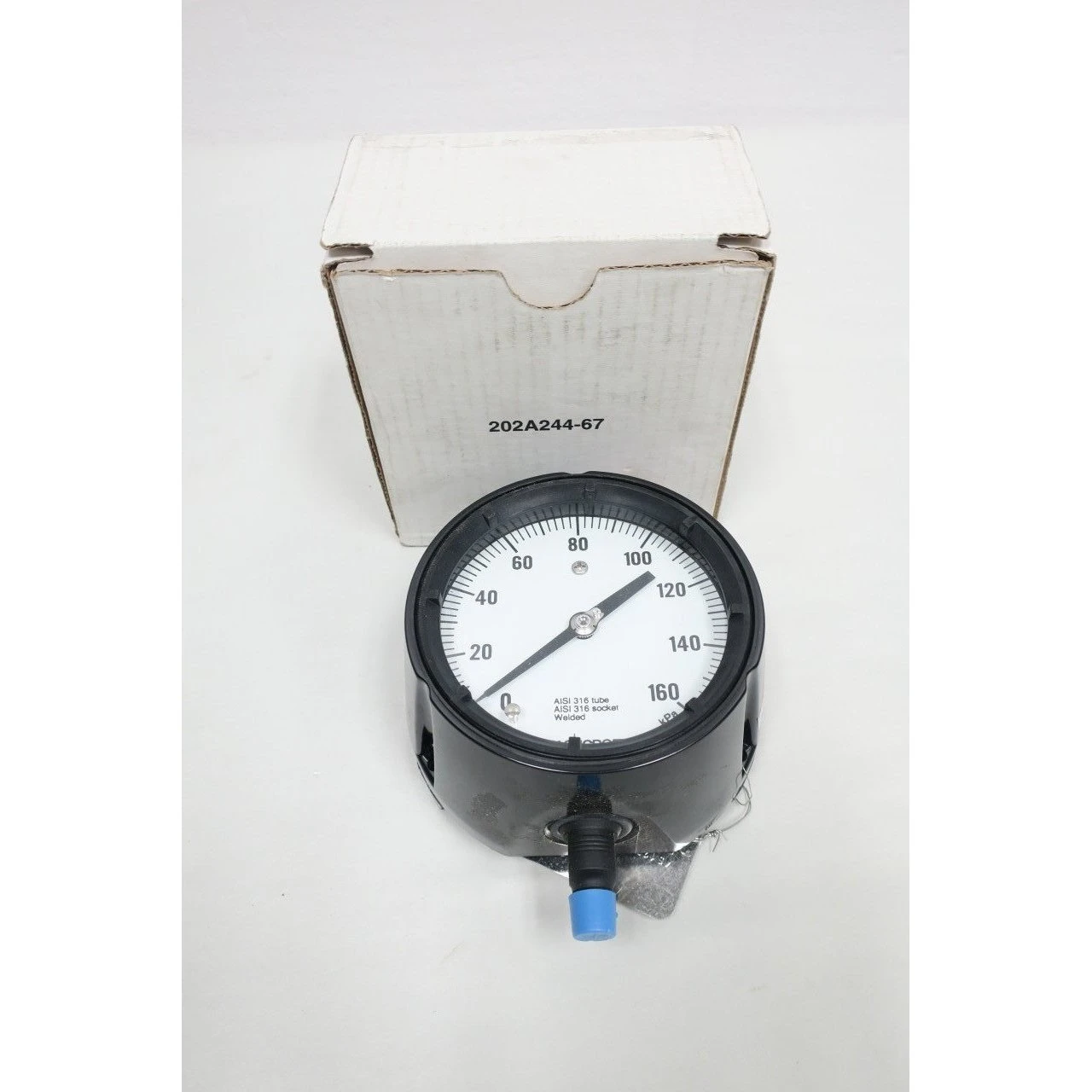

H	45-1279-SS-02L-160KPA	-	-	-	-	-	RFQ

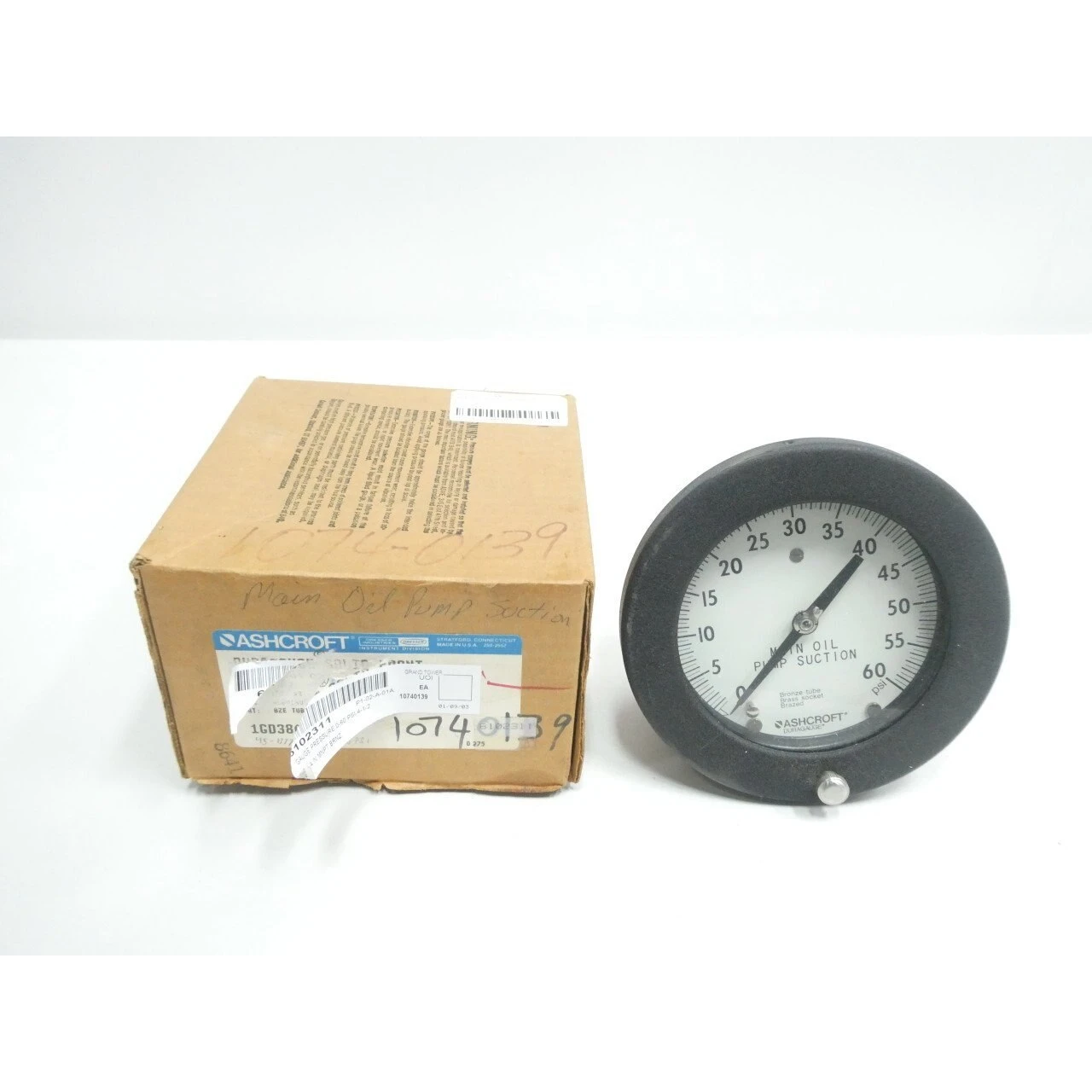

I	45-1377-AS-02B-60	-	-	-	-	-	RFQ

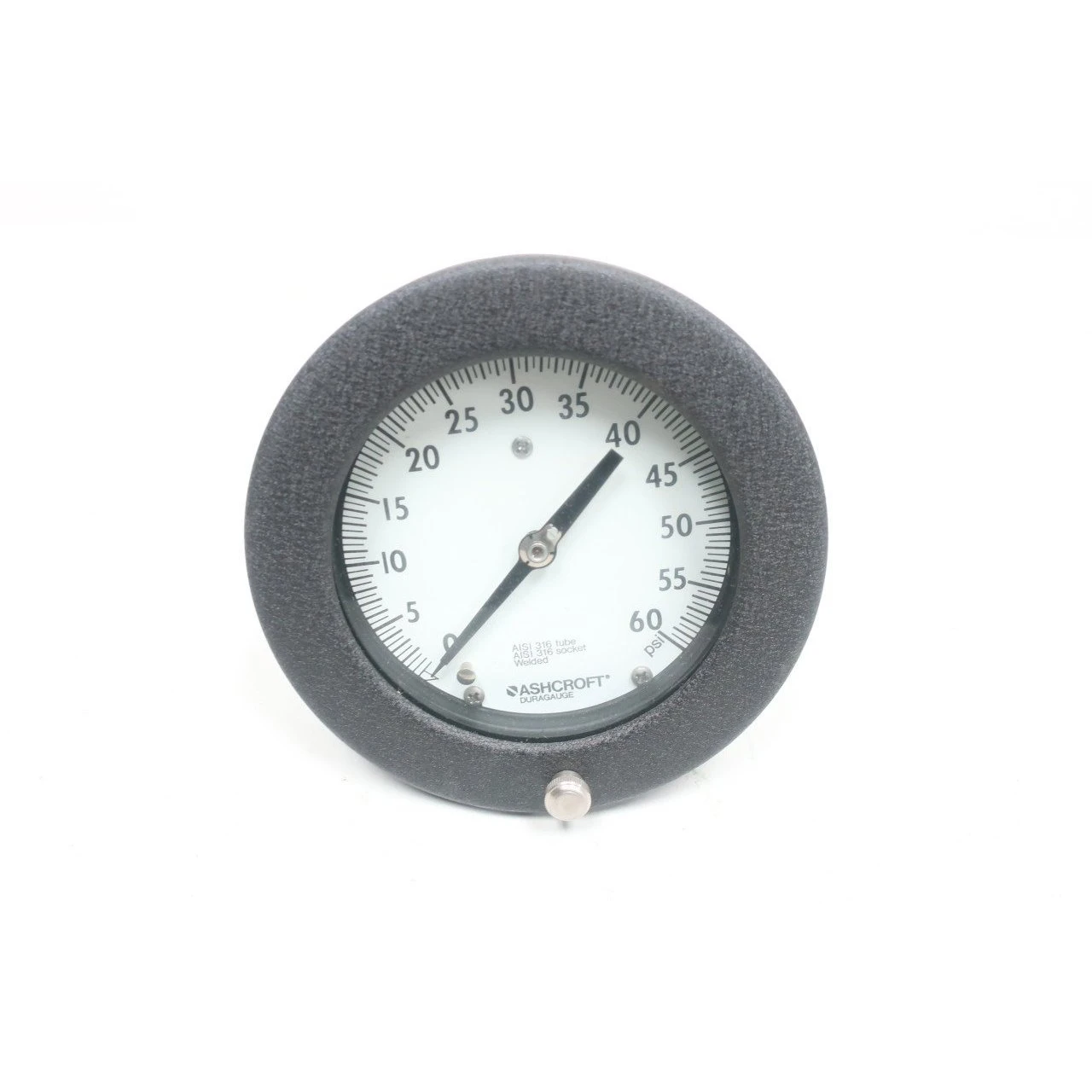

J	45-1377-SS-02B-60PSI	-	-	-	-	-	RFQ

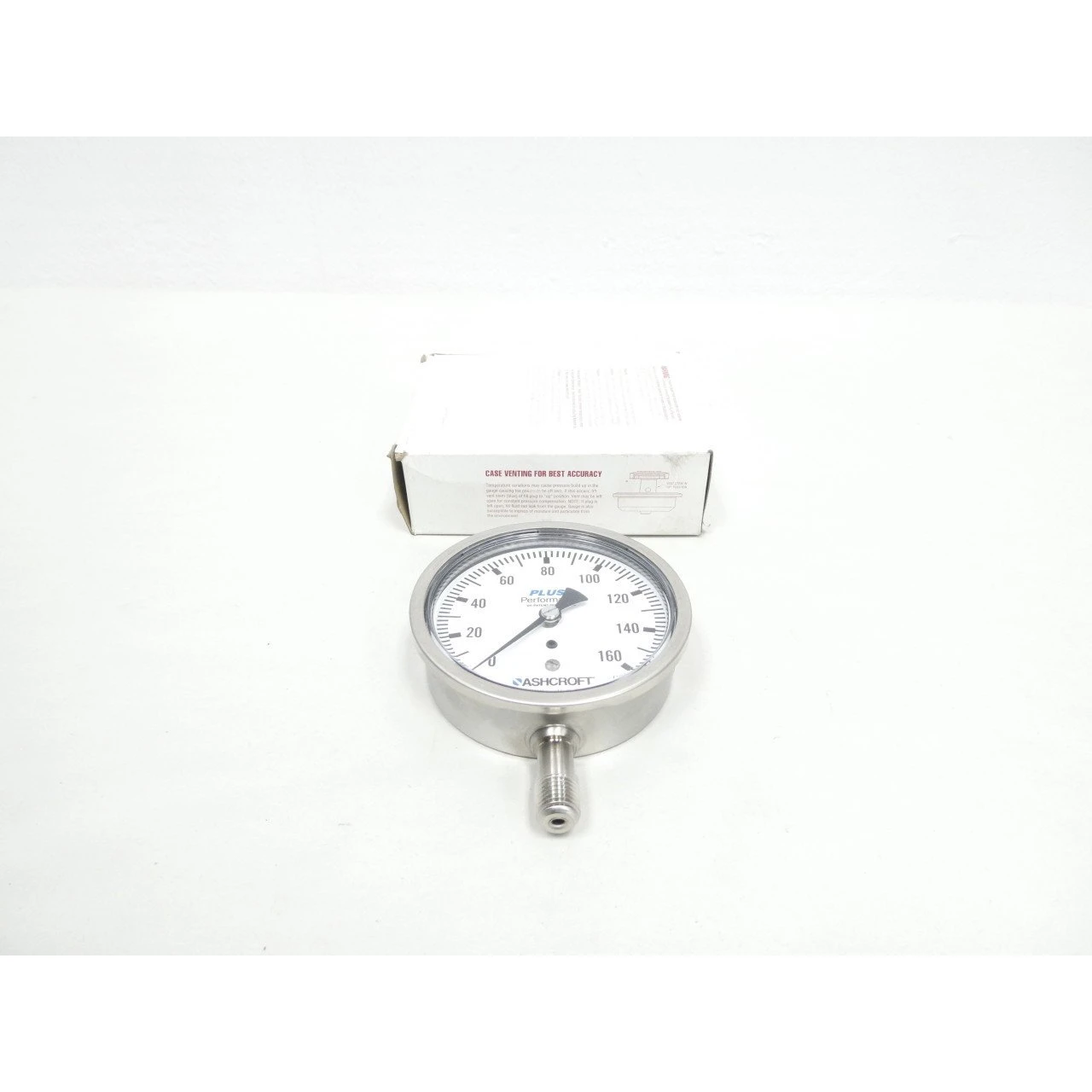

K	10-1008-S-02L-160#-XLL	-	-	-	-	-	RFQ
F	45-1189-SS-02L-30/0IWV/M	-	-	-	-	-	RFQ

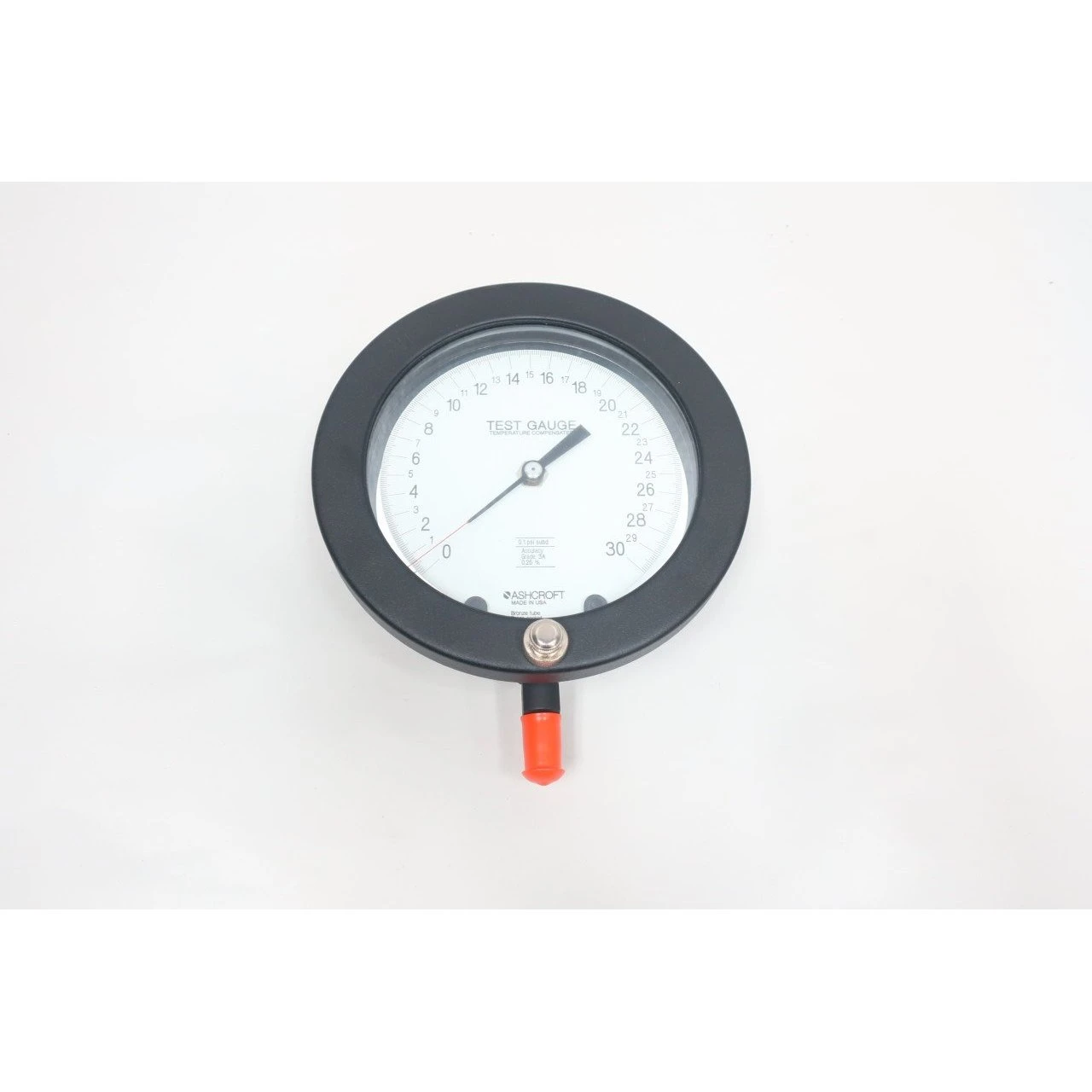

L	60-1082-AS-02L-30#	-	-	-	-	-	RFQ

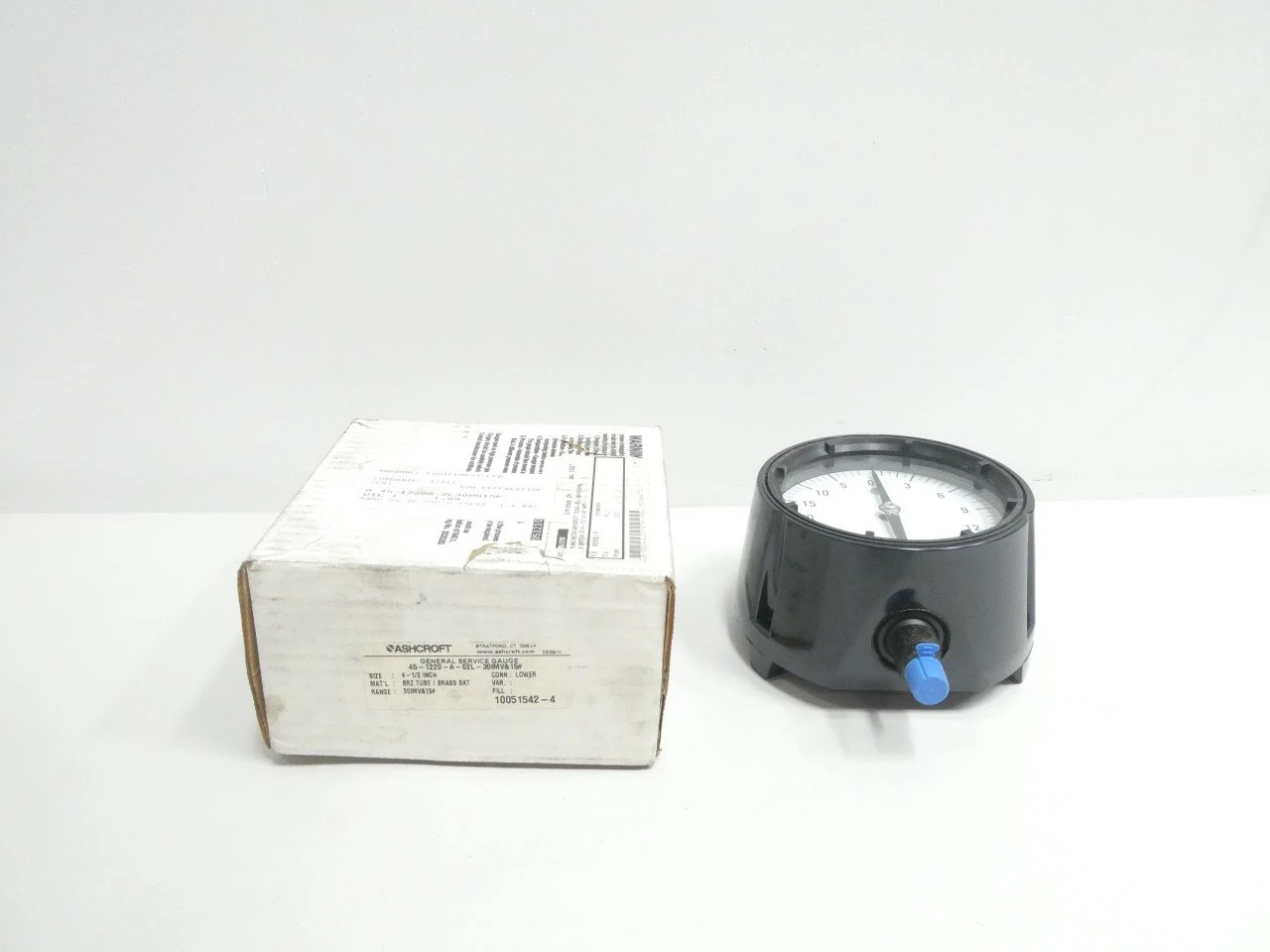

M	45-1220-A-02L-30IMV&15#	-	-	-	-	-	RFQ
F	45-1125-02L-140KPA	-	-	-	-	-	RFQ

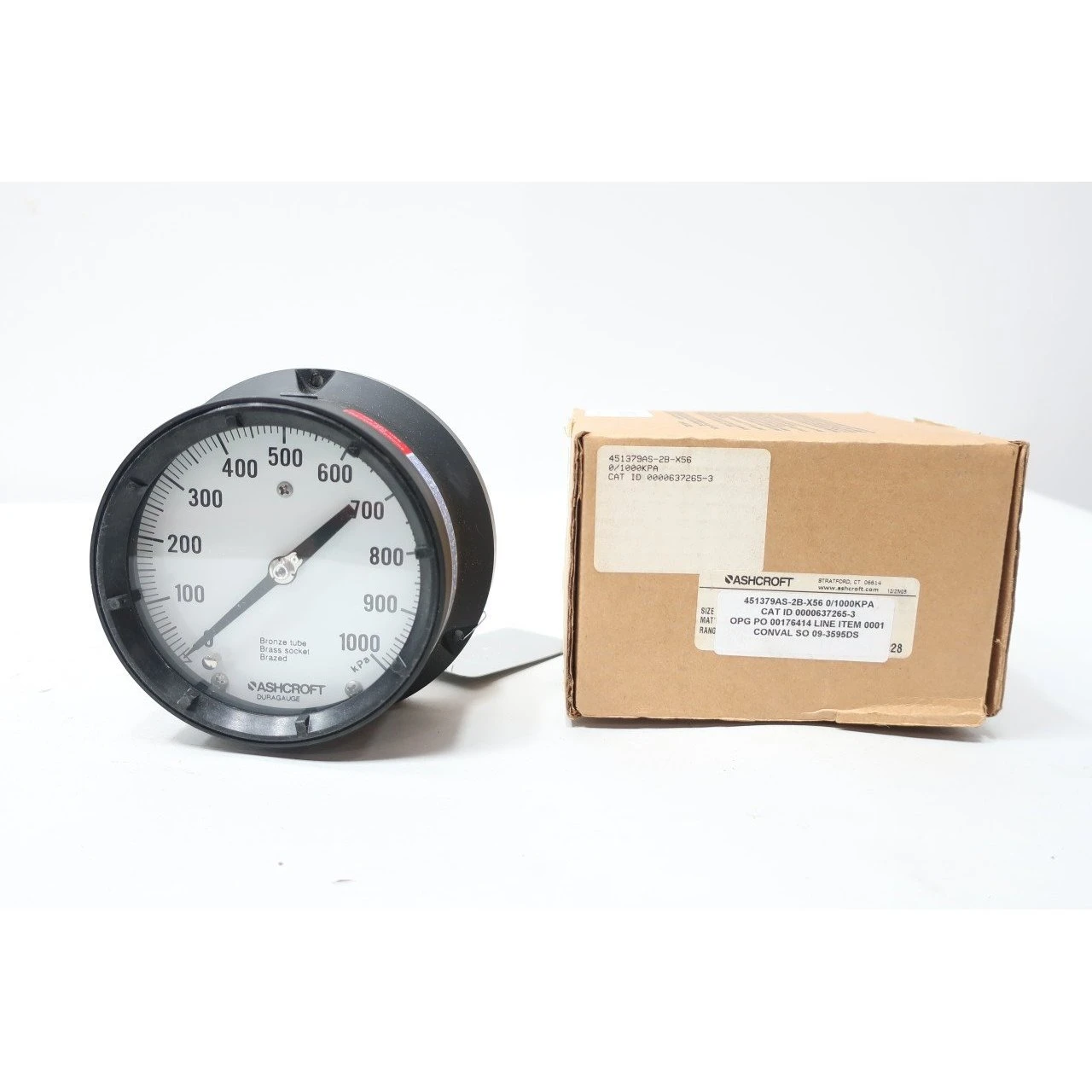

N	45-1379AS-2B-X56-0/1000KPA	-	-	-	-	-	RFQ

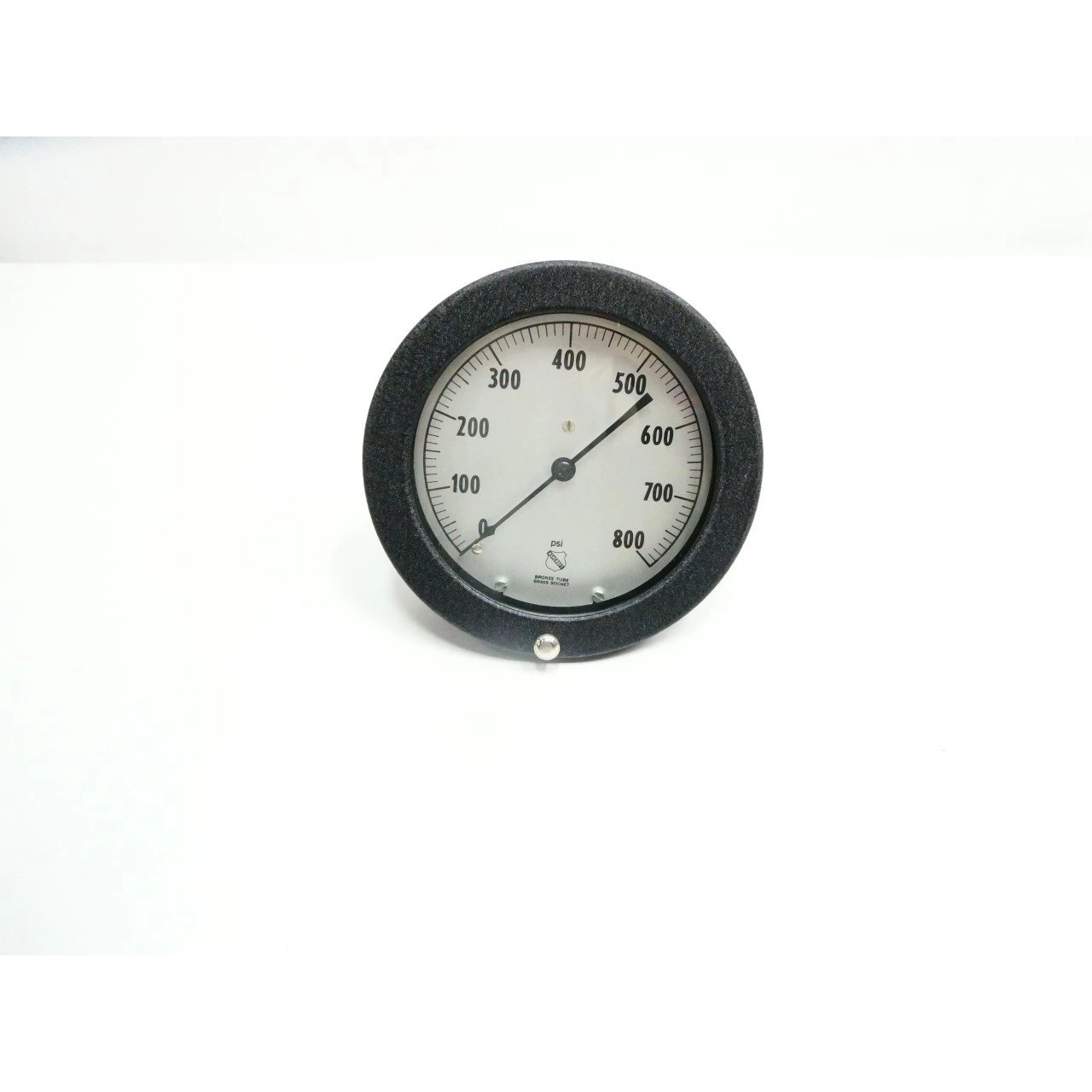

O	60-1017A-02B-800	-	-	-	-	-	RFQ

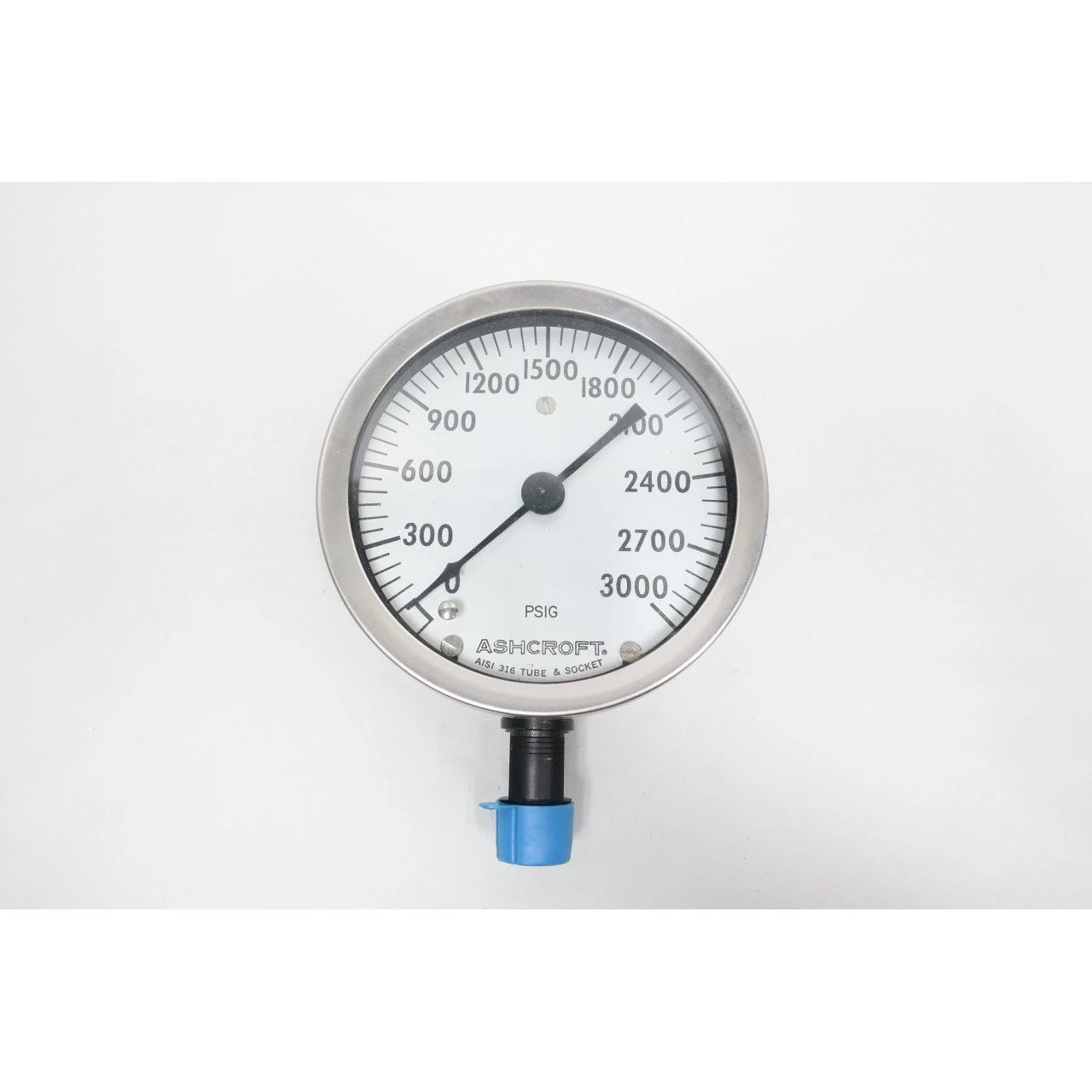

P	45-1009S-04L-3000	-	-	-	-	-	RFQ

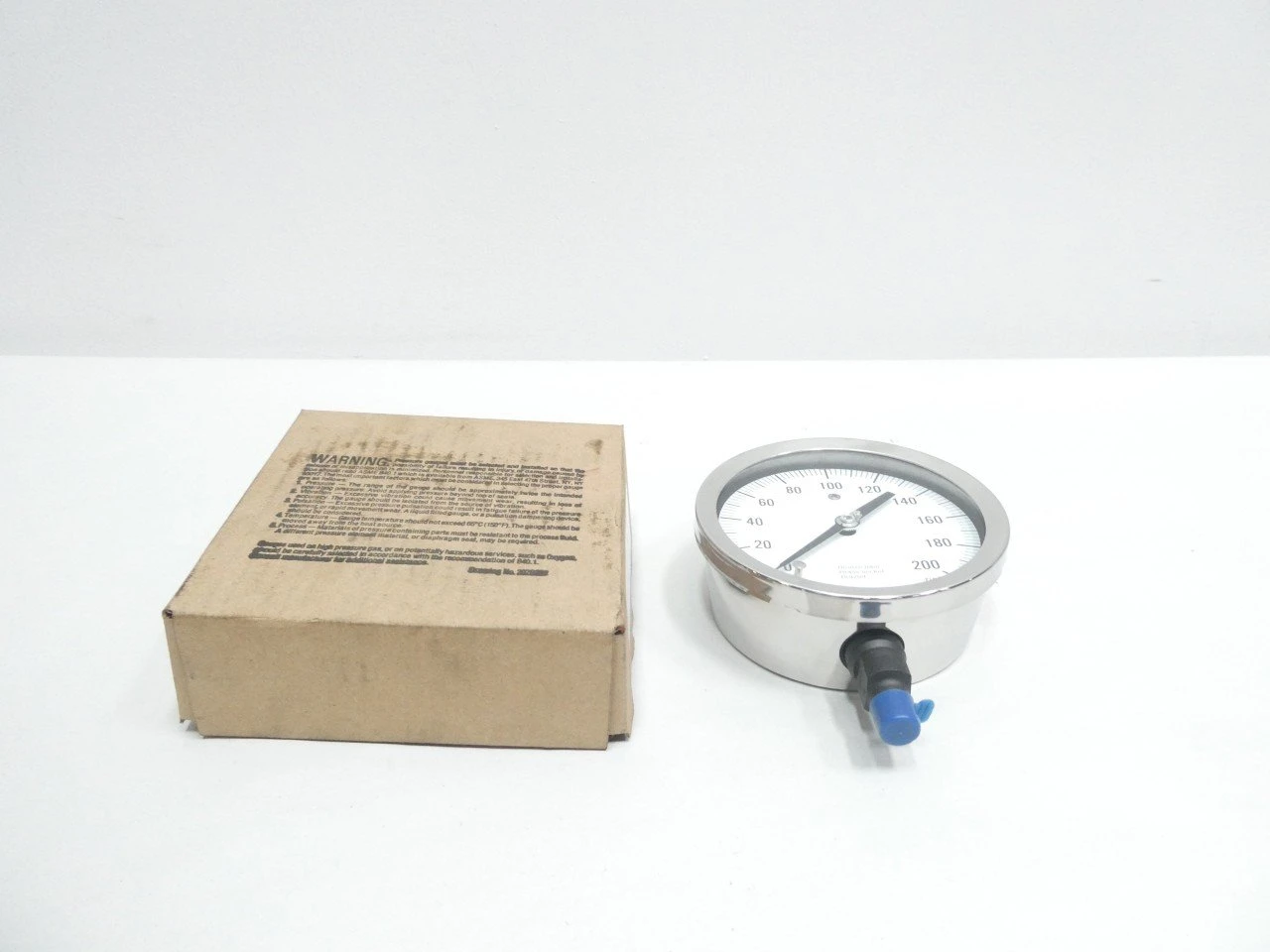

Q	45-1009-A-02L-200#	-	-	-	-	-	RFQ

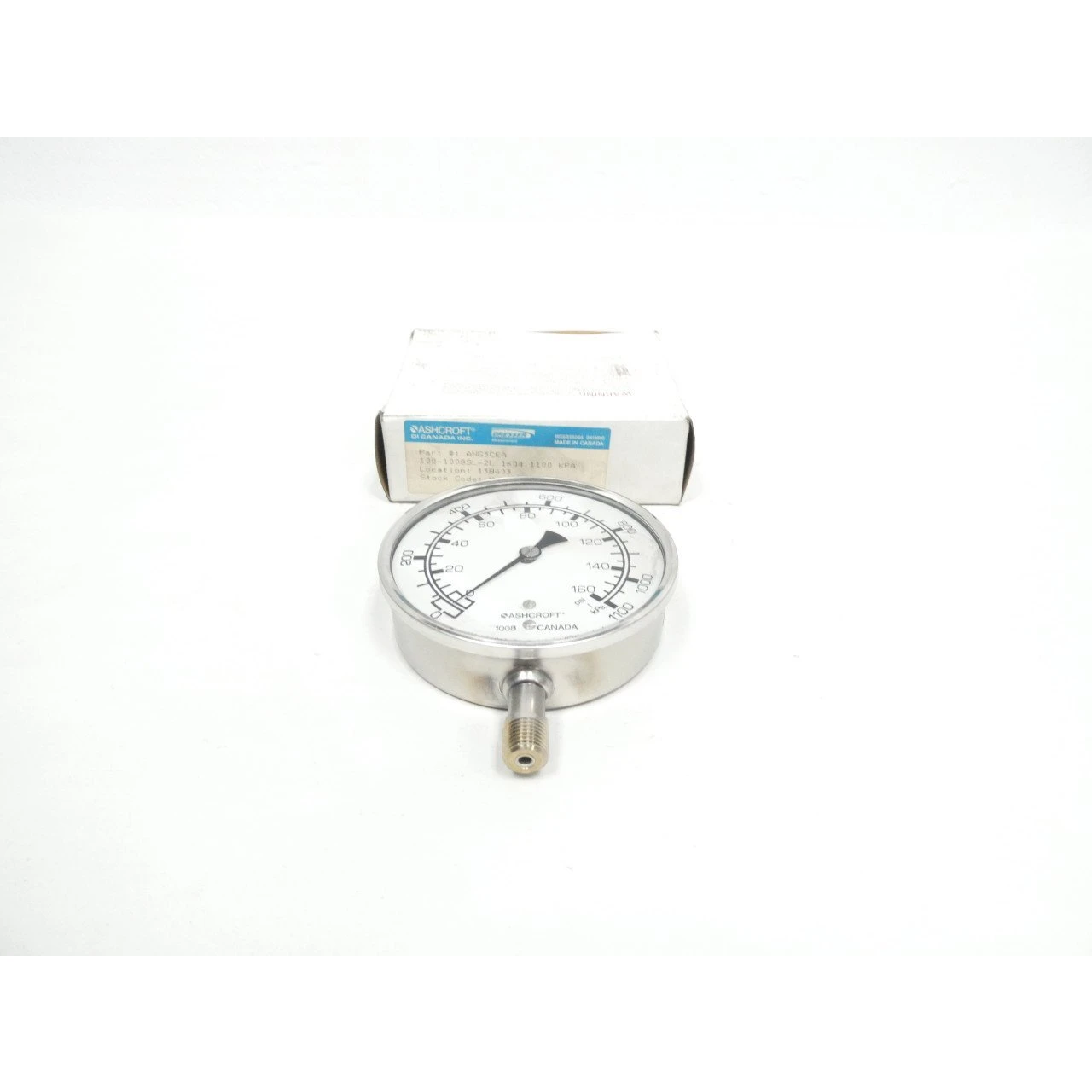

R	100-1008SL-2L-160#	-	-	-	-	-	RFQ

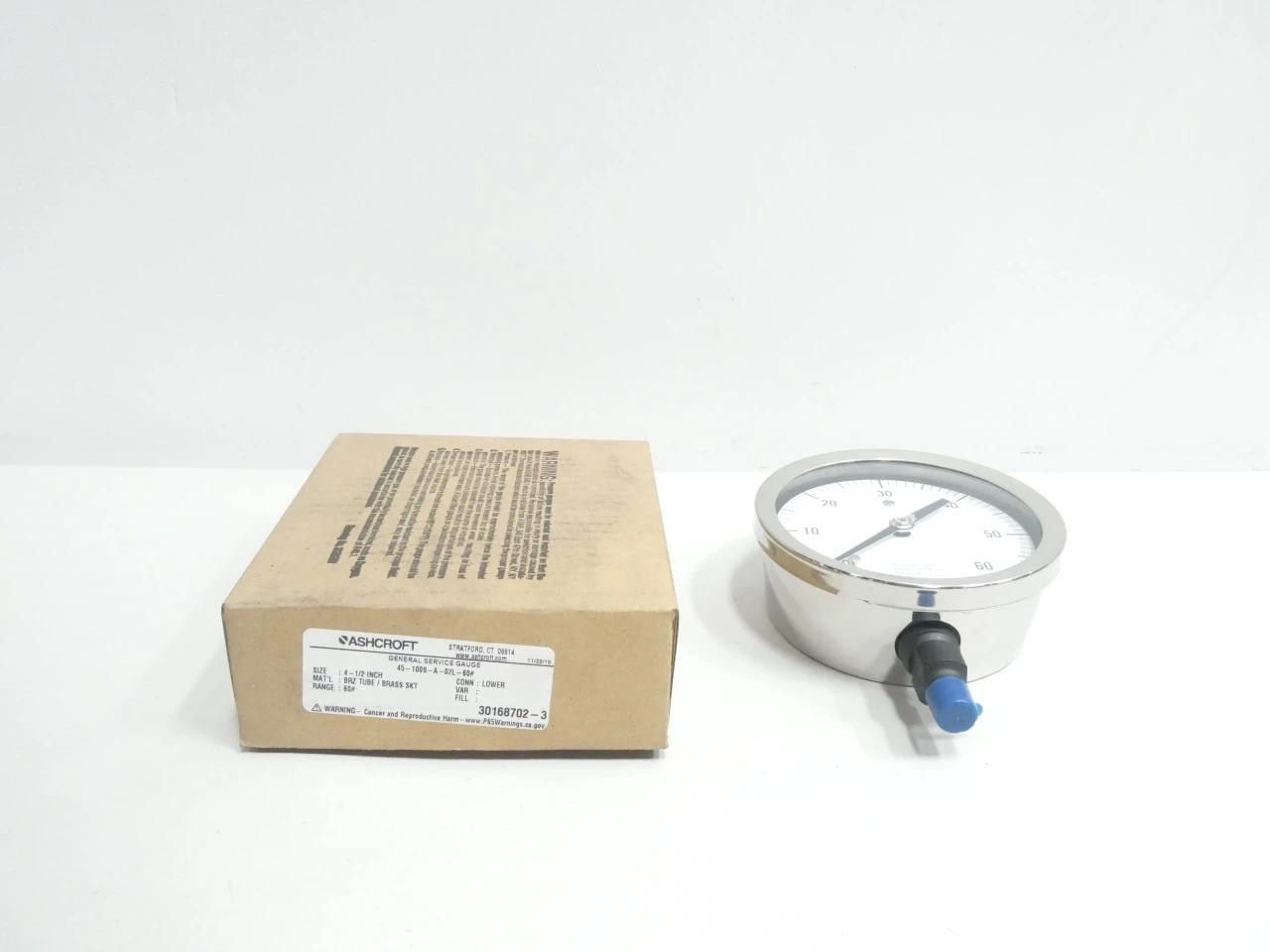

S	45-1009-A-02L-60#	-	-	-	-	-	RFQ

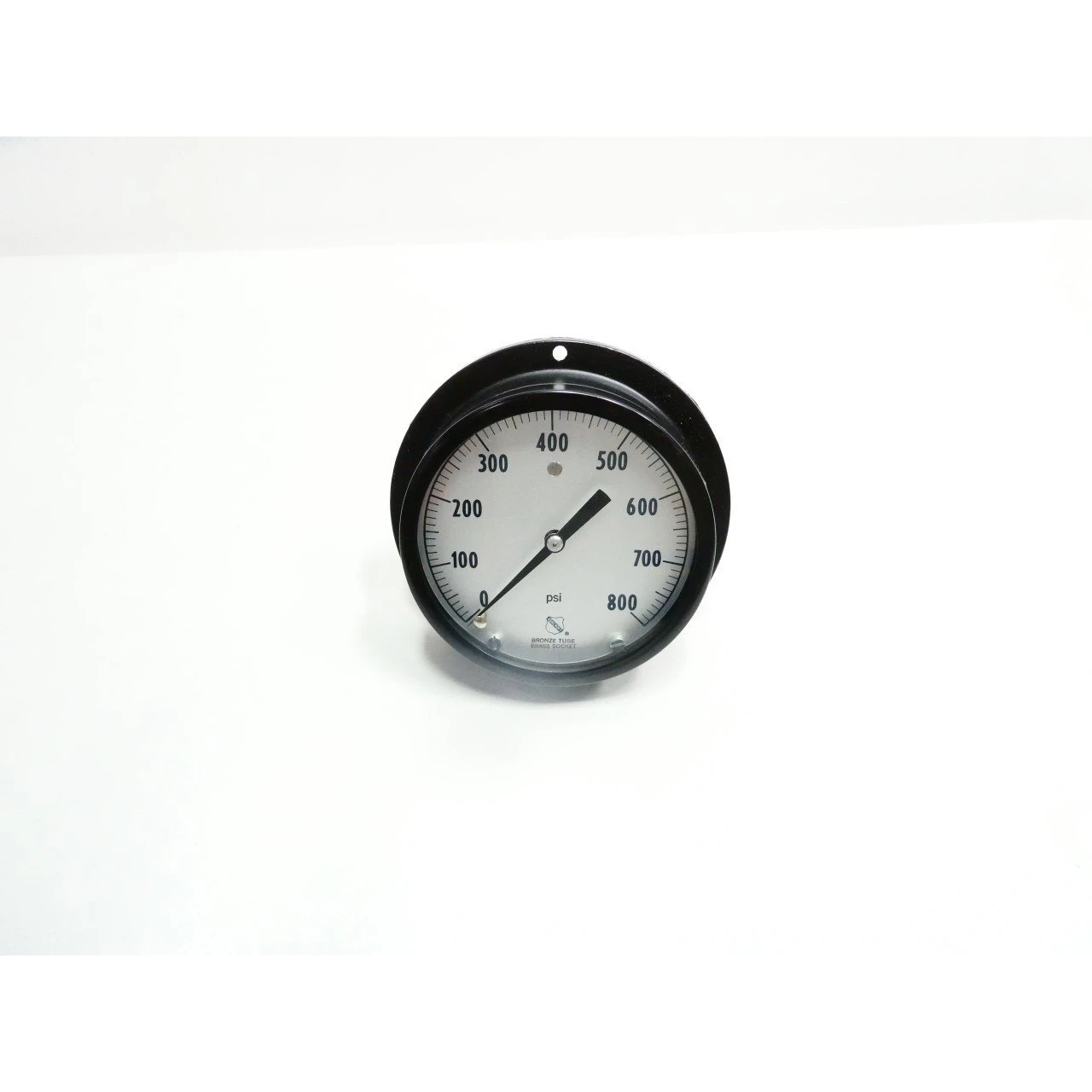

T	45-1010A-02B-800	-	-	-	-	-	RFQ

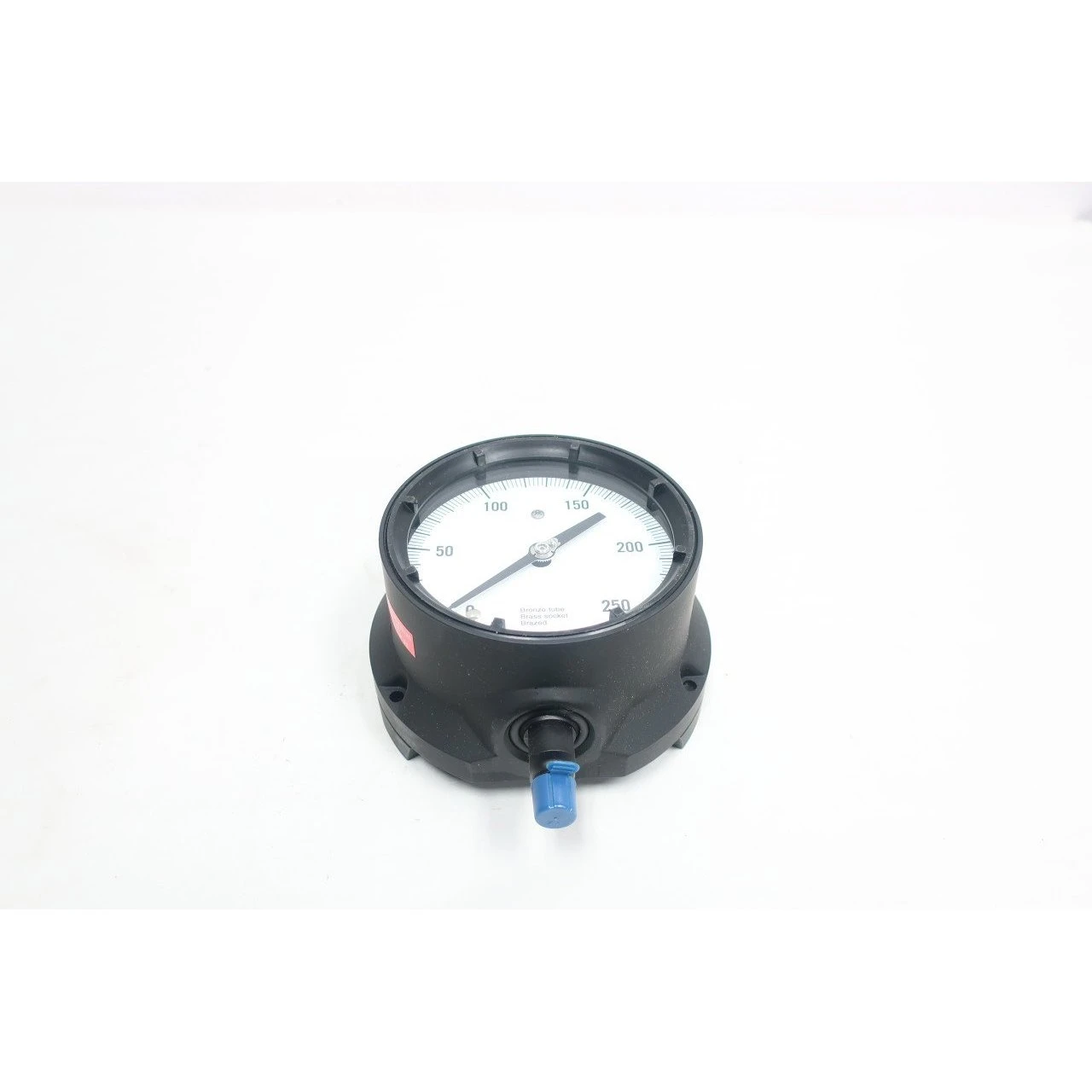

U	45-1379AS-02L-250KPA	-	-	-	-	-	RFQ

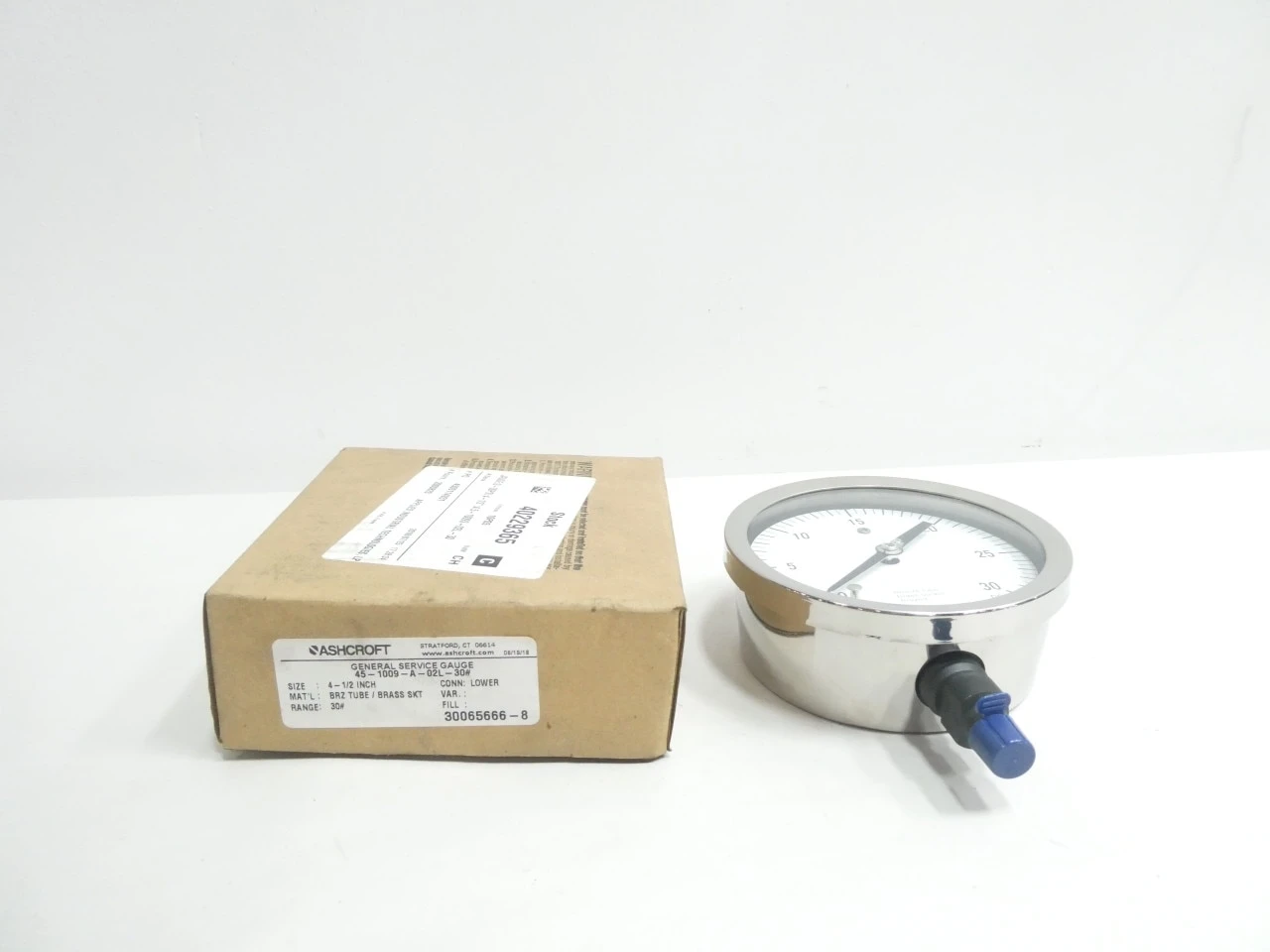

V	45-1009-A-02L-30#	-	-	-	-	-	RFQ
F	15W1005PHXSF01B60	-	-	-	-	-	RFQ
