HONEYWELL Damper And Valve Replacement Motors

Powered devices used to operate a damper and adjust the flow of air and smoke. Offer easy installation with a self-centering shaft adapter for mounting flexibility and a greater clamping force

Filter

HONEYWELL -

Modutrol Motor

Honeywell Modutrol motors are used to control valves and dampers in air handling systems or industrial-grade burners. With a maximum operating voltage of 120VAC, these motors feature quick-connect / screw / colour-coded connections to deliver torque ratings up to 150 in-lb. They offer remote and direct mounting configuration, and are capable of being operated at temperatures ranging from -40 to 160 degrees F.

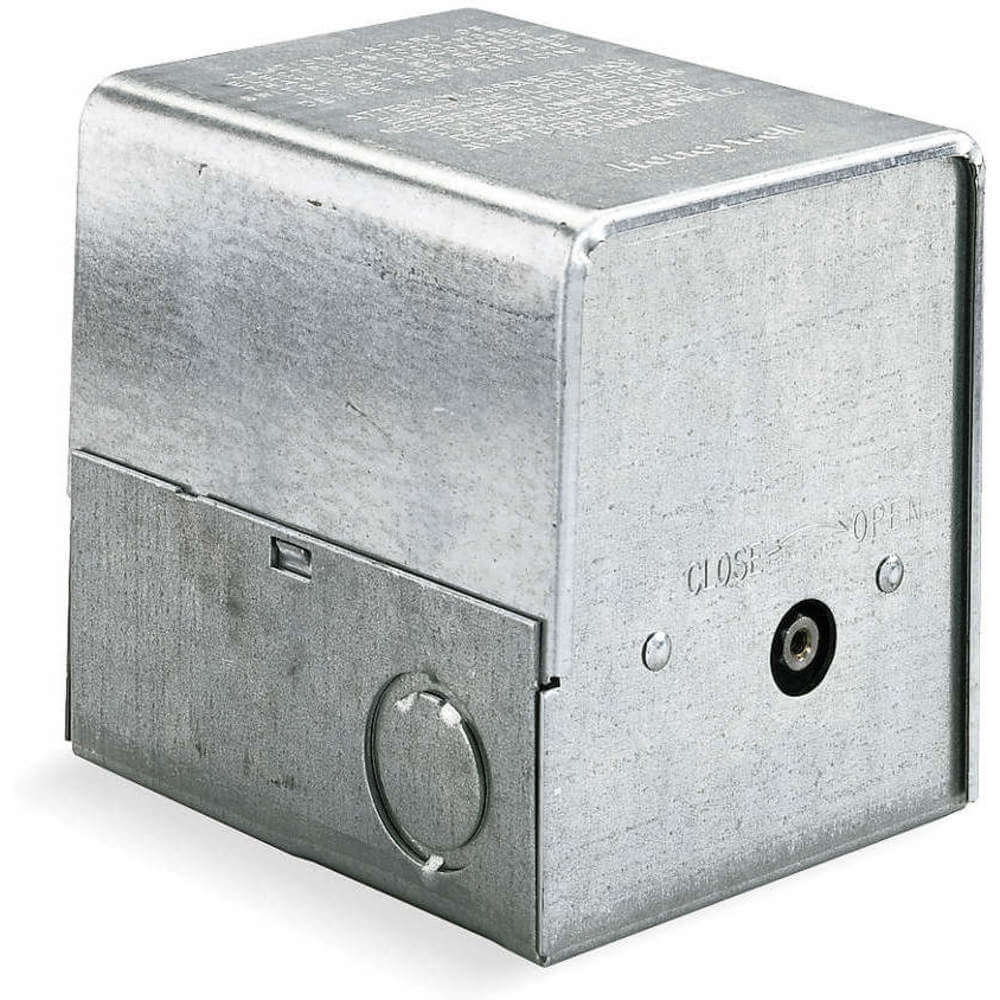

HONEYWELL M436A1116A
HONEYWELL MP909E1059/UB

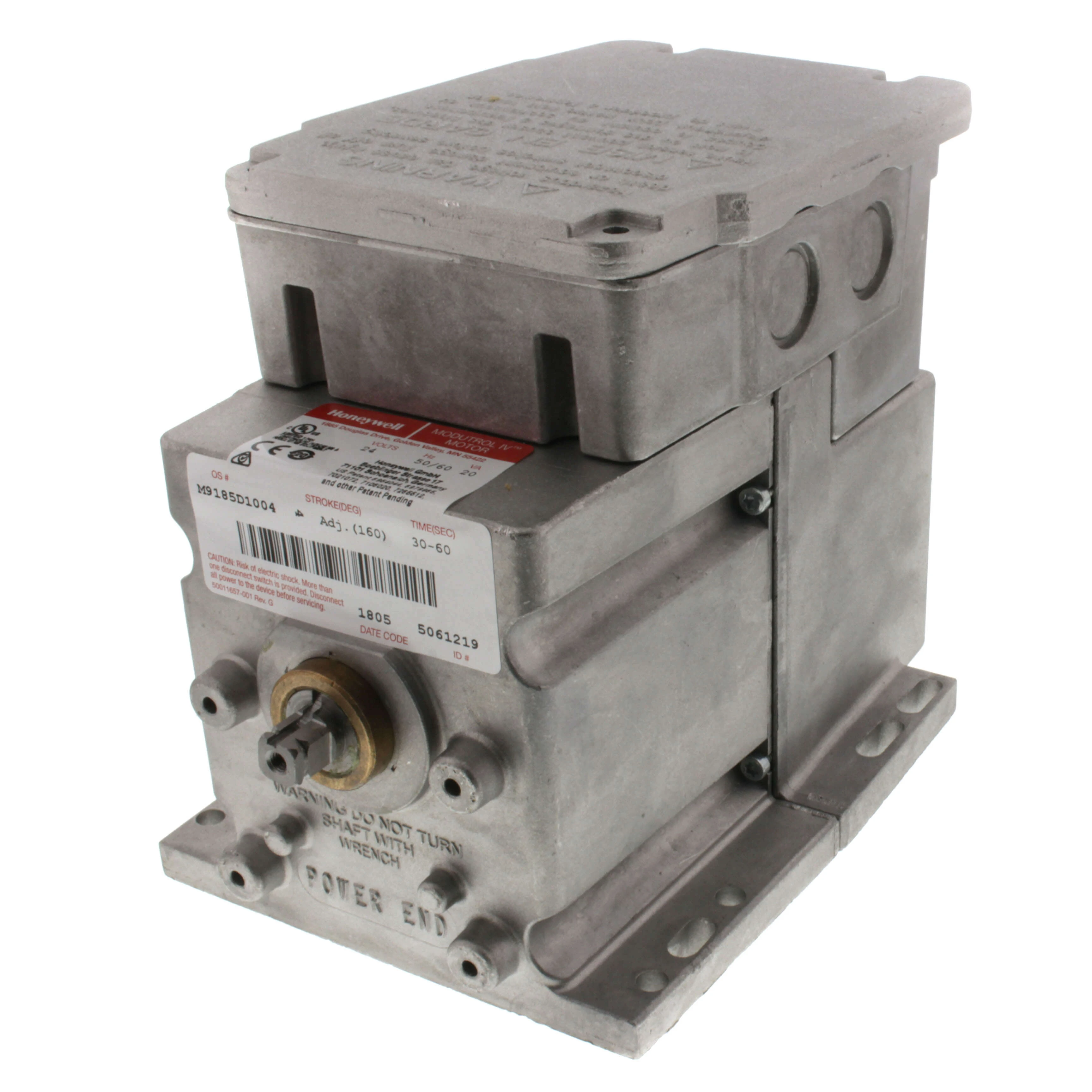

HONEYWELL M9185D1004/UC

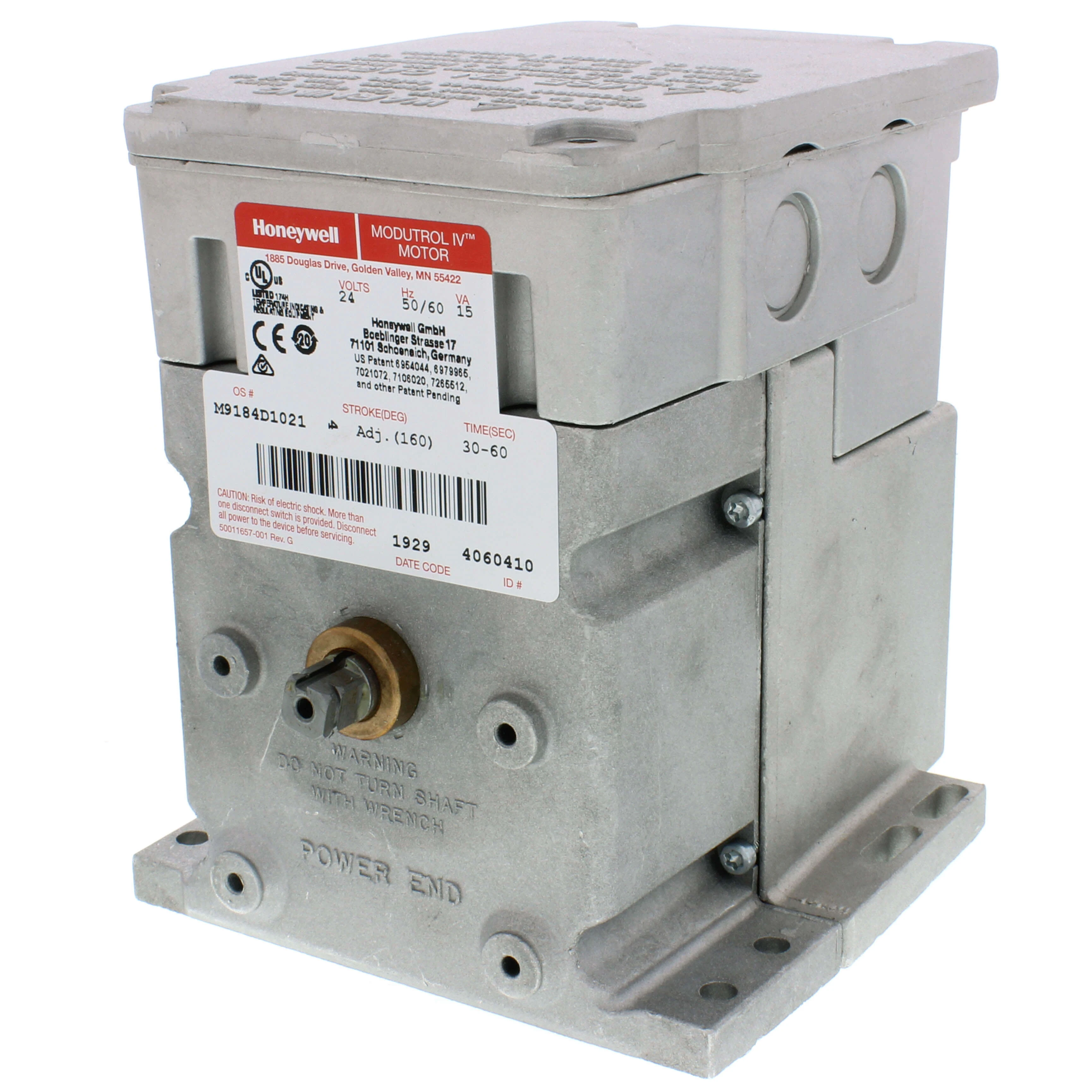

HONEYWELL M9184D1021/UD

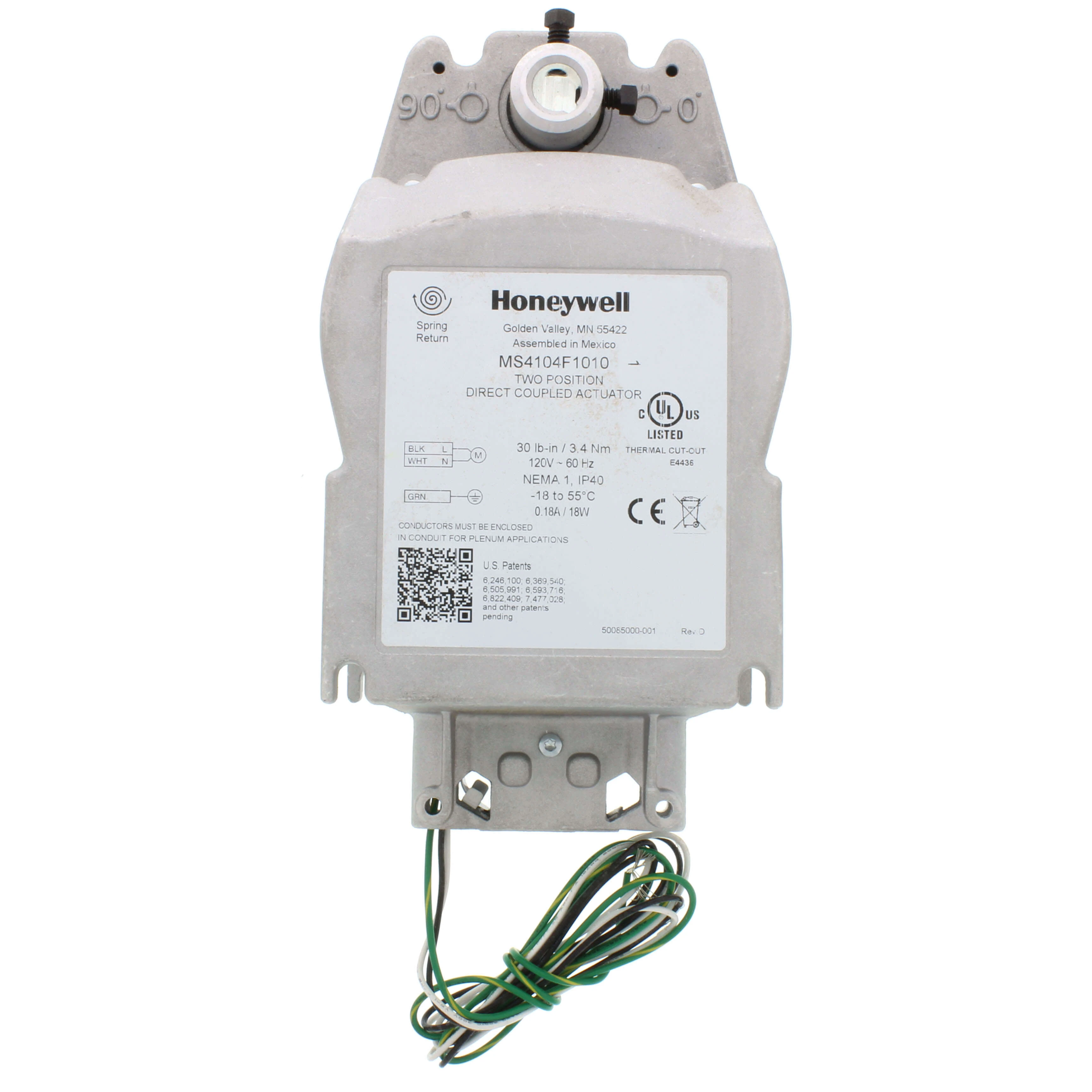

HONEYWELL MS4104F1010/UE

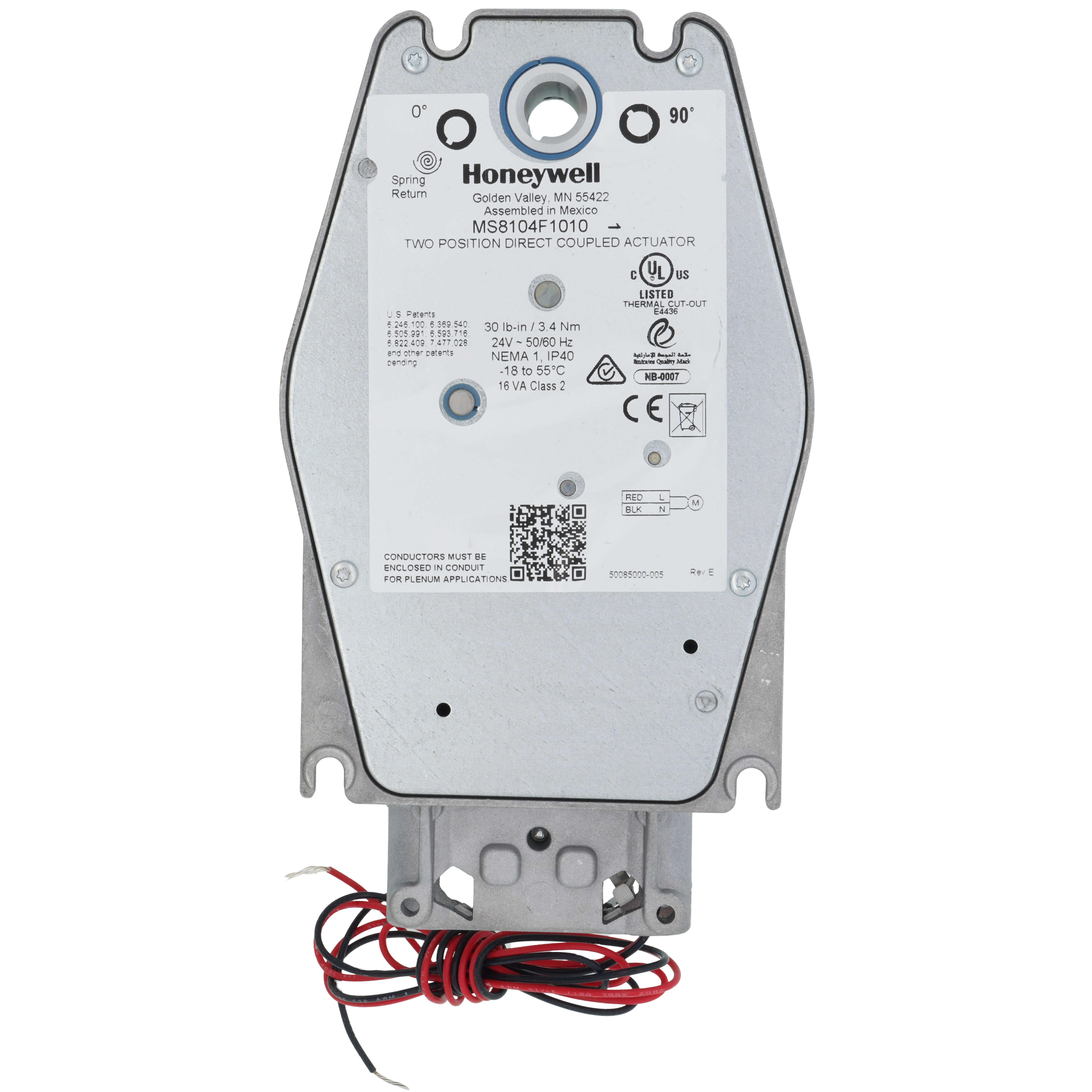

HONEYWELL MS8104F1010/UF

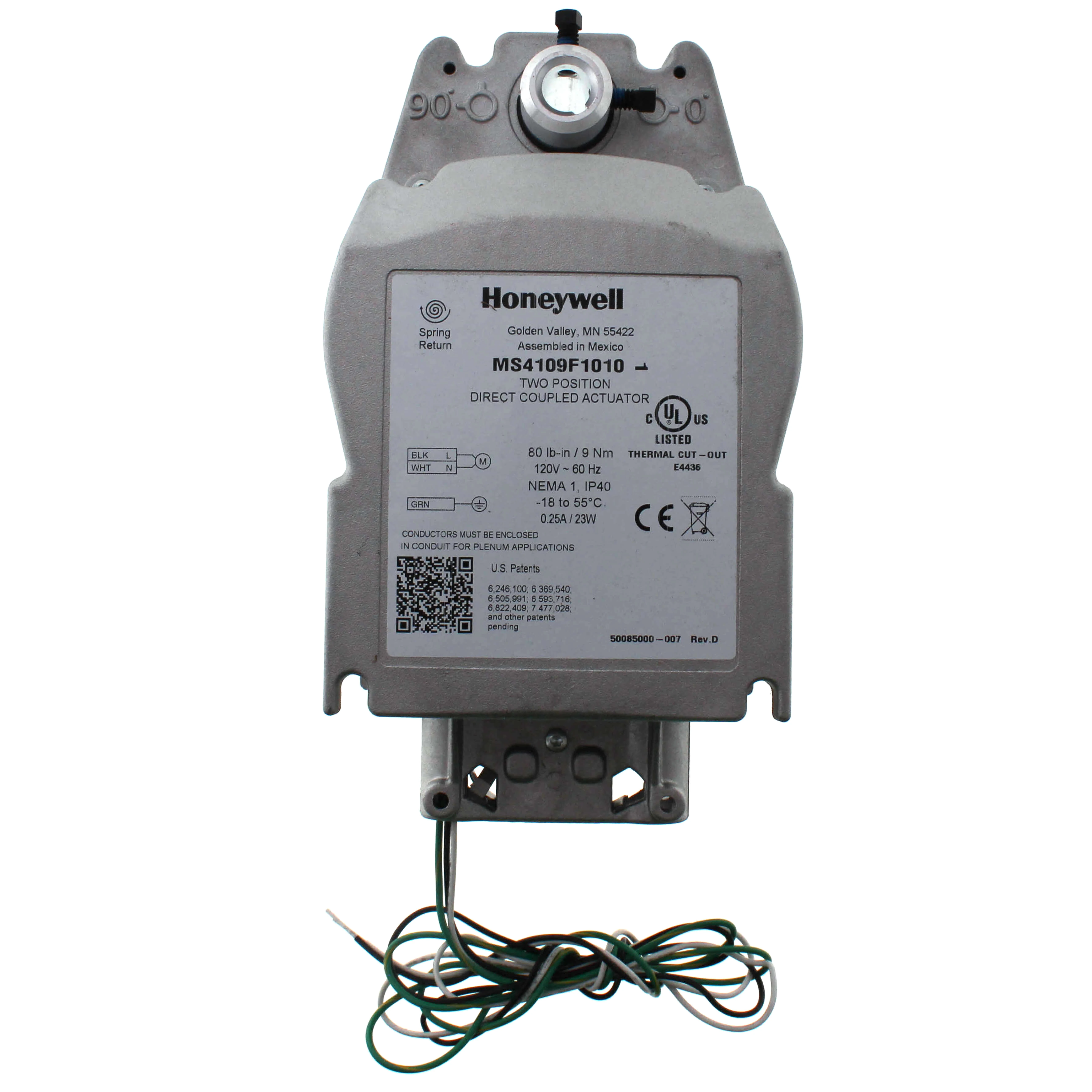

HONEYWELL MS4109F1010/UG
StyleModelAmbient Temp. RangeMounting TypeSpring ReturnHeightDepthTimingTypeReplaces Honeywell MotorsPrice
AM436A1116--------€774.27
BMP909E1059/U-28°F to +160°FDirect MountYes4 1/2"40 3/25"---€554.57
CM9185D1004/U-40°F to +140°FFoot MountYes6.437"8 3/4"30 sec. to 60 sec.Spring ReturnM945A, D, F M955€3,415.09
DM9184D1021/U-40°F to +150°FFoot MountNo6.437"7.312"30 sec. to 60 sec.Non Spring ReturnM944A, C, D And M954€3,503.34
EMS4104F1010/U0°F to +130°FDirect MountYes8.938"3 1/4"15 sec.-Mfr. No. ML4115B1008, ML4115B1016, ML4115H1002, ML4115J1009, ML4202F1000 AND ML4302F1008€649.58
FMS8104F1010/U0°F to +130°FDirect MountYes8.938"3 1/4"15 sec.-Mfr. No. ML8115A1005, ML8115A1013, ML8115B1004, ML8115B1012, ML8115H1008, ML8115J1005, ML8202F1006 AND ML8302F1004€607.79
GMS4109F1010/U0°F to +130°FDirect MountYes8.938"3 1/4"15 sec.-Mfr. No. MS4209F1007 AND MS4309F1005€805.20
HONEYWELL -

Floating Actuator

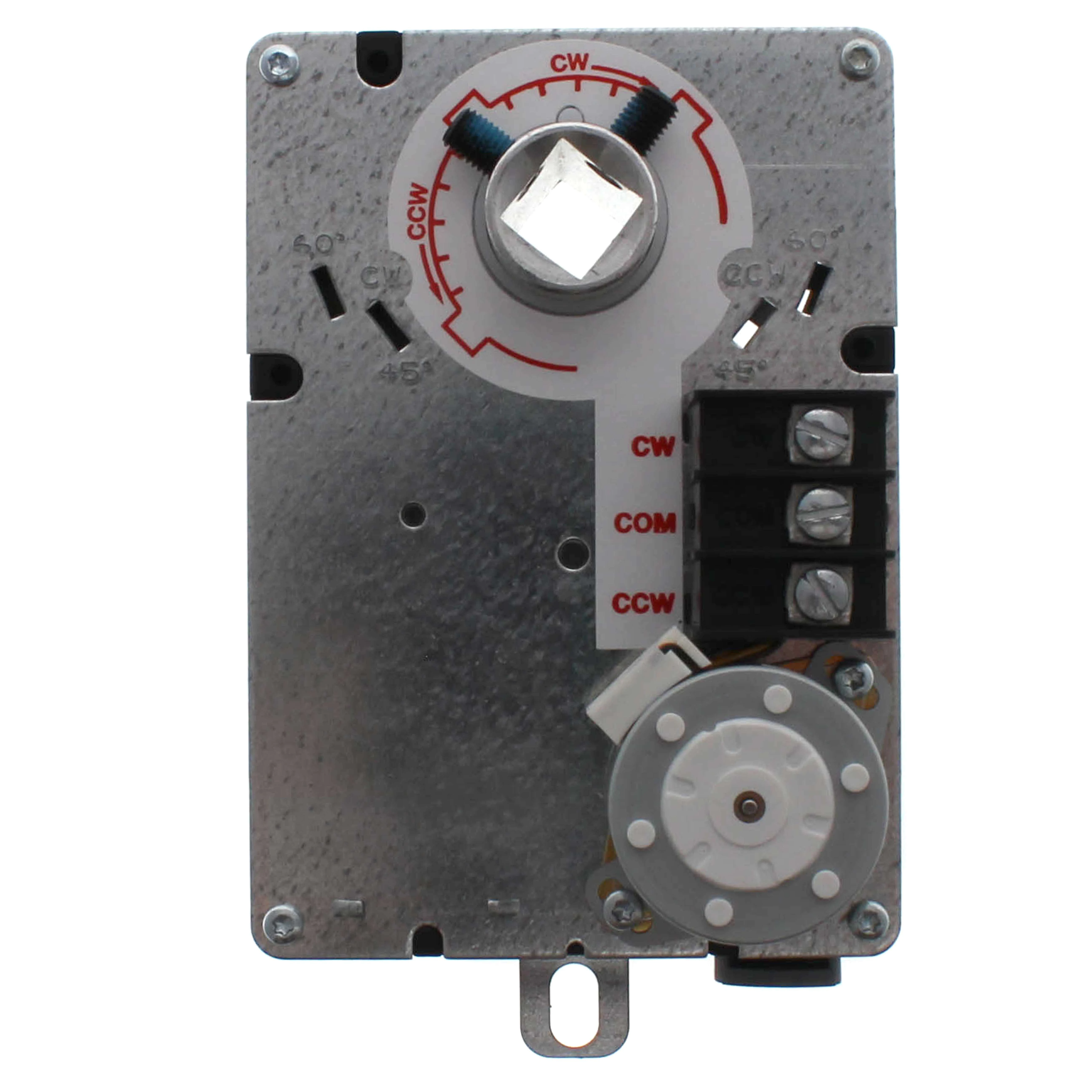

HONEYWELL ML6161B2024/UA

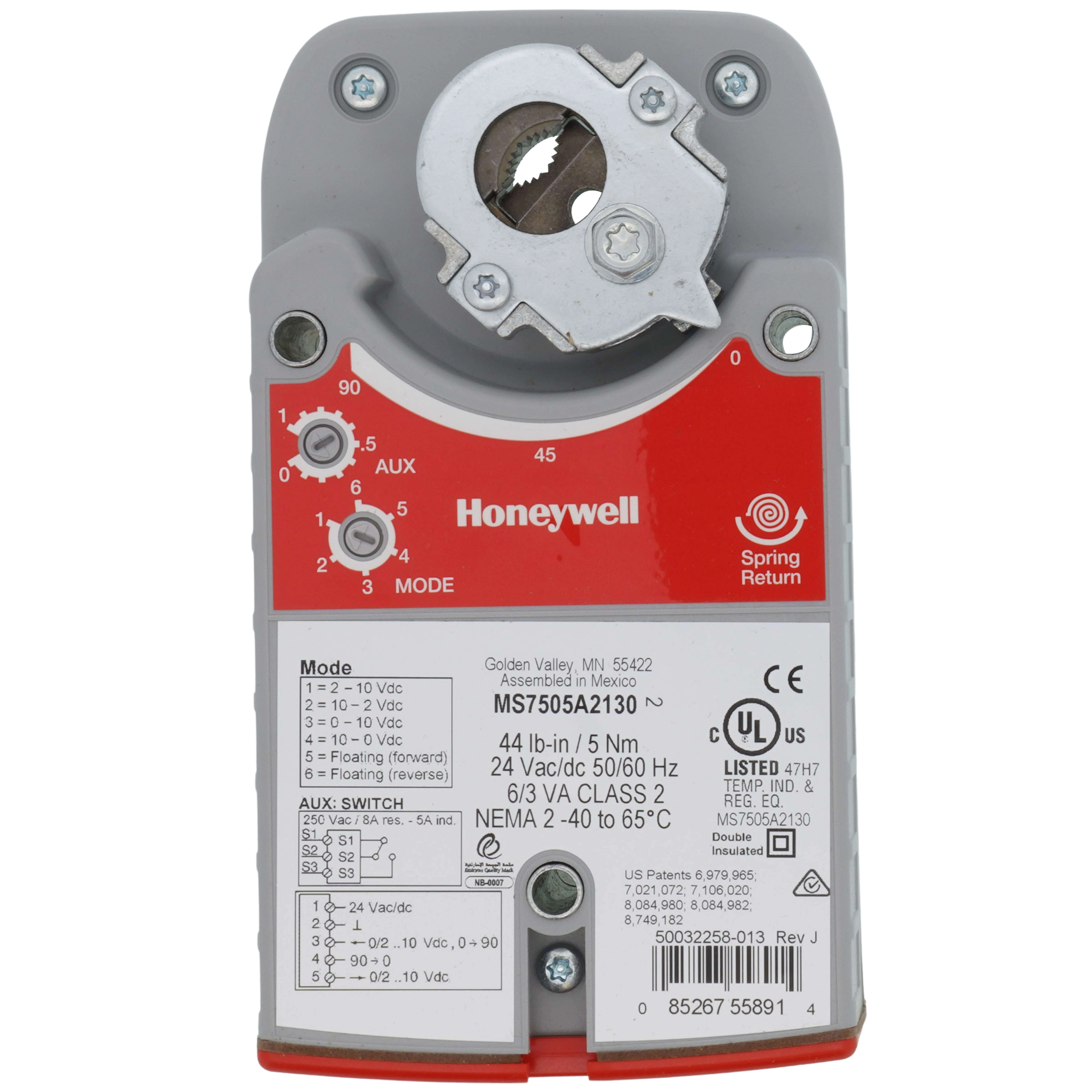

HONEYWELL MS7505A2130/UB
StyleModelAmbient Temp. RangeSpring ReturnDepthTorquePower ConsumptionMounting TypeTimingHeightPrice
AML6161B2024/U+20°F to +125°FNo2 1/2"35 lbs.-in.1.8 VADirect Mount90 sec.-€335.84
BMS7505A2130/U-22°F to +149°FYes3.156"44 lbs.-in.7.5 VADirect Mount90 sec.7 1/2"€865.92
HONEYWELL -

2-Position Actuator

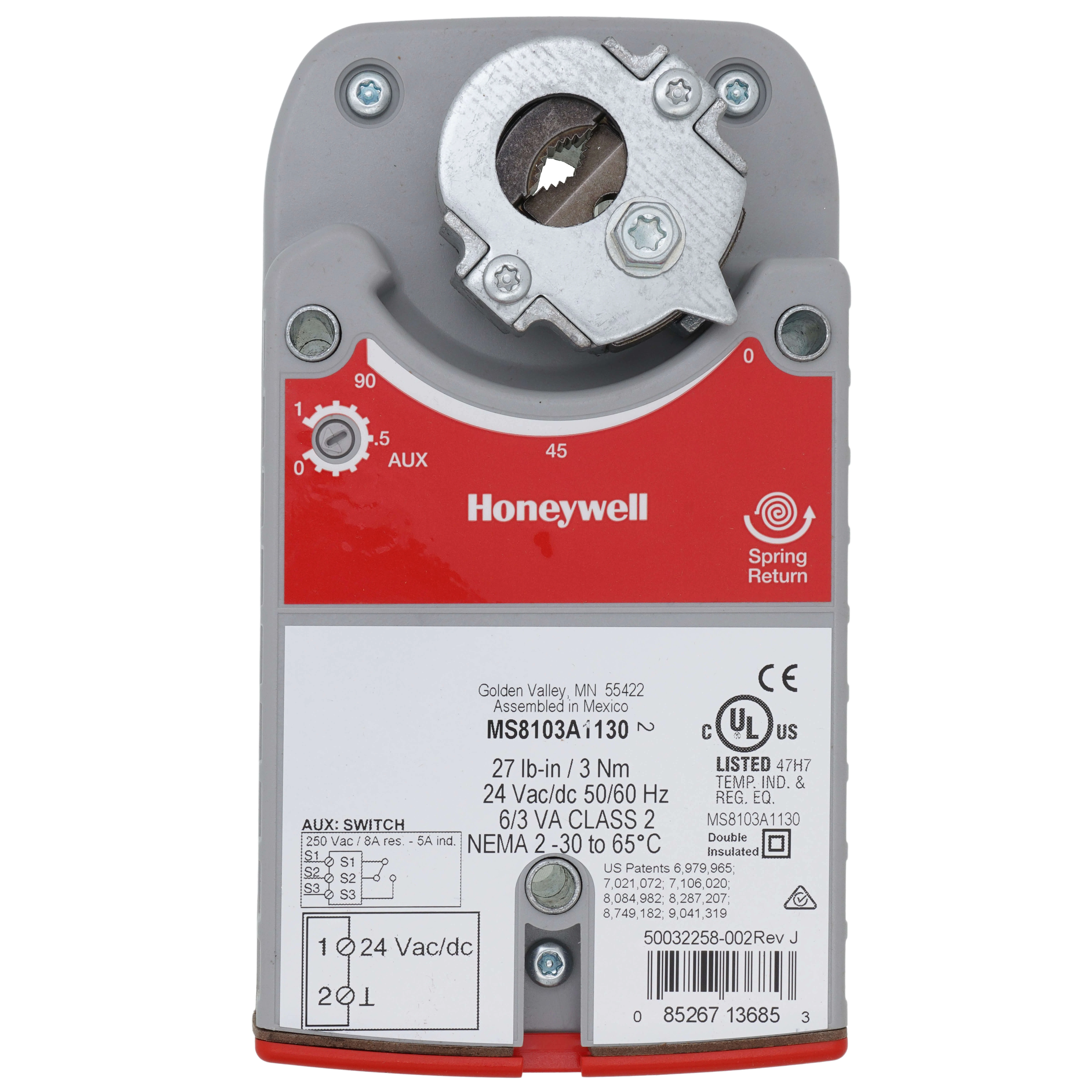

HONEYWELL MS8103A1130/UA

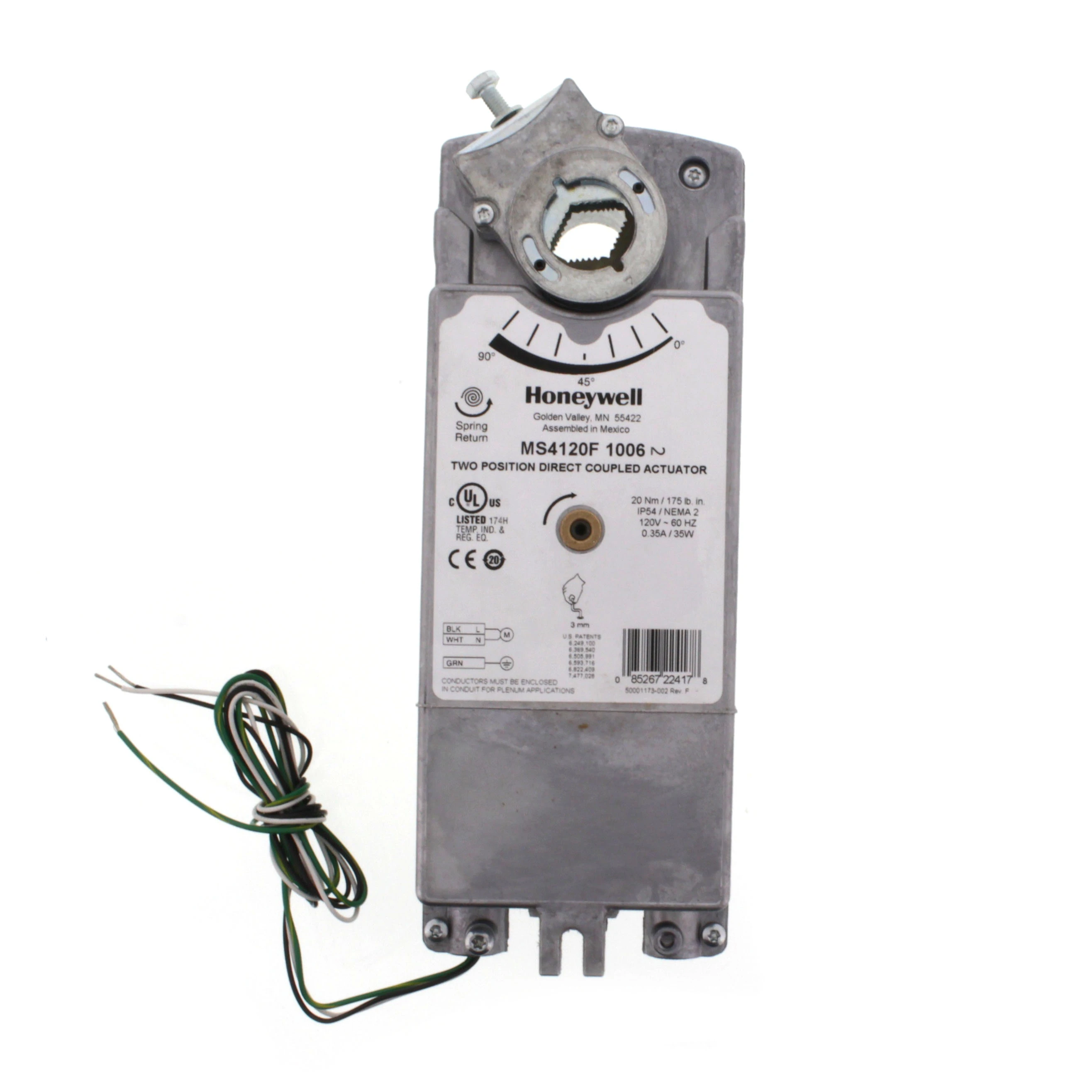

HONEYWELL MS4120F1006/UB

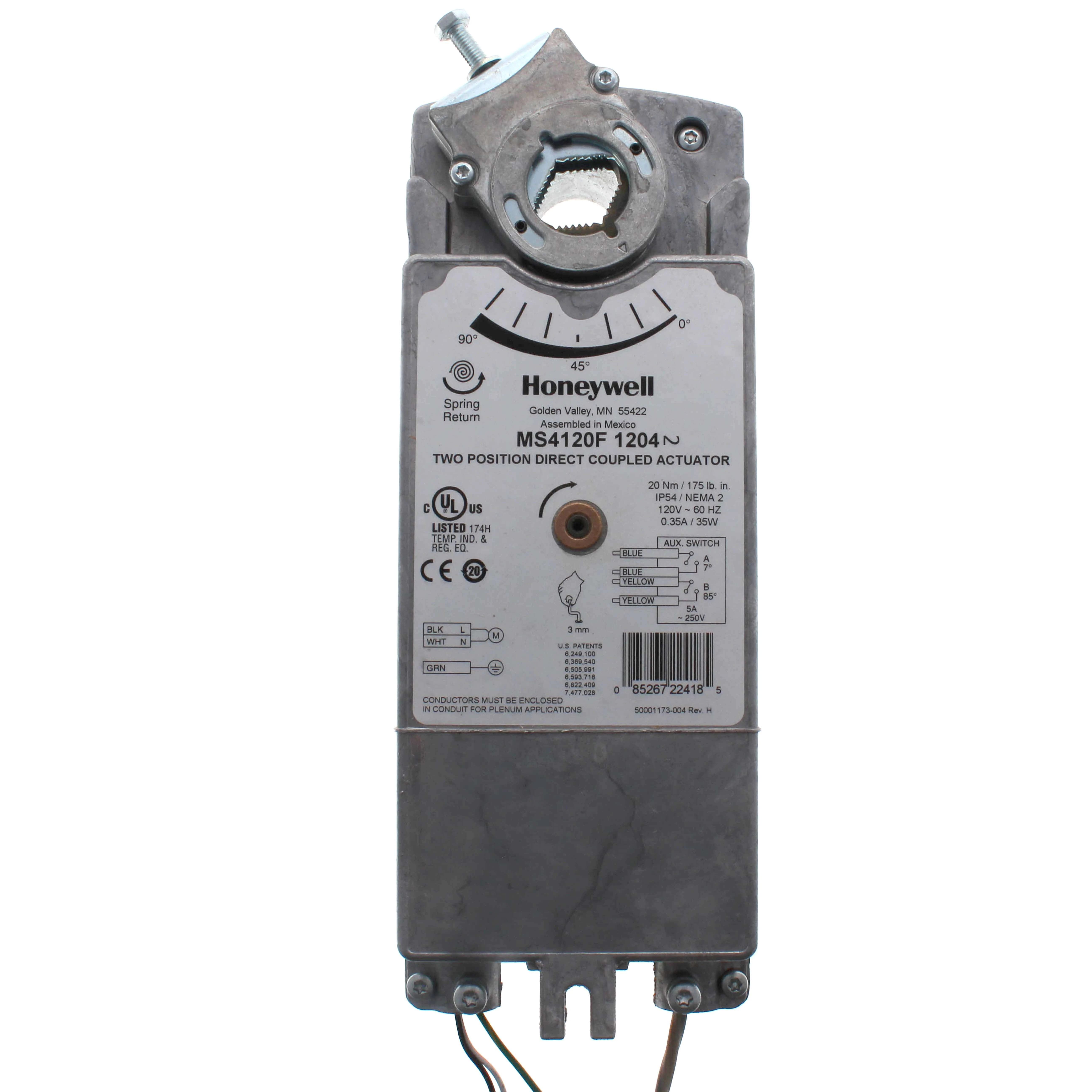

HONEYWELL MS4120F1204/UC

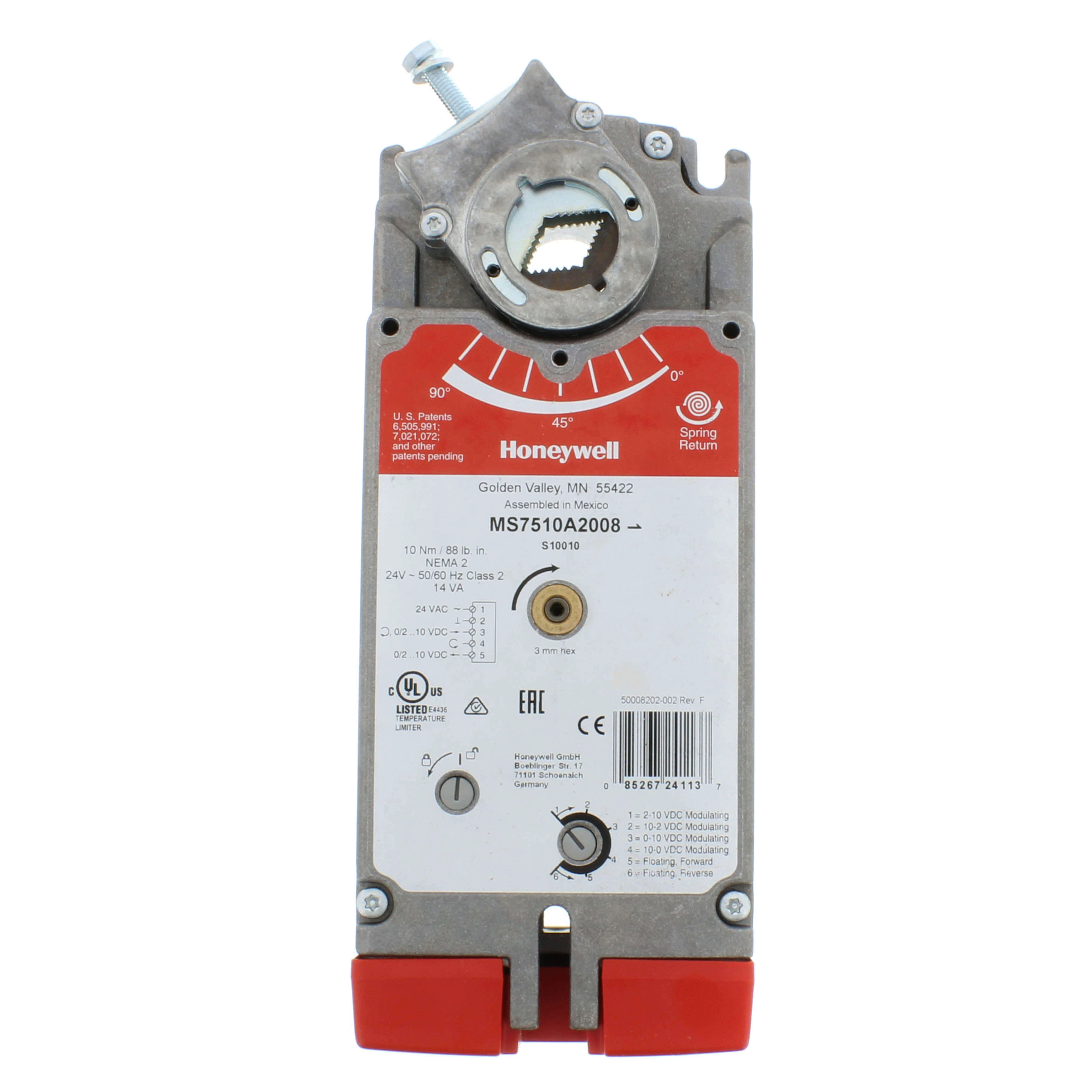

HONEYWELL MS7510A2008/UD

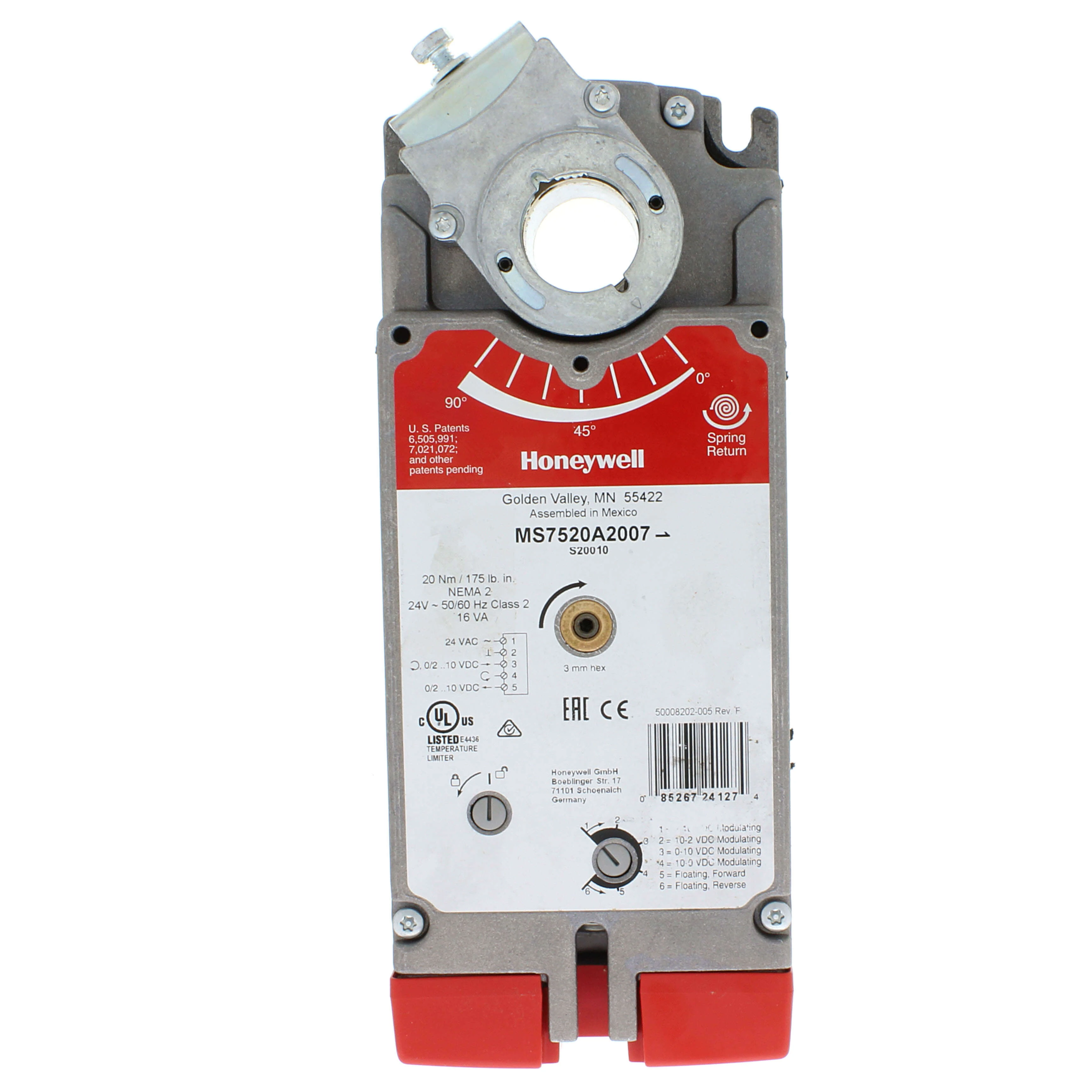

HONEYWELL MS7520A2007/UE
StyleModelAmbient Temp. RangeMounting TypeTimingHeightDepthTorqueSwitch TypePower ConsumptionPrice
AMS8103A1130/U-22°F to +149°FDirect Mount45 sec.7 1/2"3.156"27 lbs.-in.SPST6 VA€652.02
BMS4120F1006/U-40°F to +130°FDirect15 sec.10.688"3.938"175 lbs.-in.SPST-€1,055.83
CMS4120F1204/U-40°F to +130°FDirect Mount15 sec.10.688"3.938"175 lbs.-in.Two Spdt35 W€1,190.71
DMS7510A2008/U-40°F to +140°FDirect Mount90 sec.9 3/4"2.938"88 lbs.-in.SPDT14 VA€755.70
EMS7520A2007/U-40°F to +140°FDirect Mount90 sec.9 3/4"2.938"175 lbs.-in.SPDT16 VA€974.89
HONEYWELL -

Modutrol Motor Torque 150 In-lbs

Modutrol Motor Torque 150 In-lbs
ModelItemPrice (ex. VAT)
M6184D1035/UAB3GFP€2,666.57
HONEYWELL -

Modulating Actuator, Spring Return, Direct Coupled, 27 Lb-Inch Torque

Modulating Actuator, Spring Return, Direct Coupled, 27 Lb-Inch Torque
ModelItemPrice (ex. VAT)
MS7103A1021EC3DBU€286.44
RFQ
HONEYWELL -

Foot Mounted Actuator, Non-Spring Return, 35 Lb-Inch Torque, 24V

Foot Mounted Actuator, Non-Spring Return, 35 Lb-Inch Torque, 24V
ModelItemPrice (ex. VAT)
M9164D1009EC3DJZ€1,299.84
RFQ
HONEYWELL -

Foot Mounted Actuator, Internal Auxiliary Switch, Non-Spring Return, 300 Lb-Inch Torque

Foot Mounted Actuator, Internal Auxiliary Switch, Non-Spring Return, 300 Lb-Inch Torque
ModelItemPrice (ex. VAT)
M9194E1000EC3DER€3,039.73
RFQ
HONEYWELL -

Direct Coupled Actuator, Conduit, Fire/Smoke Damper, 2 Auxiliary Switches, 24V

Direct Coupled Actuator, Conduit, Fire/Smoke Damper, 2 Auxiliary Switches, 24V
ModelItemPrice (ex. VAT)
MS8103F1223EC3DFP€355.93
RFQ
HONEYWELL -

Direct Coupled Actuator, 2 Auxiliary Switches, Conduit, Fire/Smoke Damper, 120-230V

Direct Coupled Actuator, 2 Auxiliary Switches, Conduit, Fire/Smoke Damper, 120-230V
ModelItemPrice (ex. VAT)
MS4103F1221EC3DFT€389.77
RFQ
HONEYWELL -

Foot Mounted Actuator, Non-Spring Return, 24V, 150 Lb-Inch Torque

Foot Mounted Actuator, Non-Spring Return, 24V, 150 Lb-Inch Torque
ModelItemPrice (ex. VAT)
M9184A1019EC3DGD€1,654.42
RFQ
HONEYWELL -

Direct Coupled Actuator, Fire/Smoke Damper, 2 Auxiliary Switches, 120-230V

Direct Coupled Actuator, Fire/Smoke Damper, 2 Auxiliary Switches, 120-230V
ModelItemPrice (ex. VAT)
MS4103F1226EC3DHG€487.66
RFQ
HONEYWELL -

Direct Coupled Actuator, Fire/Smoke Damper, 120-230V

Direct Coupled Actuator, Fire/Smoke Damper, 120-230V
ModelItemPrice (ex. VAT)
MS4103F1025EC3DJA€374.85
RFQ
HONEYWELL -

Foot Mounted Actuator, Non-Spring Return, 300 Lb-Inch Torque, 24V

Foot Mounted Actuator, Non-Spring Return, 300 Lb-Inch Torque, 24V
ModelItemPrice (ex. VAT)
M9194D1003EC3DJN€4,141.01
RFQ
HONEYWELL -

Actuator, 3-Wire, 1 Meter Cable, 24V

Actuator, 3-Wire, 1 Meter Cable, 24V
ModelItemPrice (ex. VAT)
VC6931ZZ11EC3DLC€155.99
RFQ
HONEYWELL -

Actuator, Low Volt

Actuator, Low Volt
ModelItemPrice (ex. VAT)
VC8114ZZ31EC3DDG€75.00
RFQ
HONEYWELL -

Modulating Actuator, Spring Return, Direct Coupled, 27 Lb-Inch Torque

Modulating Actuator, Spring Return, Direct Coupled, 27 Lb-Inch Torque
ModelItemPrice (ex. VAT)
MS7103A2021EC3DDR€303.97
RFQ
HONEYWELL -

Direct Coupled Actuator, 2 Auxiliary Switches, Fire/Smoke Damper, 120-230V

Direct Coupled Actuator, 2 Auxiliary Switches, Fire/Smoke Damper, 120-230V
ModelItemPrice (ex. VAT)
MS4103F1223EC3DCA€385.12
RFQ
HONEYWELL -

Foot Mounted Actuator, 2 Auxiliary Switches, Non-Spring Return, 300 Lb-Inch Torque, 120V

Foot Mounted Actuator, 2 Auxiliary Switches, Non-Spring Return, 300 Lb-Inch Torque, 120V
ModelItemPrice (ex. VAT)
M9194C1005EC3DAW€3,592.48
RFQ
HONEYWELL -

Direct Coupled Actuator, Fire/Smoke Damper, Conduit, 120-230V

Direct Coupled Actuator, Fire/Smoke Damper, Conduit, 120-230V
ModelItemPrice (ex. VAT)
MS4103F1023EC3CPP€320.02
RFQ
HONEYWELL -

Spring Return Actuator, Spring Return, Fast Acting, Two-Position

Spring Return Actuator, Spring Return, Fast Acting, Two-Position
ModelItemPrice (ex. VAT)
MS8109F1210EC3CTR€701.21
RFQ
HONEYWELL -

Actuator Spring Return 175 Lbs Switch

Actuator Spring Return 175 Lbs Switch
ModelItemPrice (ex. VAT)
MS7520W2205AF2RYV-
RFQ
