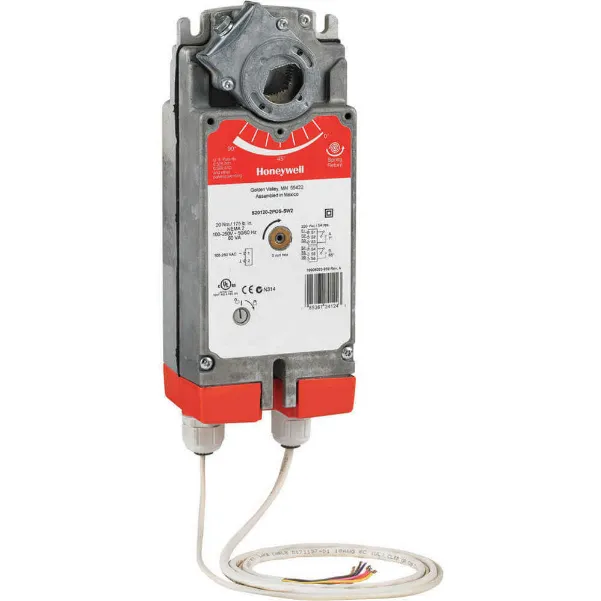

HONEYWELL MS7520W2205 Actuator Spring Return 175 Lbs Switch
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Actuator |
| Ambient Temp. | -40°F to +140°F |
| Control Signal | Floating Point |
| Depth | 17 1/4" |
| Electrical Connections | Wire Cable Whip |
| Height | 3 3/4" |
| Included | 3 ft. Cable, 3 mm Crank, Mounting Bracket, Self-Centering Shaft Adapter |
| Input Voltage | 24V AC |
| Max. Operating Temp. | 140°F |
| Min. Operating Temp. | -40°F |
| Mounting Type | Direct Mount |
| Overall Depth | 3" |
| Overall Height | 9 3/4" |
| Overall Width | 4" |
| Power | 16 VA |
| Power Consumption | 5 VA |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering Clamping |
| Signal Type | Proportional |
| Spring Return | Yes |
| Stroke Deg. | 95 +- 3 |
| Stroke Deg. | 95° |
| Stroke Degree | 95 +/-3 |
| System Application | Air Handlers, Dampers, Louvers, Ventilation Flaps |
| Time To Close | 20 sec. |
| Timing | 90 |
| Torque | 175 lbs.-in. |
| Type | Spring Return |
| Voltage | 24V AC |
| Width | 6 3/4" |
Shipping Info:
| Ship weight (kg) | 3.31 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 17.15 |
| HS code | 8501104020 |
| Country of Origin | MX |
