SPEEDAIRE Compressed Air Filters

Speedaire compressed air filters, also known as line filters, are designed for removing contaminants from compressed air after compression. These air filters trap dirt & impurities, in addition to removing moisture, to provide better compressor airflow.

Filter

SPEEDAIRE -

Intermediate Compressed Air Filter

StyleModelAir Inlet SizeMax. Flow RateMax. Operating PressureBowl MaterialOverall WidthOverall HeightAir Outlet SizeMin. Operating PressurePrice
A4ZL411/2"69 CFM250 psiMetal2 11/16"7 1/8"1/2"1.7 MPa€70.70

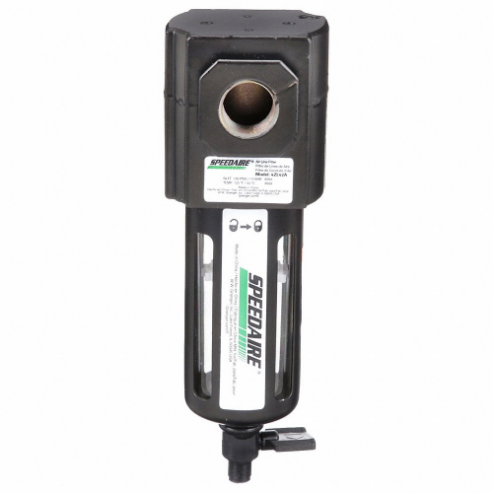

B4ZL421/2"69 CFM150 psiPlastic2 11/16"7 1/8"1/2"1 MPa€70.70

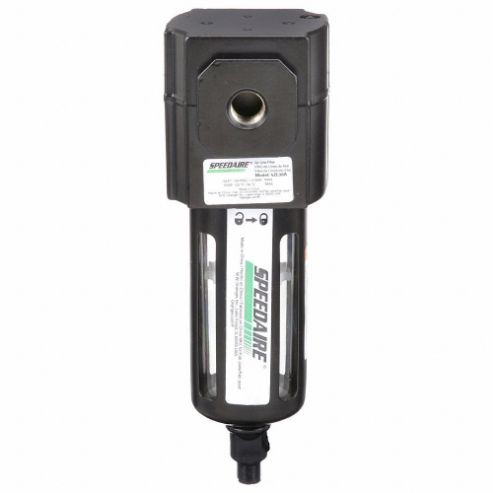

C4ZL381/4"55 CFM150 psiPlastic2 17/25"7.15"1/4"1 MPa€70.70

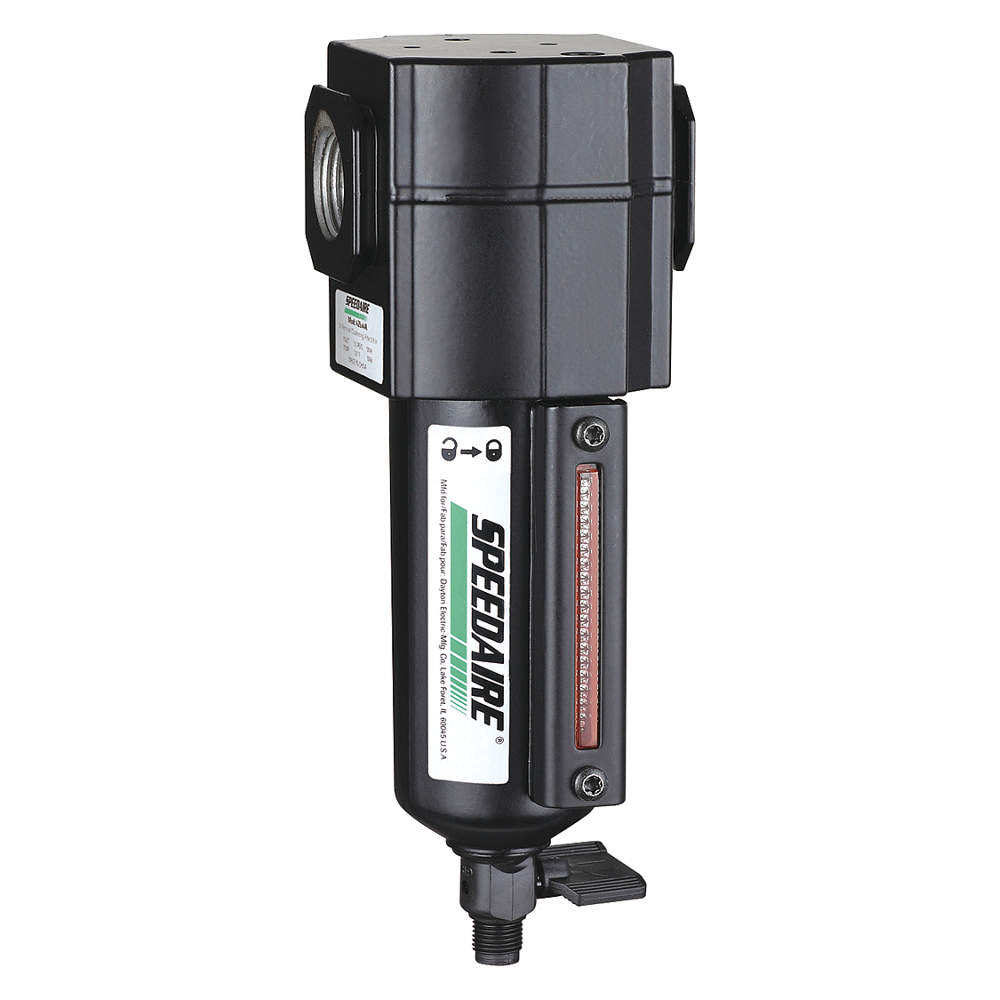

D4ZL371/4"55 CFM250 psiMetal2 11/16"7 1/8"1/4"1.7 MPa€73.42

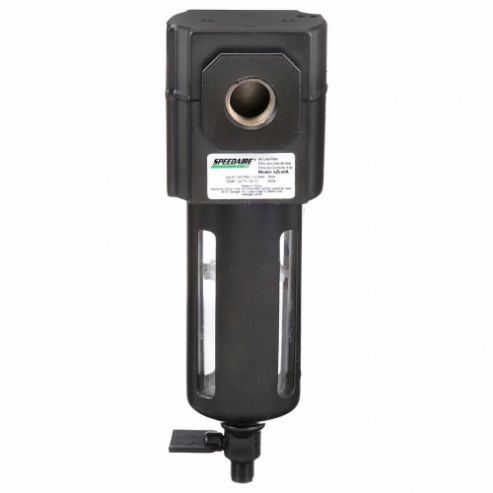

E4ZL403/8"65 CFM150 psiPlastic2 11/16"7 1/8"3/8"1 MPa€71.01

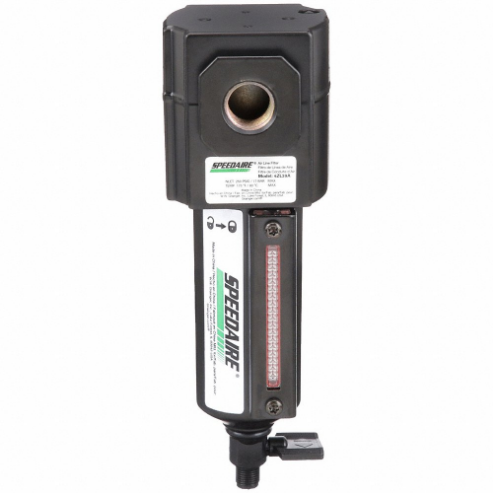

F4ZL393/8"65 CFM250 psiMetal2 11/16"7 1/8"3/8"1.7 MPa€73.42
SPEEDAIRE -

Subcompact General Purpose Filters, Miniature

Speedaire compressed air filters are designed to separate liquid and solid pollutants from air, while also offering monitored, continuous air pressure. They use modular connectors that permit comfortable removal and swap out. Choose from a range of these compressed air filters, available in 1/4 NPT and 1/8 Inch NPT pipe sizes.

StyleModelAir Inlet SizeMax. Flow RateAir Outlet SizeFilter TypeFilter RatingAir Inlet TypeMax. Operating PressureGauge IncludedPrice

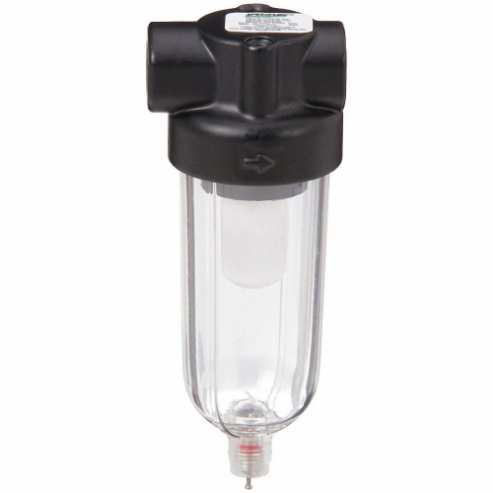

A4ZL081/4"24 CFM1/4"Particulate5 µmNPT150 psiNo€47.62

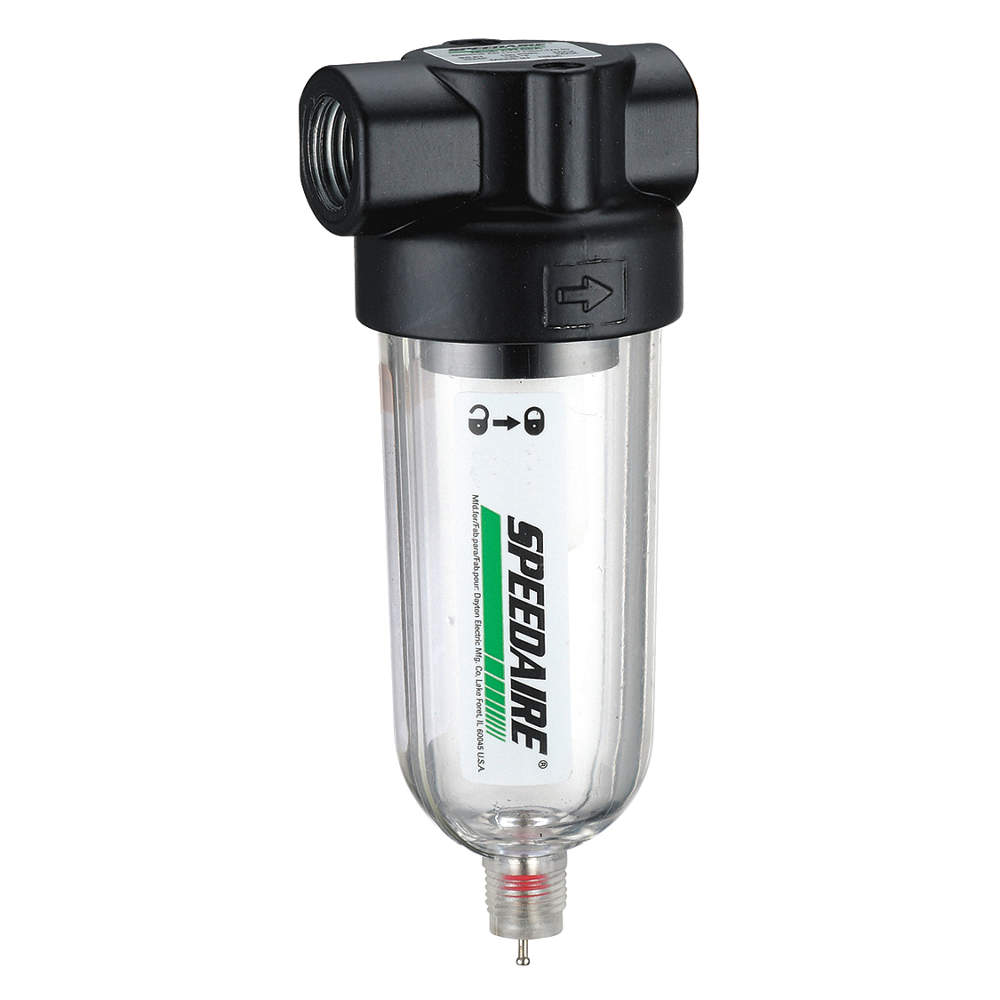

B4ZL071/8"20 CFM1/8"Particulate5 µmNPT150 psiNo€51.39
SPEEDAIRE -

Compressed Air Filters

Speedaire standard compressed air filters are designed to effectively remove oil vapor, particulates, water and other debris. These compressed air filters employ a threaded post-mounted element and feature an automatic drain type. Choose from a broad range of these air filters available, in 0.01, 1 and 5 micron filter rating options.

StyleModelMax. Flow RateBowl MaterialOverall WidthMax. Operating PressureGauge IncludedOverall HeightDifferential Pressure Indicator IncludedAir Outlet SizePrice
A4ZL47112 CFMMetal3 1/8"250 psiNo7 15/16"No3/8"€156.06

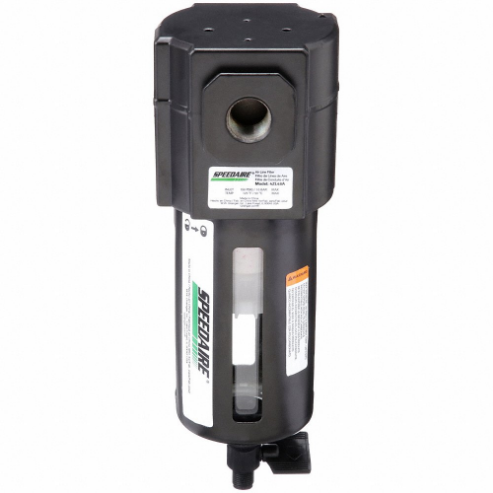

B4ZL48112 CFMPlastic3 1/8"150 psiNo7 15/16"No3/8"€96.24

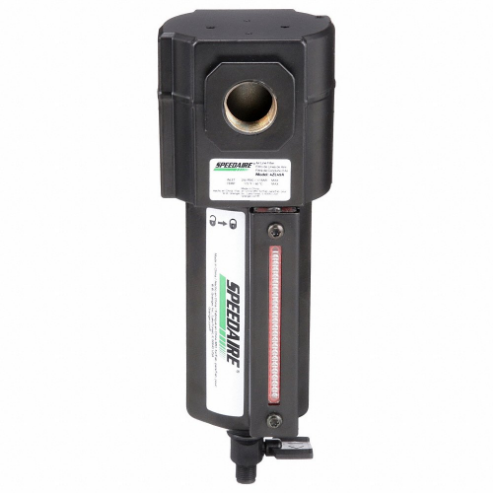

C4ZL49140 CFMMetal3 1/8"250 psiNo7 15/16"No1/2"€121.78

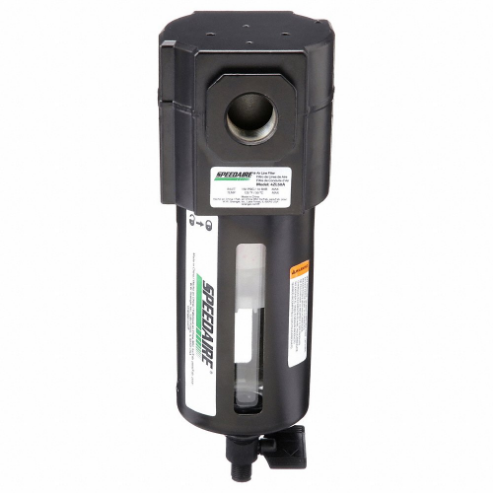

D4ZL50140 CFMPlastic3 1/8"150 psiNo7 15/16"No1/2"€93.45

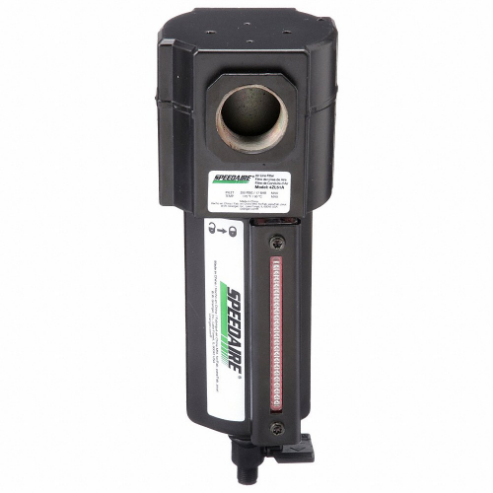

E4ZL51140 CFMMetal3 1/8"250 psiNo7 15/16"No3/4"€141.41

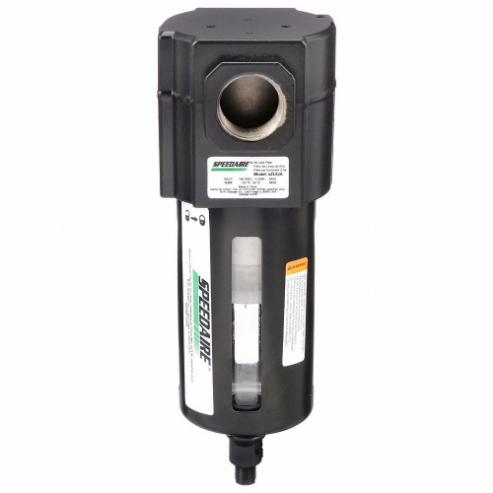

F4ZL52140 CFMPlastic3 1/8"150 psiNo7 15/16"No3/4"€93.55

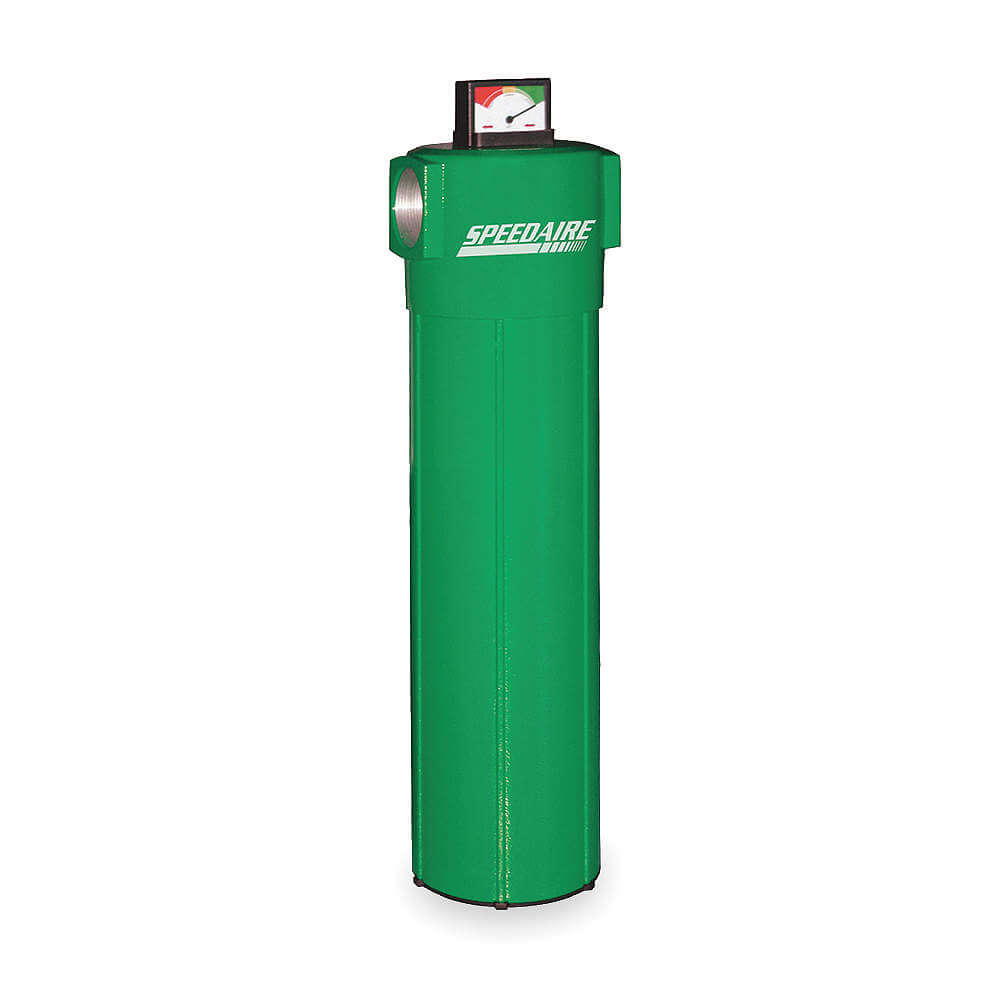

G20Z8901117 CFMAluminum5 1/2"290 psiYes38 1/2"No3"€2,259.88
G20Z8911117 CFMAluminum5 1/2"290 psiYes38 1/2"Yes3"€2,259.88
G20Z8921117 CFMAluminum5 1/2"290 psiYes38 1/2"Yes3"€2,277.60
G20Z8941350 CFMAluminum5 1/2"-----€2,545.42
G20Z8951350 CFMAluminum5 1/2"290 psiYes44"Yes3"€2,545.42
G20Z8961350 CFMAluminum5 1/2"290 psiYes44"Yes3"€2,545.42
SPEEDAIRE -

Compact Compressed Air Filters

SPEEDAIRE general-purpose compressed air filters are used to trap dirt particles and other impurities for allowing air compressors to perform at peak performance. They further remove moisture present in the air, which may otherwise affect air pressure. Selected filters are equipped with a bowl and guard to collect trapped impurities. Choose from a wide range of compressed air filters, available in the bronze and compressed air filter media types on Raptor Supplies.

StyleModelFilter RatingAir Inlet SizeMax. Flow RateMax. Operating PressureBowl MaterialAir Outlet SizeBody MaterialOverall WidthPrice

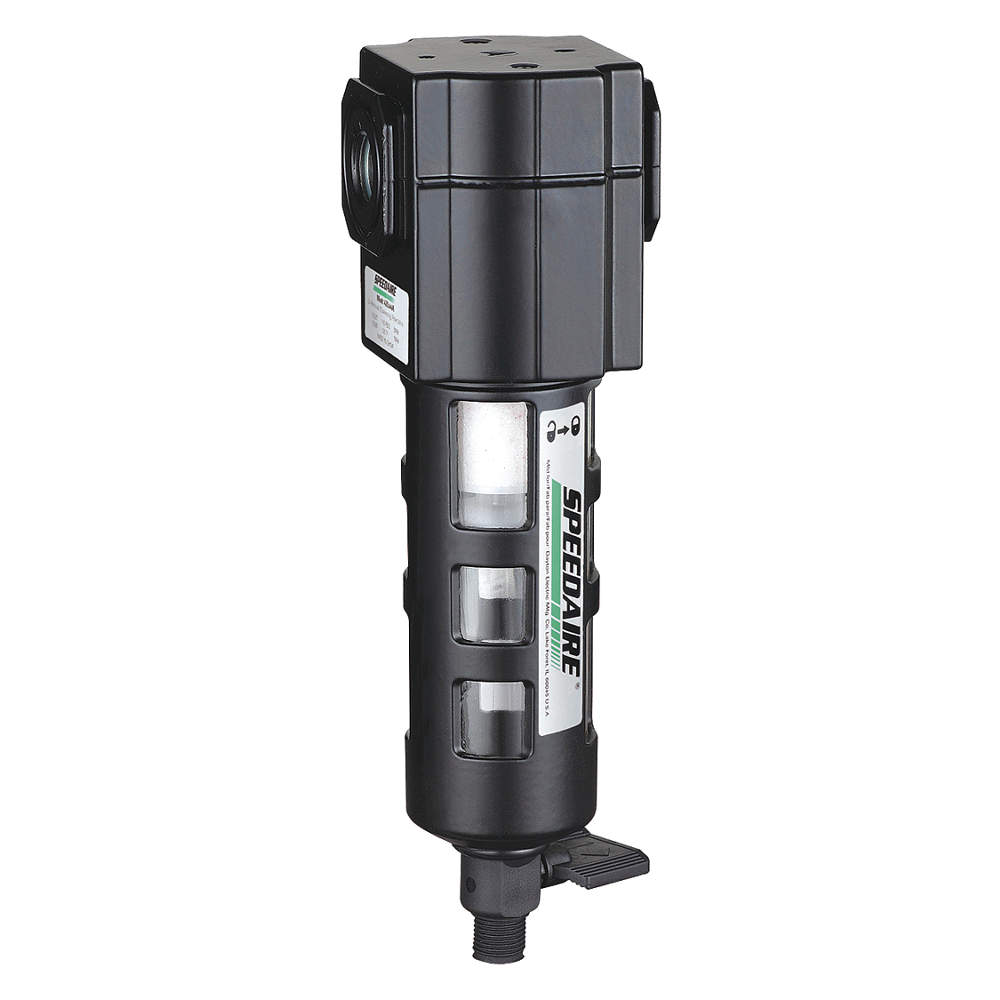

A4ZL285 µm1/4"55 CFM150 psiPlastic1/4"Zinc1 15/16"€48.24

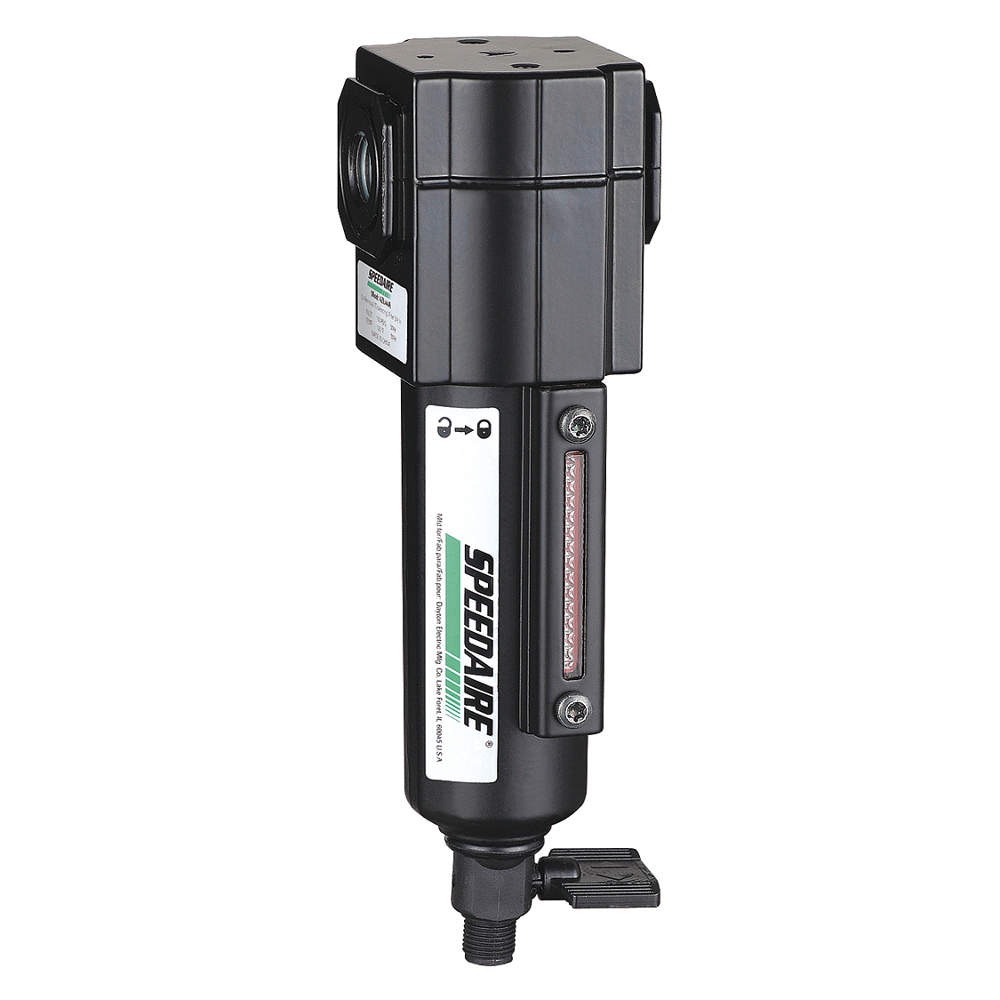

B4ZL275 µm1/4"55 CFM250 psiMetal1/4"Zinc1 15/16"€70.70

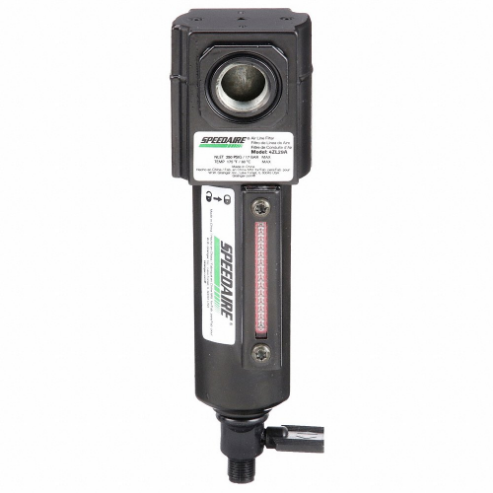

C4ZL295 µm3/8"55 CFM250 psiMetal3/8"Zinc1 15/16"€54.81
D4ZL305 µm3/8"55 CFM150 psiPlastic3/8"Zinc1 15/16"€51.57

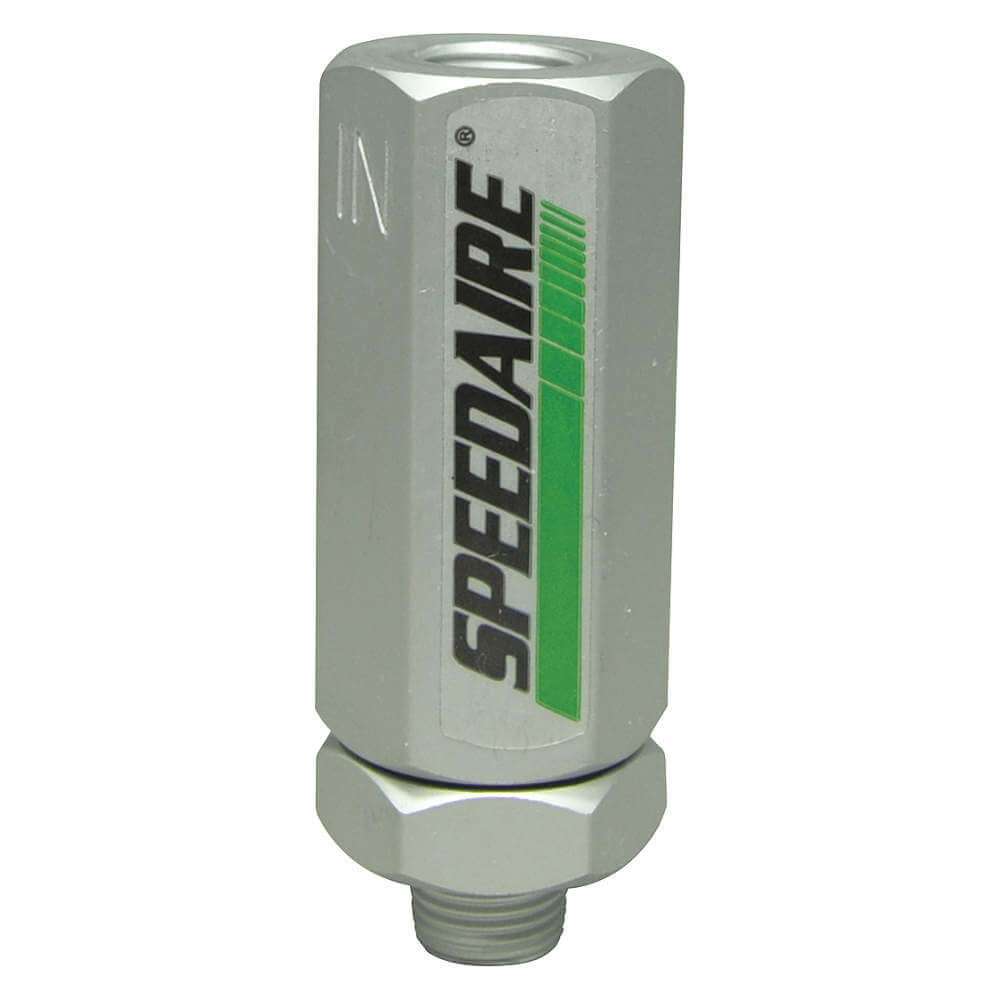

E1EJU840 µm1/8"23 CFM500 psiAluminum1/8"Aluminum-€17.09

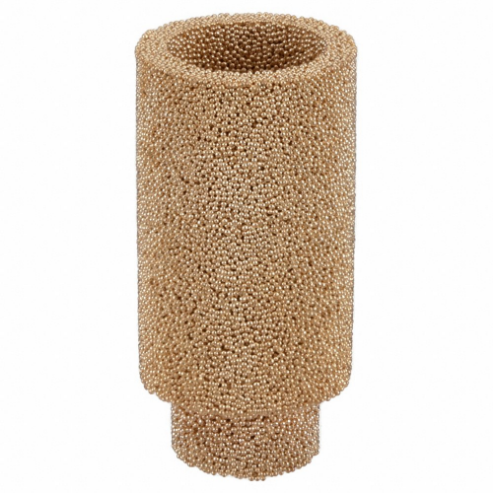

F1EJU940 µm-------€4.26
G1EJV140 µm1/8"10 CFM300 psiBrass1/8"Bronze11/25"€6.38

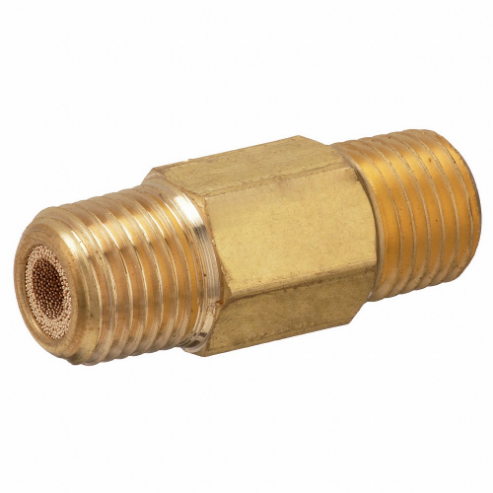

H1EJV340 µm1/4"22 CFM300 psiBrass1/4"Bronze14/25"€15.91

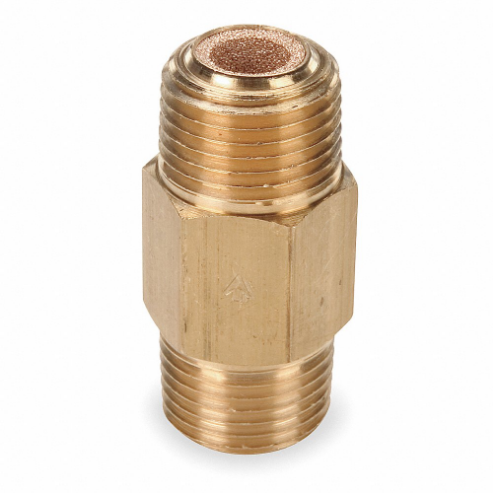

G1EJV740 µm1/2"58 CFM300 psiBrass1/2"Bronze22/25"€24.71
G1EJV690 µm3/8"36 CFM300 psiBrass3/8"Bronze0.69"€18.77
G1EJV890 µm1/2"62 CFM300 psiBrass1/2"Bronze22/25"€24.71
SPEEDAIRE -

Assemblies

StyleModelThread TypeTypePrice

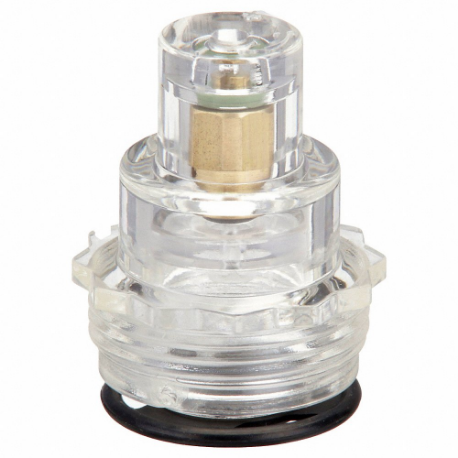

A114X40--€10.29

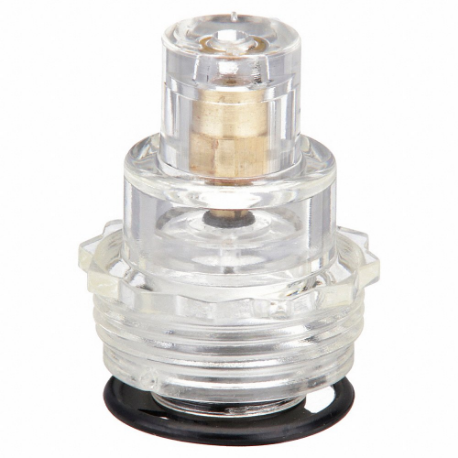

B114X41--€9.76

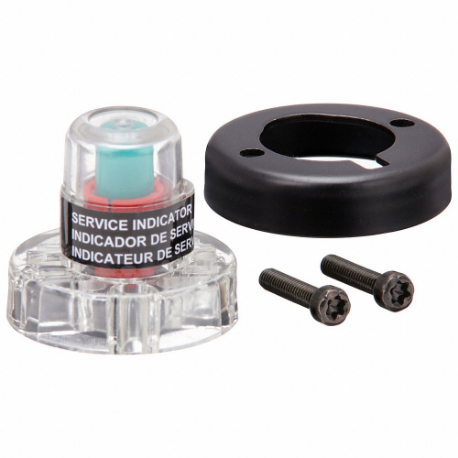

C114X31--€11.25
DZNR-16--€194.59
DZ3254--€104.74

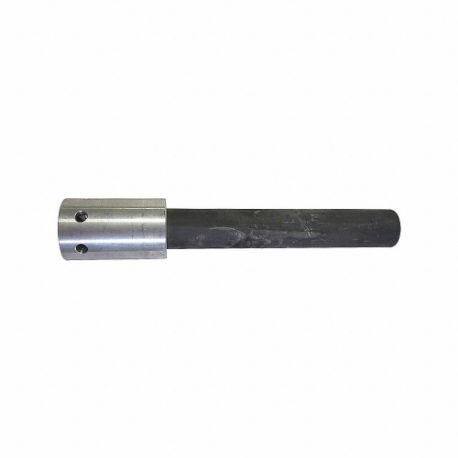

ETX036100AV--€185.23

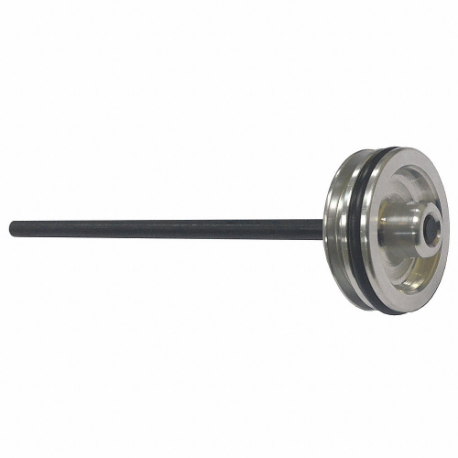

FPN31CCP19G--€122.35

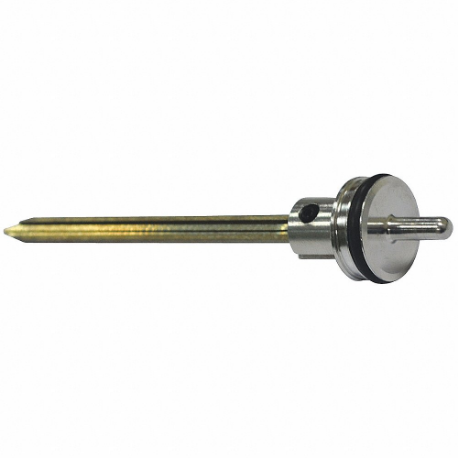

GPN31CCP11G--€46.43
HPN31CCP15G--€164.30

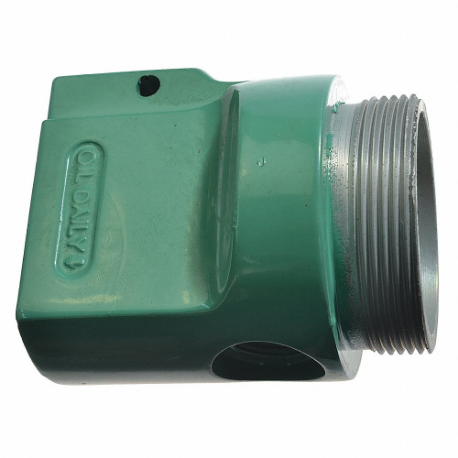

ITT4494101AG--€10.31

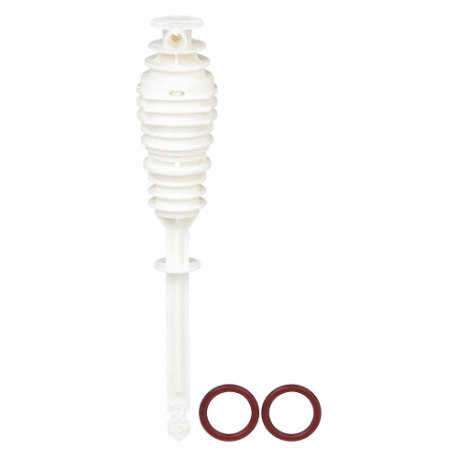

JVT041700AJ--€16.77

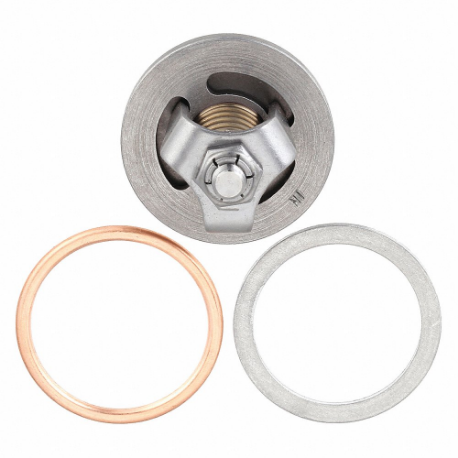

KZ11938--€172.12
DZ10829--€537.67
DZ8981--€508.66
LJ0309040020NPTReplacement Part€25.78
SPEEDAIRE -

Kits

StyleModelMPNPrice

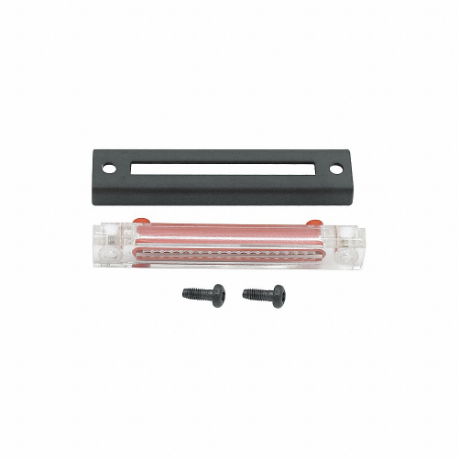

A114X60114X60€12.60

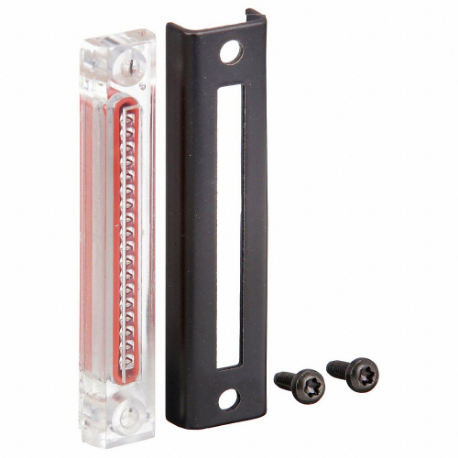

B114X61114X61€17.04
A114X62114X62€16.56

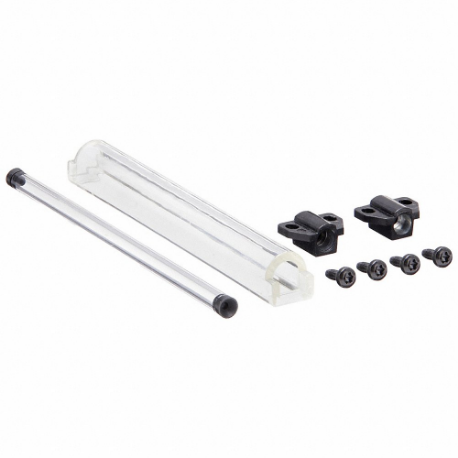

C114X63114X63€18.37
DCQZ13156CQZ13156€560.91
ECW210400SJCW210400SJ€113.12
FCW210600SJCW210600SJ€105.44
DHL021300AVHL021300AV-
RFQ
DZ9088Z9088€75.96

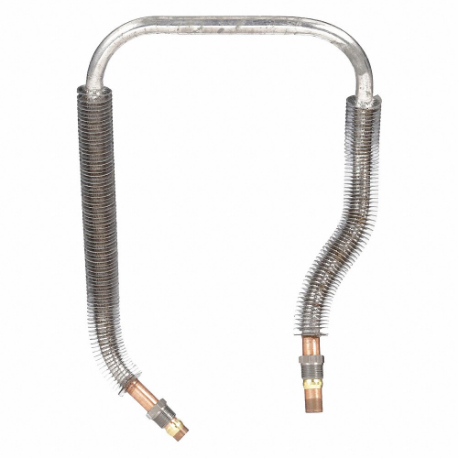

GZ9140Z9140€292.02
DZ9142Z9142€284.49
DZ12068Z12068€201.73
DZ12069Z12069€117.88
DZ12071Z12071€162.40
DZ12082Z12082€96.47
DZ12084Z12084€158.29
DZ12085Z12085€199.08
DZ12115Z12115€151.94
DZ12117Z12117€149.33
DZ12118Z12118€369.37
DZM1393ZM1393€772.63
DZM2474-8ZM2474-8€68.08
SPEEDAIRE -

Standard General Purpose Filters

Speedaire standard general purpose air filters have an interchangeable connector that provides easy removal and swap out of moisture. Choose from a range of these compressed air filters, available in aluminium and steel housing material variants.

StyleModelAir Inlet SizeMax. Flow RateOverall WidthOverall HeightAir Outlet SizeDrain TypeFilter TypeFilter RatingPrice

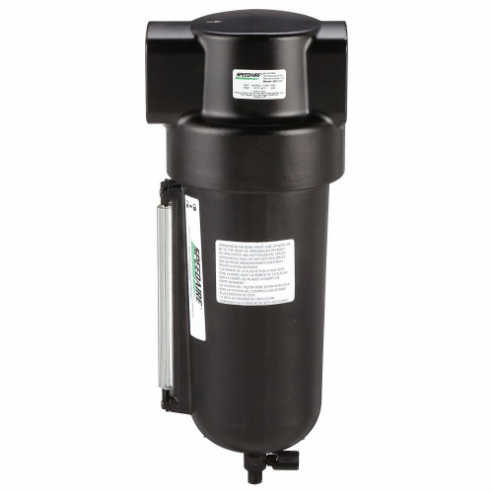

A4ZL111 1/2"425 CFM4 3/4"11 7/8"1 1/2"ManualParticulate5 µm€230.74
B4ZL121 1/2"1400 CFM8 1/4"16 15/16"1 1/2"AutomaticParticulate5 µm€545.50

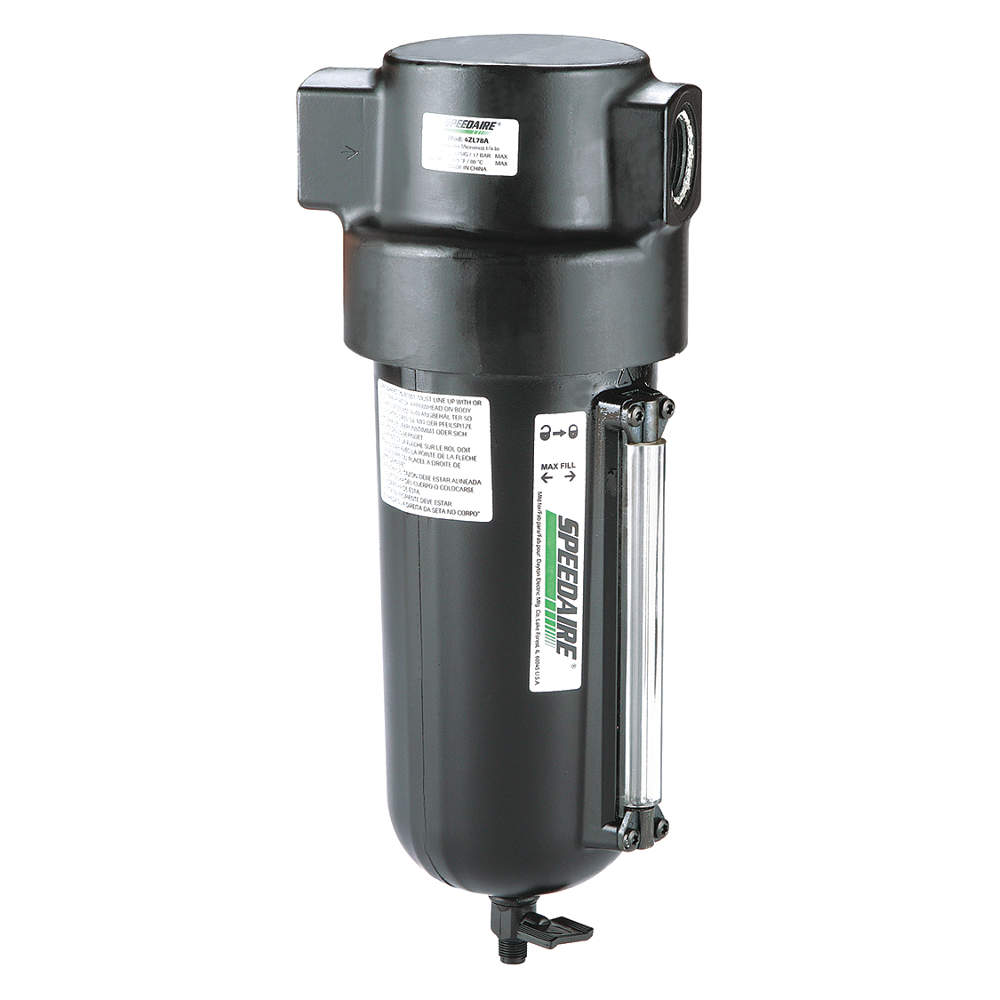

C4ZL101"425 CFM4 3/4"11 7/8"1"ManualParticulate5 µm€342.34
B4ZL142"1400 CFM8 1/4"16 15/16"2"AutomaticParticulate5 µm€545.50

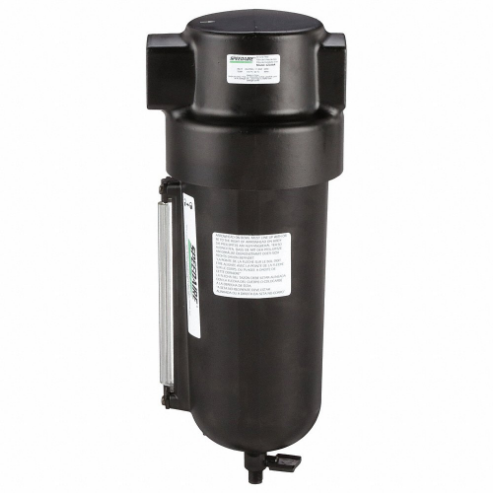

D4ZL093/4"325 CFM4 3/4"11 7/8"3/4"ManualParticulate5 µm€198.72
SPEEDAIRE -

Compressed Air Filter

StyleModelMax. Flow RateOverall WidthOverall HeightFilter RatingInlet SizeAir Outlet SizeFor Fluid TypeTypePrice
A4GNW615 CFM4"15 3/16"0.01 µm1/41/4"Oil-€591.65
A4GNW715 CFM4"15 3/16"5 µm1/41/4"--€591.65
A4GNW815 CFM4"15 3/16"1 µm1/41/4"Oil, Water-€591.65
B4GNX558 CFM4"15 1/5"0.01 µm--OilActivated Carbon€681.71
B4GNX658 CFM4"15 3/16"5 µm1/21/2"--€687.56

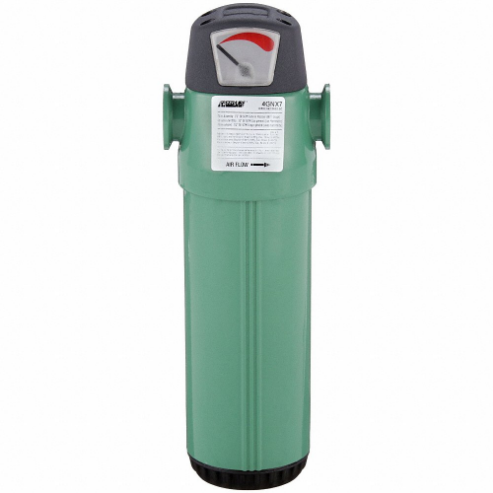

C4GNX758 CFM4"15 3/16"1 µm1/21/2"Oil, WaterGeneral Purpose€682.25
A4GNX988 CFM4 13/16"21 5/8"0.01 µm3/43/4"OilActivated Carbon€676.12

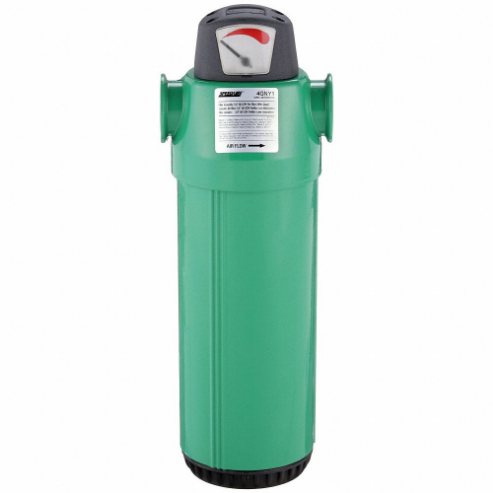

D4GNY188 CFM4 13/16"21 5/8"5 µm3/43/4"--€688.83
B4GNY288 CFM4 13/16"21 5/8"1 µm3/43/4"Oil, WaterGeneral Purpose€676.12

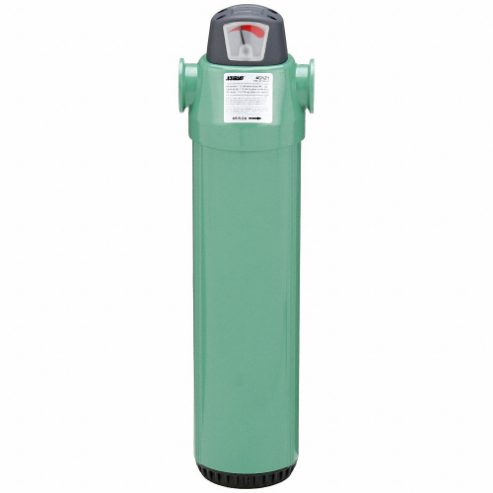

E4GNZ1147 CFM4 13/16"24 13/16"1 µm1"1"Oil, WaterGeneral Purpose€917.40
B4GNY9147 CFM4 13/16"24 13/16"5 µm1"1"--€923.74
B4GNY8147 CFM4 13/16"24 13/16"0.01 µm1"1"OilActivated Carbon€909.76
B4GPA2353 CFM4 13/16"26 3/8"0.01 µm1 1/2" NPT1 1/2"OilActivated Carbon€1,416.32

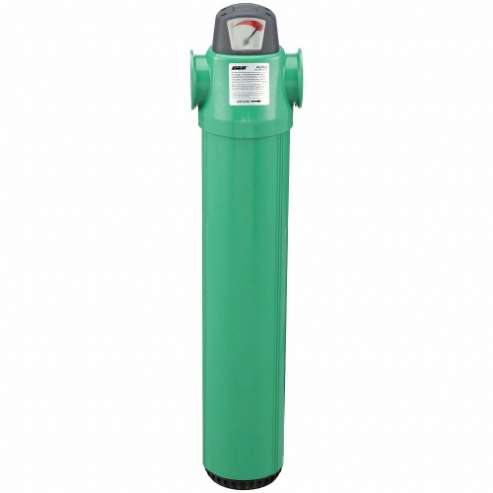

F4GPA3353 CFM4 13/16"26 3/8"5 µm1 1/2" NPT1 1/2"--€1,424.66
B4GPA4353 CFM4 13/16"26 3/8"1 µm1 1/2" NPT1 1/2"Oil, WaterGeneral Purpose€1,416.32
A4GPA6500 CFM7 3/16"36"0.01 µm2" NPT2"Oil-€1,580.35
A4GPA7500 CFM7 3/16"36"5 µm2" NPT2"--€1,582.67

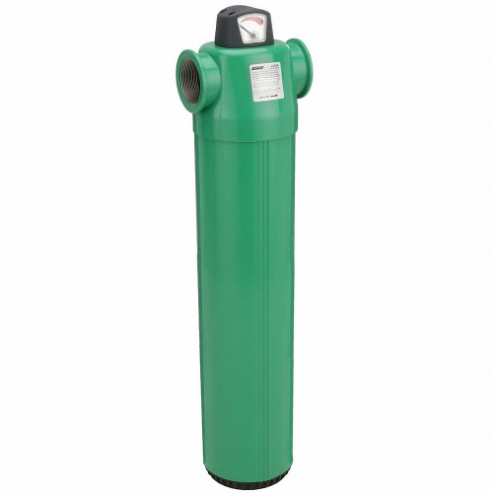

G4GPA8500 CFM7 3/16"36"1 µm2" NPT2"Oil, WaterGeneral Purpose€1,580.35
A4GPC1712 CFM7 3/16"36"-2" NPT2"Oil-€1,953.11
A4GPC2712 CFM7 3/16"36"5 µm2" NPT2"--€1,974.33
B4GPC3712 CFM7 3/16"36"1 µm2" NPT2"Oil, WaterGeneral Purpose€1,953.11
SPEEDAIRE -

Standard Pre-Filter

StyleModelMax. Flow RateOverall WidthInlet SizeOverall HeightAir Outlet SizeFilter RatingMax. Operating PressureGauge IncludedPrice
A35GK6115 CFM4"1/410 7/16"1/4"5 µm290 psiNo€706.07
A35GK8131 CFM4"1/210 7/16"1/2"5 µm290 psiNo€646.07
A35GK8961 CFM4"1/211 15/16"1/2"5 µm290 psiNo€729.36
A35GK9792 CFM4"3/413 11/16"3/4"5 µm290 psiNo€972.15
A35GL10123 CFM4"1"16 3/16"1"5 µm290 psiNo€1,014.16
A35GL18154 CFM4"1"17 3/4"1"5 µm290 psiNo€1,074.81
A35GL30185 CFM4"1 1/2" NPT20"1 1/2"5 µm290 psiNo€1,327.32
A35GL46370 CFM4"1 1/2" NPT22 15/16"1 1/2"5 µm290 psiNo€1,412.15
A35GL58526 CFM6 5/16"2" NPT26 3/8"2"5 µm290 psiNo€1,883.73
A35GL62747 CFM6 5/16"2" NPT29 1/8"2"5 µm290 psiNo€3,080.23
A35GL821124 CFM7 5/8"3" NPT36"3"5 µm290 psiNo€3,031.40
SPEEDAIRE -

General Purpose Filter

StyleModelFilter TypeMax. Flow RateMax. Operating PressureGauge IncludedOverall WidthInlet SizeOverall HeightAir Outlet SizePrice
A35GL19Coalescing154 CFM290 psiNo4"1"17 3/4"1"€1,074.81
A35GK62Coalescing15 CFM290 psiNo4"1/410 7/16"1/4"€706.07
B35GK82Coalescing31 CFM290 psiNo4"1/210 7/16"1/2"€646.07
A35GK90Coalescing61 CFM290 psiNo4"1/211 15/16"1/2"€729.36
A35GK98Coalescing92 CFM290 psiNo4"3/413 11/16"3/4"€972.15
A35GL11Coalescing123 CFM290 psiNo4"1"16 3/16"1"€1,014.16
A35GL31Coalescing185 CFM290 psiNo4"1 1/2" NPT20"1 1/2"€1,327.32
A35GL59Coalescing526 CFM290 psiNo6 5/16"2" NPT26 3/8"2"€1,883.73
A35GL63Coalescing747 CFM290 psiNo6 5/16"2" NPT29 1/8"2"€3,080.23
A35GL83Coalescing1124 CFM290 psiNo7 5/8"3" NPT36"3"€3,031.40

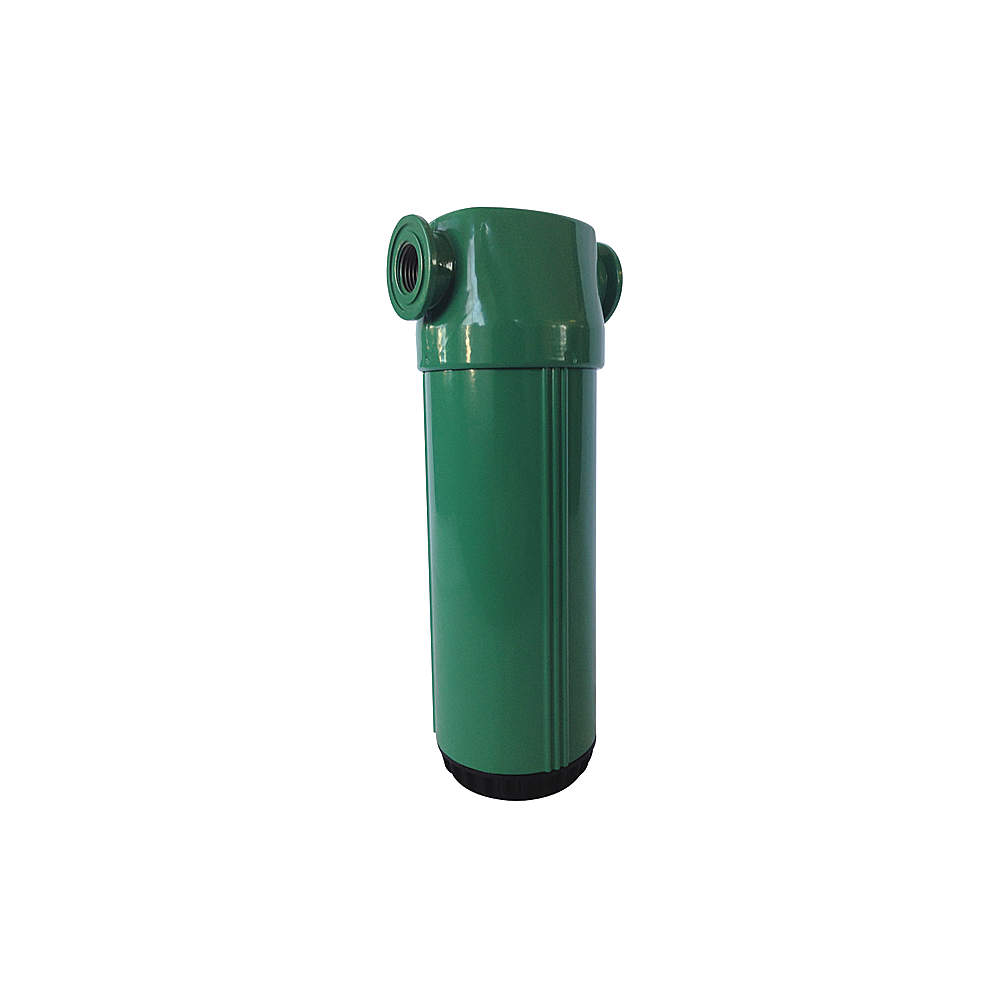

C35GN32Coalescing30 CFM235 psiYes7"1/210"1/2"€619.85
D35GN47Coalescing117 CFM235 psiYes7"1"16"1"€760.56
C35GN59Coalescing176 CFM235 psiYes7"1 1/2" NPT19"1 1/2"€1,047.03

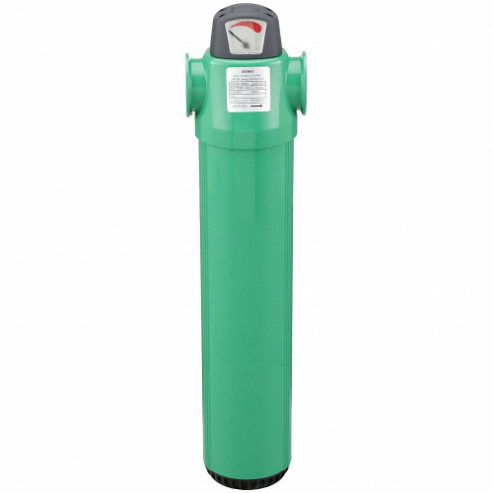

E35GN63Coalescing294 CFM235 psiYes7"1 1/2" NPT21"1 1/2"€1,172.16
A35GL47Coalescing370 CFM290 psiNo4"1 1/2" NPT22 15/16"1 1/2"€1,412.15
SPEEDAIRE -

Heavy-Duty Pre-Filter

StyleModelFilter TypeMax. Flow RateDrain TypeInlet SizeOverall HeightAir Outlet SizeFilter RatingBowl MaterialPrice
A35GN46Heavy Duty117 CFMFloat---5 µmAluminum€767.17
A35GN31Particulate30 CFMAutomatic1/210"1/2"5 µmAluminum€619.85
A35GN58Particulate176 CFMAutomatic1 1/2" NPT19"1 1/2"5 µmAluminum€1,049.17

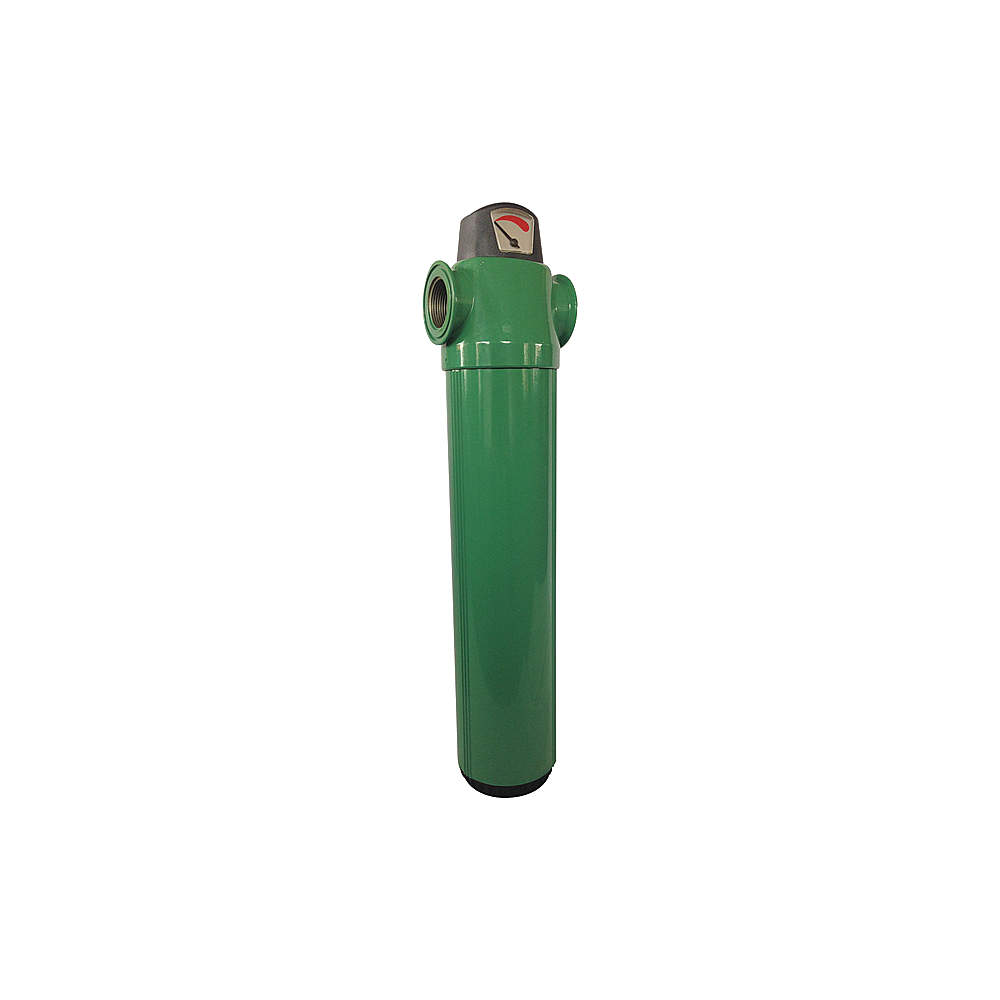

B35GN62Particulate294 CFMAutomatic1 1/2" NPT21"1 1/2"5 µmAluminum€1,172.16
SPEEDAIRE -

Valve Assemblies

StyleModelMPNPrice

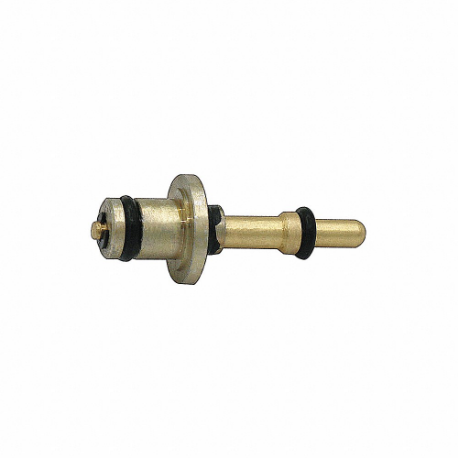

A114X51114X51€8.82

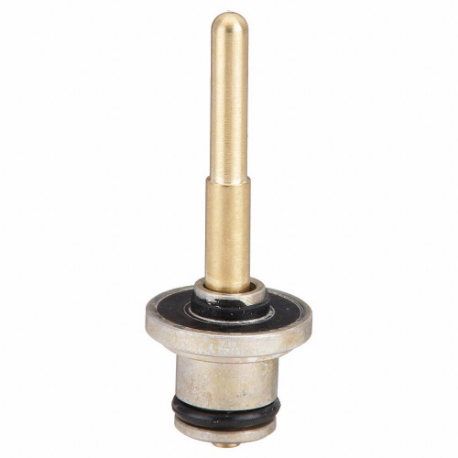

B114X52114X52€11.39

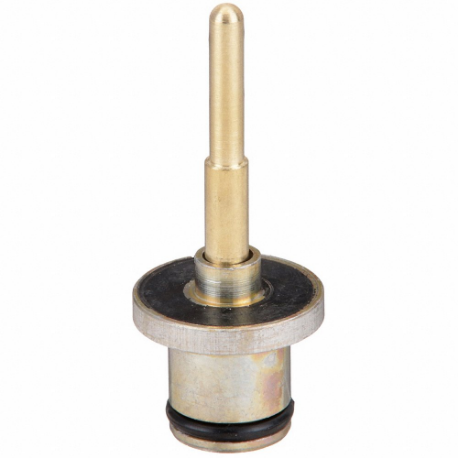

C114X53114X53€9.49

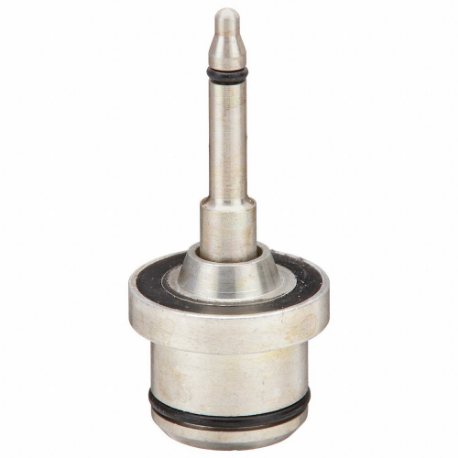

D114X54114X54€12.02

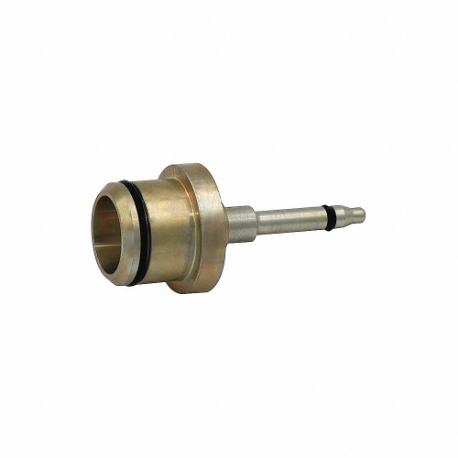

E114X55114X55€11.45

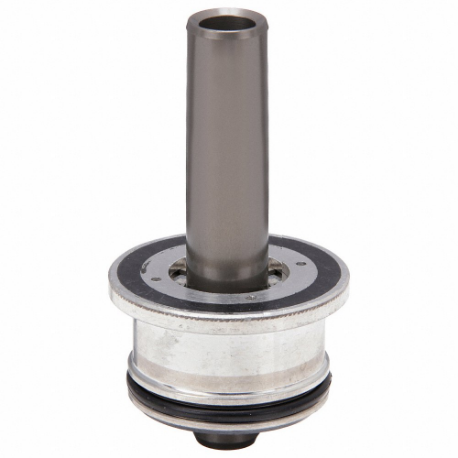

F114X77114X77€27.17

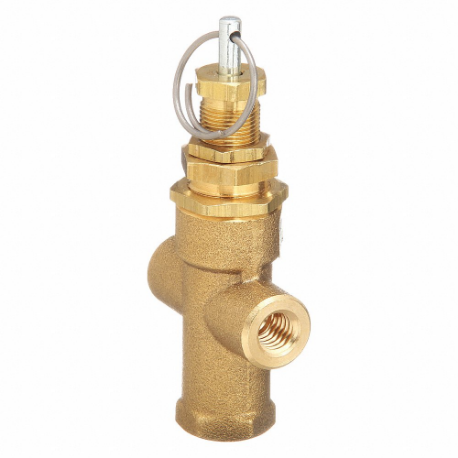

GM2853M2853€172.36

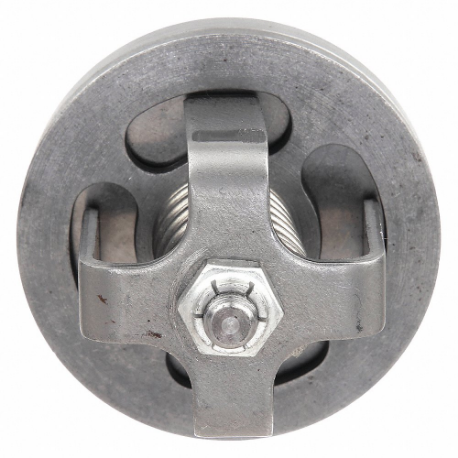

HZ4877Z4877€179.15
SPEEDAIRE -

Diaphragms

StyleModelMPNPrice
A114X45114X45€6.53

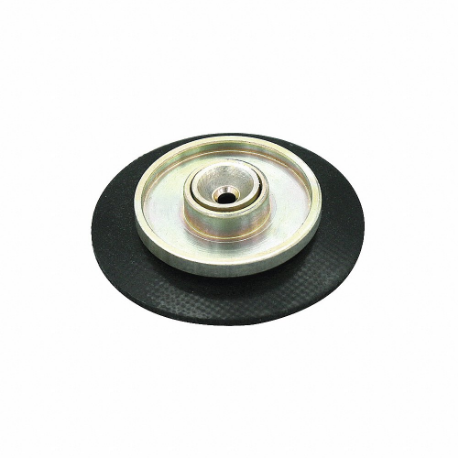

B114X46114X46€9.49
B114X47114X47€10.43

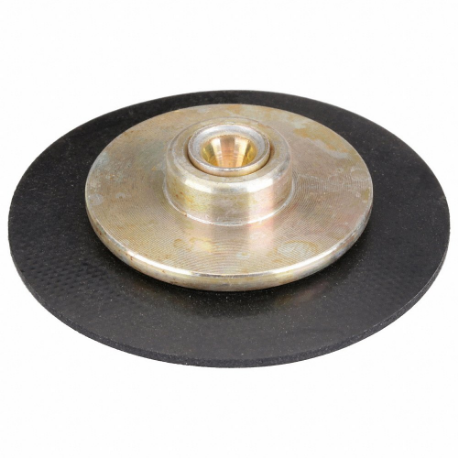

C114X48114X48€11.39

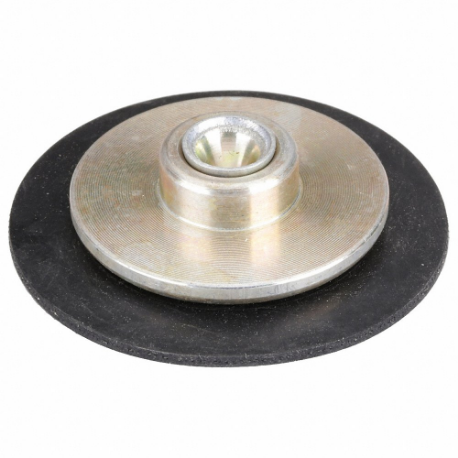

D114X49114X49€13.39

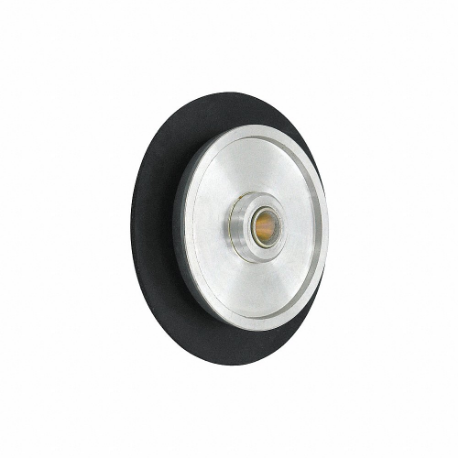

E114X50114X50€12.88

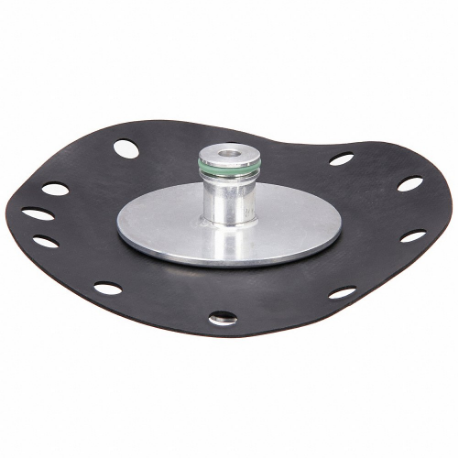

F114X73114X73€22.48

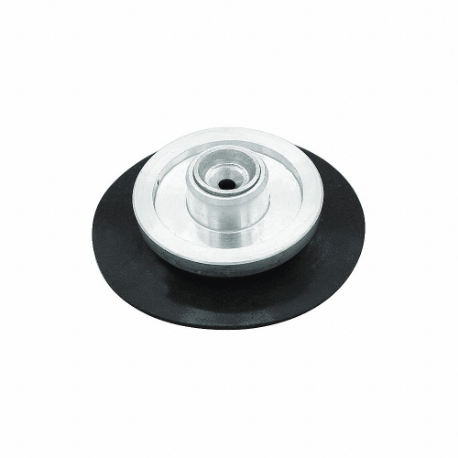

G114X74114X74€21.89

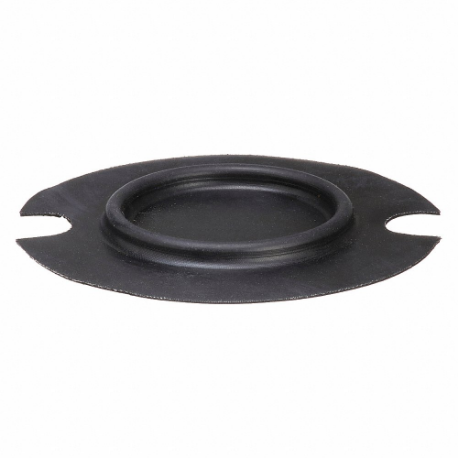

HP07585AP07585A€62.87
SPEEDAIRE -

FRL Compressed Air Filters

StyleModelFilter TypeFilter RatingMax. Flow RateMax. Operating PressureOverall HeightFilter Element MaterialMax. Flow Rate @ 100 PsiFilter Bowl CapacityPrice

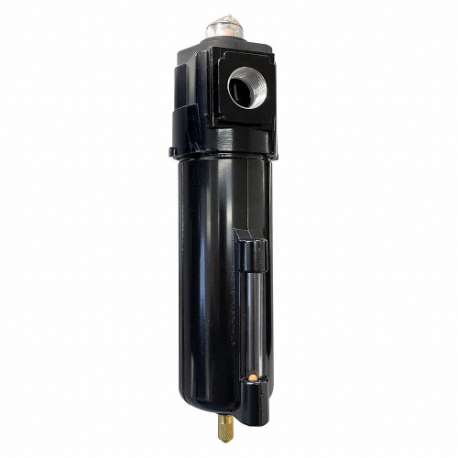

A60UD61Coalescing0.01 µm37 CFM175 psi7 5/8"Paper Pleated37 SCFM6 oz.€602.48

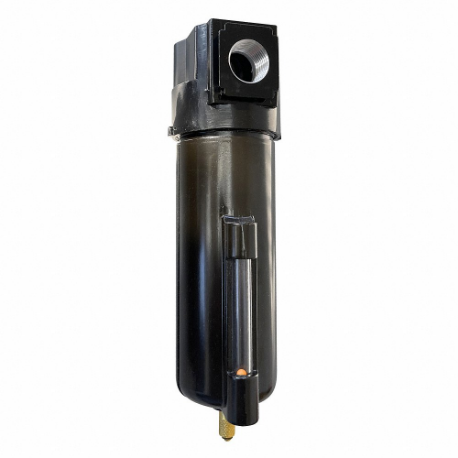

BF364KW5Particulate5 µm100 CFM250 psi6 7/8"Sintered Bronze100 SCFM9 oz.€214.28
SPEEDAIRE -

Air Filter 1/4 In

ModelItemPrice (ex. VAT)
1A483AA8TTG€20.38
SPEEDAIRE -

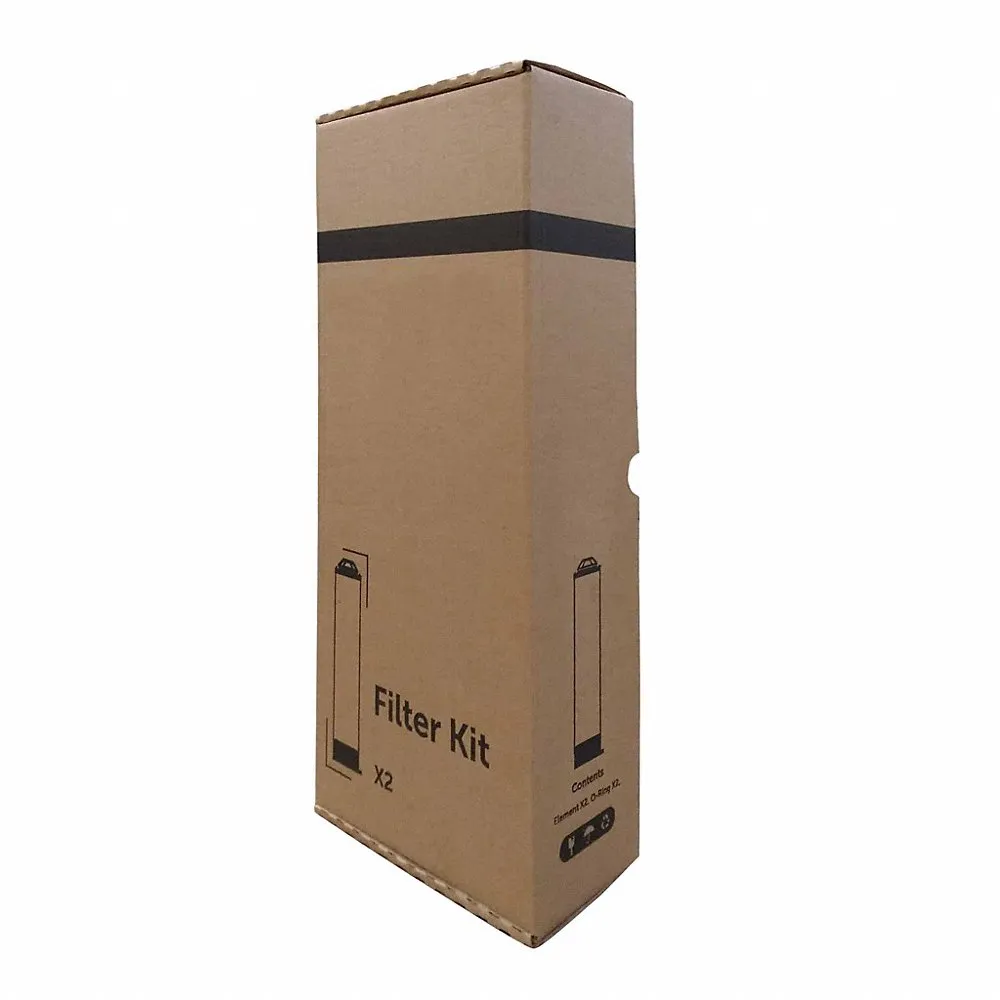

Air Dryer Filter Kit

ModelItemPrice (ex. VAT)
MKON-155-KITCU4BWG€1,110.66
