DIXON Check And Foot Valves

Filter

DIXON -

Spring Loaded Check Valves

Style	Model	Pressure Rating	Thread Type	Temp. Range	Trim Material	Price
A	CV400	175 psi	NPT	10°F to 210°F	NBR	€535.07
A	CV300	175 psi	NPT	10°F to 210°F	NBR	€414.79
B	CV050	400 psi	NPT	10°F to 210°F	NBR	€27.51
A	CV075	400 psi	NPT	10°F to 210°F	NBR	€39.87
A	CV100	400 psi	NPT	10°F to 210°F	NBR	€53.83
A	CV125	400 psi	NPT	10°F to 210°F	NBR	€70.80
A	CV150	400 psi	NPT	10°F to 210°F	NBR	€107.05
A	CV200	400 psi	NPT	10°F to 210°F	NBR	€149.02

DIXON -

Horizontal Swing Check Valves

Style	Model	Pressure Rating	Thread Type	Temp. Range	Price
A	SWCV50	200 psi	Female NPT	-20°F to +150°F	€28.23
A	SWCV100	200 psi	Female NPT	-20°F to +150°F	€49.08
A	SWCV75	200 psi	Female NPT	-20°F to +150°F	€36.06
A	SWCV125	200 psi	Female NPT	-20°F to +150°F	€69.99
A	SWCV150	200 psi	Female NPT	-20°F to +150°F	€87.55
A	SWCV300	200 psi	Female NPT	-20°F to +150°F	€295.30
A	SWCV400	200 psi	Female NPT	-20°F to +150°F	€468.54

DIXON -

Ball Cone Check Valves, Female NPT x Female NPT

Style	Model	Pressure Rating	Height	Thread Type	Temp. Range	Grade	Price
A	61-101	400 psi	1 1/8"	Female NPT	-20°F to +353°F	-	€102.44
A	61-109	400 psi	4 1/2"	Female NPT	-20°F to +353°F	-	€1,184.83
B	62-105	400 psi	1 15/16"	Female NPT	-20°F to +353°F	Grade 316	€482.26
B	62-103	400 psi	1 1/8"	Female NPT	-20°F to +353°F	Grade 316	€232.93
A	61-102	400 psi	1 1/8"	Female NPT	-20°F to +353°F	-	€102.44
A	61-100	400 psi	5 5/16"	Female NPT	-20°F to +353°F	-	€1,839.78
B	62-106	400 psi	2 3/8"	Female NPT	-20°F to +353°F	Grade 316	€675.38
A	61-108	400 psi	3 11/16"	Female NPT	-20°F to +353°F	-	€570.81
B	62-102	400 psi	1 1/8"	Female NPT	-20°F to +353°F	Grade 316	€187.56
B	62-108	400 psi	3 11/16"	Female NPT	-20°F to +353°F	Grade 316	€1,455.08
B	62-104	400 psi	1 1/2"	Female NPT	-20°F to +353°F	Grade 316	€354.24
A	61-107	400 psi	2 13/16"	Female NPT	-20°F to +353°F	-	€386.22
A	61-106	400 psi	2 3/8"	Female NPT	-20°F to +353°F	-	€303.22
B	62-101	400 psi	1 1/8"	Female NPT	-20°F to +353°F	Grade 316	€187.56
B	62-107	400 psi	2 13/16"	Female NPT	-20°F to +353°F	Grade 316	€846.27
C	61-104	400 psi WOG, 0.5 psi	-	Female NPT	-20°F to +353°F	-	€146.14

DIXON -

800 PSI Stainless Steel Check Valves

Style	Model	Pressure Rating	Grade	Trim Material	Temp. Range	Price

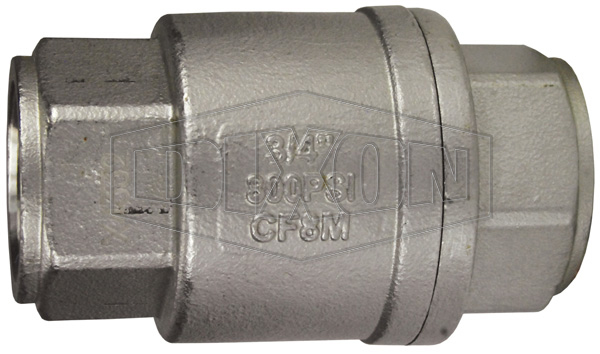

A	SSCVIL038	800 psi	Grade 316	PTFE	-	€145.76
A	SSCVIL025	800 psi	Grade 316	PTFE	-	€145.76
A	SSCVIL050	800 psi	Grade 316	PTFE	-	€145.76
A	SSCVIL125	800 psi	Grade 316	PTFE	-	€375.39
A	SSCVIL100	800 psi	Grade 316	PTFE	-	€221.25
A	SSCVIL075	800 psi	Grade 316	PTFE	-	€187.03
A	SSCVIL150	800 psi	Grade 316	PTFE	-	€458.96
A	SSCVIL200	800 psi WOG, 0.5 psi Cracking	Grade 316	-	10°F to 450°F	€523.39

DIXON -

Cast Iron Foot Valves

Style	Model	Pipe Size	Body Material	Thread Type	Application	Finish	Seal Material	Height	Price
A	DFVS80	-	-	NPT	-	Painted	Rubber	16"	€904.56
A	DFVS20	-	-	NPT	-	Painted	-	-	€54.58
B	DFVS40	-	-	NPT	-	-	-	-	€155.46
A	DFVS30	-	-	NPT	-	-	-	-	€99.42
C	DFVS25	2"	Cast Iron	NPT	Pumps	-	-	-	€64.64
D	DFVS35	3"	Cast Iron	NPT	Pumps	-	-	-	€119.70
D	DFVS60	6"	Cast Iron	NPT	Pumps	-	-	-	€407.64

DIXON -

Domestic Swing Check Valves

Style	Model	Thread Type	Temp. Range	Trim Material	Price
A	DSCV50	NPT	-20°F to +406°F	Metal	€221.83
A	DSCV125	NPT	-20°F to +406°F	Metal	€479.75
A	DSCV75	NPT	-20°F to +406°F	Metal	€269.35
A	DSCV200	NPT	-20°F to +406°F	Metal	€858.65
A	DSCV150	NPT	-20°F to +406°F	Metal	€622.29
A	DSCV100	NPT	-20°F to +406°F	Metal	€362.22

DIXON -

Safety Check Valves

Style	Model	Flow Rate	Connection Type	Max. Temp.	Max. Operating Pressure	Shape	Pressure Rating	Price
A	SCVH10	-	-	250°F	350 psi	Straight	-	€332.77
A	SCVH12	-	-	250°F	350 psi	Straight	-	€558.21
A	SCVS12	-	-	250°F	350 psi	Straight	-	€558.21
A	SCVL16	-	-	250°F	350 psi	Straight	-	€762.22
A	SCVL10	-	-	250°F	350 psi	Straight	-	€332.77
A	SCVS8	-	-	250°F	350 psi	Straight	-	€185.89

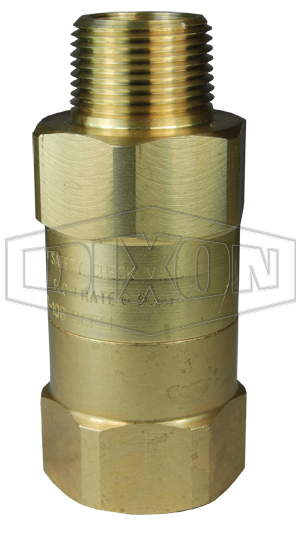

B	SCVX12	-	-	250°F	350 psi	-	-	€558.21
A	SCVM12	-	-	250°F	350 psi	Straight	-	€558.21
C	SCVH8	-	-	250°F	350 psi	Straight	-	€198.82
A	SCVL8	-	-	250°F	350 psi	Straight	-	€185.89
C	SCVH6	-	-	250°F	350 psi	Straight	-	€185.16
A	SCVS16	-	-	250°F	350 psi	Straight	-	€762.22
A	SCVL12	-	-	250°F	350 psi	Straight	-	€558.21
A	SCVM8	-	-	250°F	350 psi	Straight	-	€185.89
A	SCVM10	-	-	250°F	350 psi	Straight	-	€332.77
A	SCVH24	-	-	250°F	350 psi	Straight	-	€2,774.22
A	SCVM16	-	-	250°F	350 psi	Straight	-	€762.22
A	SCVL24	-	-	250°F	350 psi	Straight	-	€2,774.22
C	SCVS6	-	-	250°F	350 psi	Straight	-	€204.50
A	SCVS10	-	-	250°F	350 psi	Straight	-	€332.77
A	SCVL2	23-29 SCFM	-	250°F	350 psi	Straight	350 psi	€103.14
B	SCVL3	30-36 SCFM	NPT x Hose	-	-	-	350 psi	€104.00
A	SCVM3	39-47 SCFM	-	250°F	350 psi	Straight	350 psi	€104.00
A	SCVM4	70-78 SCFM	-	250°F	350 psi	Straight	350 psi	€103.87
A	SCVL6	72-88 SCFM	-	250°F	350 psi	Straight	350 psi	€164.42

DIXON -

Uni-Directional Check Valves

Style	Model	Seal Material	Temp. Range	Pressure Range	Price
A	48951414	FKM	-4°F to +356°F	7 psi to 580 psi	€250.35
A	48951818	FKM	-4°F to +356°F	7 psi to 580 psi	€322.67
A	48952222	FKM	-4°F to +356°F	7 psi to 580 psi	€302.27
A	48951111	FKM	-4°F to +356°F	7 psi to 580 psi	€236.66

DIXON -

B45 Series Air Blow Check Valves, Hose Barb

Style	Model	Max. Temp.	Grade	Pressure Rating	Max. Operating Pressure	Trim Material	Shape	Price

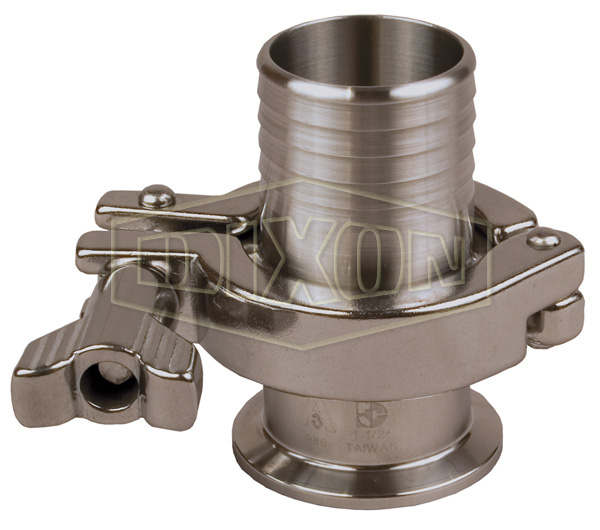

A	B45CC-R200	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€276.48
A	B45CC-R250	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€314.80
A	B45CC-R100150	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€234.38
A	B45CC-R300	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€376.81
A	B45CC-R400	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€402.06

DIXON -

Check Valves

Style	Model	Pressure Rating	Thread Type	Temp. Range	Max. Temp.	Max. Operating Pressure	Height	Connection Type	Grade	Price
A	860	-	-	-	-	-	-	-	-	€646.71
B	B45BY-R200	-	-	-	-	-	-	-	Grade 316L	€827.73
B	B45BY-R250	-	-	15°F to 200°F	-	150 psi	-	-	Grade 316L	€814.92
B	B45BY-R300	-	-	15°F to 200°F	-	150 psi	-	-	Grade 316L	€1,256.60
C	SCVS24	-	-	-	250°F	350 psi	-	-	-	€2,774.22
C	SCVH16	-	-	-	250°F	350 psi	-	-	-	€762.22
B	B45BY-R150	-	-	15°F to 200°F	-	150 psi	-	-	Grade 316L	€508.68
D	BVFS35	175 psi	NPT	10°F to 210°F	-	-	-	-	-	€436.41
D	BVFS40	175 psi	NPT	10°F to 210°F	-	-	-	-	-	€624.38
E	SWCV200	200 psi	Female NPT	-20°F to +150°F	-	-	-	-	-	€137.18
C	SCVS3	350 psi	-	-	250°F	350 psi	-	-	-	€104.00
F	BVFS20	400 psi	NPT	10°F to 210°F	-	-	-	-	-	€119.87
G	61-105	400 psi	Female NPT	-20°F to +353°F	-	-	3 1/2"	-	-	€171.62
G	61-103	400 psi	Female NPT	-20°F to +353°F	-	-	1 1/8"	-	-	€102.44
F	BVFS25	400 psi	NPT	10°F to 210°F	-	-	-	-	-	€171.93

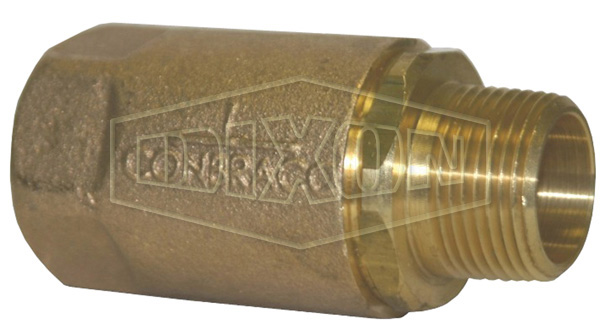

H	61-203	400 psi	NPT	-20°F to +353°F	-	-	-	MPT x FPT	-	€136.57
I	FSCV50	1975 psi	NPT	-	800°F	-	-	-	-	€158.50
I	FSCV75	1975 psi	NPT	-	800°F	-	-	-	-	€162.59
I	FSCV100	1975 psi	NPT	-	800°F	-	-	-	-	€207.23
I	FSCV150	1975 psi	NPT	-	800°F	-	-	-	-	€361.49
I	FSCV200	1975 psi	NPT	-	800°F	-	-	-	-	€501.13
I	FSCV125	1975 psi	NPT	-	800°F	-	-	-	-	€353.23

DIXON -

B45 Series Air Blow Check Valves, Female NPT

Style	Model	Max. Temp.	Grade	Pressure Rating	Max. Operating Pressure	Trim Material	Shape	Price

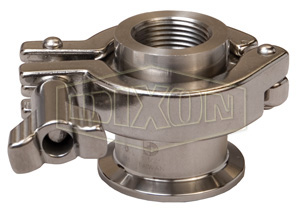

A	B45BC-R100150	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€201.94
A	B45BC-R200	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€237.42
A	B45BC-R300	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€328.16
A	B45BC-R250	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€285.63
A	B45BC-R400	212°F	Grade 316L	145 psi	145 psi	EPDM	Straight	€431.05

DIXON -

Ball Cone Check Valves, Male NPT x Female NPT

Style	Model	Pressure Rating	Connection Type	Thread Type	Temp. Range	Price
A	61-202	400 psi	MPT x FPT	NPT	-20°F to +353°F	€136.57
A	61-207	400 psi	MPT x FPT	NPT	-20°F to +353°F	€479.54
A	61-201	400 psi	MPT x FPT	NPT	-20°F to +353°F	€136.57
A	61-205	400 psi	MPT x FPT	NPT	-20°F to +353°F	€223.76
A	61-204	400 psi	MPT x FPT	NPT	-20°F to +353°F	€178.30
A	61-206	400 psi	MPT x FPT	NPT	-20°F to +353°F	€378.05
A	61-208	400 psi WOG, 0.5 psi	MPT x FPT	NPT	-20°F to +353°F	€800.32

DIXON -

Check Valve

Model	Item	Price (ex. VAT)

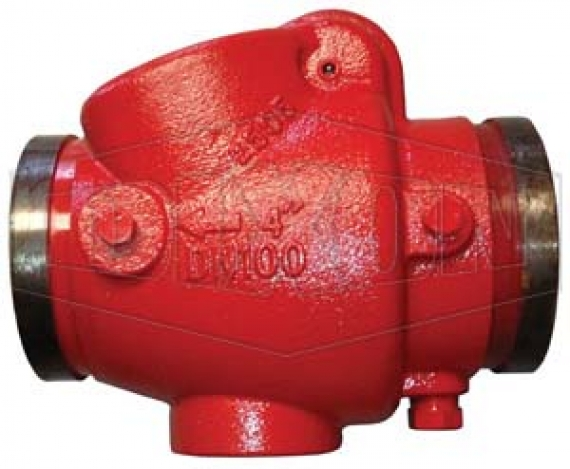

SCVV400	BX7TCB	€190.12
