JARKE Cantilever Storage Rack Components

Filter

JARKE -

Cantilever Rack Single Upright

JARKE 25CS31096

A

Style	Model	Height	Base Length	Overall Height	Arm Length	Compatible Arm Length	Base Depth	Column Gauge	Column Steel Gauge	Price
A	25CS31096	8 ft.	34"	8 ft.	12", 18"	12", 18"	34"	11 ga.	11 ga.	€531.18
A	25CS46096	8 ft.	49"	8 ft.	30", 36"	30", 36"	49"	11 ga.	11 ga.	€904.12
A	25CS31120	10 ft.	34"	10 ft.	12", 18"	12", 18"	34"	10 ga.	10 ga.	€1,028.86
A	25CS46144	12 ft.	49"	12 ft.	30", 36"	30", 36"	49"	10 ga.	10 ga.	€1,307.24
A	25CS31144	12 ft.	34"	12 ft.	12", 18"	12", 18"	34"	10 ga.	10 ga.	€863.12

JARKE -

Arms

A

JARKE CR-060-D1

B

C

D

E

F

G

H

Style	Model	Usable Arm Length	Load Capacity Per Arm	Arm Gauge	Overall Arm Length	Arm Orientation	Arm Lip Height	Arm Length	Lip	Price
A	25ASO12	12"	3000 lbs.	11 ga.	15"	Straight	-	-	-	€68.83
B	CR-060-D1	16"	1000 lbs.	12 ga.	17 1/4"	Inclined	1 3/4"	-	-	€108.72
C	25ASL18	18"	2500 lbs.	11 ga.	21"	Straight	1 1/2"	-	-	€81.75
D	25AIO18	18"	2500 lbs.	11 ga.	21 5/8"	Inclined	-	-	-	€77.43
E	25ASL24	24"	2000 lbs.	11 ga.	26 1/4"	Straight	1 1/2"	24"	Removable	€85.82
D	25AIO24	24"	2000 lbs.	11 ga.	26 27/32"	Inclined	-	-	-	€85.72
F	25AIL24	24"	2000 lbs.	11 ga.	26 27/32"	Inclined	1 1/2"	-	-	€93.52
G	25ASL30	30"	1600 lbs.	10 ga.	33"	Straight	1 1/2"	-	-	€98.13	RFQ
H	25ASO36	36"	1300 lbs.	10 ga.	38 7/8"	Straight	-	36"	Not Included	€98.99
C	25ASL48	48"	1000 lbs.	10 ga.	50 27/32"	Straight	1 1/2"	-	-	€134.10
H	25ASO48	48"	1000 lbs.	10 ga.	50 27/32"	Straight	-	48"	Not Included	€126.82

JARKE -

Uprights

JARKE 25CD106120

A

Style	Model	Max. Load Capacity Per Side	Max. Arms Per Side	Material	Overall Width	Arm Length	Overall Depth	Compatible Arm Length	Base Depth	Price
A	25CD106120	9730 lbs., 10880 lbs.	12	Steel	9 1/2"	42", 48"	106"	42", 48"	105 1/2"	€1,027.07
A	25CD106144	10830 lbs., 10831 lbs.	14	Steel	9 1/2"	42", 48"	106"	42", 48"	105 1/2"	€1,225.27

JARKE -

Inclined Cantilever Rack arm

A

B

Style	Model	Capacity	Usable Arm Length	Arm Length	Load Capacity Per Arm	Overall Arm Length	Capacity Per Arm	Lip	Material	Price
A	25AIL18	2500 lbs.	18"	18"	2500 lbs.	21 5/8"	2500 lbs.	Removable	Steel	€81.56
B	25AIO12	3000 lbs.	12"	12"	3000 lbs.	15 5/8"	3000 lbs.	Not Included	Steel	€72.10

JARKE -

Cantilever Rack Brace Set

A

Style	Model	Height	Overall Height	Brace Length	Compatible Grainger Part No	Center Brace Length	Material	Overall Depth	Column Steel Gauge	Price	Pkg. Qty.
A	25B2072	8 ft.	3"	72"	1CHV8, 1CHV9, 1CHW1, 1CHW2, 1CHX2, 1CHX3, 1CHX4, 1CHX5	72"	Steel	11"	13 ga.	€361.02	2
A	25B3036	10 ft.	4 1/2"	36"	1CHV8, 1CHV9, 1CHW1, 1CHW2, 1CHX2, 1CHX3, 1CHX4, 1CHX5	-	Steel	11"	13 ga.	€285.80	3
A	25B3060	10 ft.	4 1/2"	60"	1CHW3, 1CHW4, 1CHW5, 1CHW6, 1CHW7, 1CHW8, 1CHW9, 1CHX1, 1CHX6, 1CHX7, 1CHX8, 1CHX9, 1CHY1, 1CHY3, 1CHY4	60"	Steel	11"	13 ga.	€389.14	3

JARKE -

Cantilever Rack Braces

A

B

Style	Model	Overall Height	For Use With Grainger Item Number	Material	Overall Depth	Gauge	Price	Pkg. Qty.
A	CR-61-EF	3"	4UK77, 4UK80, 9WEA9, 9WRZ7	Steel	11"	13 ga.	€196.76	1
B	25B2048	3"	1CHV8, 1CHV9, 1CHW1, 1CHW2, 1CHX2, 1CHX3, 1CHX4, 1CHX5	Steel	11"	13 ga.	€281.28	2
B	25B3048	4 1/2"	1CHW3, 1CHW4, 1CHW5, 1CHW6, 1CHW7, 1CHW8, 1CHW9, 1CHX1, 1CHX6, 1CHX7, 1CHX8, 1CHX9, 1CHY1, 1CHY3, 1CHY4	Steel	11"	13 ga.	€351.44	3

JARKE -

Cantilever Rack Uprights

A

B

JARKE 25CS58096

C

JARKE 25CD53096

D

Style	Model	Overall Height	Compatible Arm Length	No. Of Usable Sides	For Use With Grainger Item Number	Overall Width	Base Depth	Max. Load Capacity Per Side	Max. Arms Per Side	Price
A	CR-61-B	7 ft.	12", 16"	2	4UK77, 4UK80, 9WEA9, 9WRZ7	8 1/2"	45"	6000 lbs.	6	€660.79

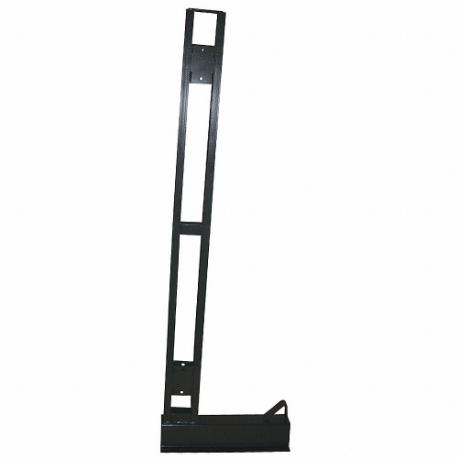

B	CR-61-A	7 ft.	12", 16"	1	4UK77, 4UK80, 9WEA9, 9WRZ7	8 1/2"	-	6000 lbs.	6	€534.05
C	25CS58096	8 ft.	42", 48"	1	1CHZ9, 1CJA1	9 1/2"	61"	7600 lbs., 8430 lbs.	9	€1,054.34
D	25CD53096	8 ft.	12", 18"	2	1CHZ4, 1CHZ5	9 1/2"	53"	14950 lbs., 18520 lbs.	9	€722.02
C	25CS37096	8 ft.	24"	1	1CHZ6	9 1/2"	40"	12530 lbs.	9	€919.24
C	25CS37120	10 ft.	24"	1	1CHZ6	-	40"	16680 lbs.	12	€1,111.16
C	25CS46120	10 ft.	30", 36"	1	1CHZ7, 1CHZ8	9 1/2"	49"	12340 lbs., 14250 lbs.	-	€874.67
D	25CD65120	10 ft.	24"	2	1CHZ6	9 1/2"	65"	16860 lbs.	12	€1,230.94
D	25CD53120	10 ft.	12", 18"	2	1CHZ4, 1CHZ5	9 1/2"	53"	-	12	€844.16
C	25CS58120	10 ft.	42", 48"	1	1CHZ9, 1CJA1	9 1/2"	61"	9730 lbs., 10880 lbs.	12	€1,190.63
C	25CS37144	12 ft.	24"	1	1CHZ6	9 1/2"	40"	16730 lbs.	14	€1,151.05
D	25CD53144	12 ft.	12", 18"	2	1CHZ4, 1CHZ5	9 1/2"	53"	20450 lbs., 26300 lbs.	14	€908.38
C	25CS58144	12 ft.	42", 48"	1	1CHZ9, 1CJA1	9 1/2"	61"	9690 lbs., 10830 lbs.	14	€1,337.41
D	25CD65144	12 ft.	24"	2	1CHZ6	9 1/2"	65"	16730 lbs.	14	€982.87
D	25CD82144	12 ft.	30", 36"	2	1CHZ7, 1CHZ8	9 1/2"	82"	12340 lbs., 14250 lbs.	14	€1,013.13

JARKE -

Cantilever Rack Kits

A

JARKE QT501D72A

B

C

D

E

F

Style	Model	Arm Length	Overall Depth	Load Capacity Per Arm	Arm Gauge	Center Brace Length	Whole Unit Load Capacity	No. Of Arms	Rack Configuration	Price
A	TW-3943	-	-	-	-	-	-	-	-	€730.71	RFQ
B	QT501D72A	14"	34"	500 lbs.	14 ga.	72"	7000 lbs.	14	Add On	€982.41
C	QT501D72	14"	34"	500 lbs.	14 ga.	72"	14000 lbs.	28	Starter	€1,715.24
D	QT501S72	14"	21"	500 lbs.	14 ga.	72"	7000 lbs.	14	Starter	€1,463.16

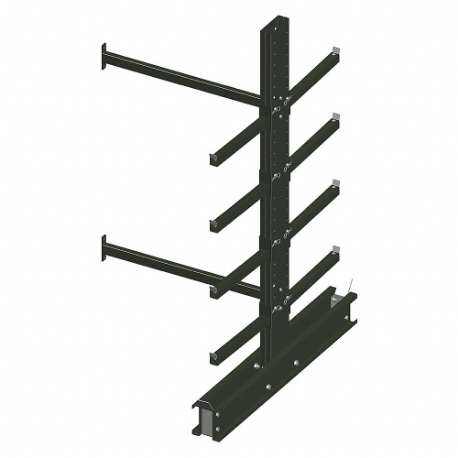

E	CR-8A	16"	45"	1000 lbs.	10 ga.	69 1/2"	24000 lbs.	12	Add On	€963.94
F	CR-8	16"	45"	1000 lbs.	10 ga.	69 1/2"	24000 lbs.	24	Starter	€1,763.16

JARKE -

Cantilever Rack Double Upright

JARKE 25CD65096

A

Style	Model	Height	Base Length	Overall Height	Arm Length	Compatible Arm Length	Base Depth	Max. Load Capacity Per Side	Column Gauge	Price
A	25CD65096	8 ft.	65"	8 ft.	24"	24"	65"	12530 lbs.	11 ga.	€1,121.47
A	25CD82096	8 ft.	82"	8 ft.	30", 36"	30", 36"	81 1/2"	9460 lbs., 10780 lbs.	11 ga.	€1,117.09
A	25CD106096	8 ft.	106"	8 ft.	42", 48"	42", 48"	105 1/2"	7600 lbs., 8430 lbs.	11 ga.	€1,227.86
A	25CD82120	10 ft.	-	10 ft.	30", 36"	30", 36"	82"	12340 lbs., 14250 lbs.	10 ga.	€1,016.22

JARKE -

Cantilever Rack Arm

A

B

Style	Model	Usable Arm Length	Capacity	Arm Length	Load Capacity Per Arm	Arm Gauge	Overall Arm Length	Lip	Capacity Per Arm	Price
A	25ASL12	12"	3000 lbs.	12"	3000 lbs.	11 ga.	15"	Removable	3000 lbs.	€75.87
B	25ASO18	18"	2500 lbs.	18"	2500 lbs.	11 ga.	21"	Not Included	2500 lbs.	€74.66
B	25ASO24	24"	-	24"	2000 lbs.	11 ga.	26 1/4"	Not Included	2000 lbs.	€80.93
B	25ASO30	30"	-	30"	1600 lbs.	10 ga.	33"	Not Included	-	€92.83
A	25ASL36	36"	1300 lbs.	36"	1300 lbs.	10 ga.	38 7/8"	Removable	1300 lbs.	€110.89
A	25ASL42	42"	1145 lbs.	42"	1145 lbs.	10 ga.	45"	Removable	1145 lbs.	€115.27
B	25ASO42	42"	1145 lbs.	42"	1145 lbs.	10 ga.	45"	Not Included	1145 lbs.	€112.07

JARKE -

Center Brace, Steel

Center Brace, Steel

Model	Item	Price (ex. VAT)
25B2060	CD3XZE	€282.75
