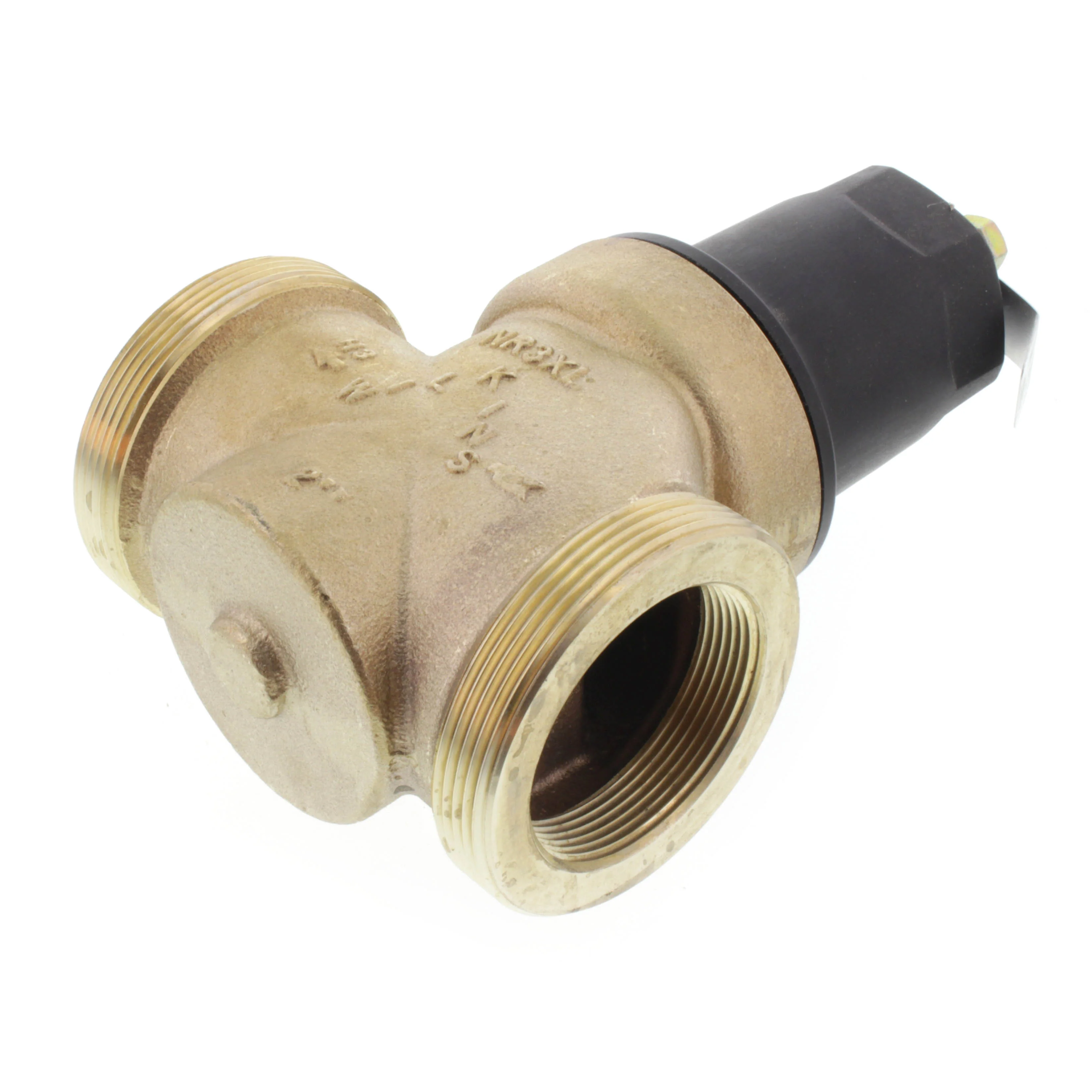

ZURN 34-NR3XLC Water Pressure Reducing Valve, Lead Free Bronze, 3/4 Inch, FC Union, Strainer
Item: CV4KFLModel: 34-NR3XLCCross Ref: 801HH9
7 In Stock
Ships within 2 days via
5.00% off
€314.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Adjustable Pressure | 15 psi to 75 psi |
| Application | Residential Use |
| Body Material | Cast Bronze |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connection Type | FC Union |
| Connections | FNPT |
| Disc Material | Elastomer |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Height | 6 1/4" |
| Included Strainer | Strainer Included |
| Inlet Connection Size | 3/4" |
| Length | 4.438" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Low Lead Cast Bronze |
| Max. Continuous Flow Rate | 25.1 GPM |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 400 psi |
| Max. Temp. | 140°F |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Pressure | 15 psi to 400 psi |
| Outlet Connection Size | 3/4" |
| Overall Height | 5 1/2" |
| Overall Width | 2 13/16" |
| Pipe Size | 3/4" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 15 psi to 75 psi |
| Product Datasheet | zurn-112-nr3xldu.pdf |
| Seat Material | EPDM |
| Strainer | Yes |
| Type | Pressure Reducing |
| Union Type | Single |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 11.28 |
| Ship width (cm) | 13.97 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Height | Inlet Connection Size | Overall Height | Operating Pressure | Max. Pressure | Pressure Adjustment Range | Factory Set Pressure | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-625XL | 7 1/4" | 1" | 7 13/16" | 25 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 7 7/8" | €650.56 | |
|
1-625XLC | 7 1/4" | 1" | 7 1/2" | 25 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 8 1/8" | €353.92 | |
 |
1-625XLSULU | 7 1/4" | 1" | 3 1/2" | 25 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 6 1/2" | €687.70 | |
 |
34-625XL | 5 1/2" | 3/4" | 4 1/2" | 25 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 8 5/16" | €451.14 | |
|
34-625XLC | 5 1/2" | 3/4" | 5 1/2" | 25 psi to 300 psi | - | 25 psi to 75 psi | 50 psi | 2 13/16" | €565.70 | |
|
34-625XLSULU | 5 1/2" | 3/4" | 2 7/8" | 25 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 5 5/8" | €544.49 | |
 |
212-500XLFC | 15" | 2 1/2" | 14 3/8" | 10 psi to 300 psi | 300 psi | 25 psi to 75 psi | 50 psi | 8" | €6,579.60 |
