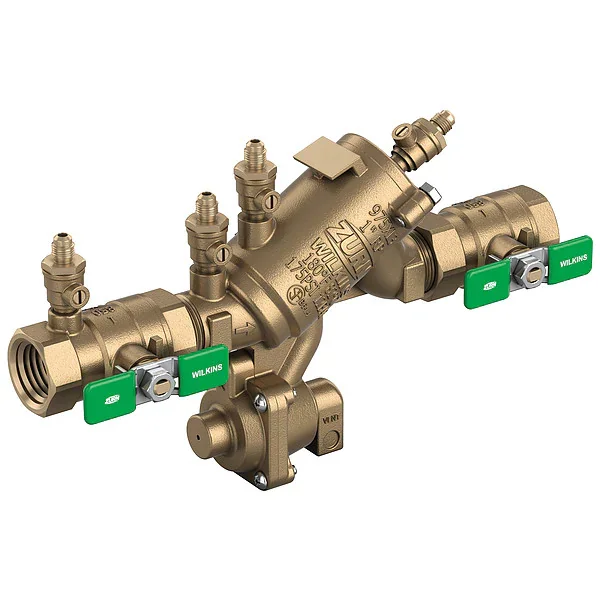

ZURN 34-975XL3 Backflow Preventer, 3/4 in, FNPT, Low Lead Cast Bronze, 10 Inch Length
Item: CV4JQUModel: 34-975XL3Cross Ref: 801H90
7 In Stock
Ships within 2 days via
10.00% off
€1,051.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Backflow Preventer |
| Backflow Preventer Type | Reduced Pressure Assembly (Rp) |
| Body Material | Bronze |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Compact And Shortest Bronze Small Backflow Valve On The Market Allowing For Installation Versatility, Ezswap Modular Check With Top Access Speeds Up Repairs And Replacements, Interlocking Connected Checks Provide 1/4 Turn To Access And Disassemble, Lead-Free (0.25% Max Weighted Average Lead Content), Low-Cost Repair Kits Extend The Lifespan At A Significantly Lower Cost, Test Ports Located On Valve'S Centerline Make Install And Testing Easy |
| Flow Rate | 46 GPM |
| For Media | Water |
| Freeze Protection | No |
| Handle Material | Stainless Steel |
| Hazard Protection Level | High Health Hazard |
| Height | 6.594" |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No |
| Length | 10" |
| Material | Low Lead Cast Bronze |
| Max. Pressure | 175 psi |
| Max. Pressure (cwp) | 175 psi |
| Max. Temp. | 180°F |
| Media Temp. Range | 33°F to 180°F |
| Mounting Orientation | Horizontal |
| Overall Height | 9 1/4" |
| Overall Length | 10" |
| Overall Width | 4.69" |
| Pipe Size | 3/4" |
| Product Datasheet | zurn-112-950xl3ft.pdf |
| Protection Type | Back Pressure, Back Siphonage |
| Series | 975XL3 |
| Shut-off Valve Type | Ball Valve |
| Spring Material | Stainless Steel |
| Temp. Range | +33°F to +180°F |
| Width | 3.062" |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 16.75 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 7.78 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Connection Type | Temp. Range | Body Material | Height | Backflow Preventer Type | Overall Height | Mounting Orientation | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 212-375A | Flange | +33°F to +140°F | Ductile Iron | - | Reduced Pressure Assembly (Rp) | 27.38" | Horizontal, Vertical | 175 psi | €6,816.14 | |
| 3-375A | Flange | +33°F to +140°F | Ductile Iron | - | Reduced Pressure Assembly (Rp) | 29.88" | Horizontal, Vertical | 175 psi | €6,974.54 | |
| 4-375A | Flanged x Flanged | +33°F to +140°F | - | - | - | - | - | 175 psi | €7,922.47 | |
| 12-375XLB | FNPT | +33°F to +180°F | Bronze | 6.812" | Reduced Pressure Assembly (Rp) | 6.81" | - | 175 psi | €986.40 | |
| 34-375XLB | FNPT | +33°F to +180°F | Bronze | 6.812" | Reduced Pressure Assembly (Rp) | 6.81" | Horizontal | 175 psi | €1,098.89 | |
| 1-375XLB | FNPT | +33°F to +180°F | - | 8" | - | - | - | 175 psi | €1,239.47 | |
| 114-375XLB | FNPT | +33°F to +180°F | Bronze | 9 1/2" | Reduced Pressure Assembly (Rp) | 9 1/2" | - | 175 psi | €1,564.99 |
