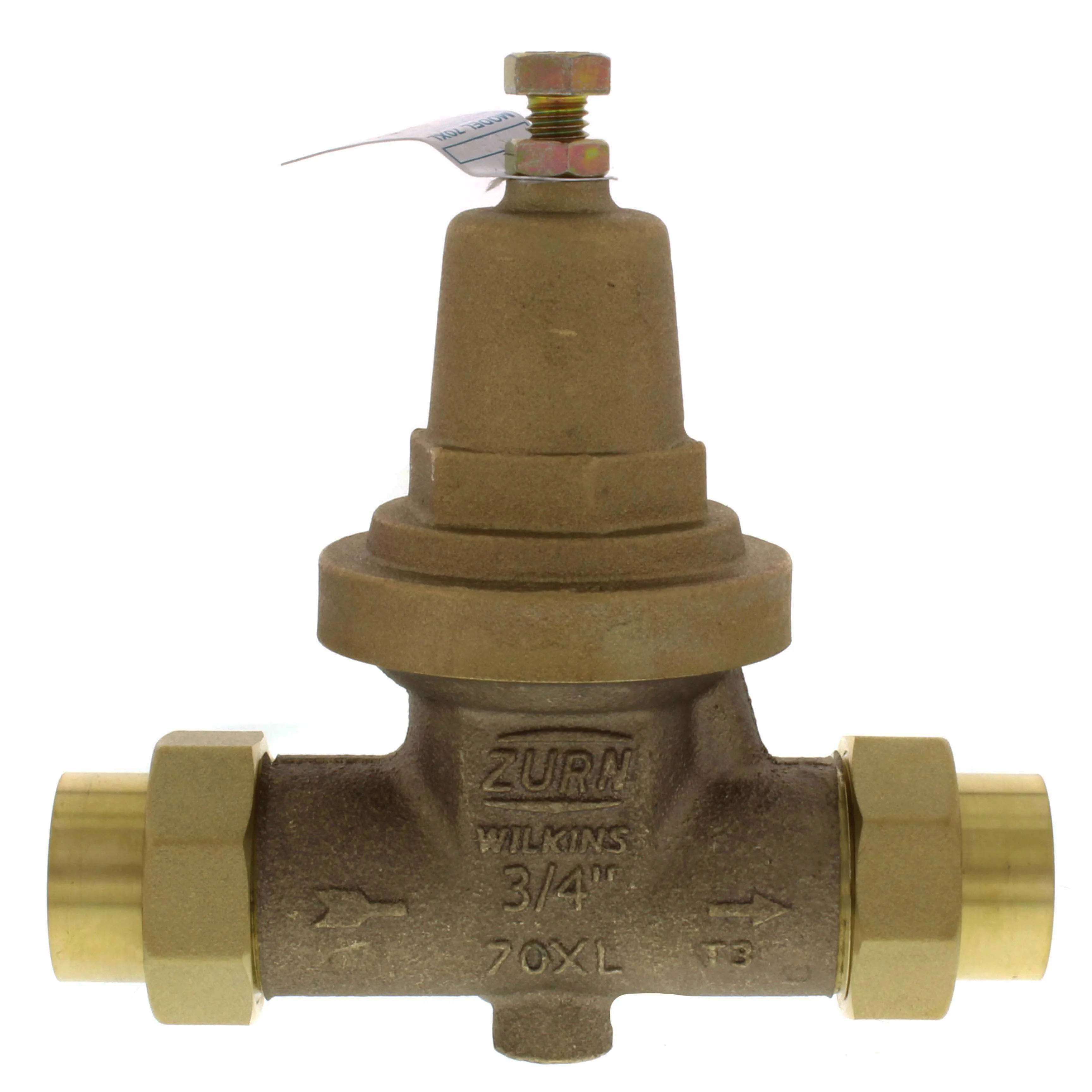

ZURN 34-70XLDU Water Pressure Reducing Valve, 70XL, Bronze, 3/4 Inch, Double Union FNPT, Strainer
Item: CV4KFAModel: 34-70XLDUCross Ref: 453U62
7 In Stock
Ships within 2 days via
10.00% off
€348.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Adjustable Pressure Range | 25 psi to 75 psi |
| Application | Commercial Use, Residential Use |
| Body Material | Bronze |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connection Type | Double Union FNPT |
| Connections | FNPT x FNPT |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Height | 6" |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 3/4" |
| Length | 6" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Bronze |
| Max. Continuous Flow Rate | 25.1 GPM |
| Max. Operating Temperature | 140°F |
| Max. Pressure | 300 psi |
| Max. Temp. | 140°F |
| Mfr. Series | 70XL |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Pressure Range | 25 psi to 300 psi |
| Outlet Connection Size | 3/4" |
| Overall Height | 5 1/2" |
| Overall Width | 2 13/16" |
| Pipe Size | 3/4" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Product Datasheet | zurn-1-70xlc.pdf |
| Seat Material | Stainless Steel |
| Strainer | Yes |
| Type | Standard |
| Union Type | Double |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 13.97 |
| Country of Origin | TW |
Documentation:
Product Variants
| Product | Model | Body Material | Height | Max. Pressure | Pressure Adjustment Range | Pipe Size | Adjustable Pressure Range | Disc Material | Preset Pressure Settings | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-625XL | Cast Bronze | 7 1/4" | 300 psi | 25 psi to 75 psi | 1" | 25 psi to 75 psi | - | 50 psi | €650.56 | |
|
1-625XLC | Bronze | 7 1/4" | 300 psi | 25 psi to 75 psi | 1" | 25 psi to 75 psi | - | 50 psi | €353.92 | |
 |
1-625XLSULU | Cast Bronze | 7 1/4" | 300 psi | 25 psi to 75 psi | - | 25 psi to 75 psi | - | 50 psi | €687.70 | |
 |
34-625XL | Cast Bronze | 5 1/2" | 300 psi | 25 psi to 75 psi | 3/4" | 25 psi to 75 psi | - | 50 psi | €451.14 | |
|
34-625XLC | Cast Bronze | 5 1/2" | - | 25 psi to 75 psi | - | 25 psi to 75 psi | - | - | €565.70 | |
|
34-625XLSULU | Cast Bronze | 5 1/2" | 300 psi | 25 psi to 75 psi | - | 25 psi to 75 psi | - | 50 psi | €544.49 | |
 |
212-500XLFC | Bronze | 15" | 300 psi | 25 psi to 75 psi | 2 1/2" | 25 psi to 75 psi | - | - | €6,579.60 |
