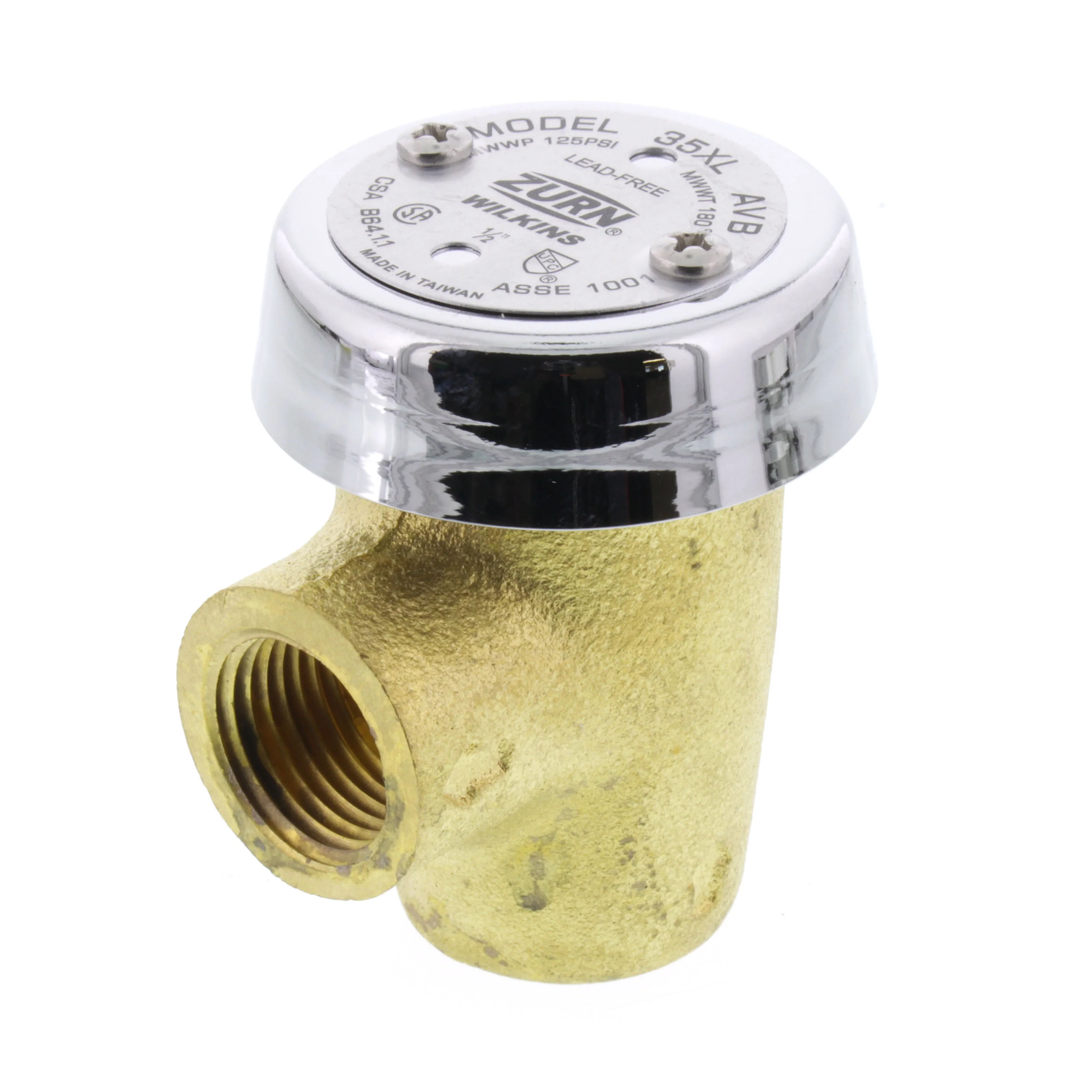

ZURN 12-35XL Vacuum Breaker 1/2 Inch Fnpt x Fnpt
Item: AB6WKMModel: 12-35XLCross Ref: 22N560
7 In Stock
Ships within 2 days via
5.00% off
€101.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Breaker |
| Body | Rough Brass Finished Bronze |
| Body Finish | Rough Brass |
| Body Material | Bronze |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Finished | Rough Brass |
| Flow Rate | 14.5 GPM |
| For Media | Water |
| Freeze Protection | No |
| Hazard Protection Level | High Health Hazard |
| Included Atmospheric Vent | Atmospheric Vent Included |
| Material | Cast Brass, Cast Bronze, Polypropylene, Silicone, Ultem |
| Max. Media Temp. | 180°F |
| Max. Pressure | 125 psi |
| Max. Pressure (cwp) | 125 psi |
| Media Temp. | 180°F |
| Nsf Standards | Nsf/Ansi 372 |
| Overall Length | 2.5" |
| Pipe Size | 1/2" |
| Protection Type | Back Siphonage |
| Seal | Buna N |
| Seal Material | Buna N |
| Spring Material | Bronze |
| Temp. | 180°F |
| Vacuum Breaker Style | Atmospheric Vacuum Breaker |
| Valve Series | 35XL |
| Width | 1.312" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 3.33 |
| HS code | 8481301090 |
| Country of Origin | TW |
