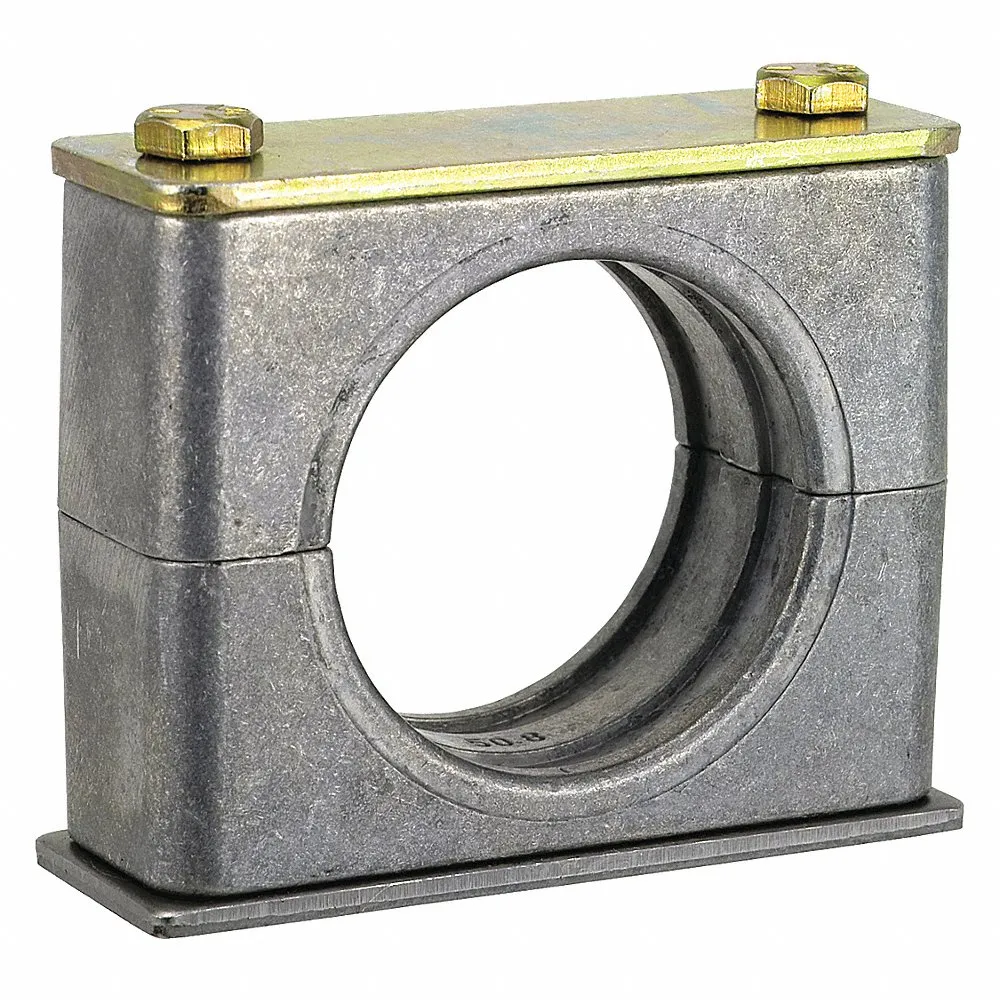

ZSI-FOSTER S6028S-AL Beta Standard Duty Tube Clamp, Weld Plate Mounted, 1.75 In Bore, Aluminum, 1-3/4 In Tube
Item: CF3YHVModel: S6028S-ALCross Ref: 22JF88
7 In Stock
Ships within 2 days via
5.00% off
€70.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tube Clamp |
| Bolt Length | 2 3/4" |
| Bore Internal Surface | Ribbed Bore |
| Bore Style | Ribbed |
| Bottom Plate Material | Steel |
| Clamp Bore Style | Ribbed |
| Clamp Hardware Material | Zinc Plated Steel |
| Clamp Material | Steel |
| Clamp Style | Standard Duty Tube Clamp |
| Clamp Type | Beta Clamp Assembly |
| Cushion Material | Aluminum |
| Cushioned | Yes |
| For Copper Tube Size | 1 3/4" |
| For Max. Outside Dia. | 1 3/4" |
| For Min. Outside Dia. | 1 3/4" |
| For No. Of Lines | 1 |
| For Outside Dia. | 1 3/4" , 1 3/4" to 1 3/4" |
| For Pipe Size | Not Applicable |
| For Tube Outside Dia. | 1 3/4" |
| For Use On | Electric Cables, Hose, Pipe, Tube |
| Included Mounting Hardware | Yes |
| Load Capacity | 1500 lbs. |
| Material | Aluminum |
| Max. Operating Pressure | 1500 psi |
| Max. Operating Temp. | 500°F |
| Metal Detectable | Yes |
| Min. Hose Outside Dia. | 1 3/4" |
| Min. Operating Temp. | -22°F |
| Mount Hole Center To Center Length | 2 19/32" |
| Mounting Type | Weld On |
| Overall Height | 2 53/64" |
| Overall Length | 1 13/64" |
| Overall Width | 3 29/64" |
| Product Type | Beta Clamp |
| Resistance Properties | Shock Absorbing, Vibration Damping |
| Series | Standard Series |
| System Of Measurement | Imperial |
| Thread Size | 1/4" |
| Top Plate Material | Steel |
| Tube Size | 1 3/4" |
| Type | Standard Duty |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.18 |
| Ship length (cm) | 3.06 |
| Ship width (cm) | 8.77 |
| Country of Origin | TW |
