ZOELLER 508-0010 Sump/Battery Back-Up System, 3/10 Primary/1/3 Secondary HP, Cast Iron Primary | CV4HVL 49DE63

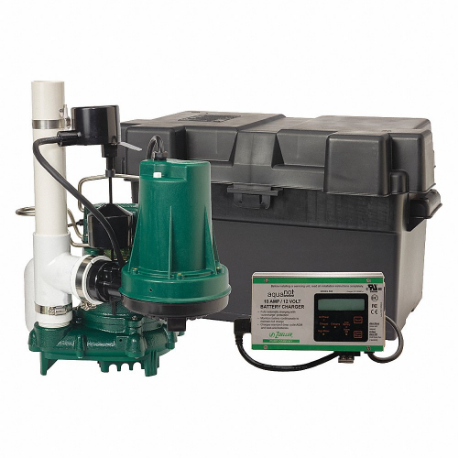

ZOELLER 508-0010 Sump/Battery Back-Up System, 3/10 Primary/1/3 Secondary HP, Cast Iron Primary

Item: CV4HVLModel: 508-0010Cross Ref: 49DE63
Check Availability
In Stock

Get it by Wednesday, Dec 24

€1,314.32
10.00% off
€1,182.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Battery
12vdc Battery Charger 10A
Agency Compliance CSA
Alarm Application Indoor
Alarm Duration Manual Reset
Alarm Duration - Pumps Continuous
Alarm Included Yes
Alarm Output Audible
Alarm Output - Pumps Audible
Amps 9.7A
Bearing Type Sleeve
Body Dia. 8"
Body Material Cast Iron
Cord Length 9 ft.
Cord Length - Pumps 9 ft.
Discharge Dia. 1 1/2"
Discharge Gender Male
Discharge Size 1 1/2"
Duty Cycle Intermittent
Flow Rate @ 10 Ft. 34/30 GPM
Flow Rate @ 15 Ft. Of Head 19/20 GPM
Flow Rate @ 5 Ft. 43/39 GPM
Handle Stainless Steel
Height 10 1/16"
Housing Material Cast Iron, Plastic
Hp 3/10 hp, 1/3 hp
Impeller Material Cast Iron, Thermoplastic
Impeller Material - Pumps Cast Iron
Includes 1 DC Pump, Battery Box And Charger, Check Valve
Input Phase Ac 1
Manufacturers Warranty Length 3 yrs.
Max. Dia. Solids (in.) - Back-up 1/2"
Max. Diameter Solids 1/2"
Max. Flow Rate @ 15 Ft. 19/20 GPM
Max. Head 19 ft., 22 ft.
Max. Head - Pumps 19 ft.
Max. Liquid Temp. 130°F
Min. Sump Pit Dia. 18"
Off Point Adjustable
On Point Adjustable
On Point (in.) 7 1/4"
Outlet 1 1/2" M Pvc Glue
Overall Height 10 1/16"
Phase 1
Primary Pump Body Material Cast Iron
Primary Pump Duty Cycle Intermittent
Primary Pump Flow Rate @ 10 Ft. Of Head 34 GPM
Primary Pump Flow Rate @ 15 Ft. Of Head 19 GPM
Primary Pump Flow Rate @ 5 Ft. Of Head 43 GPM
Primary Pump Hp 3/10 hp
Primary Pump Hz 60 Hz
Primary Pump Impeller Material Cast Iron
Primary Pump Maximum Head 19 ft.
Primary Pump Maximum Solids Diameter 1/2"
Primary Pump Overall Height 10 1/16"
Primary Pump Phase 1
Primary Pump Shaft Seal Material Carbon Ceramic
Primary Pump Width At Widest Point 8 7/8"
Pump Body Material Cast Iron
Rpm 1550 RPM
Secondary Pump Body Diameter 7 7/8"
Secondary Pump Flow Rate @ 10 Ft. Of Head 30 GPM
Secondary Pump Flow Rate @ 15 Ft. Of Head 20 GPM
Secondary Pump Flow Rate @ 5 Ft. Of Head 39 GPM
Secondary Pump Hp 1/3 hp
Secondary Pump Impeller Material Thermoplastic
Secondary Pump Maximum Head 22 ft.
Shaft Seal Material Carbon Ceramic
Shaft Seal Material - Pumps Carbon, Ceramic
Switch Actuation Vertical Float
Switch Electrical Connection Integral, Piggyback
Voltage - Back-up 12V DC
Width 8 7/8"
Width At Widest Point 8 7/8"

Shipping Info:

Ship weight (kg) 18.41
Ship height (cm)25.56
Ship length (cm)25.56
Ship width (cm)25.56
Country of OriginUS
