WORLDWIDE ELECTRIC SSPE5-36-184TC Motor, 5 HP, 3600 RPM, 208-230/460V, 184TC Frame, C-Face with Feet, Stainless Steel | CJ8RNR

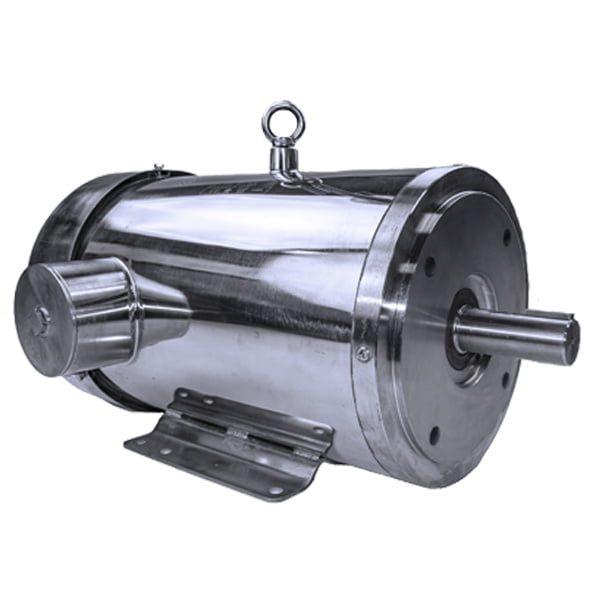

WORLDWIDE ELECTRIC SSPE5-36-184TC Motor, 5 HP, 3600 RPM, 208-230/460V, 184TC Frame, C-Face with Feet, Stainless Steel

Item: CJ8RNRModel: SSPE5-36-184TC
Check Availability
In Stock
€2,347.22 /unit
Request a Quote

Payment

Delivery

Product Specifications:

Item AC Motor
Breakdown Torque (bdt) 280%
Connection Diagram 9 Lead 2Y/Y
De Bearing 6308 2RS
Degree Of Protection IP69K
Duty Cycle S1
Efficiency 50% 88%
Efficiency 75% 89%
Efficiency @ 100% 88.5%
Enclosure Type Tefc (Totally Enclosed Fan Cooled)
F1/f2 Suitable Unsuitable
Frame Size 184tc
Full Load Amps @ 208v 12.6A
Full Load Amps @ 230v 12.2A
Full Load Amps @ 460v 6.1A
Full Load Speed 3525 RPM
Full Load Torque 7.3 lbs.-ft.
Grease Type Mobil Polyrex Em
Hp 5 hp
Insulation Class Class F
Locked Rotor Amps @ 230v 92A
Locked Rotor Amps @ 460v 46A
Locked Rotor Time(hot) 12 sec.
Locked Rotor Torque 2.25
Max. Ambient Temp. 40°C
Max. Elevation 3300 ft.
Moment Of Inertia 0.26 lbs.-sq. ft.
Mounting Type C Face With Feet
Nema Code Letter J
Nema Design B
No Load Amps @ 230v 4.4A
No Load Amps @ 460v 2.2A
No. Of Starts/hr 10
Ode Bearing 6306 2RS
Phase 3
Pole 2
Power Factor 100% 91%
Product Datasheet worldwide-electric-lam1-5-12-182t.pdf
Rotation Bidirectional
Service Factor 1.15
Slip 2.08%
Sound Pressure Level 78 dBA
Speed 3600 RPM
Temp. Rise (c) 80°C
Terminal Box Location F1

Documentation:

Datasheet

Product Variants

ProductModelHpSlipMoment Of InertiaFull Load TorqueLocked Rotor TorquePhaseService FactorMounting TypePrice
WORLDWIDE ELECTRIC SSPE1.5-12-182TC Motor, 1.5 HP, 1200 RPM, 208-230/460V, 182TC Frame, C-Face with Feet, Stainless Steel | CJ8RKN SSPE1.5-12-182TC1 1/2 hp2.5%0.416 lbs.-sq. ft.6.6 lbs.-ft.2.5531.15C Face With Feet€1,764.62
RFQ
WORLDWIDE ELECTRIC SSPE1.5-12-182TCRD Motor, 1.5 HP, 1200 RPM, 208-230/460V, 182TC Frame, C-Face Round Body, Stainless Steel | CJ8RKP SSPE1.5-12-182TCRD1 1/2 hp2.5%0.416 lbs.-sq. ft.6.6 lbs.-ft.2.5531.15-€1,694.68
RFQ
WORLDWIDE ELECTRIC SSPE1.5-18-145TC Motor, 1.5 HP, 1800 RPM, 208-230/460V, 145TC Frame, C-Face with Feet, Stainless Steel | CJ8RKQ SSPE1.5-18-145TC1 1/2 hp2.78%0.138 lbs.-sq. ft.4.4 lbs.-ft.2.8531.15C Face With Feet€1,015.74
RFQ
WORLDWIDE ELECTRIC SSPE1.5-18-145TCRD Motor, 1.5 HP, 1800 RPM, 208-230/460V, 145TC Frame, C-Face Round Body, Stainless Steel | CJ8RKR SSPE1.5-18-145TCRD1 1/2 hp2.78%0.138 lbs.-sq. ft.4.4 lbs.-ft.2.8531.15-€977.33
RFQ
WORLDWIDE ELECTRIC SSPE1.5-18-56C Motor, 1.5 HP, 1800 RPM, 208-230/460V, 56C Frame, C-Face with Feet, Stainless Steel | CJ8RKT SSPE1.5-18-56C1 1/2 hp2.78%0.138 lbs.-sq. ft.4.4 lbs.-ft.2.8531.15C Face With Feet€988.29
RFQ
WORLDWIDE ELECTRIC SSPE1.5-18-56CRD Motor, 1.5 HP, 1800 RPM, 208-230/460V, 56C Frame, C-Face Round Body, Stainless Steel | CJ8RKU SSPE1.5-18-56CRD1 1/2 hp2.78%0.138 lbs.-sq. ft.4.4 lbs.-ft.2.8531.15-€955.35
RFQ
WORLDWIDE ELECTRIC SSPE1.5-36-143TC Motor, 1.5 HP, 3600 RPM, 208-230/460V, 143TC Frame, C-Face with Feet, Stainless Steel | CJ8RKV SSPE1.5-36-143TC1 1/2 hp3.33%0.072 lbs.-sq. ft.2.3 lbs.-ft.2.8531.15C Face With Feet€988.29
RFQ
