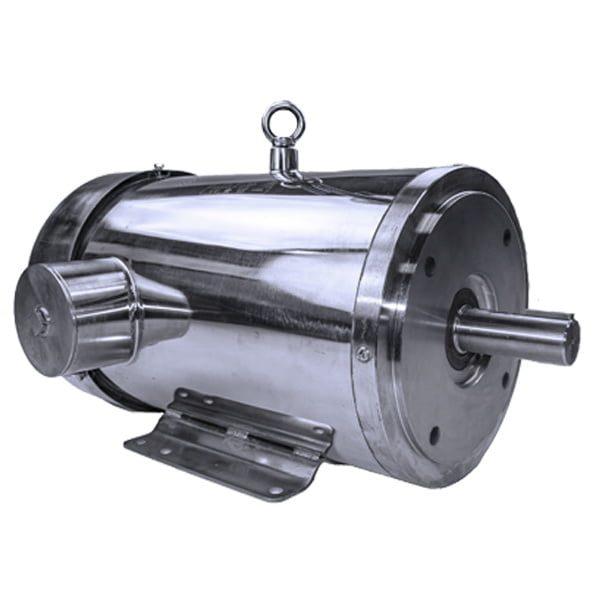

WORLDWIDE ELECTRIC SSPE3-36-182TC Motor, 3 HP, 3600 RPM, 208-230/460V, 182TC Frame, C-Face with Feet, Stainless Steel
€2,138.56 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Breakdown Torque (bdt) | 290% |
| Connection Diagram | 9 Lead 2Y/Y |
| De Bearing | 6308 2RS |
| Degree Of Protection | IP69K |
| Duty Cycle | S1 |
| Efficiency 50% | 86% |
| Efficiency 75% | 87% |
| Efficiency @ 100% | 86.5% |
| Enclosure Type | Tefc (Totally Enclosed Fan Cooled) |
| F1/f2 Suitable | Unsuitable |
| Frame Size | 182tc |
| Full Load Amps @ 208v | 8.8A |
| Full Load Amps @ 230v | 8.1A |
| Full Load Amps @ 460v | 4.05A |
| Full Load Speed | 3510 RPM |
| Full Load Torque | 4.4 lbs.-ft. |
| Grease Type | Mobil Polyrex Em |
| Hp | 3 hp |
| Insulation Class | Class F |
| Locked Rotor Amps @ 230v | 64A |
| Locked Rotor Amps @ 460v | 32A |
| Locked Rotor Time(hot) | 12 sec. |
| Locked Rotor Torque | 2.7 |
| Max. Ambient Temp. | 40°C |
| Max. Elevation | 3300 ft. |
| Moment Of Inertia | 0.145 lbs.-sq. ft. |
| Mounting Type | C Face With Feet |
| Nema Code Letter | K |
| Nema Design | B |
| No Load Amps @ 230v | 4.2A |
| No Load Amps @ 460v | 2.1A |
| No. Of Starts/hr | 10 |
| Ode Bearing | 6306 2RS |
| Phase | 3 |
| Pole | 2 |
| Power Factor 100% | 85% |
| Product Datasheet | worldwide-electric-lam1-5-12-182t.pdf |
| Rotation | Bidirectional |
| Service Factor | 1.15 |
| Slip | 2.5% |
| Sound Pressure Level | 78 dBA |
| Speed | 3600 RPM |
| Temp. Rise (c) | 80°C |
| Terminal Box Location | F1 |
Documentation:
Product Variants
| Product | Model | Hp | Locked Rotor Torque | Slip | Price | |
|---|---|---|---|---|---|---|
 |
SSPE1.5-12-182TC | 1 1/2 hp | - | 2.5% | €1,764.62 | RFQ
|
 |
SSPE1.5-12-182TCRD | 1 1/2 hp | - | 2.5% | €1,694.68 | RFQ
|
 |
SSPE1.5-18-145TC | 1 1/2 hp | - | - | €1,015.74 | RFQ
|
 |
SSPE1.5-18-145TCRD | 1 1/2 hp | - | - | €977.33 | RFQ
|
 |
SSPE1.5-18-56C | 1 1/2 hp | - | - | €988.29 | RFQ
|
 |
SSPE1.5-18-56CRD | 1 1/2 hp | - | - | €955.35 | RFQ
|
 |
SSPE1.5-36-143TC | 1 1/2 hp | - | - | €988.29 | RFQ
|
