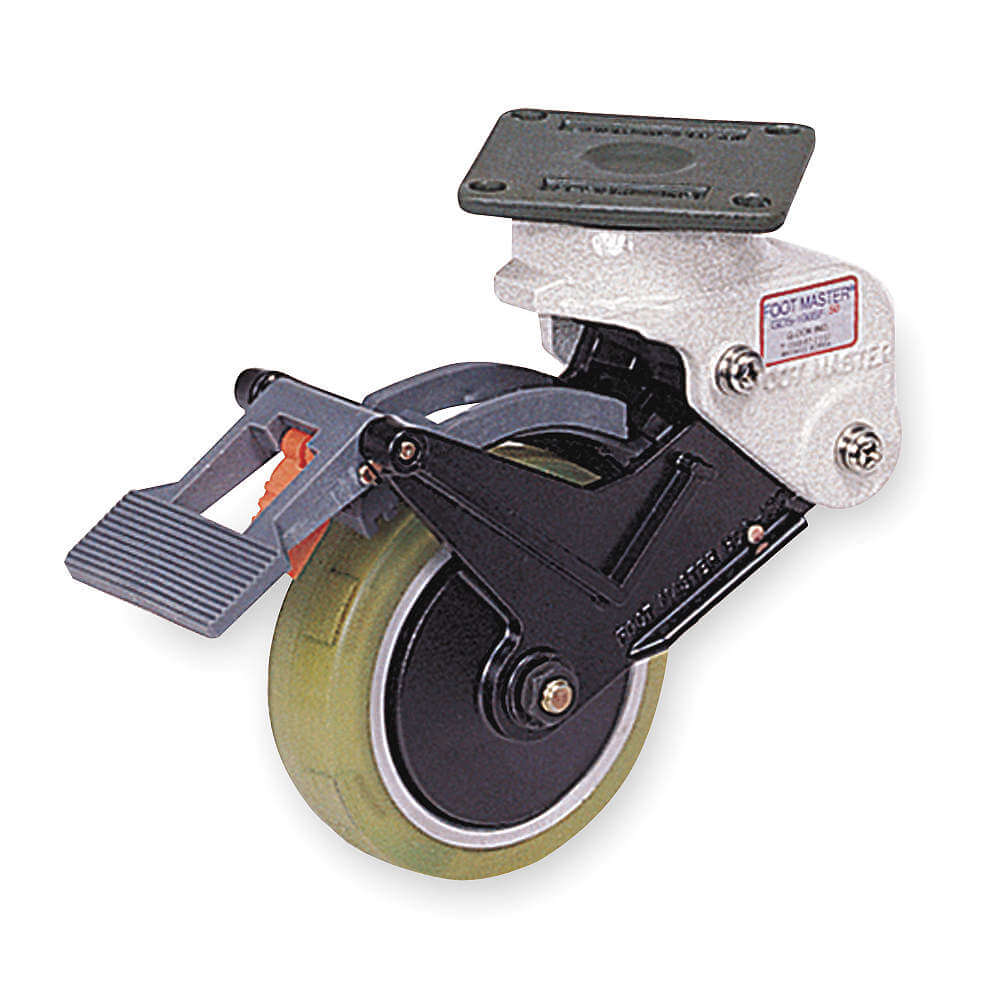

WM CASTER GDS-100B-SF Swivel Plate Shock-absorbing Caster
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€160.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Shock-Absorbing Caster |
| Bearing Type | Double Ball |
| Brake Type | Pedal |
| Caster Brake Included | Yes |
| Caster Brake Type | Face Contact Brake |
| Caster Frame Material | Aluminum |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Product Group | Swivel Caster With Brake |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range | Yes |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Aluminum |
| Features | Shock Absorbing |
| Frame Finish | Powder Coated |
| Frame Material | Aluminum |
| Hole Pattern | D |
| Includes | Mounting Hardware |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 2 5/16" x 2 5/16" |
| Load Rating | 165 lbs. |
| Lock Type | No Lock Included |
| Material | Polyurethane |
| Mounting Bolt Dia. | 1/4" |
| Mounting Height | 6 5/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 2 7/8" x 2 7/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 7/8" X 2 7/8" ( D ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 5/16" x 2 5/16" |
| Overall Height | 6.312" |
| Plate Size | 2 7/8" x 2 7/8" |
| Plate Thickness | 0.219" |
| Plate Type | D |
| Raceway | Double Ball |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Temp. Range | +14°F to +194°F |
| Tread Shape | Donut |
| Type | Swivel |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Clear |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 4" |
| Wheel Material | Polyurethane |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Clear |
| Wheel/tread Hardness | 90 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 7.62 |
| HS code | 3926909980 |
| Country of Origin | KR |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Load Rating | Mounting Height | Core Color | Plate Thickness | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

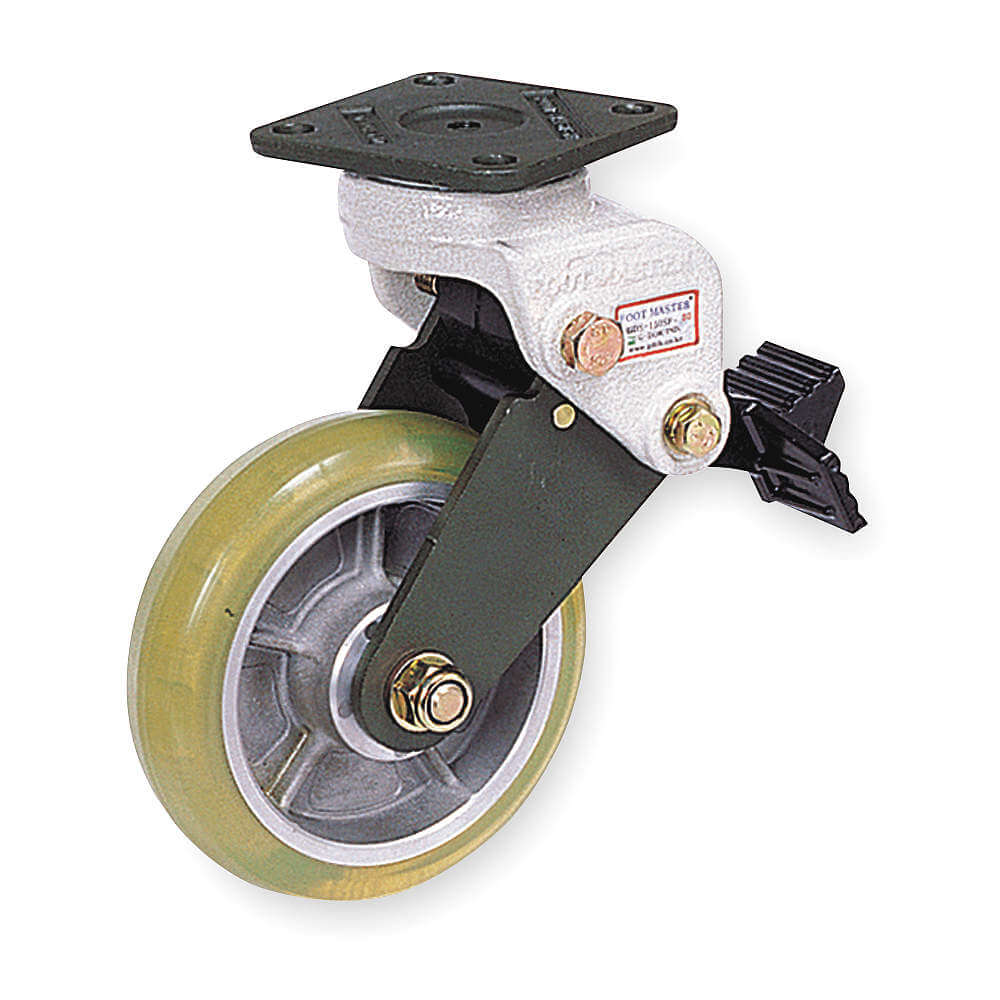

GDS-150B-SF | 6" | 1 5/8" | 550 lbs. | 9 1/16" | Gray | 1/4" | 2 3/4" x 2 3/4" | 2 3/4" x 2 3/4" | €297.40 | |
 |

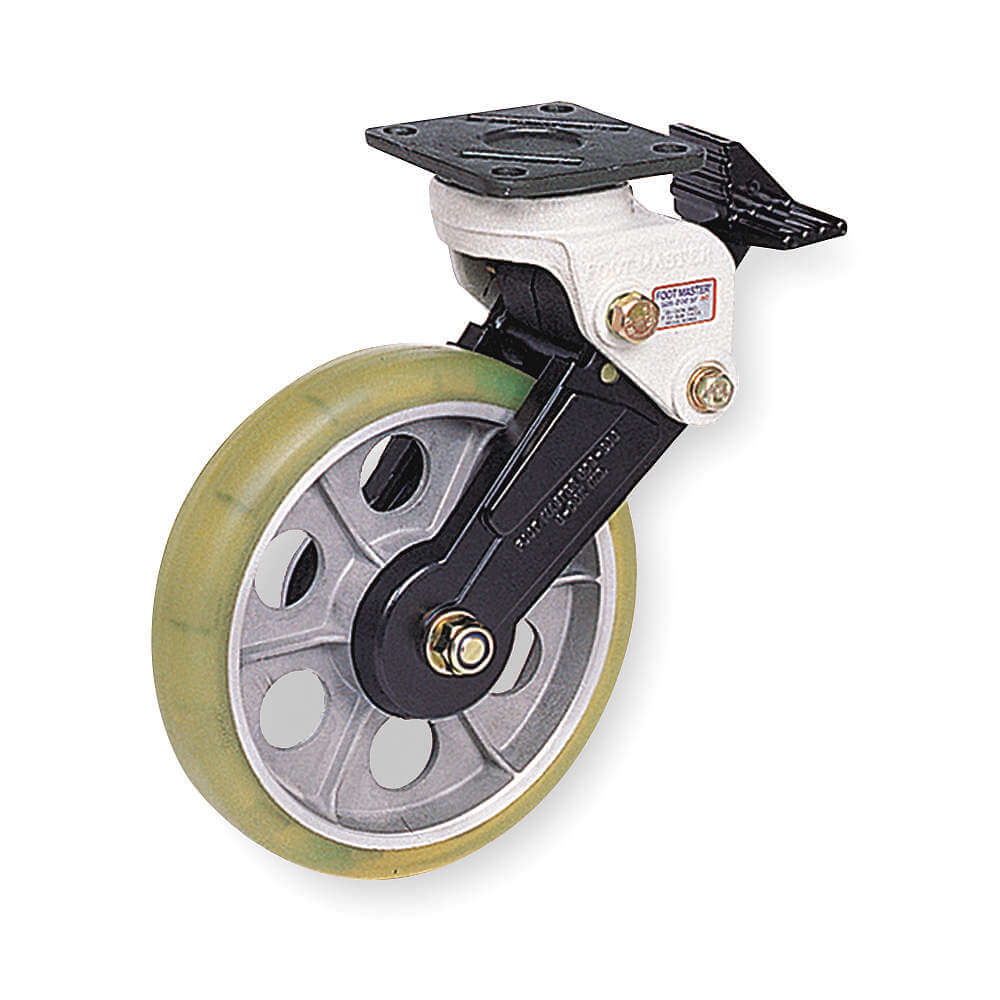

GDS-200B-SF | 8" | 1 5/8" | 550 lbs. | 10 3/4" | Gray | 1/4" | 2 3/4" x 2 3/4" | 2 3/4" x 2 3/4" | €344.03 |
